Product SKU: APC-RC-BP

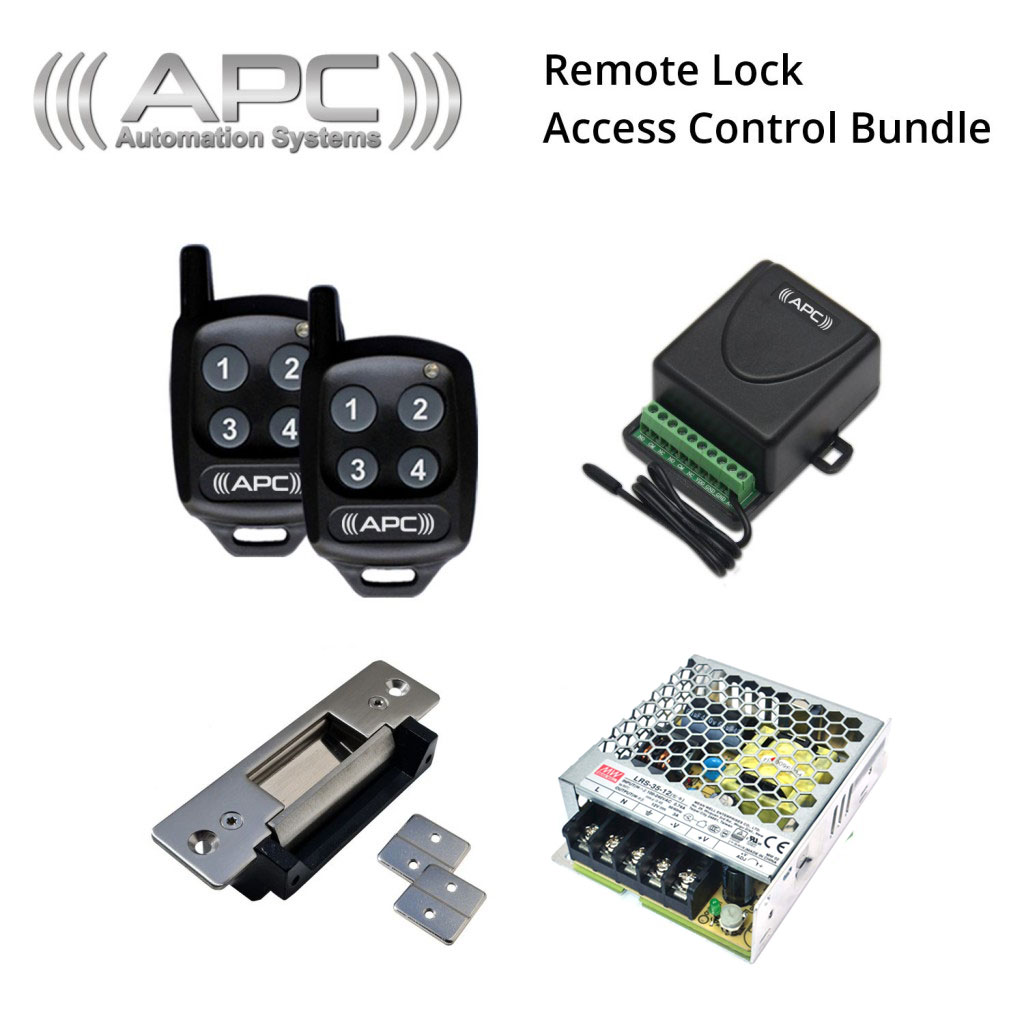

APC Remote Door Lock Access Control System Bundle Pack

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • On Sale

APC Remote Door Lock Access Control System Bundle Pack

Product SKU: APC-RC-BP

  • In Stock

Get More Info..

Kit Price:

$250.00 $258.00 APC Automotion Plus Sale

  • Or in 4 payment of $62.50 with afterpay info
  • Kit Includes

    01 APC Four Button Keyring Remote (QTY: 2)
    02 APC Two Channel Reciever for all gates, garage doors and other control systems (QTY: 1)
    03 Flush Mount Universal Stainless Steel Face Electric Striker (QTY: 1)
    04 Lock and Access Control Power Supply 12V 3A DC (QTY: 1)
  • Product Information

Product Information

APC Automation Systems FOUR Button Keyring Remote Control





  • Featuring High-Security rolling codes transmitting a unique code chosen at random
  • Slim design
  • Keyring Clip-on System
  • Compatible with APC RX2 Two Channel Receiver
  • Completely Backwards Compatible with all legacy APC control boards


APC RX2 Two Channel Receiver


The APC two-channel receiver can be used on gates, garage doors regardless of the brand to allow for the entire APC wireless family of equipment such as remotes, wireless keypads, wireless push buttons, etc to operate the connected device.


Prerequisites

open/close, open/stop/close, OSC, PUSH, or any other input on the integrating system 12-24V AC/DC power (power adapter available for cases where this is not accessible.

There is no longer a need to carry multiple remotes as this simple solution would integrate all connected systems onto the one APC control system. The prerequisite of the system to accept the receiver is that it has a functional open/close terminal on its control card. Some systems will be labeled (open/close whereas others are labeled PUSH or OSC). In such a situation the button of your choosing on the remote would open and close the connected system based on its current position.

If the system has an input exclusively for the open command and another exclusively for the close command the receiver can still be used as it has two separate relay outputs and each output could connect to the exclusive command, this would mean that one button on the example remote would be for the open movement and another button on the remote would be for the close movement. In cases of side by side double garage doors, you can use the two outputs of the receiver to control each of the systems separately.



Other uses

The APC Smart two-channel receiver has a further feature of setting an output for latching circuit, this could be used to control systems to ON/OFF per button press such as lights, pumps, safety devices inputs, alarms, etc.



Package options

The receiver can be purchase in multiple package options such as

  • Receiver only
  • Receiver with a low voltage power adapter (in case power is not available for the device)
  • Receiver and a two remote combo
  • Receiver, power adapter and a two remote combo
  • Receiver, wireless two feature entry keypad, wireless single feature exit button three remote combo
  • Receiver, wireless two feature entry keypad, wireless two feature exit button three remote combo
  • or any package can be made using any of the APC compatible devices



Compatible devices

  • APC-RC4S Four Button Keyring remote
  • APC-RC4-SV Four Button Sun Visor Remote (six colour choices)
  • APC-RC450S Long Distance Remote
  • APC-KP2W Two Channel Wireless Keypad APC-KP2W
  • APC-PBS-KW Single Wireless Button with Isolation Key
  • APC-PBD-KW Double Wireless Button with Isolation Key
  • ANT-1 External Boosted Antenna



Specifications

  • 433.92Mhz High-Security Rolling Code compatible with APC devices
  • Dual Mode Receiver with momentary and latching modes
  • Normally Open and Normally Closed circuits
  • Supports 12-24V AC/DC
  • Single Remote Delete or Full Format
  • Max switching load 24VDC/2A

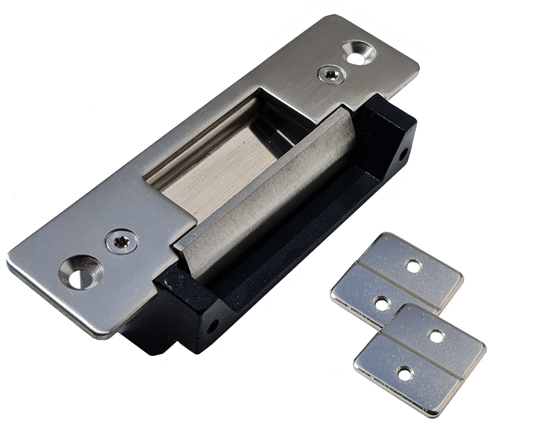

ES-138 Electric Striker


  • Stainless steel design
  • 12V DC 250mA Fail Secure
  • Recess Mounted
  • 800Kg Holding Strength
  • Dimensions: 124Lx32Wx33H(mm)

12V DC Power Supply

Lock and Access Control Power Supply 12V 3A DC

LRS-35-12 Single Output Switching Power Supply 12V/3A Output

A 35W single-output enclosed type power supply with a 30mm low-profile design.

The input range is 85-264VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.

Brand: MEAN WELL
Weight: 350 Gr



SPECIFICATIONS

Input Type Single Phase
Input Voltage 85 ~ 264VAC
Input Current 0.42A / 230VAC
Output Voltage 12V
Output Current 3A
Rated Output Power 36W
Output Type Single
Output Voltage Adjustment 10.2 ~ 13.8V
Prescribed Electrical Item No
SELV Yes
Efficiency 86.00%
Operating Temperature Range '-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet)
Warranty 1 Year
Approvals CE, CB, RCM
IP Rating / Environmental Protection Less than IP65
Dimensions 99*82*30mm (L*W*H)
Recommended for New Designs Yes
