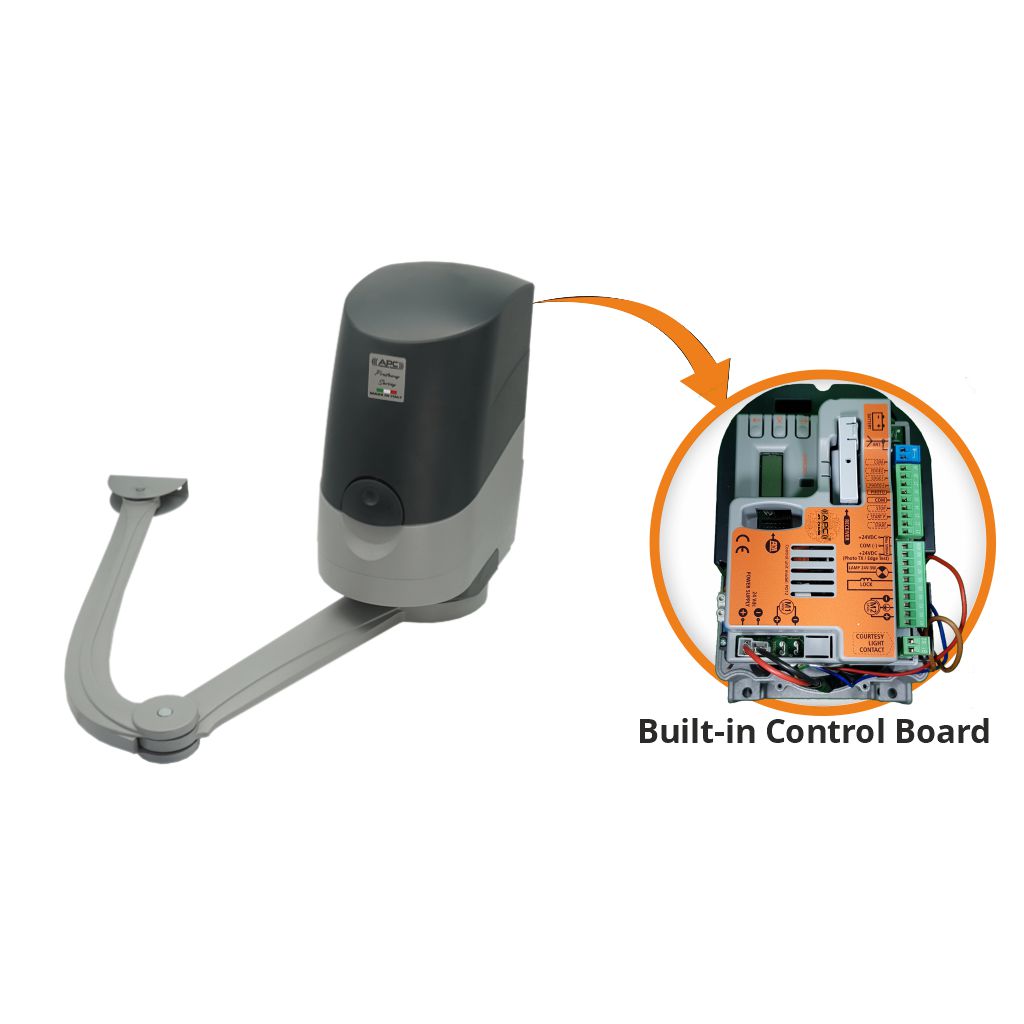

APC Proteous 4200 Articulated Arm (Master Motor) with Built-in Control Board and Adjustable Stops

Product SKU: APC-PA-4200-M

In Stock

Get More Info.. Get More Info..

Free Shipping

Kit Price:

$1,325.00

Or in 4 payment of $331.25 with info

APC Proteous 4200 Built-in Control Board Master Motor Articulated Arm with Adjustable Stops
Kit Includes

01 APC Proteous 4200 (Master Motor) Articulated Arm with Built-in Control Board and Adjustable Stops(QTY: 1)

02 APC Proteous 4200 Long Arm(QTY: 1)
Product Information

This ad is for a single replacement articulated arm (Master Motor with Built-in Control Board) kit

Italian Made Extra Heavy Duty Articulated Arm System

Packing a punch the Proteous 4200 system can deliver 760N of thrust to operate gates up to 500kg or 4.2m in length. With a built in adjustable stop for both the open and closed positions making the system is versatile in its stopping arangment.

Adjustable built in stopper

Simple to adjust just install the supplied Open position stopper in the hole at the desired stop point and tighten. Repeat again for the Closed position stopper.

System Capacity

Installation Geometry

Specifications

Thrust	760N
Motor Voltage	24v DC
Manual override	Via override key supplied
Working temperature	-20° - +50°
Duty Cycle	80%
Max. Operating Angle	120°
Gates size	4.2m max
Gate weight	500kg max
