Product SKU: APC-790M

APC-790 Articulated Motor, Cover and Assembly Hardware

  • In Stock

Price :

$504.00

Get More Info.. Get More Info..

Product Information

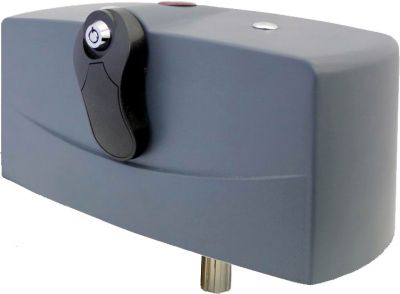

Complete Motor Replacement for APC-790 & 890 systems


Complete Motor Replacement for APC-790 & 890 systems

Extra Heavy Duty Articulated Operator



Pure Muscles, Powerful, Quiet, Long Life

100% Duty Cycle (can run all Day)


WARNING: Please note this product is a replacement motor for an existing APC gate automation system. Warranty is only valid when used in conjunction with the APC equipment. No guarantee is given when used for another brand other than the APC brand.





Complete Motor Replacement for APC-790 & 890 systems





This complete motor is a direct replacement for APC-790 (single) & 890 (double) gate opener systems,
Designed in Australia for the Australian conditions, hot, cold and dusty, it is engineered to last a long life and carries a full 12 months Warrantee.
The motor is a powerful 24v DC built from reliable components, the motor drive shaft is thick and strong unlike most of the competitors models.
The gears are all strong metal guaranteeing a very long working life, the gears are concealed from dusty conditions making it the ideal choice for all conditions.

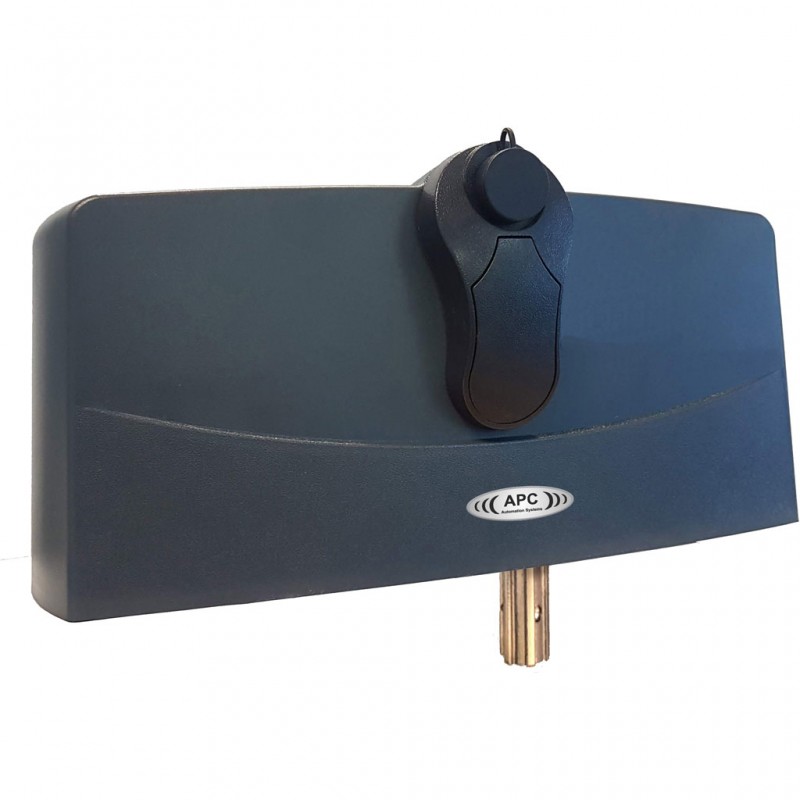

Manual Override:
Easy to use manual override with 2 keys supplied with each motor, simply unlock with the key, turn the leaver and the gate will be free and can be opened manually.

Choice of Installations:
* The APC-790/890 can be installed on the left or the right side gate.
* The APC-790/890 is fitted with a double sided manual override (this also means that the motor cover can be turned by 180° to accommodate a left or hand side installation.
* The APC-790/890 can be installed forward mounted or side mounted, Both the side mount and the forward mount brackets are available for purchasing.

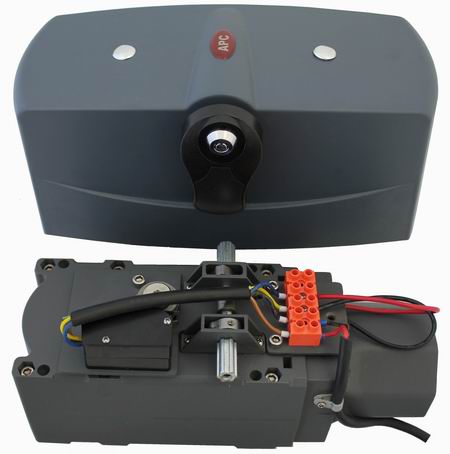

Complete Motor Replacement for APC-790 & 890 systems
Complete Motor Replacement for APC-790 & 890 systems
Complete Motor Replacement for APC-790 & 890 systems
Complete Motor Replacement for APC-790 & 890 systems

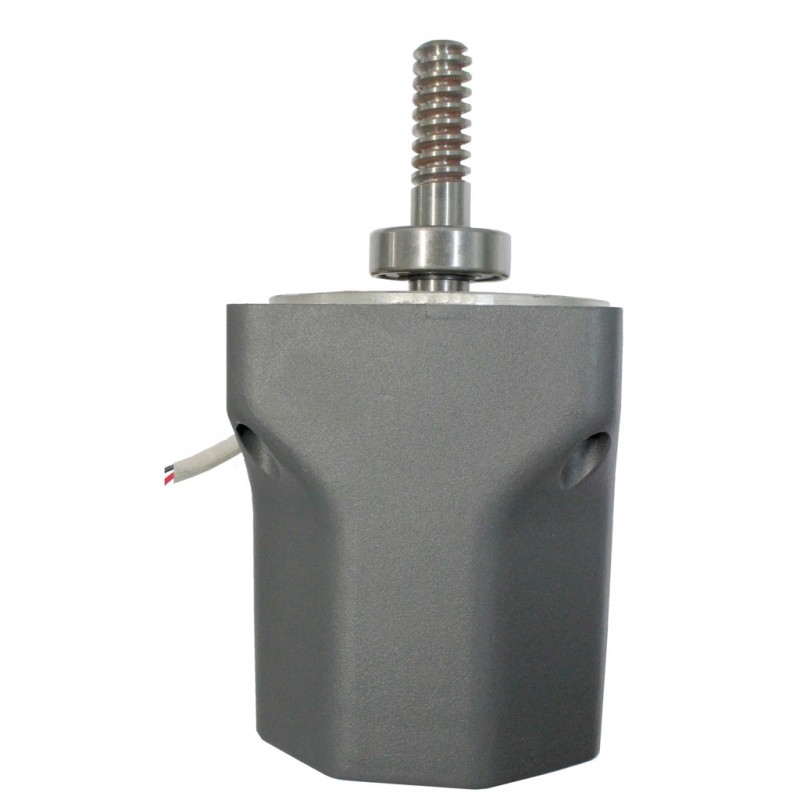

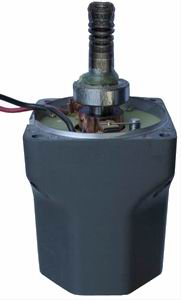

DC Motor
Strong DC motor with thick and strong 15mm output shaft

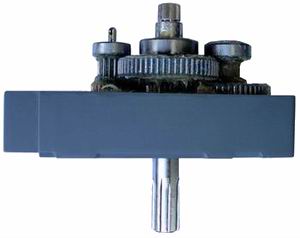

Motor Spline Drive Shaft
Very strong gear box with thick and strong 25mm output spline shaft

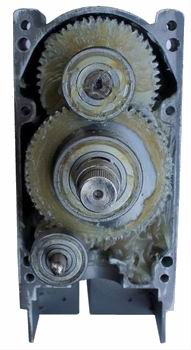

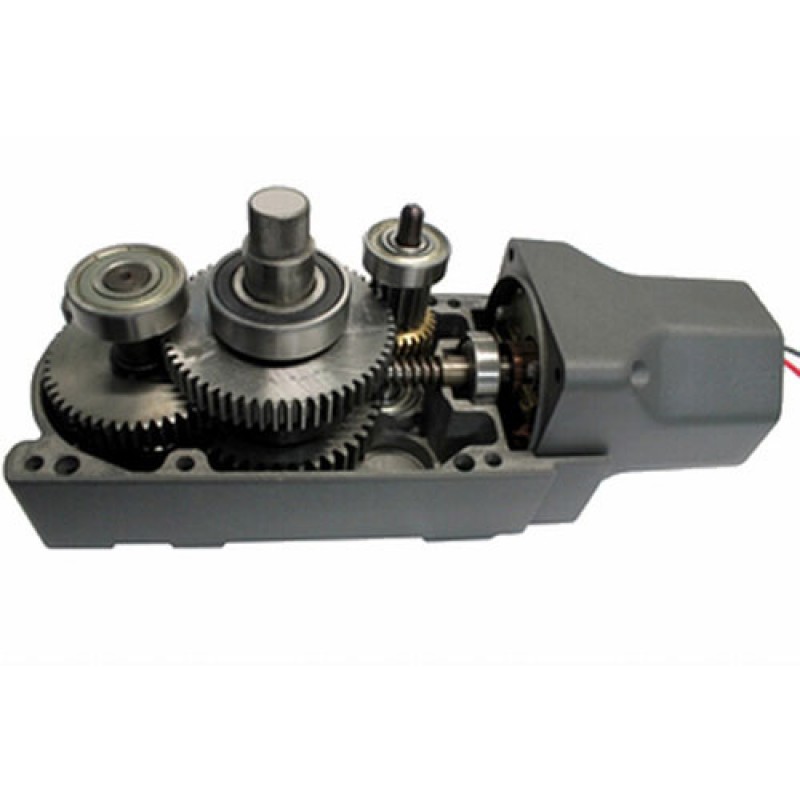

Gear Box
The gear box is designed to be totally maintenance free, all gears are coated metal with bras bushes and the gear box is well packed with heavy duty grease.

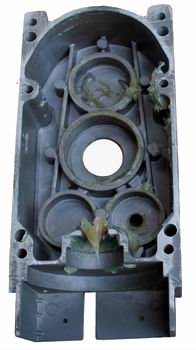

Gear Box Cover
Made from cast alloy


Package Contents

Package Contents
* 1 Powerful 24v DC motors
* Motor Cover with attachments screws, and caps
* 2 Attached limit switches
* Manual over ride handle and keys
Complete Motor Replacement for APC-790 & 890 systems


Specifications

Operating Voltage 24V
Operating Current 5.2A
Maximum Power Consumption (W) 70W
Housing material Cast Alloy
Motor Force N.M 400N
Duty Cycle (%) 100%
Maximum gate size (Per Leaf) 6m Max.for single & 2x3m Max.for double
Maximum gate weight (Per Leaf) 400KG Max.
