APC 4G Network Receiver (4G/VoLTE Compatible)

APC 4G Network Reciever (4G/VoLTE Compatible) GSM Controller, GSM Switch
4G/VoLTE Compatible GSM Remote Control Single Relay for Automatic Gate Opener Systems

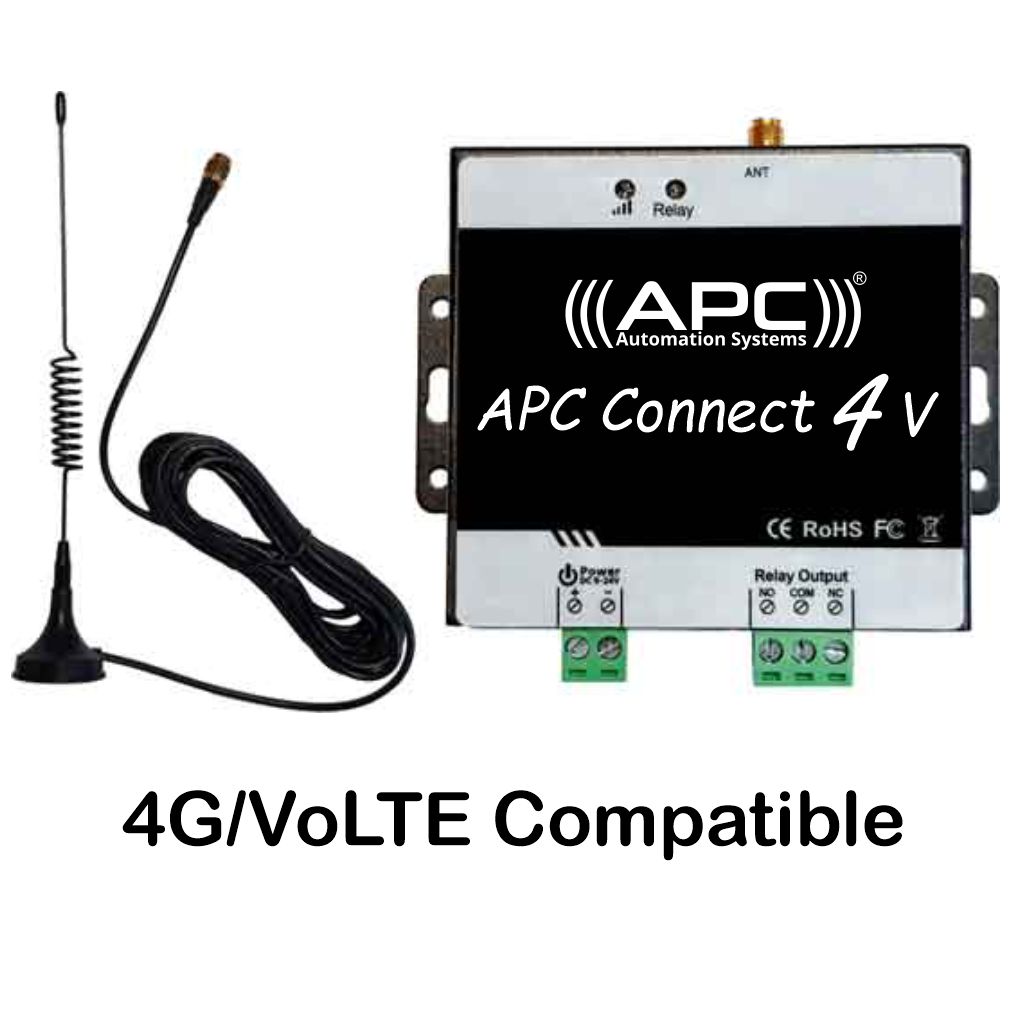

APC Connect 4 V | 4G/VoLTE Compatible GSM Controller, GSM Switch

The APC Connect 4 V will allow all programmed users to ring the device from anywhere, at any time, with the ability to toggle the connected device to operate. If desired, the unit can also be set to public mode so that any telephone number to call can toggle the operation.

The administrator/installer can easily adjust the method of operation and toggle from the system features by sending simple SMS commands from their mobile phone.



(4G/VoLTE GSM Controller, GSM Switch) How does it work:

1. An active SIM card must be installed on the device. Using the sim card in this device will not incur more than the cost of keeping it active if you turn off alerts, but the sim card needs to be active and able to receive incoming calls).
2. The device is then wired to the relevant system that needs to be operated, and up to 200 users can be programmed through quick SMS commands.
3. When any of these programmed numbers ring the device, it will ring once, reject the call, and proceed to open/close the system. The device can be dialled from anywhere at any time by any programmed user.



Prerequisites:

An active SIM card with good to excellent mobile coverage in the area where Connect 4 V will be installed is required. The SIM card cannot be a data SIM and must have an active telephone number.

The SIM card's voicemail feature must be disabled. The service provider (Telstra, Optus, Vodafone, Aldi, etc.) can do this for you.

A voltage Supply to power the device. It has a high compatibility of 9-24V DC (Any APC Gate Automation System can power this GSM unit)

Note: If your system cannot supply the required voltage, three solutions are available at an extra cost.

a) A power adapter 24VDC (PP-24) or 12VDC (PP-12) can be supplied.

• 24V Adapter. Click here for more information
• 12V Adapter. Click here for more information

b) A power convertor (APC-PC12) to transform a voltage source in AC/DC 16-28V to a 12V DC output.

• Power Converter: Click here for more information.

Features: (4G/VoLTE Network GSM Controller, GSM Switch)

• 4G Access Control Device, which is VoLTE-capable
• OPEN/CLOSE or turn ON/OFF access control systems, automatic gate systems, machines, and more.
• Ring the system from anywhere in the world.
• PRIVATE MODE: Caller ID is used for verification, but unknown numbers are ignored.
• PUBLIC MODE: Any call or SMS can operate the system
• Up to 200 authorized phone numbers can be configured simultaneously.
• SMS confirmation to an authorized phone number or master user when the system is triggered to OPEN/CLOSE or turn ON/OFF.
• Easy to configure the device by SMS.

Specifications

Quick Reference Diagrams of 4G/VoLTE Network GSM Controller, GSM Switch

What is 4G/VoLTE?

Voice over LTE (VoLTE) is an LTE high-speed wireless communication standard for voice calls and SMS using mobile phones and data terminals.

Voice over LTE (VoLTE) lets you make clearer phone calls over 4G (LTE) networks. Mobile network operators are beginning to shut down their 3G networks, so VoLTE will be needed to keep your mobile network access control device operating.

What is Required for Devices To Be 4G/VoLTE Compatible?

To use VoLTE, you will need a 4G device that is VoLTE-capable and compatible with the required technology and bands.

The APC Connect4 V 4G access control device is VoLTE-capable and can operate in the following bands/frequencies:

Band: B1/B2/B3/B4/B5/B7/B8/B28/B40
Frequency: 850/900/1800/1900MHZ (4G/VoLTE Compatible)

Package Contents

• 1 x APC-Connect 4 V (4G/VoLTE Compatible)
• 1 x Antenna
• 1 x Installation Manual
