900kg Extra Heavy Duty Sliding Gate Automation Motor with All-Metal Gear and Magnetic Limits With Two Remote Controls and Free Battery Backup | Italian Made by DEA, Faster and Stronger Automatic Gate Opener System.

900 KG Sliding Gate Opener DEA-900-DC24, Extra Heavy Duty 24V Italian Made Sliding Gate Motor Overview

At a glance | The Sliding Gate Opener/Closer

The sliding gate opener DEA-900 is an extra heavy-duty all-metal gear that has full programmability using the onboard control board with an LCD interface. It has a capacity of 10m and 900 kg, and is suitable for residential usage with simple setups and commercial sites and a suitable sliding gate on sloped driveways. See the full details below.

Electric Gate Automation System Features

• 900KG Capacity
• Suitable sliding gate on sloped driveways
• Extra heavy-duty all-metal gear is strong and durable for long-lasting use.
• 10m Ultra-long sliding gate capacity
• The release system is now protected for increased reliability.
• A new transparent control unit box with an easy-open system is also available.
• LCD Display (No DIP Switches or Dials)
• New design with the possibility of installing an LED strip (optional LED kit)
• New slotted fixing holes offer more significant adjustment during installation, ensuring backward compatibility.
• New ABS crankcase for better weather resistance.
• Increased degree of protection (IP44)
• The DEA-900 has a new magnetic limit switch system, consisting of a new technology sensor and a set of magnets attached to the multi-adjustable rack.
• DEA-900 Automatic Sliding Gate Motors are made with high-quality materials, such as steel and bronze, guaranteeing long-term reliability.
• Self-locking with magnetic limit switch
• Speed adjustment and slow down in opening and closing
• Anti-crashing safety device

Control Board Overview

• Universal control board for managing 1 or 2 motors in 24v.
• 6 inputs | 5 Outputs
• Up to 100 Remote Controls
• 433.92 MHz Receiver

• Display programming with three keys for menu navigation
• A wizard for learning the motor stroke
• List of parameters with direct access
• Encoder input for 1 or 2 operators
• Programmable inputs with input diagnostics visible on the display
• Built-in 433.92 MHz receiver
• Standard speed run and slowdown management
• Reset the control board to be able to reuse it with another automation
• Removable terminal blocks
• Programmable outputs for:
  • safety self-test
  • operation of the electric lock
  • monostable, bistable or timed
• Possibility to set the type of automation to have a specific list of parameters (sliding, swinging, tilting, sectional, barriers, bollards)

Accessories Compatibility and Controlling Options | DEA-900 Sliding Gate Automation

• Constant DC Accessories Output
• Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
• Remote controls
• Induction Loops
• Weekly Timers
• Entry and Exit push button with isolation key switches (Wired and
• Wireless Options Available)
• Keypads (Wired and Wireless Options Available)
• Exit/entry sensors
• Intercom system with dry contact output
• Automatic switching timer
• WiFi Control System (APP-Based Control)
• GSM Control Systems (Mobile Call/SMS-based Control)

Remote Control Features

Dimensions | Italian Made DEA-900 Electric Sliding Gate Motor

Specifications

Wiring Example

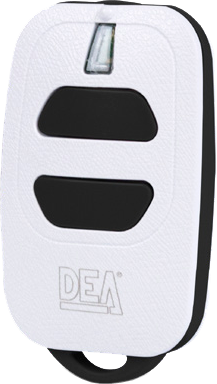

DEA Standard 2-Channel Remote Control GTI2

DEA 2-Channel Remote Control, frequency 433.92 MHz.

With DEA remote controls, you can open and close the automation remotely, practically, quickly, and safely.

• All remote controls are set to Rolling code by default.
• The top button is already set to open; the others are deactivated but can be configured to give other commands to the operator or activate outputs from the control board itself.
• Remotes are available in 2 and 4-channel (button) versions.
• The colour of the LED identifies the type of transmission encoding set.

Technical Features

DEA remote control GTI2

Power supply: LITHIUM BATTERY CR2032
Transmission frequency (MHz): 433,92
Range (m): 50-200
Operating temperature range (°C): -20 to +50

Battery Backup Kit For
DEA 600kg / 900kg / 1400kg Sliding Gate Kit

24v - 2x12v 1.2Ah rechargeable battery kit, complete with cables and mounting bracket

(Pre-installed when purchased with the Gate Opener Kits)

Technical Features | Battery charger for DEA Sliding Gate Automation.
