Product SKU: SMARTY7-7000-DC-WF

7M / 1400KG Super Intensive Use Brushless 36V Single Swing Gate Opener Kit|100% Italian Made by Roger Technology SMARTY7 for Gate Automation System. 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits Single Swing Gate Automation System With Remote Controls, APC MONDO Wi-Fi Keypad Smart APP Access Control.

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

7M / 1400KG Super Intensive Use Brushless 36V Single Swing Gate Opener Kit|100% Italian Made by Roger Technology SMARTY7 for Gate Automation System. 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits Single Swing Gate Automation System With Remote Controls, APC MONDO Wi-Fi Keypad Smart APP Access Control.

Product SKU: SMARTY7-7000-DC-WF

  • In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,825.00

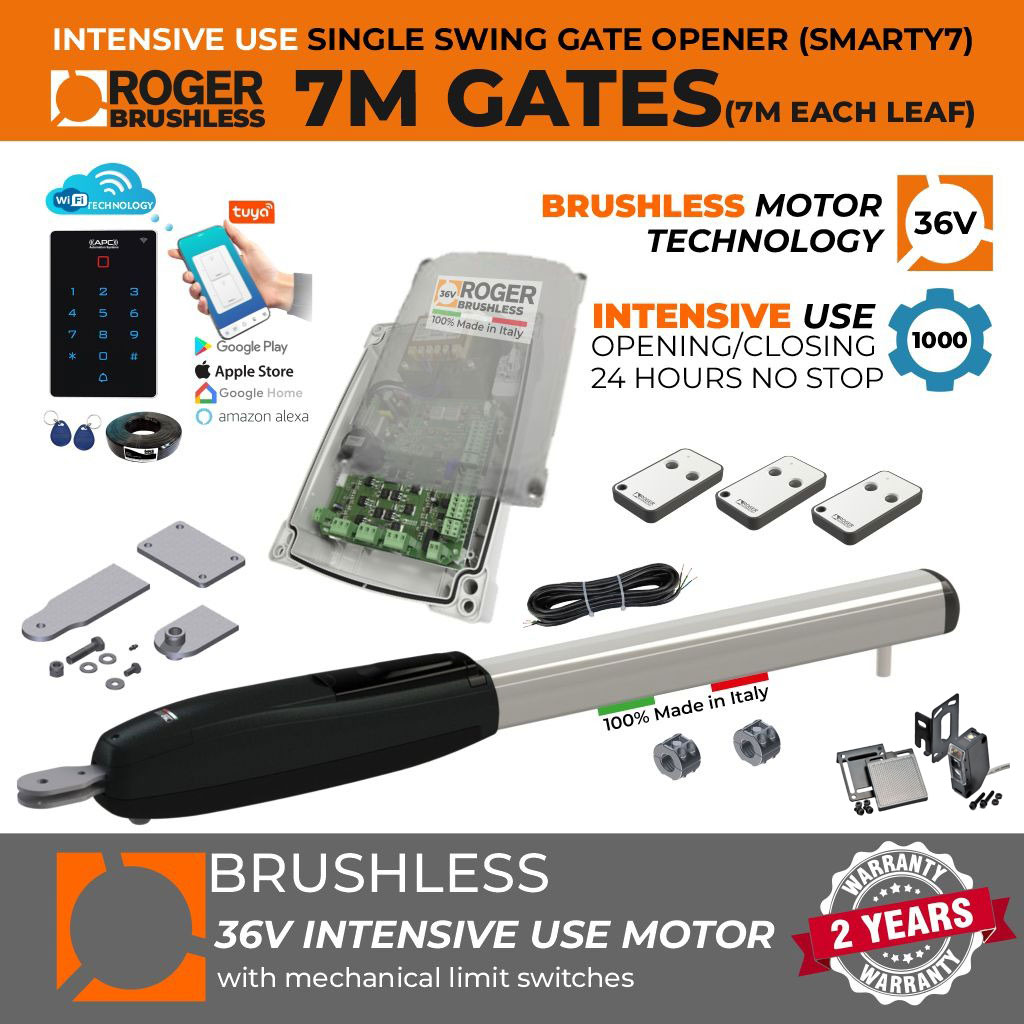

  • Roger Technology 36V Brushless Super Intensive Use Swing Gate Opener | Max. 7M / 1400KG Gate Leaf

  • Kit Includes

    01 36V BRUSHLESS Swing Gate Opener Motor|100% Italian Made by Roger Technology SMARTY7 (7M /1400KG Each Leaf) Super Intensive Use for Gate Automation System. (QTY: 1)
    02 Roger Technology 36V Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box. | 100% Italian Made | (QTY: 1)
    03 3m 3 Core Non-Shielded Cable (QTY: 1)
    04 Roger Technology Two-Button Remote Control (QTY: 3)
    05 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)
    06 APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader (QTY: 1)
    07 EM Swipe Tag (QTY: 2)
    08 5m 4 Core Non Shielded Cable (QTY: 1)
    09 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes, batteries etc) (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Super Intensive Use Brushless Swing Gate Opener Motor
100% Italian Made by Roger Technology SMARTY7 for Swing Gate Automation System.

Italian-Made Roger Technology Brushless Ultra High-Speed Swing Gate Motor
| Max. 7M or 1400KG Each Leaf (14m Opening for Double Swing Gates) | Super Intensive Use |

Super Intensive Use 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits

Electromechanical actuator Super Intensive Use BRUSHLESS, 36V low voltage, with native encoder onboard, irreversible, swing gate opener with mechanical stopper in opening and closing.

Adjustable built-in stopper

Simple to adjust just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required, this is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.

Actuator Overview

Extra Heavy Duty Single Gate Opener

Dimensions

Installation Geometry and System Capacity

PRELIMINARY CHECKS

• Check that the structure of the gate is sturdy and in good condition.

• Check that the hinges are well greased and that the gate moves through its entire travel smoothly without impediment or friction.

• Always install mechanical stops in the gate open and the gate closed positions, anchored securely to the ground and with elastic damper elements (e.g. rubber buffer) to attenuate the impact of the gate leaf against the stop.

Depending on the model installed, the available space, any obstacles existing in the installation site, and the required angle of aperture, install the rear bracket on the pillar and check that the installation measurements indicated in the table are correct.

The measurements [A] and [B] must always be compatible with the maximum effective travel of the piston.
If the sum of the values [A]+[B] is greater than the maximum travel, shorten the rear bracket to reduce measurement [B]

N.B: for the gate to operate smoothly and correctly, the measurements [A] and [B] must always be approximately 20-30 mm greater than measurement [G].
The measurement [G] indicated in the table was calculated considering a gate leaf thickness of 60 mm.

• The end of the piston rod must meet the gate leaf.

• When opening the wing manually, check that the piston does not collide with the wing or the pillar.



Technical Specifications

Power line supply:    230V AC - 50Hz
Motor power supply:    36V
Power rating:    200W
Frequency of use:    Intensive use
Thrust:    600 - 7000N
Operating temperature:    -20 C° +55 C°
Protection level:    IP44
Reductor Type:    Irreversible
Manoeuvre speed:    1,6 cm/s
Opening time:    35-50 s
Stroke:    520 mm
Limit switch:    Mechanical stopper in opening and closing
Recommended digital controllers:    230V: EDGE1/BOX
Encoder:    Digital native encoder SENSORLESS 48 PPR
Operating cycles per day (opening/closing - 24 hours no stop):    1000
Maximum dimension product in mm (L x W x H):    1312 x 116 x 165







Roger Technology 36V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | EDGE1/BOX |

The Roger Technology 36V EDGE1/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 36 V EDGE1 control unit controls 1 or 2 ROGER brushless motors in the sensorless mode for applications on large-sized or heavy gate wings.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).



Technical Features

Power line supply: 230V AC - 50 Hz
Operating temperature: -10+55 C°
Protection level: IP54
N. motors activated: 2 Brushless Motor
Max power per motor: 250W
Max courtesy light charge: 100W 230V AC - 40W 24V AC/DC
Max power gate open light: 3W (24V DC)
Max voltage accessories output: 20W (24V DC)
Electrical-Lock max power: 15W (12V DC)
Flashlight voltage: 24V DC
Max flashing light charge: 25W
Battery: Optional
Maximum dimension product in mm (L x W x H): 330 x 230 x 115



Control Board Overview



Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)





Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11







APC-RR-11 Retro Reflective Sensor



The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.

  • Up to 11 Metres Infrared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment & Misalignment led to assist in the installation process

  • Resin filled for the ultimate weatherproofing



APC Mondo Wired Keypad with APP via Wi-Fi



The APC Mondo Wi-Fi Keypad can be used as a simple keypad access control device or alternatively as an advanced unit. Its special features allow the system to be operated by Pin Code, Swipe Tag and even remotley by APP whether on-site or off-site (anywhere in the world).

Supplied with a 10 meter cable roll it is wired back to the main control board of the system. Its also supplied with two swipe tags for PIN FREE access.


Key Feature Set:

  • Full operational control by Tuya APP
  • Resin Filled for best weatherproofing
  • Low Power Consumption
  • Backlit Touch Keys
  • Up to 2000 Users
  • Pin Code, Swipe Tag or DUAL AUTHENTICATION Swipe Tag then Pin Code
  • Adjustable Relay Time from 0-99s or Latching ON/OFF
  • Doorbell Contacts to connect to your doorbell system



Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $2,825.00
