PTM – 7 Day Programmable Timer
Designed to control the open and close times for gates, overhead doors, and parking barriers.
PTM Timer Model: PTM-24 | 24 VDC/AC Input

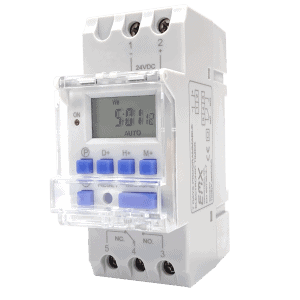

The PTM is an easy-to-program 7-day timer designed for use in a wide range of control applications. The timer supports up to 16 ON/OFF events per day and 15 combinations of daily programs. Choose between a 12 or 24-hour clock format to program the open and close times for overhead doors, gates, and parking barriers. The PTM is DIN rail mounted and available in a 24 Volt model. The internal battery provides memory backup in the event of a power outage. With its flexible programming, the PTM provides secure access to any facility, at any time.
Applications
- Timed Access for Secure Entry/Exit
- Gate Opener Systems
- Boom Gate Barrier Systems
- Magnetic Locks and Electric Strikes
- Indoor / Outdoor Lighting
- Security Alarm Systems
FEATURES OF THE PTM PROGRAMMABLE TIMER
- Flexible programming with 16 ON/OFF events per day
- Large display and push buttons for easy operation
- Battery backup for power outages
- DIN rail mount installation
- Three power supply options
Features |
PTM-24 |
Voltage Range (across models) |
24 VDC/AC Input |
Relay Rating |
16 A |
# of On/Off Events |
16 |
# of Day Combinations |
15 |
12-Hour or 24-Hour Clock |
Both, Configurable |
Manual Relay Control |
Yes |
Setting Relay After Programming |
Yes |
Mounting |
DIN |
The PTM has a coin-cell battery built-in to keep the device’s programmed memory even through power down. This allows a user to program the timer before connecting power.
EMX PTM-24 SEVEN-DAY PROGRAMMABLE TIMER
Technical Data | PTM-24 24 VDC/AC Programmable Timer
Power & Current Draw |
: 24 VDC/AC – 15 mA standby, 37 mA activated |
Events |
: 16 ON/OFF per day |
Daily Program Options |
: 15 combinations |
Relay Contact Rating |
: SPDT 16 A @ 24 VDC |
Operating Temperature |
: -10°C to 50°C |
Surge Protection |
: MOV protection devices |
Blackout Memory Protection |
: 90 days |
Connections |
: 5 screw terminals |
Mounting |
: DIN rail |
Housing |
: ABS plastic |
Weight |
: 100 Gr (0.10 kg) |
Dimensions (L x W x H) |
: 86.5 mm x 36 mm x 68.5 mm |
Wiring Connections

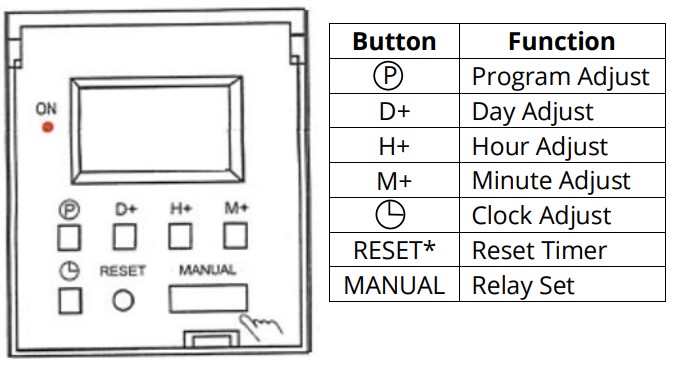

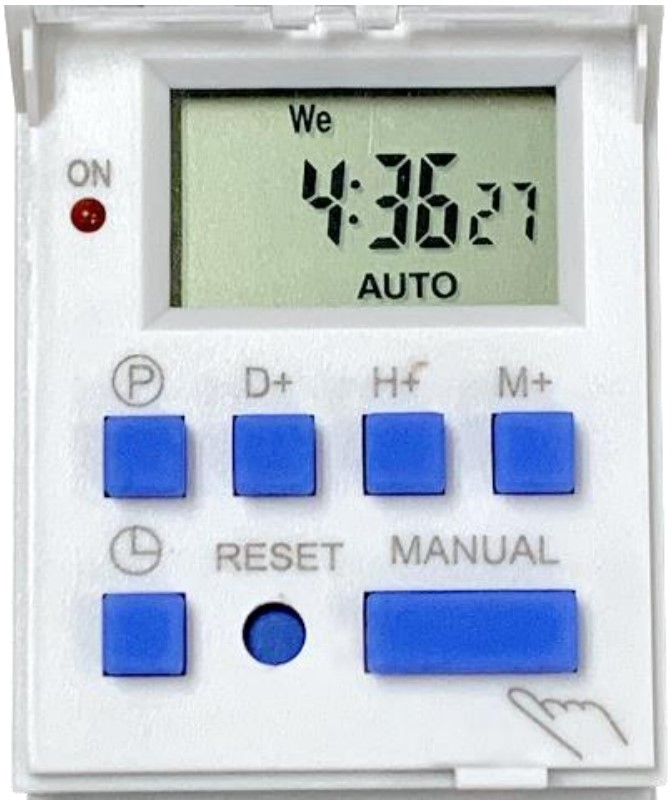

User Interface
