6m Trackless Bi-Fold Double Swing Gate and Gate Automation Combo | Bi-folding Space-Saving Feature Double Swing Gate Hardware (CAIS) With Four Gate Frame and 24V Brushless Gate Automation Kit 100% Italian Made by Roger Technology Double Swing Gate Opener

Automation, Gate Frame, Bi-Folding Double Swing Gate Hardware (Central Hinges Included)

Bi-Folding Double Swing Gate Hardware, Central Hinges Included, for Single Leaf Max Length 3m, Max Weight 110kg, Max Height 2m

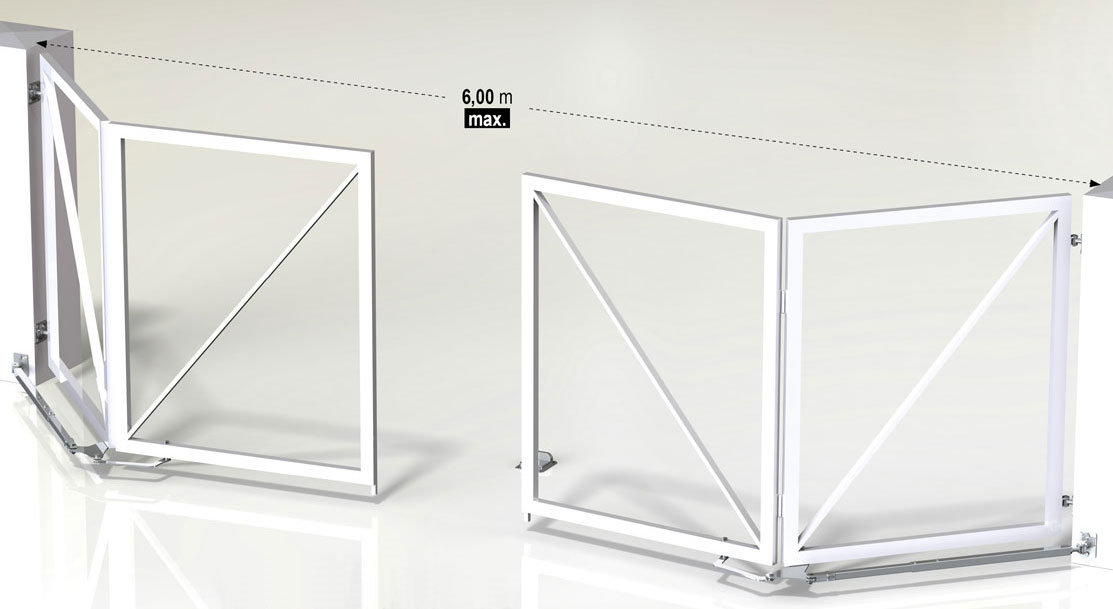

Trackless Bi-Folding Driveways Swing Gate Hardware, Space-Saving Feature, All-In-One Box

FREE UP EXTRA SPACE

A traditional type swing-gate use up to 100% more backspace in its opening and closing if compared with bi-folding swing gates. Meaning that the standard space taken up by a conventional swing gate will be free to utilise in some other way. The CAIS TWIN DRIVE bi-folding hardware is particularly useful in places where space is at a premium, such as urban areas with high population density. The traditional swinging gate will take up valuable space and can be quite inconvenient to use at times. The CAIS TWIN DRIVE bi-folding system will free up more space for vehicles or foot traffic.

The Installation Steps | Bi-folding Driveways Swing Gate Complete Hardware

The installation does not require complicated steps and materials. No welding is required; therefore, the working time is not too long. We invite you to follow the below installation steps.

Other Benefits of Bi-Folding Gate Hardware (Swing Gate Leaf Twin Drive)

Swing Gate Bi-Folding TWIN DRIVE is an ideal solution for driveway entrance access. It is designed to allow a vehicle user full manoeuvrability around a property. A Bi-Folding Gate will be less expensive to automate than a double swing gate since it requires only one gate operator instead of two. It is a perfect solution for the entrance with a gravel surface, considering that you do not need to lay down the rails. There‘s no doubt that Bi-Folding Gates is a money and space-saving alternative that is convenient and can be very stylish.

Extremely Quiet

In the past, Swing Bi-Folding gates were originally very noisy. Older versions use steel rails and wheels, which can be very noisy compared to New CAIS TWIN DRIVE Trackless Bi-Folding System.

Reliable

The CAIS TWIN DRIVE Trackless Bi-Folding System is reliable in any weather condition, even if the wind blows heavily.

Bi-Folding Swing Gate System's Special Needs

They need a special frame, so a few factors need to be considered, such as cross-bracing. The reason why cross-bracing is fundamental is primarily to keep the leaf from sagging.  A compression cross-brace transfers weight from the top bar by pushing down against the bottom hinge or a vertical component or post, which transfers the load to both hinges. Improper or missing cross-bracing will cause the Vertical deflection of the leaf.  Cross-bracing should always “lean into opening”. Furthermore, the bi-folding swing gate only works properly when the internal hinges are properly welded concerning the vertical axle. You‘ll also need to consider the wiring of safety edges, as this feature should be accommodated in the frame.

24V DC Brushless Gate Motor | 100% Italian Made by Roger Technology BE20 Series Super Intensive Use Gate Opener.

Brushless Swing Gate Opener Motor
100% Italian Made by Roger Technology BE20 Series 24V (Brushless Gate Motor) for Swing Gate Automation System.

Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 3M or 300KG Each Leaf | Super Intensive Use |

100% Duty Cycle Brushless Gate Motor with Mechanical Stoppers Opening and Closing

Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 3m or 300kg.

Actuator Overview | Brushless Gate Motor for Swing Gate Automation System

Dimensions and System Capacity | BE20/200 Brushless Gate Motor for Swing Gate Automation System

 All measurements are expressed in mm.

Installation Geometry | Swing Gate Automation Brushless Gate Motor

 All measurements are expressed in mm.

Technical Specifications

Roger Technology 24V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | B70/2ML/BOX |

The Roger Technology 24V B70/2ML/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 24V B70/2ML control unit controls 1 or 2 ROGER brushless motors in sensorless mode for applications on medium-sized gate leaves.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).

Technical Features

Control Board Overview

Accessories Compatibility and Controlling Options

• Constant DC Accessories Output
• Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
• Remote controls
• Induction Loops
• Weekly Timers
• Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
• Keypads (Wired and Wireless Options Available)
• Exit/entry sensors
• Intercom system with dry contact output
• Automatic switching timer
• WiFi Control System (App-Based Control)
• GSM Control Systems (Mobile Call/SMS-based Control)

Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

APC-PE2000 Photoelectric Safety Sensor Set

The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.


• Up to 15 Metres Infared beam operating distance


• Only powers on when the command is given to close the gates


• Alignment led to assist in the installation process


• Weather sealed with the supplied cover seals


• Easy screw down wiring termination

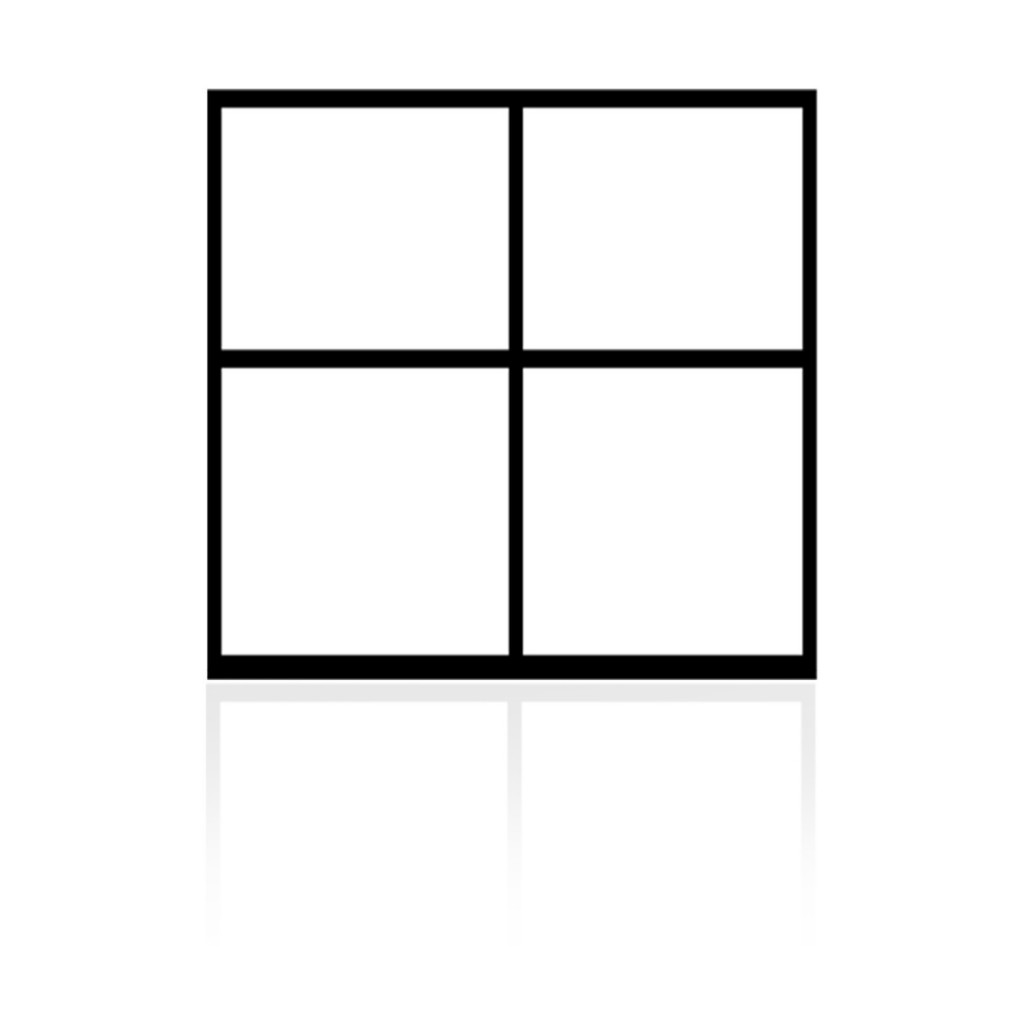

Gate Frame with Vertical and Horizontal Support Rails For Cladding

Suitable for Colorbond, Pickets, Paneling, Pailings, Decking Material and many more materials

Key Features

• 1500mm Height
• Robust Satin Black Powdercoating
• 40x40mm Steel for Top & Sides
• 40x40mm Vertical & Horizontal Support Rails
• 80x40mm Bottom Rail
• Completely Welded Throughout

Suitability

• Sliding Gate Applications
• Swing Gate Applications
• Residential Use
• Commercial Use

65mm Rubber Gate Stop

The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.





65mm Rubber Gate Stop Dimensions
