Product SKU: SGK-R78-60-Z-C

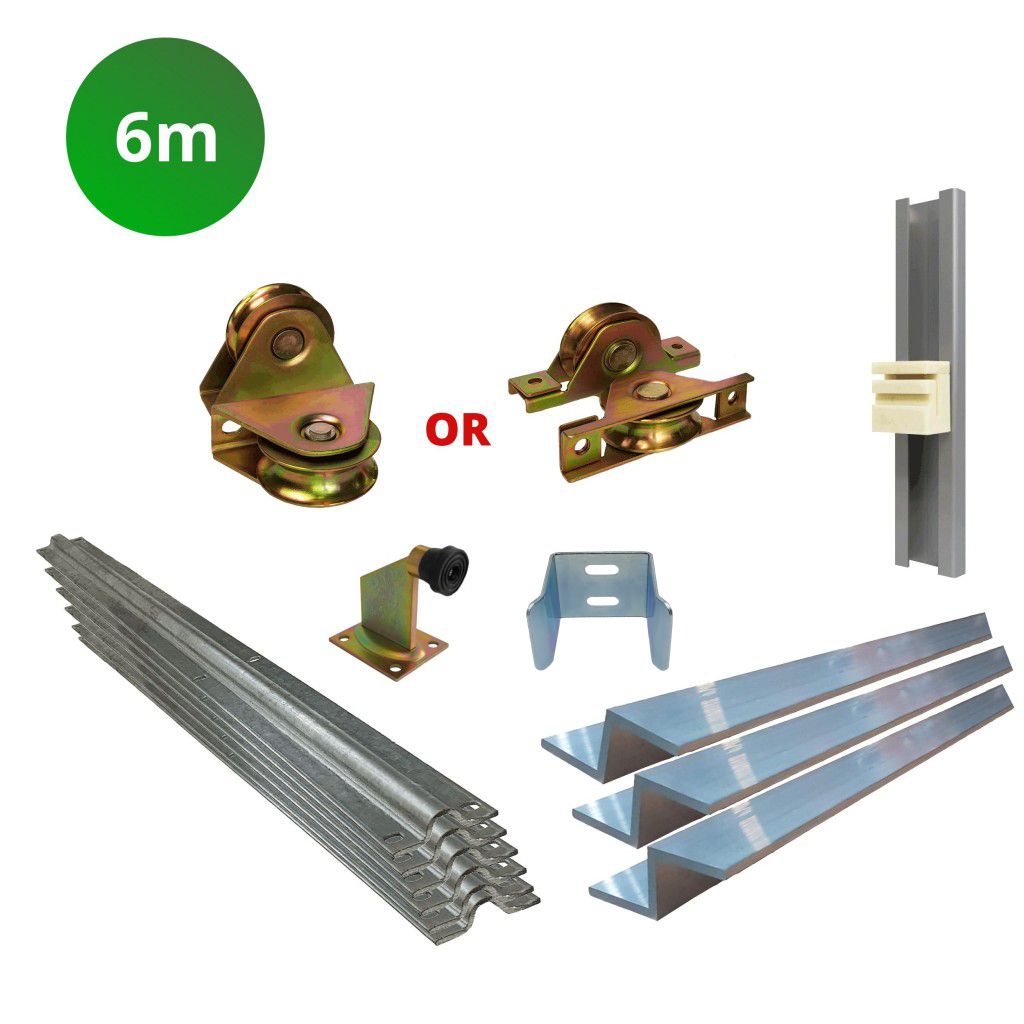

6m Complete Cladded Sliding Gate Hardware Kit with Z Channel

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

CLADDED GATES

6m Complete Cladded Sliding Gate Hardware Kit with Z Channel

Product SKU: SGK-R78-60-Z-C

  • In Stock

Get More Info..

Kit Price:

$495.00

  • Or in 4 payment of $123.75 with afterpay info

  • Wheels, Track, Z Channel, Guide Block System, U Guide and Gate Stop

  • Kit Includes

    01 Singular 78mm Recess Mount Wheels (QTY: 2)
    02 1m Galvanized Sliding Gate Track (Required Double the Width of Gate) (QTY: 12)
    03 APC Superior White Nylon Guide Block, Two Piece Assembly For Sliding Gate With Angle or Z Profile (QTY: 1)
    04 Vertical Guide Channel for Nylon Block (QTY: 1)
    05 70mm Galvanized U Guide Gate Receiver Catcher (QTY: 1)
    06 115mm High Bolt Down Anodized Gate Stop (QTY: 1)
    07 1m Length Z Channel Guide Angle (QTY: 6)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

68mm Recess Wheels | Anodised Steel | Sliding Gate Hardware




  • R10 profile to suit the entire range of APC Galvanized profile tracks

  • Dual bearing system for the capacity of 250KG per wheel (500kg per pair)

  • It fits into 50mm heigh tubing with a cut-out size to fit the wheel of 70x35mm

  • Raises the gate by 30mm when installed with the floor track

  • Easy installation with pre-punched fixings, drops into place after cut out and screws to the tubing from the flanged sides






78mm Flat Mount Wheels | Anodised Steel

  • R10 profile to suit the entire range of APC Galvanized profile tracks

  • Dual bearing system for the capacity of 250KG per wheel (500kg per pair)

  • It fits straight to the bottom. No cut-out is required.

  • Raises the gate by 92mm when installed with the floor track

  • Easy installation with pre-punched fixings and screws to the tubing from each side.



Aluminum C Channel & Guide Block Combo






  • 400x85x30mm Aluminium C channel System to allow for a full slide of the guide block from static to 325mm

  • Incorparates perfectly into the APC Z channel system or a pre-welded angle of 40x40mm on the gate

  • Allows for unobstructed guiding from the rear of the gate, ideal for angled gates, spear top gates, cladded gates or just to close to the fence.

  • Requires a spacing of 80mm from the rear of the gate to the guide post

  • Fix as per requirment, blank canvas without any punchings

  • Easy to install, use self drilling screws and fix directly to the guiding post


    •



Aluminum Z Channel For Rear Guiding






  • 30x30x4mm thickness Aluminum Z channel System

  • Incorparates perfectly into the APC guide block system

  • Allows for unobstructed guiding from the rear of the gate, ideal for angled gates, spear top gates, cladded gates or just to keep the gate right up to the fence.

  • Fix as per requirment, blank canvas without any punchings

  • Easy to install,use self drilling screws and fix directly to the inside face of the gates top tube


    •



Bolt Down Galvanized Floor Track






  • R10 profile to suit the entire range of APC recess and flat mount wheels

  • Rounded profile provides the least resistance for sliding gate movment over the alternative "V groove"

  • High strength 3mm steel, Galvanized for complete long life outdoor use

  • Pre-punched fixing holes ready for anchor nails (Supplied)

  • Easy to install, bolts down to concrete! No need to set in during concreting


    •



70mm U Guide






  • Galvanized steel construction for long life outdoor use

  • Flared entry to guide gate into the reciever in case of wind loads pushing the gate

  • 70mm internal clearance ideal for standard steel or aluminum gates gates that are offset from the closing post or clad gates no greater than 65mm thickness

  • Pre-punched fixing holes ideal for adjustments prior to final fixing


    •



Anodized Gate Stop






  • Anodized steel construction for long life outdoor use

  • 115mm Height

  • 40mm Rubber bumper

  • Solid 100x80mm base

  • Pre-punched 10mm fixing holes


    •



Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1

        • Your (Kit and Add-On) Price:

          $495.00
