6m Boom Gate Arm for APC V2 NUUR 6, Universal Boom Gate (Consisting of 2x3m Arm and a Boom Arm Joiner)

Replacement 6m Boom Gate Arm for APC V2 NUUR 6, Universal Boom Gate

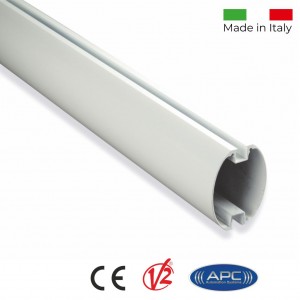

6m Boom Arm Suitable for all APC V2 NUUR 6 Boom Gate operators.

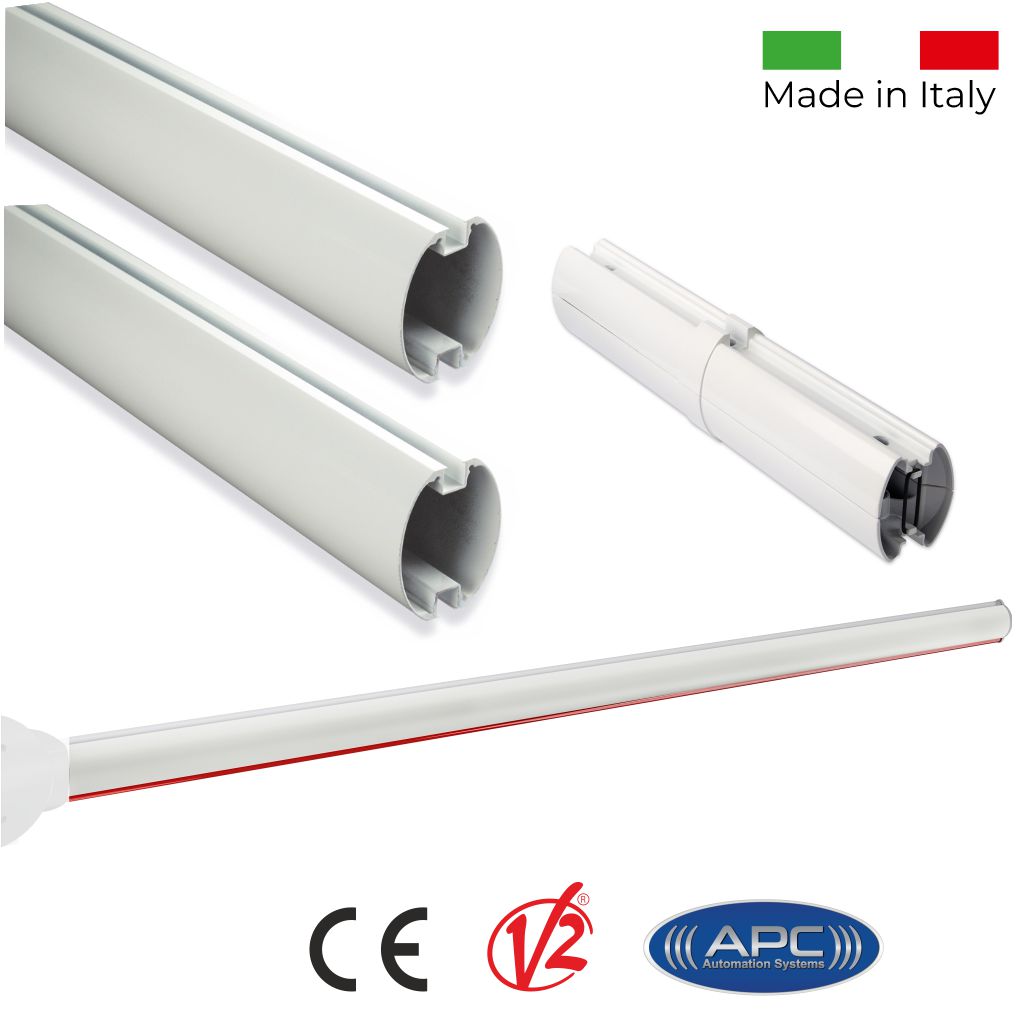

This boom replacement arm consists of two pieces 3m long arm and a boom arm joiner.

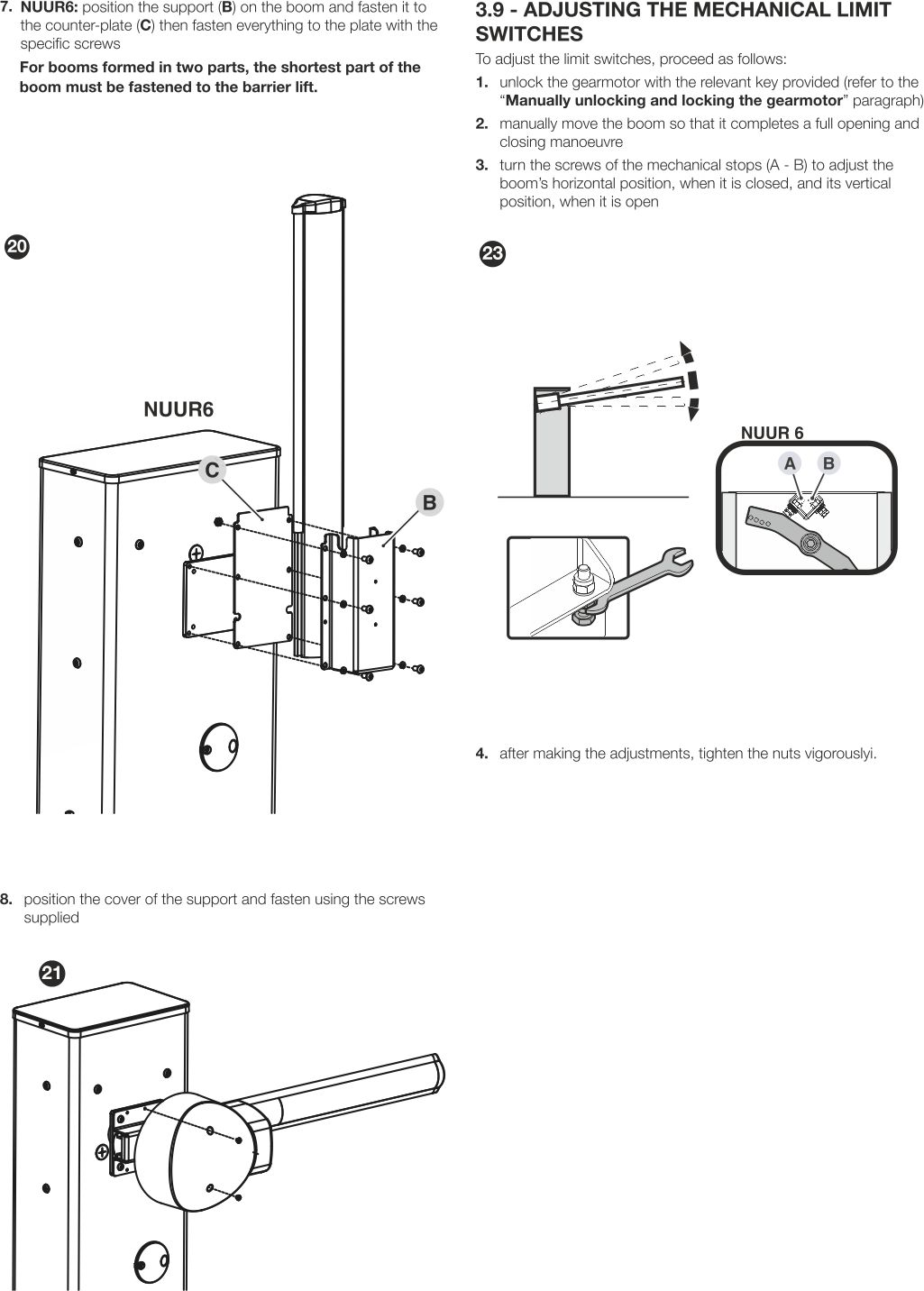

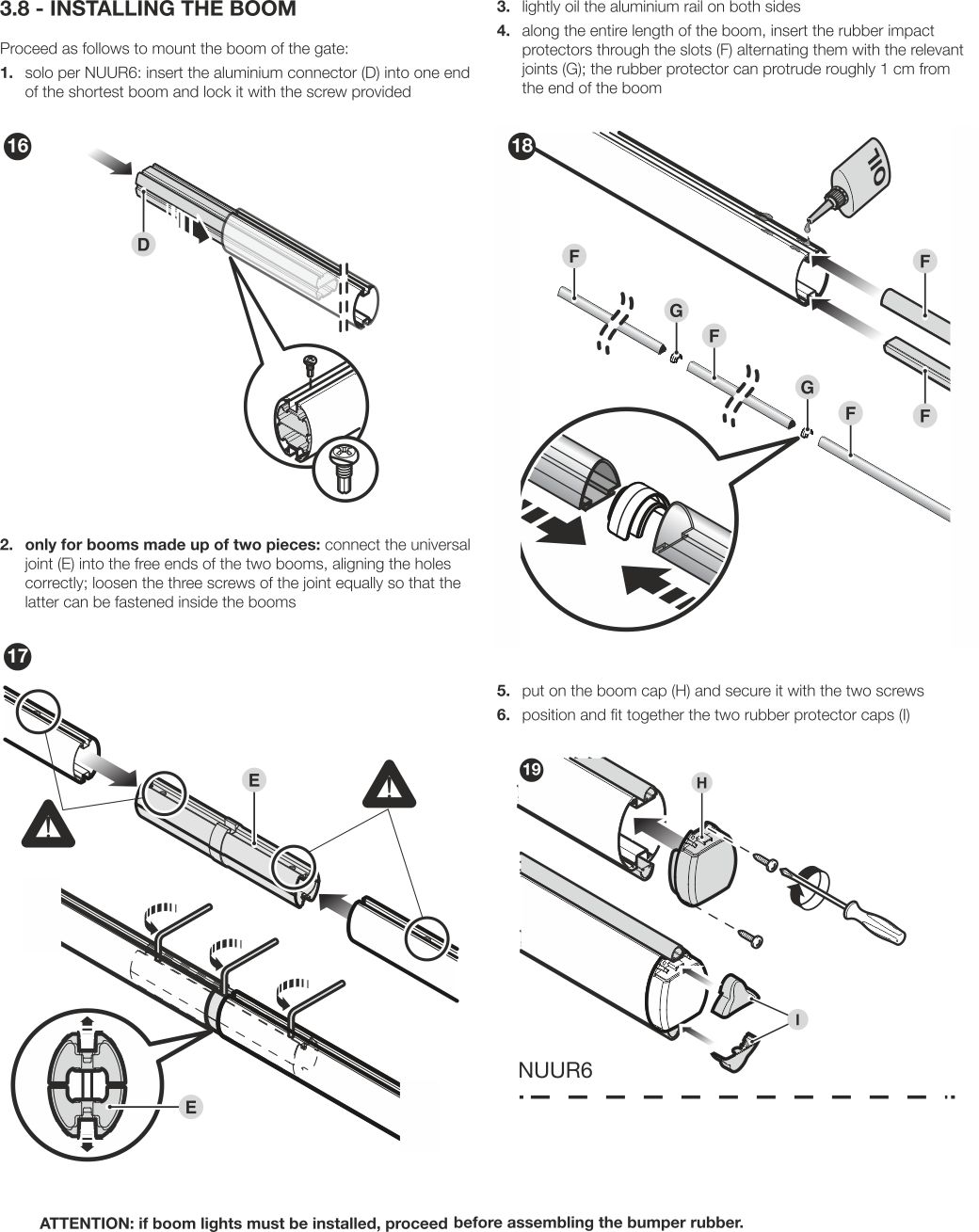

Installing The Boom Arm

ULTRA FAST 24V DC Powered Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR 6

Ultra-low power consumption. Suitable for solar-powered systems.

24V Ultra Fast-Opening Automatic Raise Arm Barrier/Boom Gate

24V rapid opening automatic raise arm barrier for residential and multiple-use installations up to 6 m width

Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR 6, Universal Boom Gate Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy

• Accurate and safe operation with encoder
• Obstacle detection
• Self-learning of opening and closing times
• Slow-down in the limit switch area
• Balancing spring included
• White painted aluminium bar (accessory)
• Digital control unit programmable using three program buttons and display
• Plug-in adaptor for modular receiver
• ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP
• Input for photocells with self-test function
• Input for mechanical safety edges
• Courtesy light output
• Holding magnet output
• Energy Saving function to minimise consumption in standby mode
• Programmable acceleration and deceleration
• Operation in case of absence of power using the backup battery
• Operation with solar power using the ECO-LOGIC system

Motor Overview / Balancing Spring System

Technical Features

• Power supply (Vac - Hz): 230 V~ 50 Hz
• Motor power supply (Vac - Hz):  24 Vdc
• Maximum electric power (W): 240W
• Opening time (s): 5 Seconds for 6 Meter Boom Arm
• Working temperature (°C): Between -20° to +55°
• Duty cycle % - (max. cycles/hour): 80% - (200)

Control Panel

• Digital control unit programmable using three program buttons and display
• Plug-in adaptor for receiver
• ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP

Dimensions

Universal Boom Gate (Pre-Configured Right Hand Side) Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy
