Product SKU: BH30-HS-600-DC-SSK-HW

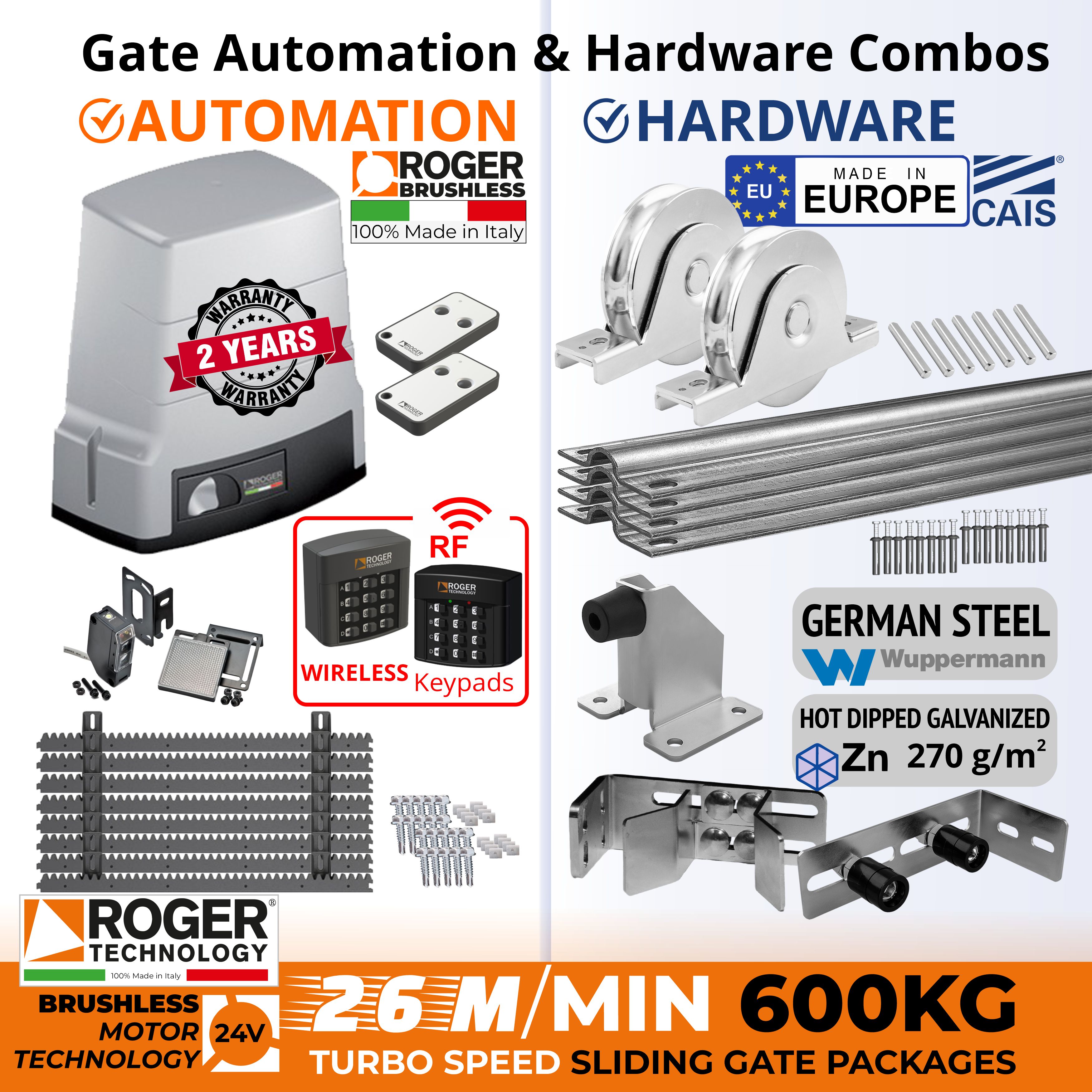

600kg Turbo-Speed Sliding Gate Opener and European Made Premium Hardware DIY Kit Include 100% Italian Made by Roger Technology BH30/604/HS BRUSHLESS Sliding Gate Automation System, Remotes, Retro Reflective Safety Sensor, Wireless Keypads Secure Access Controller, European Sliding Gate Hardware Set, Sliding Gate Track, Gate Wheels, Upper Rollers, End Stop/Catcher Bracket, Gate Stop.

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

BRUSHLESS TURBO-SPEED
  • YEAR END SALE

    TOP DEALS

600kg Turbo-Speed Sliding Gate Opener and European Made Premium Hardware DIY Kit Include 100% Italian Made by Roger Technology BH30/604/HS BRUSHLESS Sliding Gate Automation System, Remotes, Retro Reflective Safety Sensor, Wireless Keypads Secure Access Controller, European Sliding Gate Hardware Set, Sliding Gate Track, Gate Wheels, Upper Rollers, End Stop/Catcher Bracket, Gate Stop.

Product SKU: BH30-HS-600-DC-SSK-HW

  • In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,275.00 $2,572.00 APC Automotion Plus Sale

  • Sliding Gate Opener and Hardware Kit, Brushless Electromechanical Sliding Gate Motor, Ultra High-Speed 44 cm/s, 600 KG

  • Kit Includes

    01 TURBO-SPEED BRUSHLESS Sliding Gate Opener Motor|100% Italian-Made Roger Technology BH30/604/HS Ultra High-Speed Brushless Electromechanical Roller Gate Motor (QTY: 1)
    02 European Made 1m Hot Dipped Galvanized Sliding Gate Ground Track Suitable for "U" Groove Wheels and Rollers (Required Double the Width of Gate) | CAIS Sliding Gate Hardware (QTY: 8)
    03 Fixing Pin For Sliding Gate Ground Track Guide for Wheels and Rollers "U" Groove (CAIS PIN ROAD) (QTY: 7)
    04 Pack Of Hammer in Anchor Nails for Sliding Gate Track (QTY: 1)
    05 Gear Rack Nylon Coated With Steel Core, Strong and Quiet - (1m Pack - 2 x 50 CM) Made in Italy by Stagnoli (QTY: 4)
    06 Roger Technology Two-Button Remote Control (QTY: 2)
    07 Roger Technology 4 Channel Wireless Keypad H85/TDR/E Up to 6 Digit User Code and 450 User Codes (QTY: 2)
    08 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)
    09 Singular 88mm Recess Mount European Made Double Bearing Sliding Gate Wheel. CAIS WSO 924 B2 High Quality German Steel, Rebate Gate Wheel (QTY: 2)
    10 51mm Upper Rollers and Bracket Set. CAIS Sliding Gate Guide Roller and Bracket Assembly Kit German Steel Made in EU (QTY: 1)
    11 Adjustable End Stop Bracket Set for Sliding Gate | Adjustable Sliding Gate Catcher / U Guide (CAIS DOCKER 0) German Steel Made in EU (QTY: 1)
    12 110mm High Bolt Down Gate Stop, End Stop, Fixed, For Sliding and Swing Gates Made in EU by CAIS (QTY: 1)
    13 Concrete In Fixing Plate with Stay Bolts and Screws for Roger Technology Sliding Gate Motor M30 series. (QTY: 1)
    14 Roger Technology Safety Sign Board (QTY: 1)
    15 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes, batteries etc) (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Galvanized Sliding Gate Track

This 1m gate track is heavy-duty and 3mm thick. It is ideally suited to 20mm "U" gate wheels.

CAIS ROAD 1 SLIDING GATE TRACK

Bolt down "U" Profile Ground Track Rail 1000mm long. Galvanised Finish

Fixing Pin For Sliding Gate Ground Track Guide, CAIS Sliding Gate Hardware



FIXING PIN FOR PROFILE GUIDE







Installation With Pin-Road



CAIS Recess Mount Sliding Gate Wheels

"U" GROOVED WHEEL DOUBLE BEARING

CAIS WSO Double Bearing for Sliding Gates Wheels Road & Vector, Sliding Gates Wheels

CAIS rebate gate wheels are made from high-quality steel and bearings. Low-profile rebate wheels mean your gate is shallow to the ground. Best double-bearing gate wheels for gates and driveways...

Package:
CAIS WSO Double Bearing for Sliding Gates Wheels

Usage:
- Sliding Gates & Driveway Gates

Weight Capacity and Suitability:
- The wheels are suitable for sliding gate tracks with dome shape rise measuring 21mm in width (see the below dimensions and weight capacity)

CAIS Sliding Gate Roller Guide Assembly

Two Roller overhead guide brackets and roller assemblies for Gates of up to 160mm wide.

40mm x 30mm Rollers & Bracket. Suitable as a guiding system for manual or automatic sliding gates. The bracket supplied can be mounted on walls, pillars, posts, and other supports to withstand the load.

Rollers: 67mm x 40mm Rollers

Bracket: L shape mounting bracket 260mm x 130mm.

CAIS ES 50 PN End Stop, Fixed, For Sliding and Swing Gates

Heavy-duty Galvanized Steel Gate Stop with Rubber Bumper

110mm High Bolt Down Gate Stop, CAIS ES 50 PN End Stop, Fixed, For Sliding and Swing Gates

The CAIS range of gate accessories is made from high-quality German steel and is heavily galvanised for longer life and rust resistance.

Usage:
- Swing Gates
- Sliding Gates



CAIS DOCKER O - Adjustable End Stop Bracket Set U Guide Gate Catcher for Sliding Gate (CAIS DOCKER 0)

Material Steel
Surface Finish Hot Dipped Galvanized
Use Gate Catcher / U Guide
Manufacturer CAIS

CAIS DOCKER O

The upper ramp with bracket and adjustable width serves as the upper stop of the gate and, at the same time, prevents the gate from tilting to the side.

  • CAIS DOCKER O - top riser with console

Technical details:

  • For profile width: 0 - 120 mm
  • Material: Steel
  • Surface Treatment: Heavily Galvanize
  • Dimensions:










100% Italian Made BH30/HS BRUSHLESS Roller Gate Motor, Ultra High Speed (44 cm/s) Sliding Gate Opener.

ROGER TECHNOLOGY HIGH-SPEED

 Animal instinct, digital ultra speed

A FASTER WAY TO WATCH YOUR GATE MOVE!



With the new high-speed line, digital ULTRA HIGH SPEED, it is possible to open and close your gate at very high speed, with maximum elegance and more than doubling the decrease in waiting times of other operators for gate automation.

The ideal solution for all installations requiring speedy manoeuvre times, intensive use, maximum movement elegance and total safety during the movement and obstacle detection phases.

Faster speeds and shorter waiting times!
The new TURBO-SPEED lines let you quickly, powerfully and reliably open a gate. They are 100% faster compared to the traditional speeds for motors with BRUSHLESS 24V DC Moror technology.


Dynamic accelerations and decelerations!
Thanks to the new 24V or 36V digital controllers, it has become fast and straightforward to set different types of accelerations and decelerations during your gate's opening and closing phases. And always guaranteeing maximum elegance and safety.

Digital obstacle detection!
The ultra-powerful Native Encoder onboard the digital technology and the brand new motor power control in sensored technology make it possible to detect any obstacle with maximum safety, setting the speed, motor torque, sensitivity and operator reaction time during the detection phase for possible obstacles.

Total safety from the point you want!
To guarantee maximum safety and maintain high-speed performance, the new digital controller offers the possibility of configuring gate opening and closing from where you want to start deceleration and setting the type of deceleration, its speed and the relative sensitivity you want.



Roger Technology Brushless BH30/HS Sliding Gate Motor

BRUSHLESS 24V TURBO-SPEED Sliding Gate Automation Motor | with magnetic limit switch



BUILT-IN SPECIAL CASE FOR BATTERY BACKUP



At a glance | Brushless 24v Ultra High-Speed Automatic Sliding Gate Opener / Roller Gate Automation System

The Roger Technology BH30/604/HS Brushless complete kit includes the roller sliding gate motor, control panel, and receiver.

The BH30/604/HS motor is a low voltage, super intensive use with native encoder onboard, irreversible ideal for sliding gates up to 600Kg with built-in digital controller B70 series, magnetic limit switch.

Includes:

- BH30/604/HS Electromechanical Brushless Sliding Gate Motor
- Built-in B70 24v Digital Control Panel
- Plug-in H93/RX20/I Receiver
- Magnetic Limit Switch

See the full details below.



Roller Gate Automation System Features

  • Ideal: For sliding gates up to max. 600 kg.
  • Safe: The encoder management allows precise and safe control of slowdown when opening and closing.
  • Practical: Automatic programming via the learning function of the control unit.
  • Quick: Ease of installation and start-up due to its simple functions and its height and depth adjustments.
  • Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor mounted in dedicated housings and bearings.
  • Equipped with a release lever and an easy-to-operate lock.
  • Convenient: Battery backup available.



Capacity

  • 100% Duty Cycle (opening/closing - 24 hours, no stop)
    Digital brushless motor based on a permanent magnetic field that uses neodymium iron-boron magnets inside the rotor.
  • Multifunction digital display
    4-quadrant digital display with six function keys allow you to go through the various parameters, change their values, check error messages and input statuses and perform all the self-learning phases.
  • 600KG Capacity
  • TURBO Speed (44 cm/s | Roller Gate Automation System)





BRUSHLESS MOTOR TECHNOLOGY

A digital brushless motor with a permanent magnetic field and digital electronics for the complete management of the automation system control. Designed for super intensive use with the added benefit of super low energy consumption.



DIGITAL BRUSHLESS MOTOR

Innovative, revolutionary Brushless digital motor with permanent magnetic field, 24V/36V energy sinusoidal with a native encoder that permits highly intensive use of the automation with extremely reduced consumption whilst at the same time fully guaranteeing all its safety and management functions.

NEW GENERATION OF ELECTRONICS

The new control unit with onboard Brushless digital controller (24V/36V DC). Without traditional relays and thanks to its revolutionary MOSFET quadrant system and its control technology entirely based on a DSP microcontroller, it represents a new generation of electronic cards created to safely handle every type of automation movement.

ENGINEERING PASSION

All the mechanical components and gears are manufactured in steel, cast iron and bronze. The automation system casings are made from titanium-reinforced die-cast aluminium. All the gears are inspected and assembled on high-quality bearings and inserted on precise seats machined to provide absolute precision between the axes.



Special Features of Brushless 24v Ultra High-Speed Automatic Sliding Gate Opener

WHY BRUSHLESS...?

Digital, smart, powerful, elegant, robust and all-Italian.

A technology that offers maximum performance but consumes less power than other motors. The revolutionary digital motor with 12 unique features.

Powerful Digital Brushless Motor

A very powerful sliding gate motor with substantial torque. The motor is compact and neat due to the special concentrated coil windings, it is powered by an energy sinusoidal system.

Digital & Vectorial Automation Controller

The BRUSHLESS digital controller, which operates at low voltage DC, allows 100% control of the automation system in digital mode. Due to its operation entirely based on a DSP microcontroller, the travel and your automation system's movements can be programmed and customised easily, precisely and elegantly.

The Digital Silence Of The Motor

One great impact is the silence or the near absence of noise generated by the BRUSHLESS motor during all its movements.

 Motor For Super-Intensive Use

 The brushless gate motor remains permanently cold even after many days of super-intensive use.

Speed, Acceleration & Deceleration With Extreme Elegance

The automation system with brushless digital technology creates perfect and elegant movements. With a constant force and torque at every point and the option of varying the speed of deceleration and acceleration, the system can be managed with maximum safety.

Extremely Low Energy Consumption

A motor that can operate at low voltage in super-intensive use and operate in environments with highly demanding weather conditions while maintaining very low energy consumption and absorption levels.

Impact, Obstacle Detection & Reversal In Total Safety

Thanks to digital technology, we are able to detect an obstacle and reverse the motor instantly by simply specifying the torque of the motor, the sensitivity, the time and the travel of the reversal, all in full compliance with safety requirements.

Onboard Native Digital Encoder

The BRUSHLESS motor has a highly advanced native digital encoder that controls the management of automation systems in a safe, precise and extremely elegant manner.

No Problem In The Event Of Power Failure

With the help of internal or external batteries and the associated battery charging card, your automation system continues to operate considerably even during prolonged power cuts, ensuring many more operations than traditional technologies.

Motor At Ambient Temperature

The brushless motor was created with the main goal of being a motor for super intensive use and with a 99% efficiency. Regardless of how many operations the engine performs in a day, it always remains cold or, at the most, reaches the outside ambient temperature.

Simple Installation With A Single 3-Wire Cable

And the BRUSHLESS motor can be installed by simply connecting it using a single 3-wire cable! What could be easier? This will provide fully digital management of your automation system thanks to sensorless or sensored technology, depending on the type of automation system.

Advanced Precision Engineering To Obtain Optimal Motor Performance

We have created a mechanism that gives you the opportunity to get the maximum performance out of the motor. A product that combines the quality of the internal production processes, mechanical processing, and high-quality ferrous and non-ferrous materials.



Control Board Overview



Accessories Compatibility and Controlling Options | Roller/Sliding Gate Automation

  • Constant DC Accessories Output
  • Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (APP-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)



Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11
Product weight packed (Kg): 0,03






Italian-Made Roger Technology BH30/HS BRUSHLESS 24V TURBO-SPEED Sliding Gate Electric Motor
| DIMENSIONS |



Italian-Made Roger Technology BH30/HS BRUSHLESS 24V TURBO-SPEED Roller Gate Electric Motor
| SPECIFICATIONS |

Max gate weight: 600 kg
Power line supply: 230V AC - 50Hz
Motor power supply: 24V
Power rating: 130W
Frequency of use: Intensive use
Thrust: 50 - 500N
Operating temperature: -20+55°C
Protection level: IP44
Reductor Type: Irreversible
Manoeuvre speed: 26 m/min (40 cm/s)
Limit switch: Magnetic
Onboard control unit: B70/1DC
Encoder: Digital native encoder + magnetic digital censored, 4096 PPR
Batteries recovery: Optional 2 internal battery 12V 1,2AH - Optional 2 external battery 12V 4,5AH
Type exit gear: Z15/mod 4
Operating cycles per day (opening/closing - 24 hours, no stop): 800
Maximum dimension product in mm (L x W x H): 315 x 165,8 x 329
Product weight packed (Kg): 12,5



Standard Accessories

KT223

Fixing plate with stay bolts and screws M30 series.

MC775

Kit magnetic limit switch for the control units H70/103AC, H70/104AC, B70/1DC, and B70/1DCHP.



Optional Add-On Raised Fixing Plate

KT221

Raised fixing plate for M30 series (+3 cm).







(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.







Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.


Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)







Roger Technology H85/TDR/E Wireless Keypad



Roger Technology 4 Channel Wireless Keypad H85/TDR/E Up to 6 Digit User Code and 450 User Codes, external, for rolling code and fixing code transmission.



Technical Features

Operating temperature: -10°C +55°C
Protection level: IP54
Average consumption when keypad active: 12 mA
A number of user codes storable: 450
Maximum number of digits per user code: 6
Minimum number of digits per user code: 3
Codification: Fix code - Rolling Code
Modulation: AM/ASK
Carried frequency: 433.92 Mhz
A number of combinations: 65536 (fix code) - 4.294.967.296 (rolling code)
Number of bits of the identification code: 16 (fix code) - 32 (rolling code)
Number of bits transmitted: 28 (fix code) - 144 (rolling code)
Battery: 2 x CR2032
Battery life: Minimum 2 years with 10 activations/day
Installation Type: External
Maximum dimension product in mm (L x W x H): 75 x 77 x 42



Dimensions and Predisposition

Dimensions

Predisposition for standard installation







APC-RR-11 Retro Reflective Sensor



The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.

  • Up to 11 Metres Infrared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment & Misalignment led to assist in the installation process

  • Resin filled for the ultimate weatherproofing



Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $2,275.00

        Have Questions?Talk to the Experts(03) 9532 0804

        Dispatched in: Within One
        Business Day
