5m Complete Telescopic Sliding Gate Installation Kit for Two-Part Driveway Sliding Gate (TWO-Part Sliding Gate Hardware Set) CAIS SHORTBACK DUE 5.0

Two-Part Telescopic Sliding Gate Set for 5-Meter Driveway Gate
[ CAIS Shortback DUE 5.0 Hot Dip Galvanized German Steel ]

5m Complete Telescopic Sliding Gate Installation Kit for Two-Part Driveway Sliding Gate (TWO-Part Sliding Gate Hardware Set) CAIS SHORTBACK DUE 5.0

What are telescopic sliding gates?

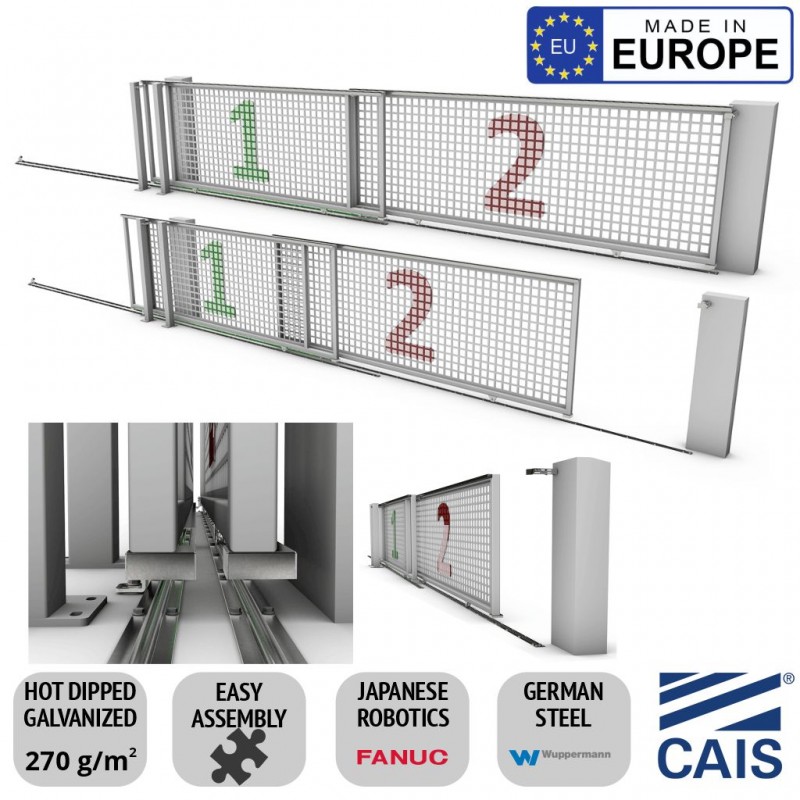

The telescopic sliding gate is the “space-saving gate” since, compared to a conventional sliding gate with a single leaf, it comprises 2, 3 or 4 leaves that overlap each other when opening, thus occupying less space.

Heavy Duty Telescopic Sliding Gate Opener Hardware German Steel with Hot Dip Galvanized. Made in Europe by CAIS.

Telescopic Sliding Gate Hardware Complete Kit. All in One Pack Telescopic Sliding Gate Kit for 5m Driveway Gates.

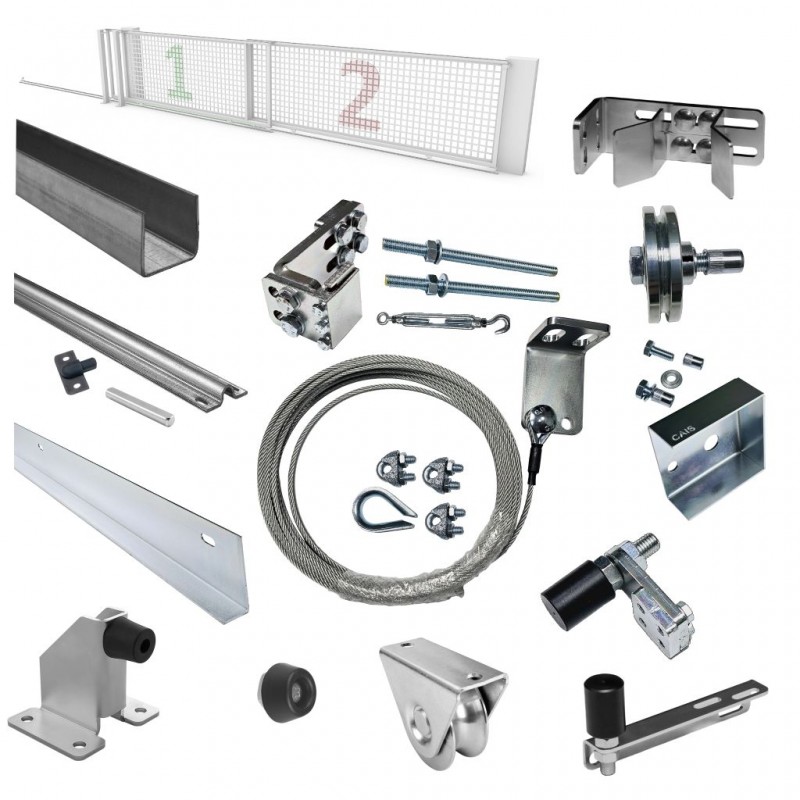

CAIS Shortback DUE 5.0 | Two-Part Sliding Gate Hardware Set Includes:

5m Complete Telescopic Sliding Gate Hardware for Double Sliding Gate Telescopic System CAIS SHORTBACK DUE 5.0

• Bolt Down Side Gate Stop with Rubber Bumper
• Small Rubber Bumpers
• Sliding Gates Wheels
• Single-Roller Gate Guide with Bracket Assembly
• Gate to Gate Guide Rollers (Diameter: 38 mm)
• Ten Meters of Wire (Diameter: 4 mm)
• Wire Tensioner
• Ground Fixing Screws + 2 Nuts (Diameter: 12x200 mm)
• Wire Fixing L-Shaped Plate (80x50x55 mm)
• Wire Tensioning Rollers (Diameter: 60 mm)
• L-Shaped Cover Plates (1600 mm)
• L-Shaped Cover Plates (1350 mm)
• Sliding Gate Ground Track, Guide Rails (2800 mm)
• Fixing Pins for Guide Rail (Diameter: 13 mm)
• U-Guide Channel Rails (2810 mm)
• and other parts

Note: The gate frame and grid filling are not part of the set!

How do telescopic sliding gates work?

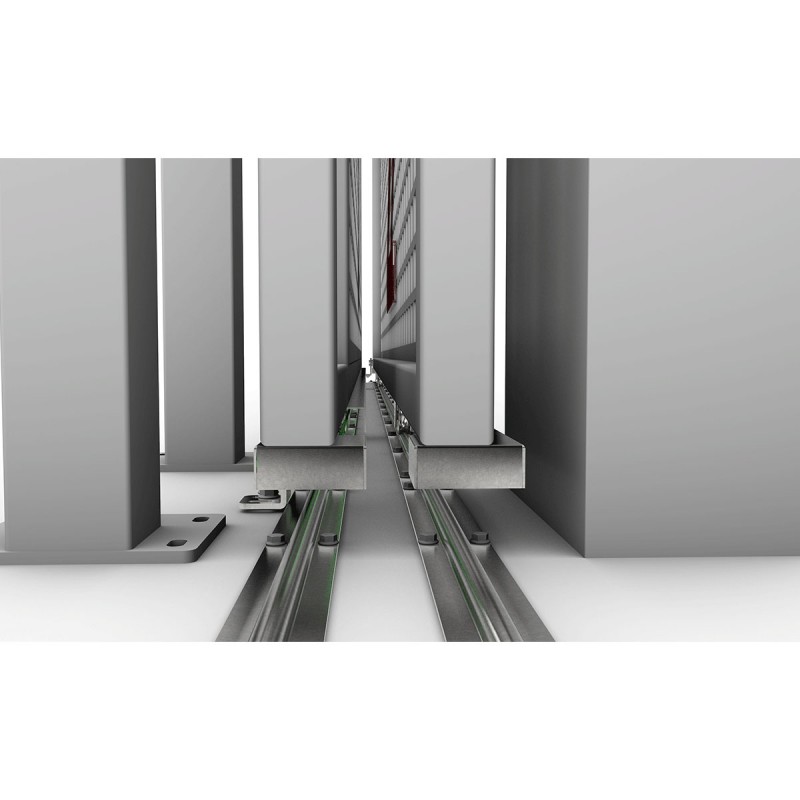

The structure of the telescopic gate consists of two or more modular wings, and the way it works is similar to a telescope – when the wings are closed, they move one after the other. The telescopic gate, like the sliding gate, with the structure of the telescopic gates design slides on two rails side by side.

What is the difference between a telescopic gate and a sliding gate?

Traditional sliding gates need the same length of opening space, but telescopic gates allow twice the opening width into half the space. Example - If you had a four-metre opening but only two and a half metres of run-off area with a standard sliding gate, there is simply no way to install in this area. That can be triple or quatro telescopic structure design gates according to requirements.
