Product SKU: GFR50x18-SMARTY7
In Stock
Freight Delivery
Kit Price:
$3,149.00
Suitable for Colorbond, Pickets, Paneling, Pailings, Decking Material and many more materials

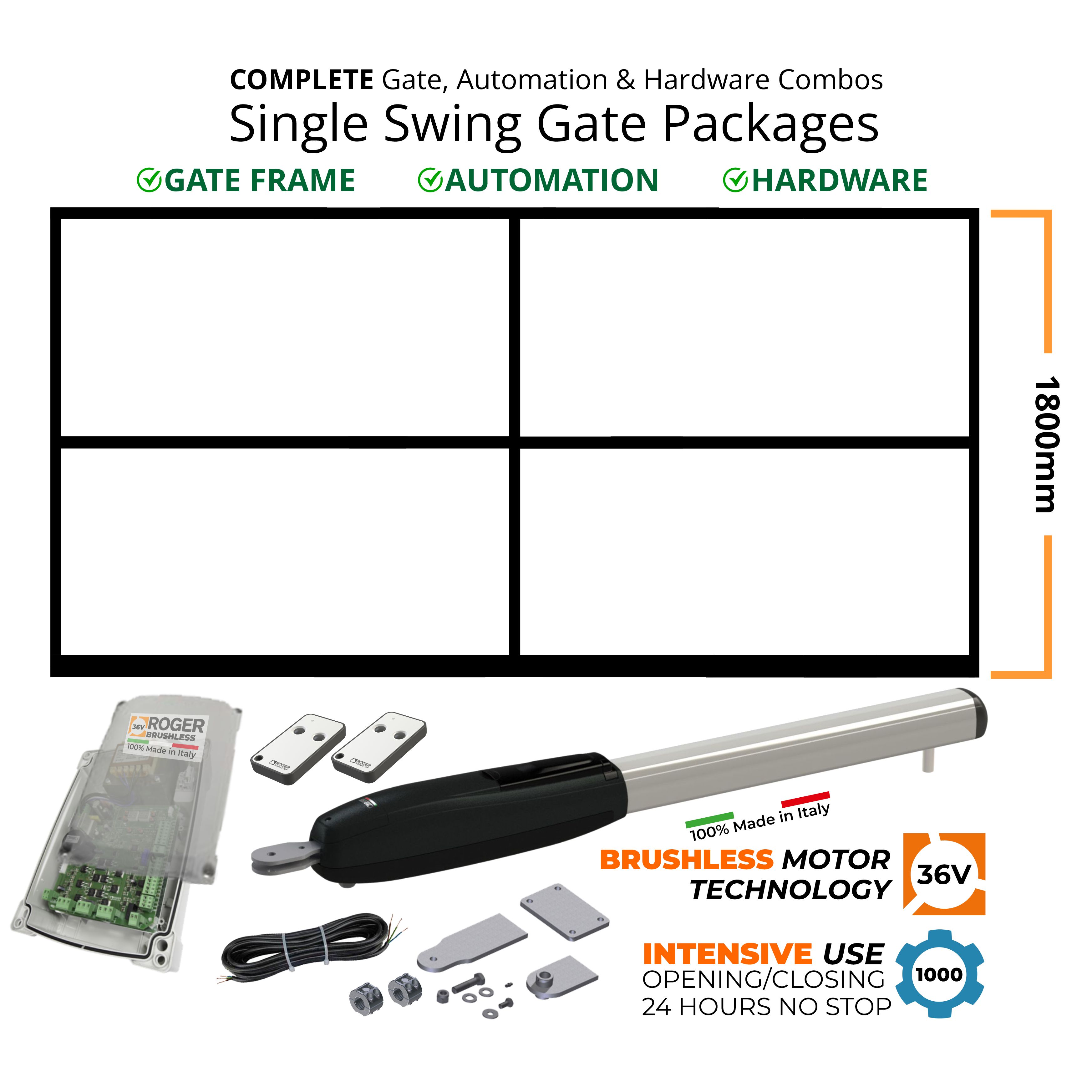

Italian-Made Roger Technology Brushless Ultra High-Speed Swing Gate Motor
| Max. 7M or 1400KG Each Leaf (14m Opening for Double Swing Gates) | Super Intensive Use |
Super Intensive Use 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits
Electromechanical actuator Super Intensive Use BRUSHLESS, 36V low voltage, with native encoder onboard, irreversible, swing gate opener with mechanical stopper in opening and closing.
Simple to adjust just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required, this is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.
• Check that the structure of the gate is sturdy and in good condition.
• Check that the hinges are well greased and that the gate moves through its entire travel smoothly without impediment or friction.
• Always install mechanical stops in the gate open and the gate closed positions, anchored securely to the ground and with elastic damper elements (e.g. rubber buffer) to attenuate the impact of the gate leaf against the stop.
Depending on the model installed, the available space, any obstacles existing in the installation site, and the required angle of aperture, install the rear bracket on the pillar and check that the installation measurements indicated in the table are correct.
The measurements [A] and [B] must always be compatible with the maximum effective travel of the piston.
If the sum of the values [A]+[B] is greater than the maximum travel, shorten the rear bracket to reduce measurement [B]
N.B: for the gate to operate smoothly and correctly, the measurements [A] and [B] must always be approximately 20-30 mm greater than measurement [G].
The measurement [G] indicated in the table was calculated considering a gate leaf thickness of 60 mm.
• The end of the piston rod must meet the gate leaf.
• When opening the wing manually, check that the piston does not collide with the wing or the pillar.
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 36V |
| Power rating: | 200W |
| Frequency of use: | Intensive use |
| Thrust: | 600 - 7000N |
| Operating temperature: | -20 C° +55 C° |
| Protection level: | IP44 |
| Reductor Type: | Irreversible |
| Manoeuvre speed: | 1,6 cm/s |
| Opening time: | 35-50 s |
| Stroke: | 520 mm |
| Limit switch: | Mechanical stopper in opening and closing |
| Recommended digital controllers: | 230V: EDGE1/BOX |
| Encoder: | Digital native encoder SENSORLESS 48 PPR |
| Operating cycles per day (opening/closing - 24 hours no stop): | 1000 |
| Maximum dimension product in mm (L x W x H): | 1312 x 116 x 165 |
The Roger Technology 36V EDGE1/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |
The 36 V EDGE1 control unit controls 1 or 2 ROGER brushless motors in the sensorless mode for applications on large-sized or heavy gate wings.
The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).
| Power line supply: | 230V AC - 50 Hz |
| Operating temperature: | -10+55 C° |
| Protection level: | IP54 |
| N. motors activated: | 2 Brushless Motor |
| Max power per motor: | 250W |
| Max courtesy light charge: | 100W 230V AC - 40W 24V AC/DC |
| Max power gate open light: | 3W (24V DC) |
| Max voltage accessories output: | 20W (24V DC) |
| Electrical-Lock max power: | 15W (12V DC) |
| Flashlight voltage: | 24V DC |
| Max flashing light charge: | 25W |
| Battery: | Optional |
| Maximum dimension product in mm (L x W x H): | 330 x 230 x 115 |
Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.
Technical features
| Standard power: | 3V DC |
| Absorption: | 12mA |
| Operating temperature: | -10+55 °C |
| The number of channels: | 2 |
| Codification: | Fix code |
| Modulation: | AM/ASK |
| Carried frequency: | 433.92MHz |
| The number of combinations: | 65536 |
| Radio for a copy: | Yes |
| The maximum distance in the open field: | 150m |
| Battery: | Mod "CR2032" 3V |
| Maximum dimension product in mm (L x W x H): |
38 x 68 x 11 |
