Product SKU: SGK-R68-40

4m Complete Standard Sliding Gate Hardware Kit

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

STANDARD GATES

4m Complete Standard Sliding Gate Hardware Kit

Product SKU: SGK-R68-40

  •  In Stock

Get More Info..

Kit Price:

$229.00

  • Or in 4 payment of $57.25 with afterpay info

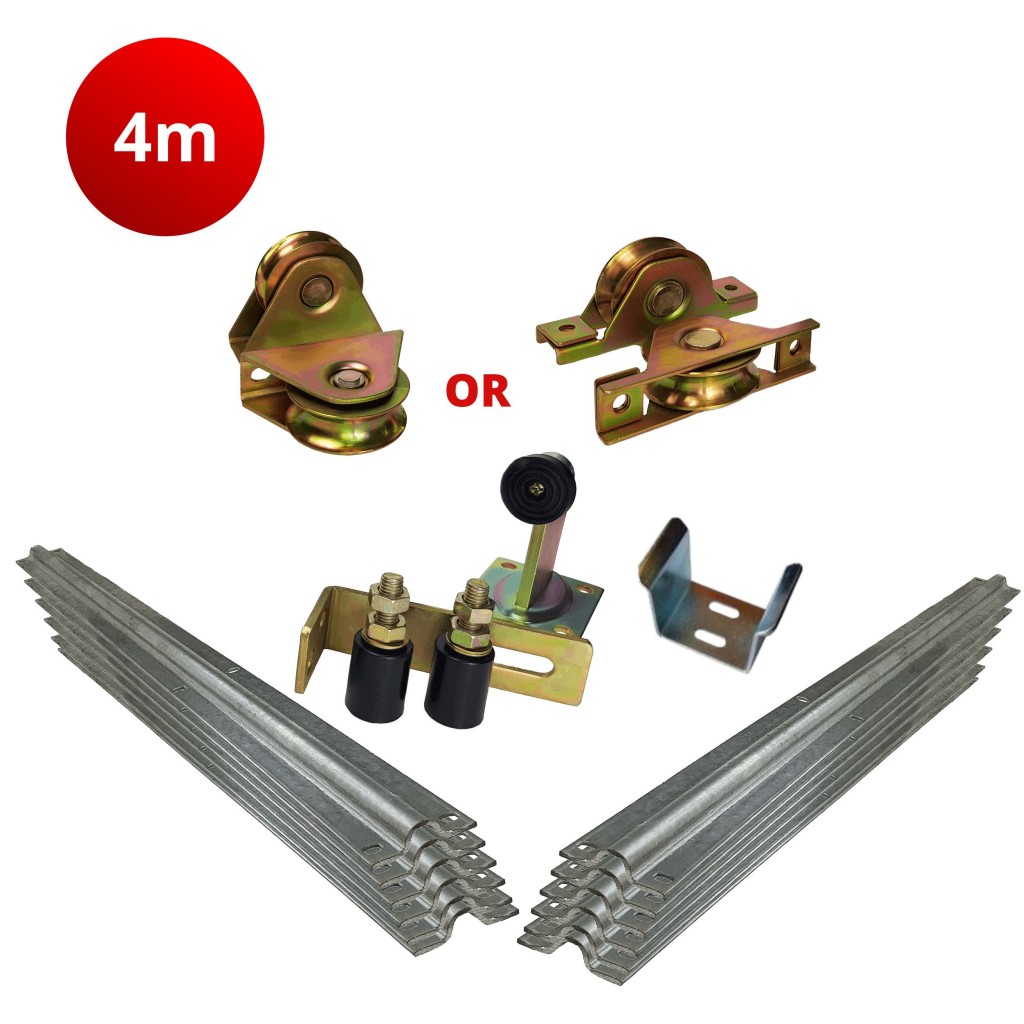

  • Wheels, Track, Upper Roller System, U Guide and Gate Stop

  • Kit Includes

    01 Singular 68mm Recess Mount Wheels (QTY: 2)
    02 1m Galvanized Sliding Gate Track (Required Double the Width of Gate) (QTY: 8)
    03 60mm Roller (QTY: 2)
    04 165x110mm Anodized Bracket (QTY: 1)
    05 70mm Galvanized U Guide Gate Receiver Catcher (QTY: 1)
    06 115mm High Bolt Down Anodized Gate Stop (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

68mm Recess Mount Wheel | Sliding Gate Hardware

U Grove wheels, suitable for 20mm dome shape tracks

Heavy-duty wheel with dual bearings

This is a recess mounting wheel. The wheel is fitted into the underside of the bottom gate frame, and the wheel will raise the gate by approximately 27mm from the sliding gate track.

68mm 2 Recess Mount Sliding Gate Wheels 68mm 2 Recess Mount Sliding Gate Wheels

68mm 2 Recess Mount Sliding Gate Wheels



Package: 68mm Recess Mount Sliding Gate Wheel

Usage: Sliding Gates

Suitability: The wheel is suitable for sliding gate tracks with dome-shape rise measuring 20mm in width (see the dimensions)

Weight Capacity:
250Kg per wheel

Material:
- Anodised steel



68mm Recess Wheels | Sliding Gate Hardware






  • R10 profile to suit the entire range of APC Galvanized profile tracks
  • Dual bearing system for the capacity of 250KG per wheel (500kg per pair)
  • Fits into 50mm heigh tubing with a cut-out size to fit the wheel of 70x35mm
  • Raises the gate by 30mm when installed with the floor track
  • Easy installation with pre-punched fixings, just drops into place after cut out and screws to the tubing from the flanged sides



68mm 2 Flat Mounted Wheels68mm Flat Mount Sliding Gate Wheel | Sliding Gate Hardware

68mm Flat Mount Wheel

U Grove wheels, suitable for 20mm dome shape tracks

Heavy-duty wheel with dual bearings

This is a flat mounting wheel. The wheel is fixed onto the underside of the bottom gate frame, and the wheel will raise the gate by approximately 80mm from the sliding gate track.

68mm 2 Flat Mounted Wheels



Package: 68mm Flat Mount Wheel

Usage: Sliding Gates

Suitability: The wheels are suitable for sliding gate tracks with dome-shape rise measuring 20mm in width (see the dimensions)

Weight Capacity:
250Kg per wheel

Material:
- Anodised steel



68mm 2 Flat Mounted Wheels

68mm Flat Mount Wheels



  • R10 profile to suit the entire range of APC Galvanized profile tracks
  • Dual bearing system for the capacity of 250KG per wheel (500kg per pair)
  • Fits straight to the bottom, no cut out required
  • Raises the gate by 87mm when installed with the floor track
  • Easy installation with pre-punched fixings, screws to the tubing from each side





100mm Roller and Bracket Set




  • 165mm Long Galvanized steel construction for long life outdoor use

  • 100mm nylon rollers with completly adjustable positions

  • 75mm internal clearance between rollers at full span, allowing for 25mm ajustment for the gate a gate thickness not exceeding 50mm is ideal (see 200mm long bracket to allow 85mm gate thickness)

  • Pre-punched fixing holes ideal for adjustments prior to final fixing



Bolt Down Galvanized Floor Track






  • R10 profile to suit the entire range of APC recess and flat mount wheels

  • Rounded profile provides the least resistance for sliding gate movment over the alternative "V groove"

  • High strength 3mm steel, Galvanized for complete long life outdoor use

  • Pre-punched fixing holes ready for anchor nails (Supplied)

  • Easy to install, bolts down to concrete! No need to set in during concreting


    •



70mm U Guide






  • Galvanized steel construction for long life outdoor use

  • Flared entry to guide gate into the reciever in case of wind loads pushing the gate

  • 70mm internal clearance ideal for standard steel or aluminum gates gates that are offset from the closing post or clad gates no greater than 65mm thickness

  • Pre-punched fixing holes ideal for adjustments prior to final fixing


    •



Anodized Gate Stop






  • Anodized steel construction for long life outdoor use

  • 115mm Height

  • 40mm Rubber bumper

  • Solid 100x80mm base

  • Pre-punched 10mm fixing holes


    •



Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1

        • Your (Kit and Add-On) Price:

          $229.00
