Product SKU: GTR40-P500-DC-WF7KP21

4m Complete Smart Home Gate Automation Package with Ring Top Gate including Sliding Gate Hardware + Heavy Duty Italian Made Gate Automation APC Proteous 500 + Access Control Accessories and Eyevision SMART Intercom Intelli WiFi Video Intercom System with Mobile APP

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

VIDEO INTERCOM

4m Complete Smart Home Gate Automation Package with Ring Top Gate including Sliding Gate Hardware + Heavy Duty Italian Made Gate Automation APC Proteous 500 + Access Control Accessories and Eyevision SMART Intercom Intelli WiFi Video Intercom System with Mobile APP

Product SKU: GTR40-P500-DC-WF7KP21

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$3,150.00

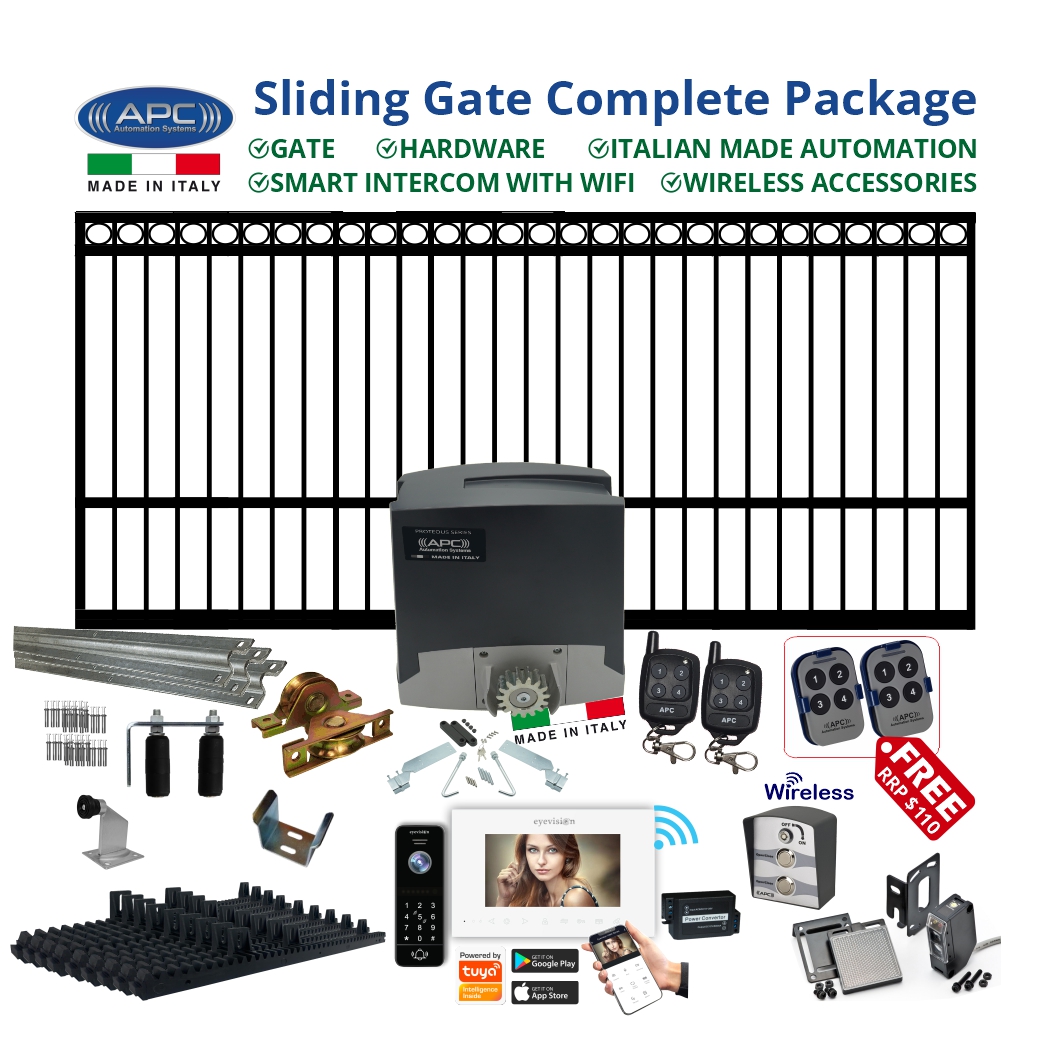

  • 4m Ring Top Gate + Sliding Gate Hardware + Italian Made Gate Automation + Wireless Accessories + WiFi Video Intercom

  • Kit Includes

    01 4m Ring Top Gate (QTY: 1)
    02 APC Proteous 500 Italian Made FEATURE RICH Sliding Gate Motor (QTY: 1)
    03 Standard AC/DC Powered (Upgrade Option Below for 24V LV External Transformer) (QTY: 1)
    04 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)
    05 APC Four Button Keyring Remote (QTY: 2)
    06 APC Wireless Double Push Button Switch with Key Issolation (QTY: 1)
    07 Eyevision Intelli Keypad & IC Card Outdoor Station (2x IC Cards & Power Adapter Supplied) Intercom System (QTY: 1)
    08 Eyevision Intelli 7" Smart 4 Wire indoor Intercom Monitor with Wi-Fi feature for smartphone APP (includes power adapter) (QTY: 1)
    09 Rain Cover for Eyevision Intelli Intercom System Outdoor Station (QTY: 1)
    10 APC Power Convertor 16-28V AC/DC In to 12V DC Output (QTY: 1)
    11 1020mm Nylon Rack (QTY: 4)
    12 Singular 78mm Recess Mount Wheels (QTY: 2)
    13 60mm Roller (QTY: 2)
    14 165x110mm Anodized Bracket (QTY: 1)
    15 55mm Galvanized U Guide Gate Receiver Catcher (QTY: 1)
    16 115mm High Bolt Down Galvanized Gate Stop (QTY: 1)
    17 1m Galvanized Sliding Gate Track (Required Double the Width of Gate) (QTY: 8)
    18 Pack Of Hammer in Anchor Nails for Sliding Gate Track (QTY: 1)
    19 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Classic Ring Design Gate with 19mm Pickets and an additional Horizontal Support Rail




Key Features
  • Classic Ring Design
  • 1500mm Height
  • 19mm Pickets
  • Robust Satin Black Powdercoating
  • 40x40mm Steel for Top & Sides
  • 40x40mm Vertical & Horizontal Support Rails
  • 80x40mm Bottom Rail
  • Completely Welded Throughout

Suitability
  • Sliding Gate Applications
  • Swing Gate Applications
  • Residential Use
  • Commercial Use

Sliding Gate Opener P500, Heavy Duty Feature Rich 24V Italian Sliding Gate Motor Overview

At a glance | The automatic sliding gate opener

The Sliding Gate Opener APC Proteous 500 boasts a cutting-edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advanced features and its high-duty cycle system. There is no function or feature that this system cannot perform. See the full details below.

Gate Automation System Features

Capacity

90% Duty Cycle (Can operate for up to 54 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
500KG Capacity (1/2 a Tonne)
Ultra-long 10-metre sliding gate capacity
Only 150mm Narrow Depth

Everything and more as standard. | The automatic sliding gate electric motor

Automatic learning of sliding gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount, which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable.
Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic gate close feature
Underside cable entry with grommets
Simple to set up left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt levelling adjustment system (30mm in any or all directions)

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Sliding Gater Safety Features

Adjustable Over current adjustments
Built-in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for sliding gate opening and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface | Sliding gate motor control board

Control Board Overview



Accessories Compatibility and Controlling Options | Sliding Gate Automation

Constant DC Accessories Output
 Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (APP-Based Control)
GSM Control Systems (Mobile Call/SMS-based Control)



Remote Control Features

Dimensions | Italian Made Sliding Gate Electric Motor

Installation Options

Concrete in Base Plate

Surface Mounted Raised Base Plate (Optional Add On)

Four-point Tilt Leveling

Specifications

Transformer 24V AC
Rectification In Housing Rectifier
Motor Output Voltage 24v DC
Max Operating Power 300 Watts
Maximum Gate Length 10 Metres
Maximum Gate Weight 500 KG
Speed 28 cm/s
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Motor Duty Cycle 90%
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 34V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity



Optional Battery Back Up

An optional battery backup system is available for the automation kit. The backup battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up and ready for use. The system is supplied with the charger module along with the 1.3aH battery pack and is installed within the empty compartment of the Proteous system.

Compartment with Battery Pack and Charger Installed



APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


  •



Outdoor Station Features


  • Ultra narrow 45mm Width fits onto any post, pier or fence
  • 1.3MP AHD Camers
  • 120° Lense
  • 45° Wedge Bracket for best mounting direction
  • Built in Keypad with common PIN CODE system
  • Built in IC Tag/Card Reader
  • Up to 100 Users when using IC Tags (allows for individual User ID's and PIN Codes
  • Lockout feature after too many incorrect PIN/IC tag uses
  • Supports Exit Buttons
  • Supports Fail Secure and Fail Safe Electric Strikers
  • Supports Automatic Gate Release



45° Angle Wedge



The supplied 45° angle mounting wedge allows for the best alignment during the installation to point the outdoor station in the direction of the guest when the outdoor station is forward facing and the guest may be standing to its left or right side.

The wedge is a universal mount allowing for both left facing and right facing setups.

Outdoor Station Technical Specifications

Power 12-15V DC
Relay NO/NC
Exit Button Input Yes
Swipe Tag Type IC Tag
IP Rating IP65



Eyevision Intelli Series Intercom Systems



The eyevision Intelli Series intercom is a feature rich state of the art intercom system boasting every feature requested from an intercom syste (and much more...).

Any visitor calls can be recieved by the APP on your smartphone or table along with the monitor at the same time with a large feature set from the APP and also the indoor monitor. No extra modules are required to connect to the internet as the WF 7 slimline indoor monitor has built in Wi-Fi and is able to connect directly to your homes 2.4GHZ Wi-Fi connection.

Two oudoor stations can be connected for front gate/front door/back door (with motion detection & recording) along with up to SIX monitors within the home allowing for the visitors call to be answered from any station and transfered to a diffrent station if required. Within the home you can selectivly intercom between any of the installed indoor monitors. All monitors connected into the system can view any of the installed CCTV camers (up to TWO can be connected into the system). If the CCTV cameras are interconnected with a seperate alarm sensor the system can have alarm recording events occur which can be saved directly to a micro SD card.

The intelli series can have a common release connected directly to the monitor allowing for simultaneous front gate - front door release making it easier than ever to let a guest in without having to switch between menus or running to the door.



System Capacity & Capabilities
  • Supports up to TWO Outdoor Stations each with its own electric striker/gate release feature
  • Supports up to SIX indoor Monitors
  • Common independent electric striker/automatic gate release feature
  • Supports up to Two CCTV Cameras (CVI,TVI,AHD or CVBS up to 1.3MP)
  • Supports Motion Detection for Outdoor Stations (uses its own built in sensor)
  • Supports Motion Detection/Alarm Function for CCTV using external PIR or Reed Switches
  • Supports live video stream to a DVR



Indoor Monitor Base Features
  • Built-in WiFi to connect to your home internet connection
  • Tempered Glass with Touch Sensitive Buttons
  • Simple easy to use user Interface
  • Free to use Tuya Smart APP for all modern mobile phones and tablets
  • 11 Languages to choose from
  • Ultra Slim 18mm Depth
  • 7" TFT LCD Monitor 1024x600 HD Resolution
  • Built in mute switch
  • Intercom calls direct to Smart phone and Monitor Simultaneously
  • Intercom internal call and Call transfer
  • Calender screen (time and date) option before entering the main menu
  • Anytime REALTIME monitoring of any connected outdoor station/cctv camera
  • Set scheduled ring volumes for Morning, Afternoon, Evening and Night
  • Can Enable/Disable Rigtone at the outdoor station



Special Features (Micro SD Required)
  • Automatic recording for Motion Detection and Alarm events
  • Digital Photo Frame on Standby
  • MP3 Player
  • Away Voice Message (Voicemail System)
  • Custom ringtones



Tuya App for Direct to Phone



Indoor Monitor Technical Specifications

Screen Size 7" 1024x600 AHD LCD Display
Power 12-15V DC
Wi-Fi Yes, 2.4GHZ
SD Card Micro SD (Not Supplied) Class 10 up to 32GB
CCTV Input Maximum 2
Alarm Sensor Input Maximum 2
Outdoor Unit Input Maximum 2
Indoor Monitors Maximum 6



Wireless Double Push Button with Isolation Key





The wireless double push button switch is a simple and easy to use method to operate the gate for full gate operation and also pedestrian function.

It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The wireless push button communicates with the control board using the same rolling code 433mhz frequency as the remote thus eliminating the need for any extra add ons. If required the wireless push button can be upgraded to a wireless keypad for higher access security using pin number and can have diffrent pin codes for both the full gate operation and pedestrian function.
