Product SKU: BH30-HS-600-E-BOX-4

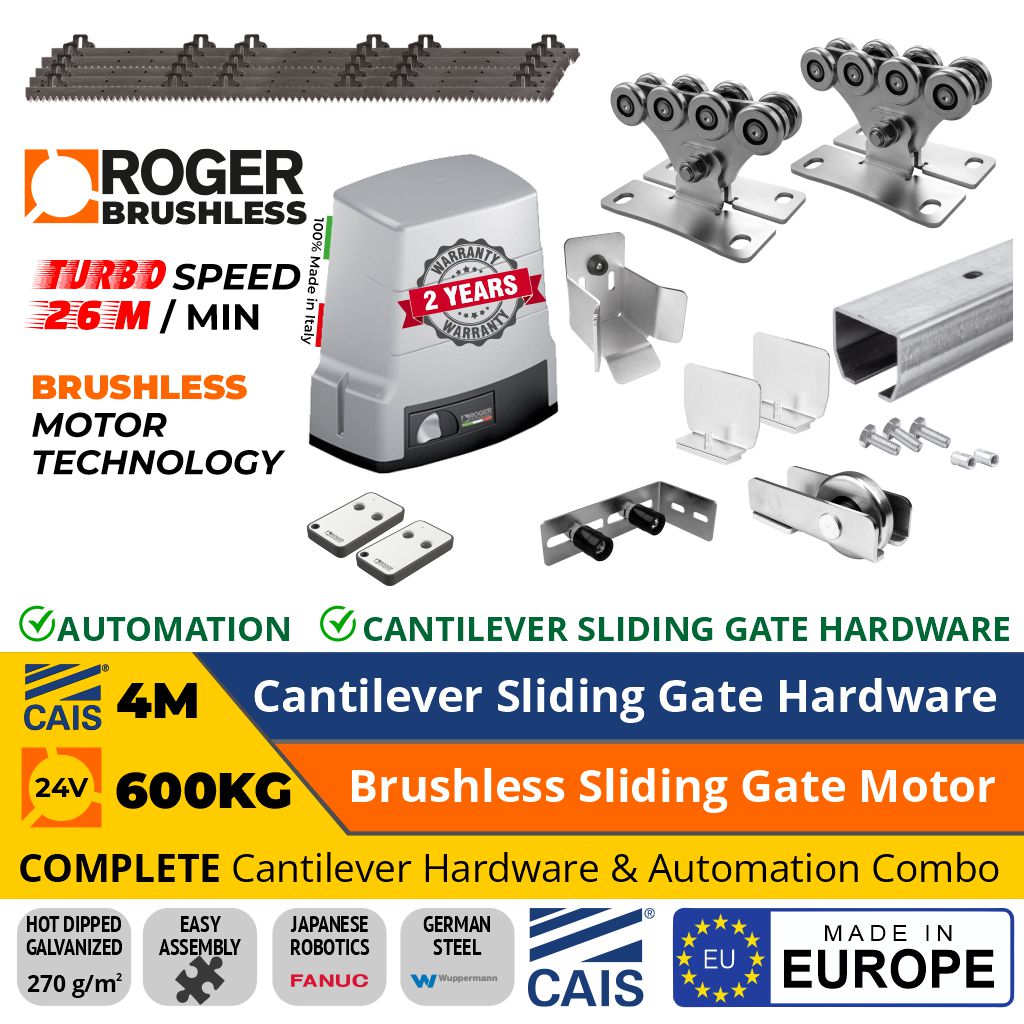

4M Complete Cantilever Gate Hardware and 600KG Turbo Speed Roger technology Brushless Gate Automation Package. Hot Dip Galvanised German Steel Cantilever Sliding Gate Hardware (Made in Europe by CAIS) and 600KG Turbo Speed Brushless Sliding Gate Automation (Made in Italy by Roger Technology)

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • On Sale

4M Complete Cantilever Gate Hardware and 600KG Turbo Speed Roger technology Brushless Gate Automation Package. Hot Dip Galvanised German Steel Cantilever Sliding Gate Hardware (Made in Europe by CAIS) and 600KG Turbo Speed Brushless Sliding Gate Automation (Made in Italy by Roger Technology)

Product SKU: BH30-HS-600-E-BOX-4

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
  • New
Get More Info..

Kit Price:

$2,525.00 $2,750.00 APC Automotion Plus Sale

  • 4m Cantilever Sliding Gate Hardware and 600KG Turbo Speed Brushless Sliding Gate Automation Packages

  • Kit Includes

    01 TURBO-SPEED BRUSHLESS Sliding Gate Opener Motor|100% Italian-Made Roger Technology BH30/604/HS Ultra High-Speed Brushless Electromechanical Roller Gate Motor (QTY: 1)
    02 Roger Technology Two-Button Remote Control (QTY: 2)

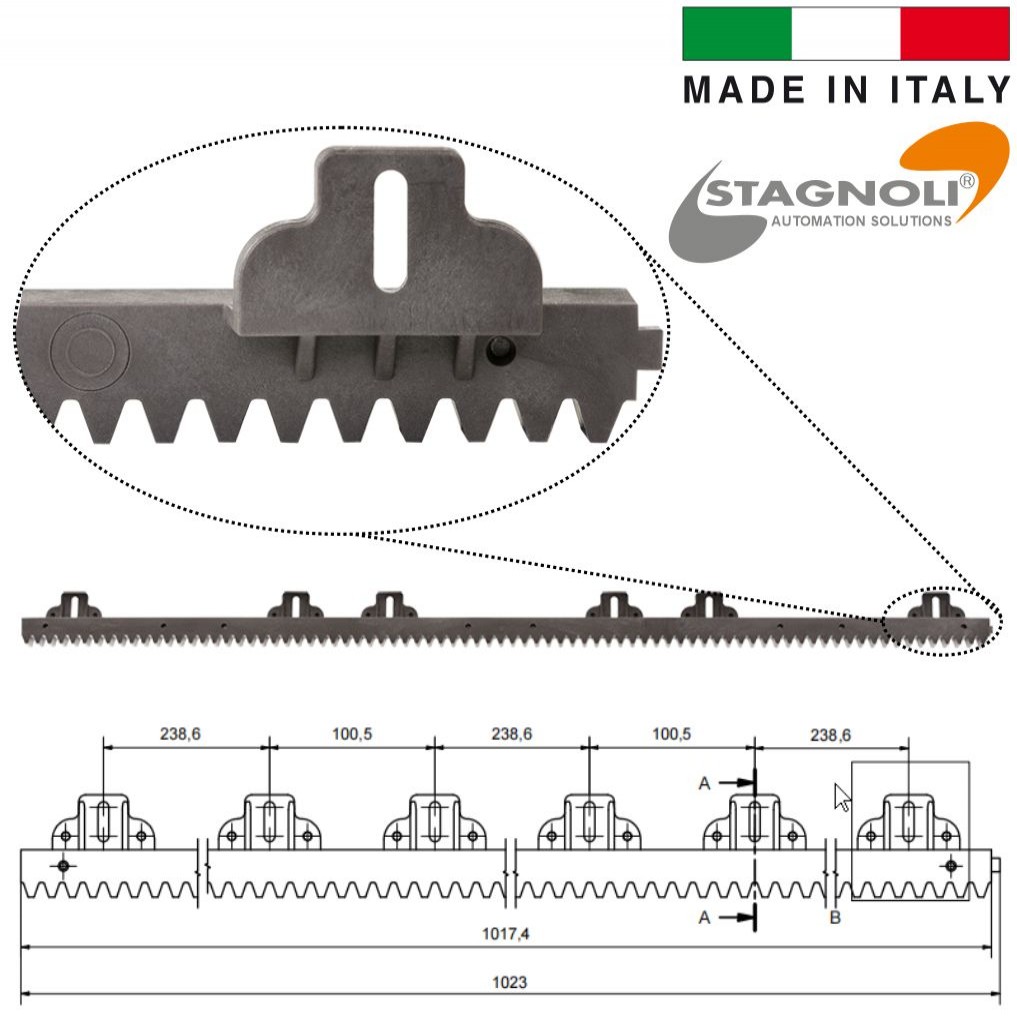

    03 1020mm Fixings Facing Up Steel Reinforced Nylon Gear Rack for Domestic and Commercial Sliding and Cantilever Gates. Made in Italy by Stagnoli (QTY: 5)
    04 Concrete In Fixing Plate with Stay Bolts and Screws for Roger Technology Sliding Gate Motor M30 series. (QTY: 1)
    05 Roger Technology Safety Sign Board (QTY: 1)
    06 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes) (QTY: 1)
    07 Standard AC/DC Powered (Upgrade Option Below for 24V LV External Transformer) (QTY: 1)
    08 Eight-Wheeled Carriage for Cantilever Gates for Up To 325 kg Max Gate Weight. (CAIS SPEED-SE) (QTY: 2)
    09 2.8m "C" Profile Guide For up to 5m Cantilever Gates, 3.5mm Thickness, Galvanized German Steel (CAIS STAGE SZ 2.8) (QTY: 2)
    10 Bolts and Rivet Nuts for Cantilever Gate Guide Track Easy Assembly (CAIS) (QTY: 15)
    11 55.5mm Guide Support Wheel, Cantilever End Wheel For Cantilever Sliding Gate Systems (CAIS RUN S) (QTY: 1)
    12 Small End Cap for C Guide Track, Cantilever Sliding Gates Hardware. (CAIS PILOT SN) (QTY: 2)
    13 End Stop for Cantilever Sliding Gates 132mm (CAIS LAST S) (QTY: 1)
    14 End Stop Bracket for Small, Medium, and Large Cantilever Sliding Gates (CAIS PARK CSM) (QTY: 1)
    15 51mm Upper Rollers and Bracket Set. CAIS Sliding Gate Guide Roller and Bracket Assembly Kit German Steel Made in EU (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

4m Cantilever Sliding Gate Hardware (All In One Box) DIY Kit | German Steel | Made in Europe by CAIS

Cantilever gates aren’t only contemporary and modern in appearance, besides cantilever design automatic sliding gates are the ideal choice for anyone with uneven ground, paving that is organic in shape, and gravel driveways. Cantilever gate designs are frequently used as no track work needs to be installed. This makes cantilever gates an option for surfaces that are inappropriate for track gates.

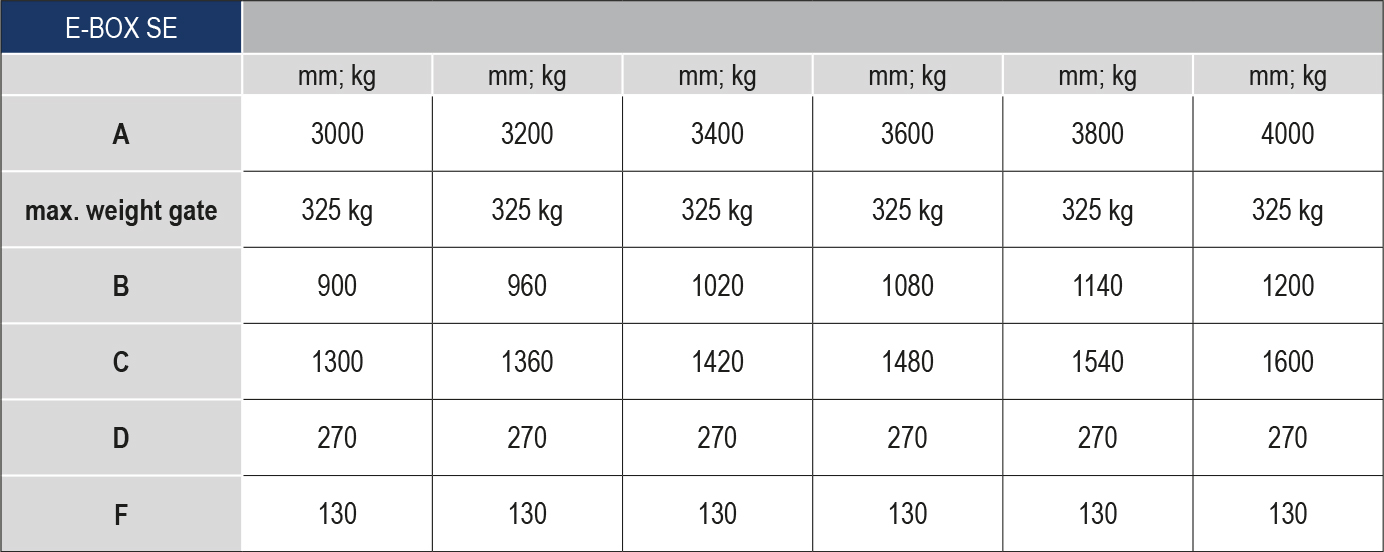

CANTILEVER GATE SPACE REQUIREMENTS

A cantilever gate needs to be about 35% wider than its span to counterbalance the weight of the suspension posts.

THE INSTALLATION STEPS

The installations do not require complicated steps and materials, and therefore the working time is not too long as well. We invite you to follow the below installation steps of CAIS "ALL IN ONE" cantilever sliding gate hardware.





CANTILEVER CONSTRUCTION SITE PREPARATION



SPACE

Single cantilever gates move in one direction, often directly parallel to an existing fence line. This efficient use of space makes a cantilever gate an ideal choice when designing a property’s perimeter fence and security system.



THE "ALL-IN-ONE" CANTILEVER SLIDING GATE HARDWARE

We have to ensure that all the gate hardware that you need to assemble the cantilever sliding gate is included.

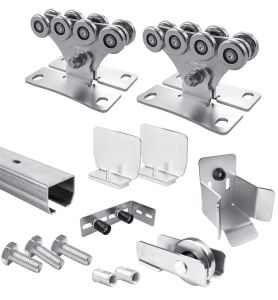

See what the "ALL IN ONE" box includes:

  • Eight Wheel Carriages
  • Heavy Duty C Profile Guide Track (3.5mm German Steel) For Cantilever Gate
  • C Profile Guide End Cap With Screw
  • C Profile Guide Guide Support Wheel for Cantilever Gate System
  • U Guide Stop With Rubber for Cantilever Gate Closing Position
  • U Stop Bracket with Installation Bolts and Screws for Cantilever Gate System
  • Upper Rollers and Bracket Set for Cantilever Sliding Gate
  • Bolts and Rivet Nuts for Cantilever Gate Guide Track Easy Assembly
  • Installation Instructions

Eight-Wheeled Carriage For Up To 325Kg Cantilever Gate

Cantilever sliding gate system carriage wheel for up to 325 kg max gate weight.

Steel Cantilever Sliding Gate Eight-Wheeled Carriage

Enhanced design and superior products from Europe using high-quality German steel.

EIGHT-WEEL CARRIAGES FOR THE CANTILEVER GATE

C2 High-Quality Bearings

Carriages Center Holes Milled Not Laser Cut

Multi Riveted Sections

Mono-Block Eight Wheeled Carriage

No Welded Parts

















"C" Profile Guide For Cantilever Gate, 3.5mm Thickness, Hot Deeped Galvanized German Steel

"C" Profile Guide For Cantilever Sliding Gate, 3.5mm Thickness, Hot Deeped Galvanized German Steel, 15 Bolts 15 Rivet Nuts Included

Steel "C" Profile Guide For Cantilever Sliding Gate

Enhanced design and superior products from Europe using high-quality German steel.

Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory

  • Holes at the track's top allow it to be easily bolted to an aluminium gate.
  • The steel is sourced from the leading German company Wumperman. It is galvanized after slitting so that there are no exposed raw steel edges that would otherwise quickly rust.
  • The slow rolling process minimizes the tendency for the track to spring open where it is cut to length.




THE INSTALLATION STEPS



The installations do not require complicated steps and materials, so the working time is not too long. We invite you to follow the below installation steps of CAIS "ALL IN ONE" cantilever sliding gate hardware.





Bolts and Rivet Nuts Pack for "C" Profile Guide Cantilever Sliding Gate

Bolts and Rivet Nuts are Included in each Cantilever "C" Profile Guide

Bolts and Rivet Nuts for Cantilever Sliding Gate Guide Track

  • Slotted Hole Punched Every 400mm in "C" Profile Guide Track
  • Bolts and Rivet Nuts Pack
  • Easy Assembly
  • No Welding Required

Small Guide Support Wheel For Cantilever Sliding Gates

The end wheel guides the gate up onto the end cup and helps to support the gate while it is resting.

End Wheel For Cantilever Sliding Gate Systems

Cantilever Gate Hardware Small Guide Support Wheel



Small End Cap for Cantilever C Gude Track

The end cap is an addition to the gate to cap off the cantilevered track.

End Cap For Cantilever Sliding Gate

Cantilever Gate Hardware Small End Cap



132mm End Stop for Cantilever Sliding Gates

The end stop supports the gate when it is fully open and fully closed.

End Stop For Cantilever Sliding Gate

Cantilever Gate Hardware Small End Stop



End Stop Bracket for Cantilever Sliding Gates

The end stop bracket supports the gate when it is fully open and fully closed.

End Stop Bracket For Cantilever Sliding Gate

Cantilever Gate Hardware End Stop Bracket

Small Upper Rollers and Bracket Set for Cantilever Sliding Gates

High Qualy Two Roller Guide Plate

Cantilever Sliding Gate Upper Rollers Guide with Bracket

Cantilever Gate Hardware Upper Rollers and Bracket Set



DIFFERENCE BETWEEN A CANTILEVER GATE AND A SLIDING GATE

The obvious benefit of choosing a cantilever sliding gate system is " no need to track"

Unlikly standard sliding gates, the cantilever sliding gate solution doesn't need a perfectly level or concrete flat surface and can deal with dirt or gravel driveway perfectly.

BENEFITS OF CANTILEVER GATES

  • Perfect solution for sloped and/or non-concrete driveways
  • Esthetic design, easy installation, no welding needed
  • Long lasting durable hardware, silent and maintenance-free
  • An effective way to improve security on your property

The Cantilever gate is a unique type of sliding gate, but with distinctive, interesting differences from your typical gate with wheels. One of the primary differences between a cantilever gate and a sliding gate is the location of the wheels that helps the gate move. A cantilever sliding gate rests and rolls on a wheel on the front bottom edge of the gate with a track supporting wheels on the back edge. In contrast, a cantilever gate is held above the ground, moving along rollers running along the top and inside of the fence, with wheels attached to a vertical concrete foundation.



CANTILEVER SLIDING GATE DESIGN and PERFORMANCE

Sliding gates have simpler and smaller operating mechanisms than cantilever gates, and as a result, wheel contact with the ground can make operation coarse and noisier than cantilever gates. Since cantilever gate wheels are off the ground, this style can span a wider range of terrain including gravel, grass, blocks, and uneven, angled, or steeply inclined surfaces. The absence of contact with the ground also allows cantilever gates to function easily in all weather conditions.

The smart appearance, efficient design, and craftsmanship in a cantilever gate are sure to impress owners, visitors, and customers visiting the property.

Cantilever gate designs are frequently used as no track work needs to be installed. This makes cantilever gates an option for surfaces that are inappropriate for track gates.

Cantilever gates have been designed to glide through the air rather than along tracks on the driveway and do not require any ground installation. Cantilever Sliding Gate All-In-One Systems are quicker and easier to install and have longer lifespans as they float through the air.

Cantilever gates aren’t only contemporary and modern in appearance, besides cantilever design automatic sliding gates are the ideal choice for anyone with uneven ground, paving that is organic in shape, and gravel driveways.



100% Italian Made BH30/HS BRUSHLESS Roller Gate Motor, Ultra High Speed (44 cm/s) Sliding Gate Opener.

ROGER TECHNOLOGY HIGH-SPEED

 Animal instinct, digital ultra speed

A FASTER WAY TO WATCH YOUR GATE MOVE!



With the new high-speed line, digital ULTRA HIGH SPEED, it is possible to open and close your gate at very high speed, with maximum elegance and more than doubling the decrease in waiting times of other operators for gate automation.

The ideal solution for all installations requiring speedy manoeuvre times, intensive use, maximum movement elegance and total safety during the movement and obstacle detection phases.

Faster speeds and shorter waiting times!
The new TURBO-SPEED lines let you quickly, powerfully and reliably open a gate. They are 100% faster compared to the traditional speeds for motors with BRUSHLESS 24V DC Moror technology.


Dynamic accelerations and decelerations!
Thanks to the new 24V or 36V digital controllers, it has become fast and straightforward to set different types of accelerations and decelerations during your gate's opening and closing phases. And always guaranteeing maximum elegance and safety.

Digital obstacle detection!
The ultra-powerful Native Encoder onboard the digital technology and the brand new motor power control in sensored technology make it possible to detect any obstacle with maximum safety, setting the speed, motor torque, sensitivity and operator reaction time during the detection phase for possible obstacles.

Total safety from the point you want!
To guarantee maximum safety and maintain high-speed performance, the new digital controller offers the possibility of configuring gate opening and closing from where you want to start deceleration and setting the type of deceleration, its speed and the relative sensitivity you want.



Roger Technology Brushless BH30/HS Sliding Gate Motor

BRUSHLESS 24V TURBO-SPEED Sliding Gate Automation Motor | with magnetic limit switch



BUILT-IN SPECIAL CASE FOR BATTERY BACKUP



At a glance | Brushless 24v Ultra High-Speed Automatic Sliding Gate Opener / Roller Gate Automation System

The Roger Technology BH30/604/HS Brushless complete kit includes the roller sliding gate motor, control panel, and receiver.

The BH30/604/HS motor is a low voltage, super intensive use with native encoder onboard, irreversible ideal for sliding gates up to 600Kg with built-in digital controller B70 series, magnetic limit switch.

Includes:

- BH30/604/HS Electromechanical Brushless Sliding Gate Motor
- Built-in B70 24v Digital Control Panel
- Plug-in H93/RX20/I Receiver
- Magnetic Limit Switch

See the full details below.



Roller Gate Automation System Features

  • Ideal: For sliding gates up to max. 600 kg.
  • Safe: The encoder management allows precise and safe control of slowdown when opening and closing.
  • Practical: Automatic programming via the learning function of the control unit.
  • Quick: Ease of installation and start-up due to its simple functions and its height and depth adjustments.
  • Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor mounted in dedicated housings and bearings.
  • Equipped with a release lever and an easy-to-operate lock.
  • Convenient: Battery backup available.



Capacity

  • 100% Duty Cycle (opening/closing - 24 hours, no stop)
    Digital brushless motor based on a permanent magnetic field that uses neodymium iron-boron magnets inside the rotor.
  • Multifunction digital display
    4-quadrant digital display with six function keys allow you to go through the various parameters, change their values, check error messages and input statuses and perform all the self-learning phases.
  • 600KG Capacity
  • TURBO Speed (44 cm/s | Roller Gate Automation System)





BRUSHLESS MOTOR TECHNOLOGY

A digital brushless motor with a permanent magnetic field and digital electronics for the complete management of the automation system control. Designed for super intensive use with the added benefit of super low energy consumption.



DIGITAL BRUSHLESS MOTOR

Innovative, revolutionary Brushless digital motor with permanent magnetic field, 24V/36V energy sinusoidal with a native encoder that permits highly intensive use of the automation with extremely reduced consumption whilst at the same time fully guaranteeing all its safety and management functions.

NEW GENERATION OF ELECTRONICS

The new control unit with onboard Brushless digital controller (24V/36V DC). Without traditional relays and thanks to its revolutionary MOSFET quadrant system and its control technology entirely based on a DSP microcontroller, it represents a new generation of electronic cards created to safely handle every type of automation movement.

ENGINEERING PASSION

All the mechanical components and gears are manufactured in steel, cast iron and bronze. The automation system casings are made from titanium-reinforced die-cast aluminium. All the gears are inspected and assembled on high-quality bearings and inserted on precise seats machined to provide absolute precision between the axes.



Special Features of Brushless 24v Ultra High-Speed Automatic Sliding Gate Opener

WHY BRUSHLESS...?

Digital, smart, powerful, elegant, robust and all-Italian.

A technology that offers maximum performance but consumes less power than other motors. The revolutionary digital motor with 12 unique features.

Powerful Digital Brushless Motor

A very powerful sliding gate motor with substantial torque. The motor is compact and neat due to the special concentrated coil windings, it is powered by an energy sinusoidal system.

Digital & Vectorial Automation Controller

The BRUSHLESS digital controller, which operates at low voltage DC, allows 100% control of the automation system in digital mode. Due to its operation entirely based on a DSP microcontroller, the travel and your automation system's movements can be programmed and customised easily, precisely and elegantly.

The Digital Silence Of The Motor

One great impact is the silence or the near absence of noise generated by the BRUSHLESS motor during all its movements.

 Motor For Super-Intensive Use

 The brushless gate motor remains permanently cold even after many days of super-intensive use.

Speed, Acceleration & Deceleration With Extreme Elegance

The automation system with brushless digital technology creates perfect and elegant movements. With a constant force and torque at every point and the option of varying the speed of deceleration and acceleration, the system can be managed with maximum safety.

Extremely Low Energy Consumption

A motor that can operate at low voltage in super-intensive use and operate in environments with highly demanding weather conditions while maintaining very low energy consumption and absorption levels.

Impact, Obstacle Detection & Reversal In Total Safety

Thanks to digital technology, we are able to detect an obstacle and reverse the motor instantly by simply specifying the torque of the motor, the sensitivity, the time and the travel of the reversal, all in full compliance with safety requirements.

Onboard Native Digital Encoder

The BRUSHLESS motor has a highly advanced native digital encoder that controls the management of automation systems in a safe, precise and extremely elegant manner.

No Problem In The Event Of Power Failure

With the help of internal or external batteries and the associated battery charging card, your automation system continues to operate considerably even during prolonged power cuts, ensuring many more operations than traditional technologies.

Motor At Ambient Temperature

The brushless motor was created with the main goal of being a motor for super intensive use and with a 99% efficiency. Regardless of how many operations the engine performs in a day, it always remains cold or, at the most, reaches the outside ambient temperature.

Simple Installation With A Single 3-Wire Cable

And the BRUSHLESS motor can be installed by simply connecting it using a single 3-wire cable! What could be easier? This will provide fully digital management of your automation system thanks to sensorless or sensored technology, depending on the type of automation system.

Advanced Precision Engineering To Obtain Optimal Motor Performance

We have created a mechanism that gives you the opportunity to get the maximum performance out of the motor. A product that combines the quality of the internal production processes, mechanical processing, and high-quality ferrous and non-ferrous materials.



Control Board Overview



Accessories Compatibility and Controlling Options | Roller/Sliding Gate Automation

  • Constant DC Accessories Output
  • Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (APP-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)



Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11
Product weight packed (Kg): 0,03






Italian-Made Roger Technology BH30/HS BRUSHLESS 24V TURBO-SPEED Sliding Gate Electric Motor
| DIMENSIONS |



Italian-Made Roger Technology BH30/HS BRUSHLESS 24V TURBO-SPEED Roller Gate Electric Motor
| SPECIFICATIONS |

Max gate weight: 600 kg
Power line supply: 230V AC - 50Hz
Motor power supply: 24V
Power rating: 130W
Frequency of use: Intensive use
Thrust: 50 - 500N
Operating temperature: -20+55°C
Protection level: IP44
Reductor Type: Irreversible
Manoeuvre speed: 26 m/min (40 cm/s)
Limit switch: Magnetic
Onboard control unit: B70/1DC
Encoder: Digital native encoder + magnetic digital censored, 4096 PPR
Batteries recovery: Optional 2 internal battery 12V 1,2AH - Optional 2 external battery 12V 4,5AH
Type exit gear: Z15/mod 4
Operating cycles per day (opening/closing - 24 hours, no stop): 800
Maximum dimension product in mm (L x W x H): 315 x 165,8 x 329
Product weight packed (Kg): 12,5



Standard Accessories

KT223

Fixing plate with stay bolts and screws M30 series.

MC775

Kit magnetic limit switch for the control units H70/103AC, H70/104AC, B70/1DC, and B70/1DCHP.



Optional Add-On Raised Fixing Plate

KT220

Raised fixing plate for M30 series (+3 cm).





(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.







Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.


Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)





Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $2,525.00

        Have Questions?Talk to the Experts(03) 9532 0804

        Dispatched in: Within One
        Business Day
