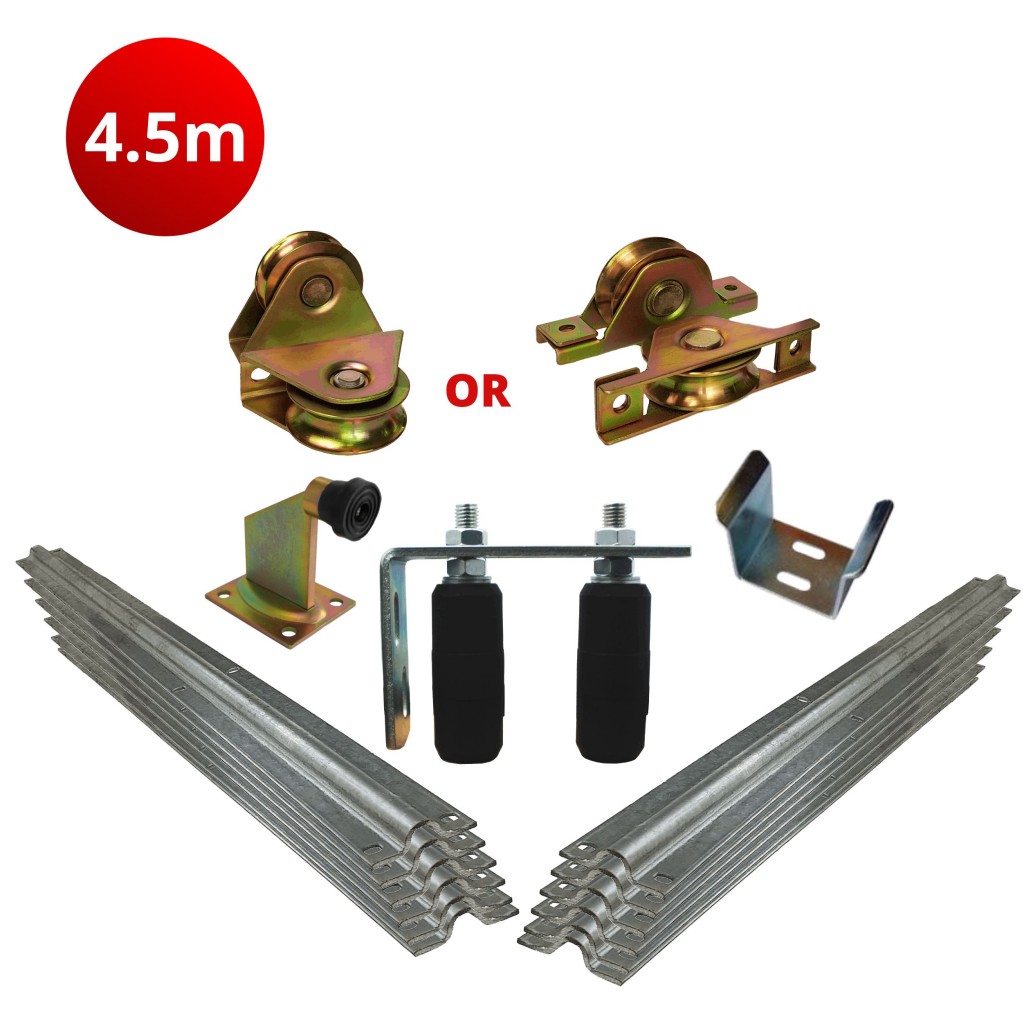

4.5m Complete Standard Sliding Gate Hardware Kit

Product SKU: SGK-R78-45

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$239.00

  • Or in 4 payment of $59.75 with afterpay info
  • Wheels, Track, Upper Roller System, U Guide and Gate Stop

  • Kit Includes

    01 Singular 78mm Recess Mount Wheels(QTY: 2)
    02 1m Galvanized Sliding Gate Track (Required Double the Width of Gate)(QTY: 9)
    03 100mm Roller(QTY: 2)
    04 165x110mm Galvanized Bracket(QTY: 1)
    05 70mm Galvanized U Guide Gate Receiver Catcher(QTY: 1)
    06 115mm High Bolt Down Anodized Gate Stop(QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

68mm Recess Wheels | Sliding Gate Hardware






  • R10 profile to suit the entire range of APC Galvanized profile tracks

  • Dual bearing system for the capacity of 250KG per wheel (500kg per pair)

  • Fits into 50mm heigh tubing with a cut-out size to fit the wheel of 70x35mm

  • Raises the gate by 30mm when installed with the floor track

  • Easy installation with pre-punched fixings, just drops into place after cut out and screws to the tubing from the flanged sides






78mm Flat Mount Wheels



  • R10 profile to suit the entire range of APC Galvanized profile tracks

  • Dual bearing system for the capacity of 250KG per wheel (500kg per pair)

  • Fits straight to the bottom, no cut out required

  • Raises the gate by 92mm when installed with the floor track

  • Easy installation with pre-punched fixings, screws to the tubing from each side


  •





100mm Roller and Bracket Set




  • 165mm Long Galvanized steel construction for long life outdoor use

  • 100mm nylon rollers with completly adjustable positions

  • 75mm internal clearance between rollers at full span, allowing for 25mm ajustment for the gate a gate thickness not exceeding 50mm is ideal (see 200mm long bracket to allow 85mm gate thickness)

  • Pre-punched fixing holes ideal for adjustments prior to final fixing



Bolt Down Galvanized Floor Track






  • R10 profile to suit the entire range of APC recess and flat mount wheels

  • Rounded profile provides the least resistance for sliding gate movment over the alternative "V groove"

  • High strength 3mm steel, Galvanized for complete long life outdoor use

  • Pre-punched fixing holes ready for anchor nails (Supplied)

  • Easy to install, bolts down to concrete! No need to set in during concreting


  •



70mm U Guide






  • Galvanized steel construction for long life outdoor use

  • Flared entry to guide gate into the reciever in case of wind loads pushing the gate

  • 70mm internal clearance ideal for standard steel or aluminum gates gates that are offset from the closing post or clad gates no greater than 65mm thickness

  • Pre-punched fixing holes ideal for adjustments prior to final fixing


  •



Anodized Gate Stop






  • Anodized steel construction for long life outdoor use

  • 115mm Height

  • 40mm Rubber bumper

  • Solid 100x80mm base

  • Pre-punched 10mm fixing holes


  •



Your Customised Kit Includes:

No Changes.
