Product SKU: A-BusV4-WH-D301

Eyevision® EasyInstall Video Intercom 4 Inch White Monitor with 105 Degree Cast Alloy Surface Mount Outdoor Station

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Eyevision® EasyInstall Video Intercom

    On Sale

Eyevision® EasyInstall Video Intercom 4 Inch White Monitor with 105 Degree Cast Alloy Surface Mount Outdoor Station

Product SKU: A-BusV4-WH-D301

  • In Stock

Get More Info..

Kit Price:

$399.00 $465.00 APC Automotion Plus Sale

  • Or in 4 payment of $99.75 with afterpay info

  • Sleek GUI, Easy Installation 2 Wire System Video Intercom, Non Polarity System | Eyevision® EasyInstall Video Intercom

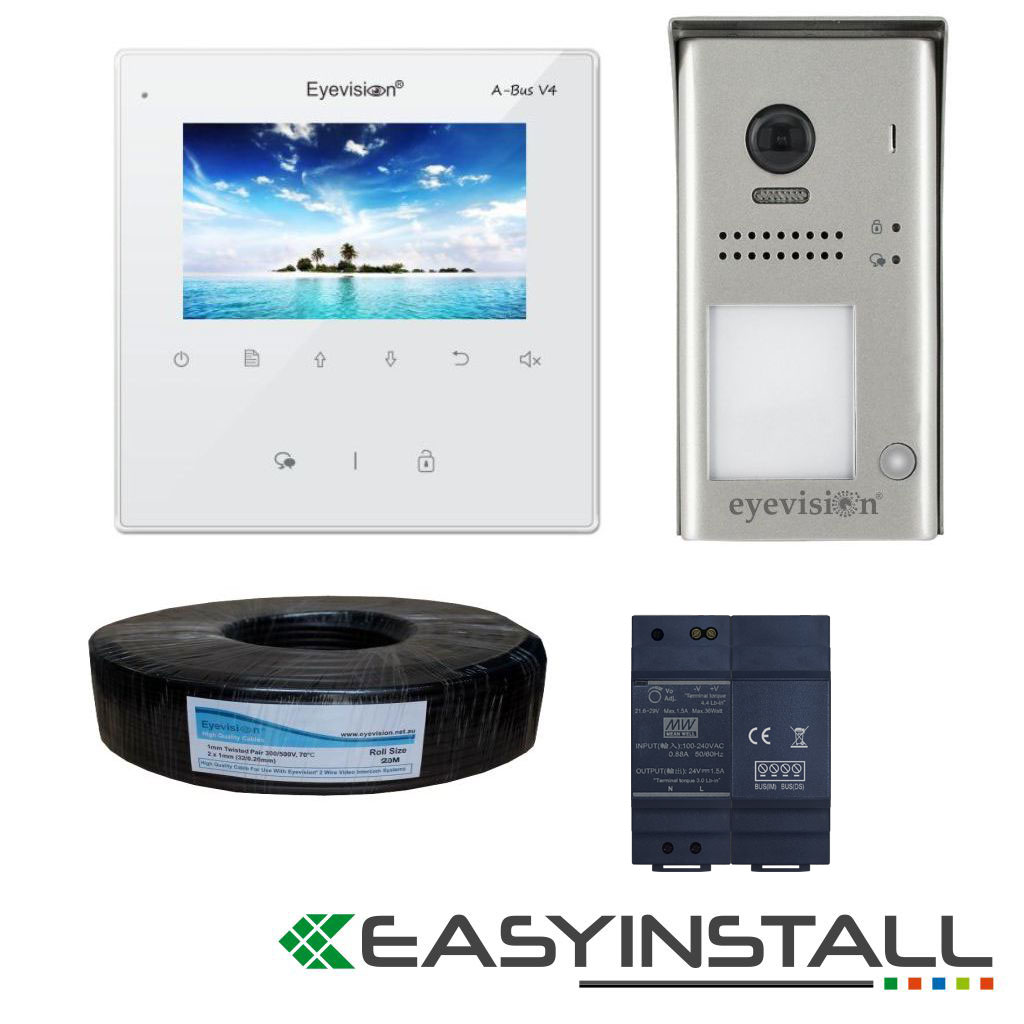

  • Kit Includes

    01 4 Inch Standard Series Add On Monitor - 2 Wire EasyInstall Video Intercom System (QTY: 1)
    02 Zinc Alloy 105 Degree Surface Mount Outdoor Station (QTY: 1)
    03 Combo Power Supply and Separator for Eyevision 2 Wire Video Intercom Systems (QTY: 1)

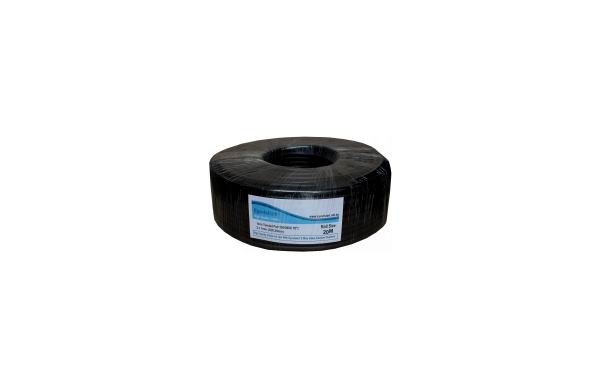

    04 20m Cable, Twisted pair 1mm thick for use with the Eyevision 2 wire systems (QTY: 1)
  • Add-On Items
  • Product Information

Add-On Items (Discounted when purchased along with this Kit)

Product Information

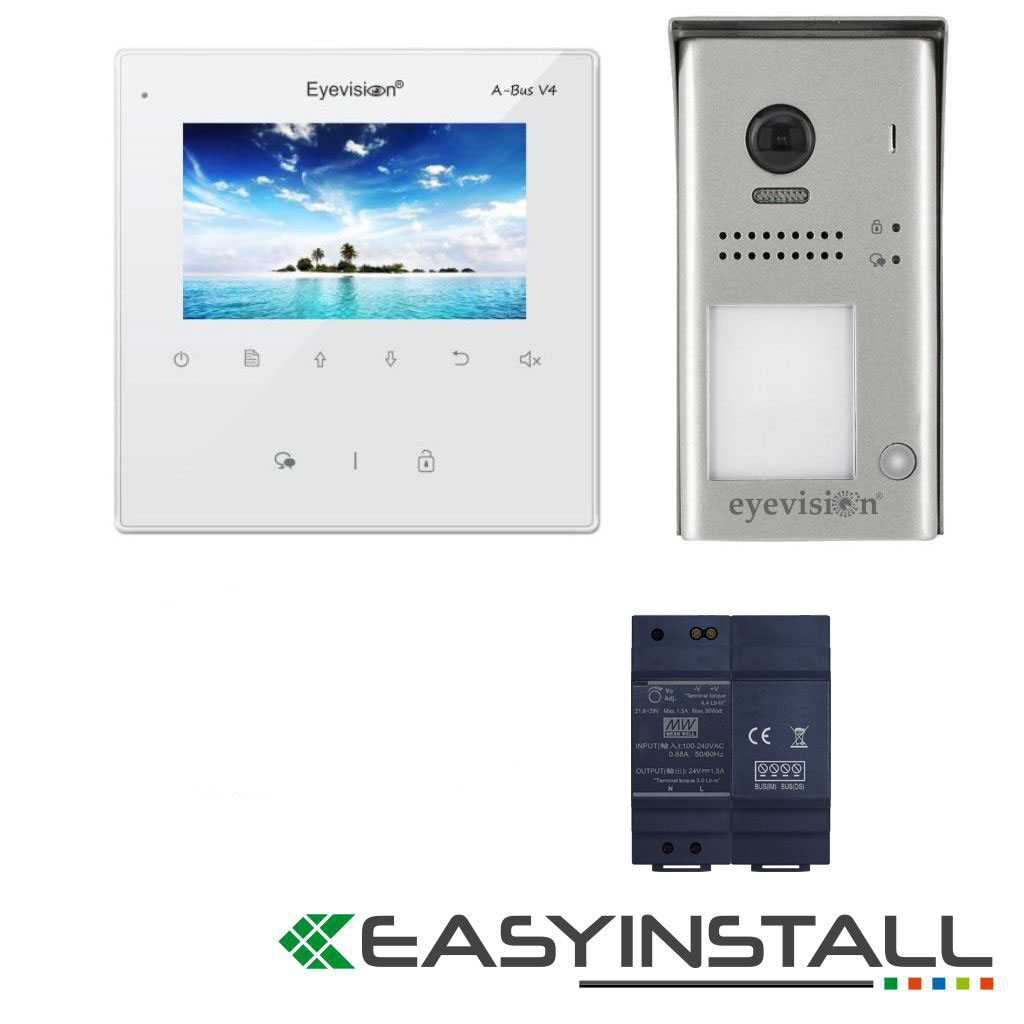

Eyevision® EasyInstall Video Intercom 2 Wires Video Intercom System with Camera Door Station

A complete package including a stylish 4" Video Intercom System with Touch Sensitive Buttons, Camera Door Station, Combo Power Supply and 20m Cable

Product Code: A-BusV4-WH-D301

This easy-to-use 2 Wire Video Intercom System package comprises an Eyevision® weatherproof outdoor station and an Eyevision® 4" Monitor which is fully equipped with touch-sensitive buttons.
This intercom system can be used for video monitoring of the front entrance as well as for audio communication between the visitor and the owner of the house.

The 2 Wire Video intercom system offers a uniquely modern appearance and crystal clear voice quality using a twisted pair of 1mm cables (20m provided).

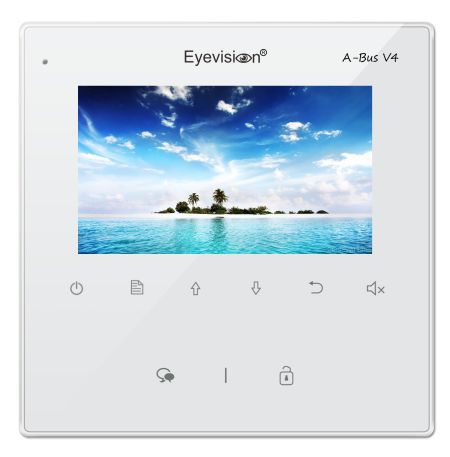

A-Bus 4" Monitor
A-Bus White 4inches Digital Video Intercom System with Weatherproof Alloy Door Station
Monitors features:

- True color 4" Digital screen
- Touch-sensitive buttons with easy-to-use menus
- Adjustable monitoring time
- Night doorbell volume setting to, normal, low, or mute (6 pm to 6 am)
- Inner intercom calling between installed monitors (if more than 1 monitor is installed in one apartment)
- 12 Doorbell melodies to choose from
- Supports unlocking/opening operation of a lock or automatic gates

Monitor Specifications
Power Supply 24V DC Supplied by the system power supply
Power Consumption Standby 8mA, Working 190mA
Screen size 4" Colour LCD
Monitor Dimension 137(H) x 137(W) x 17(Thick)

2 Wire Eyevision® Add on Door Station
Suitable for use with any of the Eyevision® Two Wire Intercom Systems

Eyevision® 2 Wire Slim Design Surface Mounted Weatherproof Zinc Alloy Panel Door Station, Camera, Door Bell with Rain Cover, with built-in 105° Camera Angle and two-channel operation (1 channel is built into the door station, second lock channel via add-on relay EV-RLC-S which can be found under Eyevision® 2 wire accessories).

When the EV-D301 is coupled with the Eyevision® 2 Wire monitors, this door station will display the highest quality digital picture allowing the user to see who is at the gate or door as well as talk to the visitor and unlock the gate or door.

Features:

* Camera View: 105º Camera Angle
* Material: Zinc Alloy Panel
* Camera: CMOS 800TVL
* 2 Channels Output (second lock via add-on component EV-RLC-S which can be found under two wire accessories)
* Weatherproof IP54
* Surface Mount, supplied with a Rain Cover
* Nameplate display with backlight

Specifications
Power Supply: DC 24V
Power Consumption: Standby 0.8W; Working 3W
Camera lens: Color CMOS, 800TVL
1/3’’ camera, 105º wide angle
Lock Power supply: 12Vdc, 250mA(Internal Power);
A number of relay circuits: 2(the second lock needs external device to support)
Number of Relays: 2 (second using an add-on RLC)
Mounting: Surface wall-mount
Working temperature: -20ºC ~ +55ºC
Protection: IP54
Material: Zinc Alloy Panel
Wiring: 2 Wires, Non-Polarity
Dimension:  176(H)×90(W)×27(D)mm

Door Station Installation



Cable Requirements

Eyevision® 2 wire Cable Requirements



Cabling

  • CAT5 up to 80m between the door station and each apartment.
  • Straight Pair 1mm2 up to 50m between the door station and each apartment.
  • Twisted Pair 1mm2 up to 120m between the door station and each apartment.
  • Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.



Recommendation:

The Eyevision® 2 wire monitors are very powerful and will deliver high-quality video and audio, it is recommended to use the best quality cables that will suit your installation. Use cables with very good-quality copper conductors in order to maximize the clarity of the system.





Combo Power Supply and Power Separator For all Eyevision 2 Wire Home Systems
Combo Power Supply and Power Seperator

The EV-PS-C7 is a combo power supply and power separator for the Eyevision® 2 wire systems. It has a simple Phoneix connection for the BUS line for the door station(s) and monitor(s).

Key Features:
- 24V 1.5A Power Source
- Din Rail Mounting (Supplied)

Compatibility:
All Eyevision® 2 Wire Home Systems.



Diagram of 1 Door Station and 1 Monitor using the EV-PS-C7

Diagram of Multi Door Station and 1 Monitor using the EV-PS-C7

Diagram of 1 Door Station and Multi-Monitor using the EV-PS-C7

With DBC4A Wiring Mode
