Product SKU: DMR11S-4ID

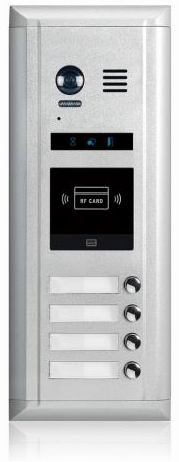

4 Button Direct Door Station with RFID Reader

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

4 Button Direct Door Station with RFID Reader

Product SKU: DMR11S-4ID

  •  In Stock

Price :

$250.00

Get More Info..

Product Information






Add-on door station for the Eyevision 2 Wires apartment systems




This Eyevision® 2 Wire Apartment Door Station is completely weatherproof and constructed of anodized aluminum with a built in swipe card reader, allowing the user to unlock a connected gate or door from the outside aswell as from the internal monitor inside the apartment.
Compatible with all of the Eyevision® 2 wires monitors.

Door Station Features:

  • Fully anodized aluminum panel
  • High performance SONY colour CCD camera
  • Adjustable camera angle
  • Night -view 6 LED with CDS light sensor
  • Backlit name plate for each button
  • Proximity access function for EM cards
  • Use DIP switches for multi Door Station configuration
  • Direct connect to electronic lock of 12VDC
  • Exit button option
  • Plug -in connector to connect bus line
  • RS485 terminals for connecting with a computer to configure room names or numbers or debugging
Add-on door station for the Eyevision 2 Wires apartment systems




Add-on door station for the Eyevision 2 Wires apartment systems

Specification:

  • Power supply: 24VDC (supplied by PS5)
  • Power Consumption: 1W in standby, 15 W in working
  • Unlock Power output: 12Vdc 300mA
  • NO, COM exchange contact: Max. 48V dc 1.5A
  • Mono stable relay activation time:  1 second to 10 minutes ±5%
  • Working temperature:  -5ºC +45ºC
  • Recess mount (please see diagram)
Size:
  • 308mm High
  • 124mm Wide
  • 65mm Deep
Hole size:
  • 298.5mm High
  • 114.5mm Wide
  • 45mm Deep


Cable Requirement for the 2 wire door station
Add-on door station for the Eyevision 2 Wires apartment systems

CAT5 up to 80m between the door station and each apartment.
Straight Pair 1mm2 up to 50m between the door station and each apartment.
Twisted Pair 1mm2 up to 120m between the door station and each apartment.
Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.
Recommendation: The i-Touch V2 is a very powerful monitor and will deliver high quality video and audio, it is recommended to use the best quality cables the will suit your installation, allows use cables with very good quality copper conductor in order to maximize the clarity of the i-Touch V2.
If you are not committed to cable such as CAT5 or Straight Pair, then it is highly recommended to use a Twisted pair between 1mm2 & 1.5mm2, using this cable will guarantee the best optimized results in video and audio transmission for up to 200m.
Twisted pair cables manufactured for this system are available at very competitive prices, please click here


Wiring layout example of a simple 4 apartments system
Add-on door station for the Eyevision 2 Wires apartment systems



Wiring example of the capabilities of the powerful expansion features of the A-Bus system
Add-on door station for the Eyevision 2 Wires apartment systems




Warranty:
All of the Eyevision® video intercoms are bench tested according to the buyers configurations, every customers needs are different, the extensive aging test is conducted for several hours.
All the Eyevision® products carry a 12 months warranty.
We also carry a comprehensive range of spare parts for all the Eyevision® range of video intercom systems.
