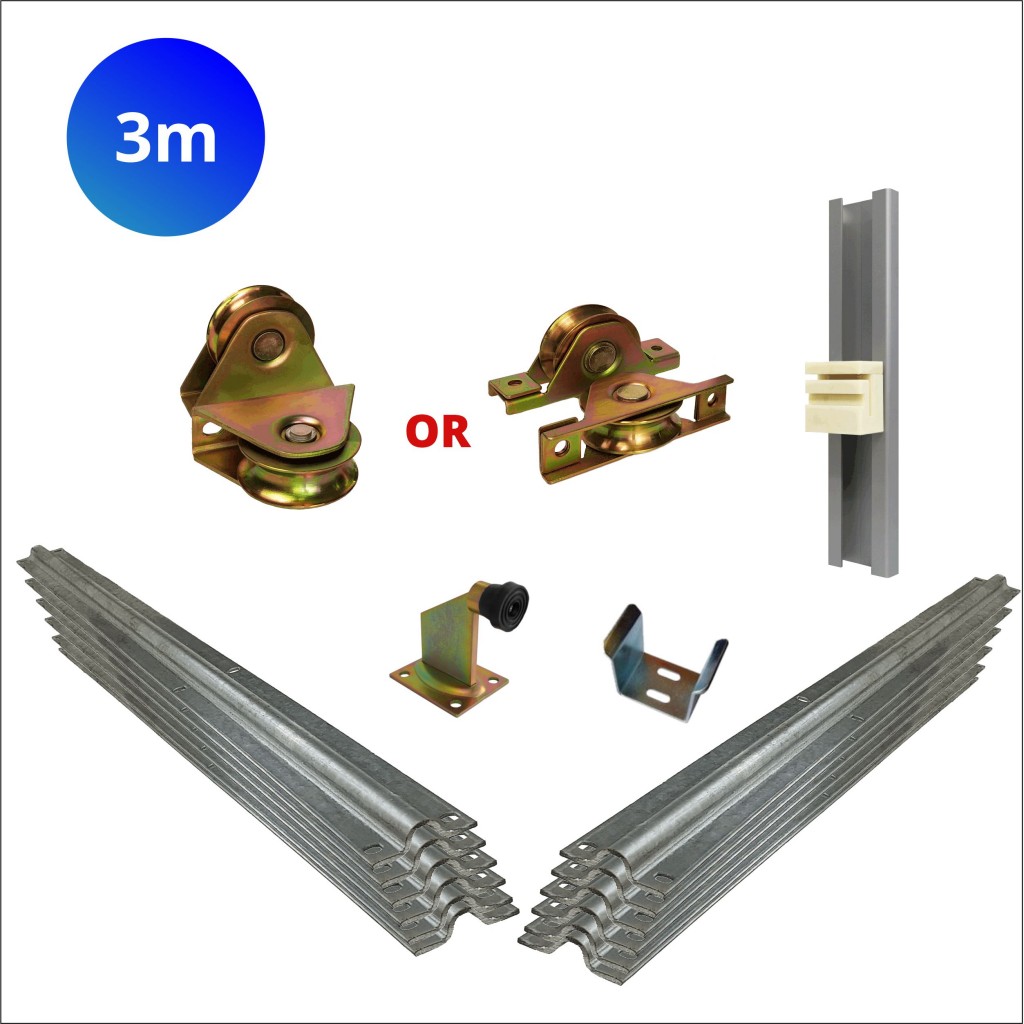

3m Cladded Sliding Gate Hardware Kit

68mm Recess Mount Wheel | Sliding Gate Hardware

U Grove wheels, suitable for 20mm dome shape tracks

Heavy-duty wheel with dual bearings

This is a recess mounting wheel. The wheel is fitted into the underside of the bottom gate frame, and the wheel will raise the gate by approximately 27mm from the sliding gate track.

Package: 68mm Recess Mount Sliding Gate Wheel

Usage: Sliding Gates

Suitability: The wheel is suitable for sliding gate tracks with dome-shape rise measuring 20mm in width (see the dimensions)

Weight Capacity:
250Kg per wheel

Material:
- Anodised steel

68mm Recess Wheels | Sliding Gate Hardware



• R10 profile to suit the entire range of APC Galvanized profile tracks
• Dual bearing system for the capacity of 250KG per wheel (500kg per pair)
• Fits into 50mm heigh tubing with a cut-out size to fit the wheel of 70x35mm
• Raises the gate by 30mm when installed with the floor track
• Easy installation with pre-punched fixings, just drops into place after cut out and screws to the tubing from the flanged sides

68mm Flat Mount Sliding Gate Wheel | Sliding Gate Hardware

68mm Flat Mount Wheel

U Grove wheels, suitable for 20mm dome shape tracks

Heavy-duty wheel with dual bearings

This is a flat mounting wheel. The wheel is fixed onto the underside of the bottom gate frame, and the wheel will raise the gate by approximately 80mm from the sliding gate track.

Package: 68mm Flat Mount Wheel

Usage: Sliding Gates

Suitability: The wheels are suitable for sliding gate tracks with dome-shape rise measuring 20mm in width (see the dimensions)

Weight Capacity:
250Kg per wheel

Material:
- Anodised steel

68mm Flat Mount Wheels

• R10 profile to suit the entire range of APC Galvanized profile tracks
• Dual bearing system for the capacity of 250KG per wheel (500kg per pair)
• Fits straight to the bottom, no cut out required
• Raises the gate by 87mm when installed with the floor track
• Easy installation with pre-punched fixings, screws to the tubing from each side



Aluminum C Channel & Guide Block Combo



• 400x85x30mm Aluminium C channel System to allow for a full slide of the guide block from static to 325mm


• Incorparates perfectly into the APC Z channel system or a pre-welded angle of 40x40mm on the gate


• Allows for unobstructed guiding from the rear of the gate, ideal for angled gates, spear top gates, cladded gates or just to close to the fence.


• Requires a spacing of 80mm from the rear of the gate to the guide post


• Fix as per requirment, blank canvas without any punchings


• Easy to install, use self drilling screws and fix directly to the guiding post




Bolt Down Galvanized Floor Track



• R10 profile to suit the entire range of APC recess and flat mount wheels


• Rounded profile provides the least resistance for sliding gate movment over the alternative "V groove"


• High strength 3mm steel, Galvanized for complete long life outdoor use


• Pre-punched fixing holes ready for anchor nails (Supplied)


• Easy to install, bolts down to concrete! No need to set in during concreting




55mm U Guide

• Galvanized steel construction for long life outdoor use


• Flared entry to guide gate into the reciever in case of wind loads pushing the gate


• 55mm internal clearance ideal for standard steel or aluminum gates without cladding


• Pre-punched fixing holes ideal for adjustments prior to final fixing

Anodized Gate Stop



• Anodized steel construction for long life outdoor use


• 115mm Height


• 40mm Rubber bumper


• Solid 100x80mm base


• Pre-punched 10mm fixing holes
