Product SKU: BR21-351-HSx2-UG-DC-BK

Underground Double Swing Electric Gate Kit | Roger Technology Brushless Turbo-Speed 36V DC | 100% Italian Made by Roger Technology BR21/351/HS for Swing Gate Automation System. Ultra High-Speed 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits | Max. 6m Opening (3M or 450KG Each Leaf)| Super Intensive Use

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

Underground Double Swing Electric Gate Kit | Roger Technology Brushless Turbo-Speed 36V DC | 100% Italian Made by Roger Technology BR21/351/HS for Swing Gate Automation System. Ultra High-Speed 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits | Max. 6m Opening (3M or 450KG Each Leaf)| Super Intensive Use

Product SKU: BR21-351-HSx2-UG-DC-BK

  • In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$3,645.00

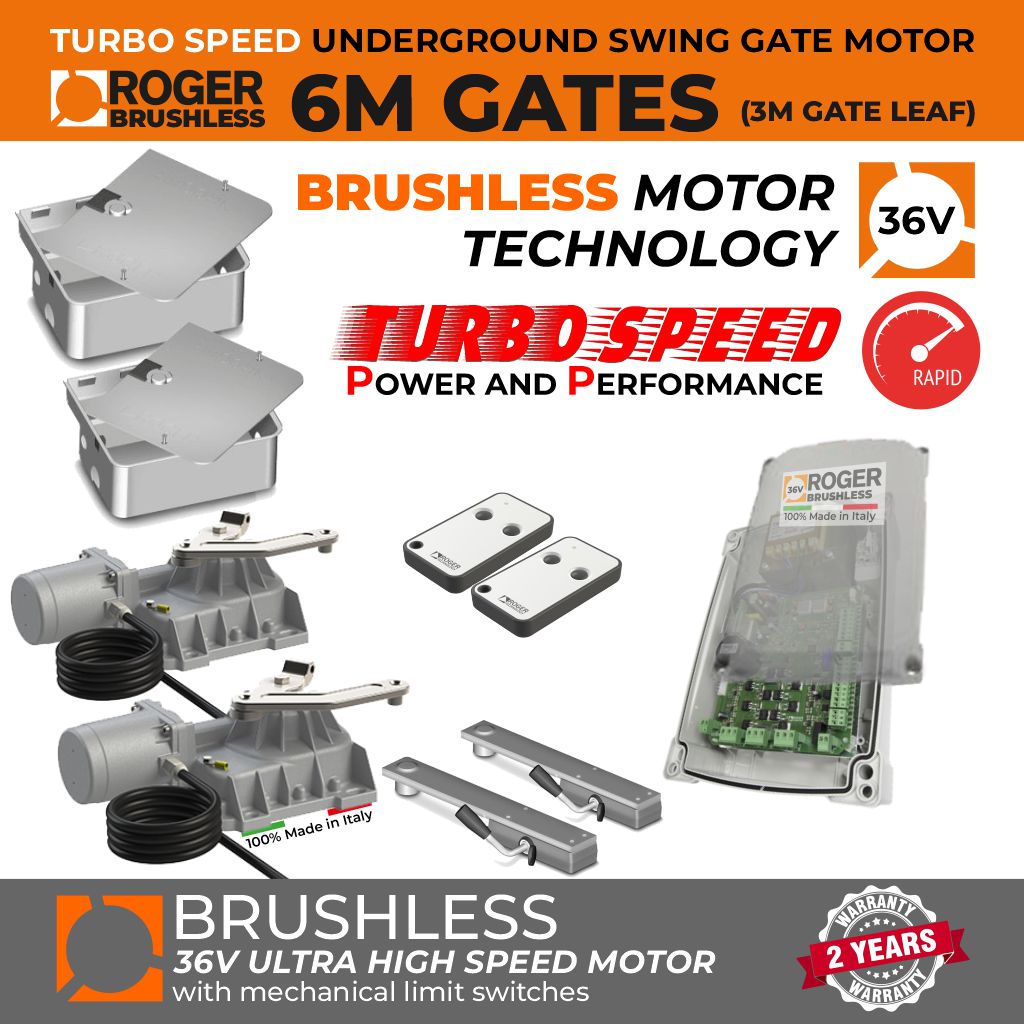

  • Roger Technology Underground Brushless Ultra High-Speed Swing Gate Opener | Max. 6m Opening (3M or 450KG Each Leaf)

  • Kit Includes

    01 Underground 36V DC Turbo-Speed Brushless Swing Gate Opener Motor |100% Italian Made by Roger Technology BR21/351/HS for Swing Gate Automation System. (QTY: 2)
    02 Underground gate motor release system with a standard lever. (Roger Technology BR21/351/HS RL650) (QTY: 2)
    03 Hot galvanised underground gate motor box, inox, and stainless steel lid. (Roger Technology BR21/351/HS-FU102) (QTY: 2)
    04 Roger Technology 36V Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box. | 100% Italian Made | (QTY: 1)
    05 Pack of 3 Core 2mm Non-Shielded Cables (3m and 9m) (QTY: 1)
    06 Roger Technology Two-Button Remote Control (QTY: 2)
    07 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes, batteries etc) (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Underground 36V DC Turbo-Speed Brushless Swing Gate Opener Motor
100% Italian Made by Roger Technology BR21/351/HS for Swing Gate Automation System.

Electromechanical underground motor, HIGH-SPEED BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 3m. Standard version with 2m cable.

  • Italian-Made Roger Technology Brushless Ultra High-Speed Underground Swing Gate Motor
    | Max. 3m or 400kg Each Leaf (6m Opening for Double Swing Gates) | Super Intensive Use |
  • Hot galvanised foundation box and inox and AISI 304 stainless steel lid.
  • RL650 - Release system with a standard lever.
  • Ultra High-Speed 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits

Electromechanical actuator TURBO-SPEED BRUSHLESS, 36V low voltage, super intensive use, with native encoder onboard, swing gate opener with mechanical stopper in opening and closing.

Underground 36V DC Turbo-Speed Brushless Actuator Overview

Extra Heavy Duty Single Gate Opener

Dimensions and System Capacity

Installation Geometry



Technical Specifications



Power line supply: 230V AC - 50Hz
Motor power supply: 36V
Power rating: 200W
Frequency of use: Intensive use
Torque: 50 - 200 N m
Operating temperature: -20+55°C
Protection level: IP67
Manoeuvre speed: 2 Rpm
Opening time: 10-25 s
Limit switch: Mechanical stoppers
Recommended digital controllers: 230V - EDGE1/BOX
Encoder: Digital native encoder SENSORLESS 48 PPR
Maximum opening: 105° (optional 125° with LT300)
Power supply cable length: 2m
Bearing on the main shaft: Standard
Operating cycles per day (opening/closing - 24 hours, no stop): 1300







Roger Technology 36V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | EDGE1/BOX |

The Roger Technology 36V EDGE1/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 36 V EDGE1 control unit controls 1 or 2 ROGER brushless motors in the sensorless mode for applications on large-sized or heavy gate wings.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).



Technical Features

Power line supply: 230V AC - 50 Hz
Operating temperature: -10+55 C°
Protection level: IP54
N. motors activated: 2 Brushless Motor
Max power per motor: 250W
Max courtesy light charge: 100W 230V AC - 40W 24V AC/DC
Max power gate open light: 3W (24V DC)
Max voltage accessories output: 20W (24V DC)
Electrical-Lock max power: 15W (12V DC)
Flashlight voltage: 24V DC
Max flashing light charge: 25W
Battery: Optional
Maximum dimension product in mm (L x W x H): 330 x 230 x 115



Control Board Overview



Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)





Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11









Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $3,645.00

        Have Questions?Talk to the Experts(03) 9532 0804

        Dispatched in: Within One
        Business Day
