Product SKU: BR21-351-HS-UG-DC-WF

Underground Brushless Single Swing Electric Gate Opener Smart WiFi Kit With Safety Sensor, WiFi Keypad for Smart Device APP Access Control | Roger Technology Brushless Turbo-Speed 36V DC | 100% Italian Made by Roger Technology BR21/351/HS for Swing Gate Automation System. Ultra High-Speed 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits | Max. 3M or 400KG Per Gate Leaf | Super Intensive Use.

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

Underground Brushless Single Swing Electric Gate Opener Smart WiFi Kit With Safety Sensor, WiFi Keypad for Smart Device APP Access Control | Roger Technology Brushless Turbo-Speed 36V DC | 100% Italian Made by Roger Technology BR21/351/HS for Swing Gate Automation System. Ultra High-Speed 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits | Max. 3M or 400KG Per Gate Leaf | Super Intensive Use.

Product SKU: BR21-351-HS-UG-DC-WF

  • In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,795.00

  • Roger Technology Underground Brushless Ultra High-Speed Swing Gate Opener | Max. 3M or 400KG Gate Leaf | Intensive Use

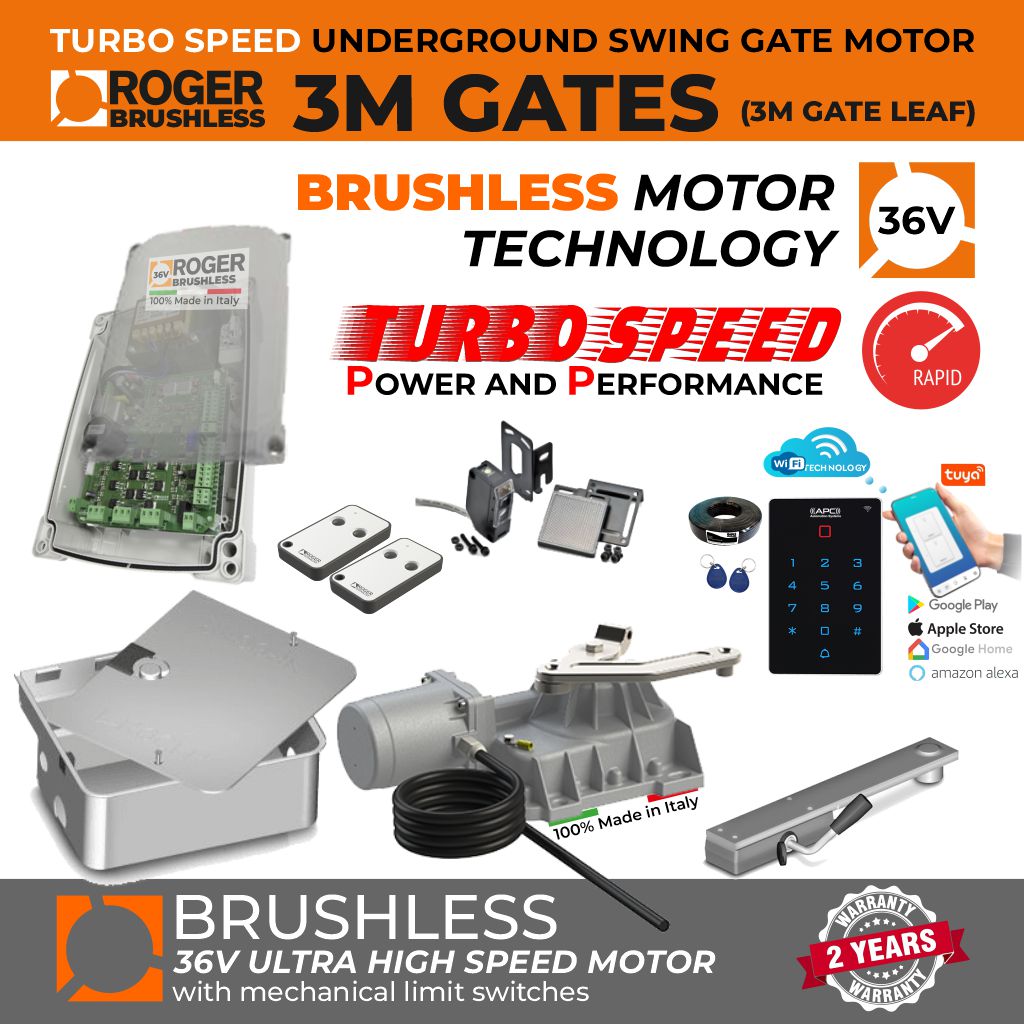

  • Kit Includes

    01 Underground 36V DC Turbo-Speed Brushless Swing Gate Opener Motor |100% Italian Made by Roger Technology BR21/351/HS for Swing Gate Automation System. (QTY: 1)
    02 Underground gate motor release system with a standard lever. (Roger Technology BR21/351/HS RL650) (QTY: 1)
    03 Hot galvanised underground gate motor box, inox, and stainless steel lid. (Roger Technology BR21/351/HS-FU102) (QTY: 1)
    04 Roger Technology 36V Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box. | 100% Italian Made | (QTY: 1)
    05 Roger Technology Two-Button Remote Control (QTY: 2)
    06 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)
    07 APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader (QTY: 1)
    08 EM Swipe Tag (QTY: 2)
    09 5m 4 Core Non Shielded Cable (QTY: 1)
    10 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes, batteries etc) (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Underground 36V DC Turbo-Speed Brushless Swing Gate Opener Motor
100% Italian Made by Roger Technology BR21/351/HS for Swing Gate Automation System.

Electromechanical underground motor, HIGH-SPEED BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 3m. Standard version with 2m cable.

  • Italian-Made Roger Technology Brushless Ultra High-Speed Underground Swing Gate Motor
    | Max. 3m or 400kg Each Leaf (6m Opening for Double Swing Gates) | Super Intensive Use |
  • Hot galvanised foundation box and inox and AISI 304 stainless steel lid.
  • RL650 - Release system with a standard lever.
  • Ultra High-Speed 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits

Electromechanical actuator TURBO-SPEED BRUSHLESS, 36V low voltage, super intensive use, with native encoder onboard, swing gate opener with mechanical stopper in opening and closing.

Underground 36V DC Turbo-Speed Brushless Actuator Overview

Extra Heavy Duty Single Gate Opener

Dimensions and System Capacity

Installation Geometry



Technical Specifications



Power line supply: 230V AC - 50Hz
Motor power supply: 36V
Power rating: 200W
Frequency of use: Intensive use
Torque: 50 - 200 N m
Operating temperature: -20+55°C
Protection level: IP67
Manoeuvre speed: 2 Rpm
Opening time: 10-25 s
Limit switch: Mechanical stoppers
Recommended digital controllers: 230V - EDGE1/BOX
Encoder: Digital native encoder SENSORLESS 48 PPR
Maximum opening: 105° (optional 125° with LT300)
Power supply cable length: 2m
Bearing on the main shaft: Standard
Operating cycles per day (opening/closing - 24 hours, no stop): 1300







Roger Technology 36V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | EDGE1/BOX |

The Roger Technology 36V EDGE1/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 36 V EDGE1 control unit controls 1 or 2 ROGER brushless motors in the sensorless mode for applications on large-sized or heavy gate wings.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).



Technical Features

Power line supply: 230V AC - 50 Hz
Operating temperature: -10+55 C°
Protection level: IP54
N. motors activated: 2 Brushless Motor
Max power per motor: 250W
Max courtesy light charge: 100W 230V AC - 40W 24V AC/DC
Max power gate open light: 3W (24V DC)
Max voltage accessories output: 20W (24V DC)
Electrical-Lock max power: 15W (12V DC)
Flashlight voltage: 24V DC
Max flashing light charge: 25W
Battery: Optional
Maximum dimension product in mm (L x W x H): 330 x 230 x 115



Control Board Overview



Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)





Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):		 38 x 68 x 11





APC-RR-11 Retro Reflective Sensor



The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.

  • Up to 11 Metres Infrared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment & Misalignment led to assist in the installation process

  • Resin filled for the ultimate weatherproofing

APC Mondo Wired Keypad with APP via Wi-Fi



The APC Mondo Wi-Fi Keypad can be used as a simple keypad access control device or alternatively as an advanced unit. Its special features allow the system to be operated by Pin Code, Swipe Tag and even remotley by APP whether on-site or off-site (anywhere in the world).

Supplied with a 10 meter cable roll it is wired back to the main control board of the system. Its also supplied with two swipe tags for PIN FREE access.


Key Feature Set:

  • Full operational control by Tuya APP
  • Resin Filled for best weatherproofing
  • Low Power Consumption
  • Backlit Touch Keys
  • Up to 2000 Users
  • Pin Code, Swipe Tag or DUAL AUTHENTICATION Swipe Tag then Pin Code
  • Adjustable Relay Time from 0-99s or Latching ON/OFF
  • Doorbell Contacts to connect to your doorbell system
