Battery Backup System for Roger Technology Brushless 36V DC Digital Controllers (Automatic Swing and Sliding Gate Opener 36V Systems)

Product SKU: B71-BCHP-36V-BB-S

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$350.00 $400.00 APC Automotion Plus Sale

  • Or in 4 payment of $87.50 with afterpay info

  • Includes 36V Charger Module, Uno Battery Box, 2x 5aH Batteries

  • Kit Includes

    01 APC Uno Multipurpose Battery Box(QTY: 1)
    02 36V Battery Charging for Roger Technology Brushless Digital Controllers (Automatic Swing and Sliding Gate Opener 36V Systems)(QTY: 1)
    03 5aH Battery Backup(QTY: 2)
  • Product Information

Product Information

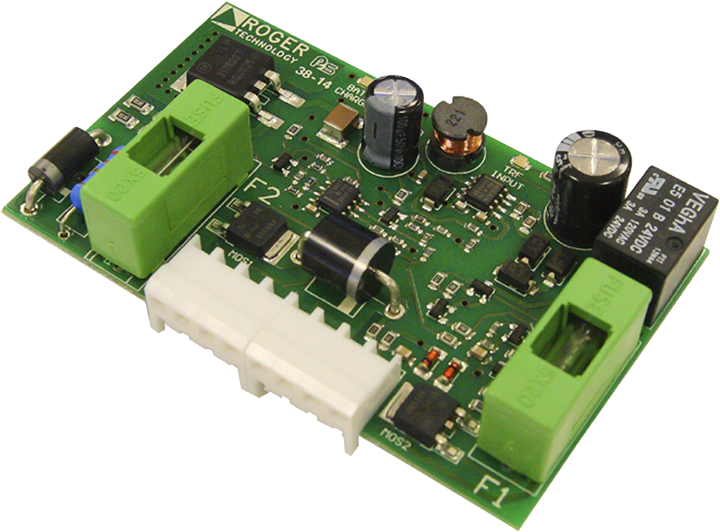

Battery Charger for Roger Technology 36V Swing and Sliding Gate Automation Kit | B71/BCHP

Batteries charger for Brushless digital controller EDGE1/BOX - B70/1DCHP 36V DC with plug-in card,

Technical Features

Power line supply: 16vac … 24vac
Operating temperature: -20°C +55°C
Maximum input power: 15W
Lead-acid batteries: 2 x 12vdc 1200mAh
Nominal charge voltage: 27.6 Vdc
Minimum self-protection voltage of battery: 19.5 Vdc





UNO BOX

36V Battery Backup System for Roger Technology Brushless Digital Controllers (Automatic Swing and Sliding Gate Opener 36V Systems)

Uno Box Outer Dimensions

Height 205mm (Including cable glands) 180mm Without
Width 180mm
Depth 249mm Including Mounting bracket, 210mm without



Battery Back Up

The backup battery system will allow for continued use of the gate system for up to three days(could change depending on the system and usage) of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up and ready for use.

Product Description*

2 x 5aH Backup Batteries

*For Each Battery

Your Customised Kit Includes:

No Changes.
