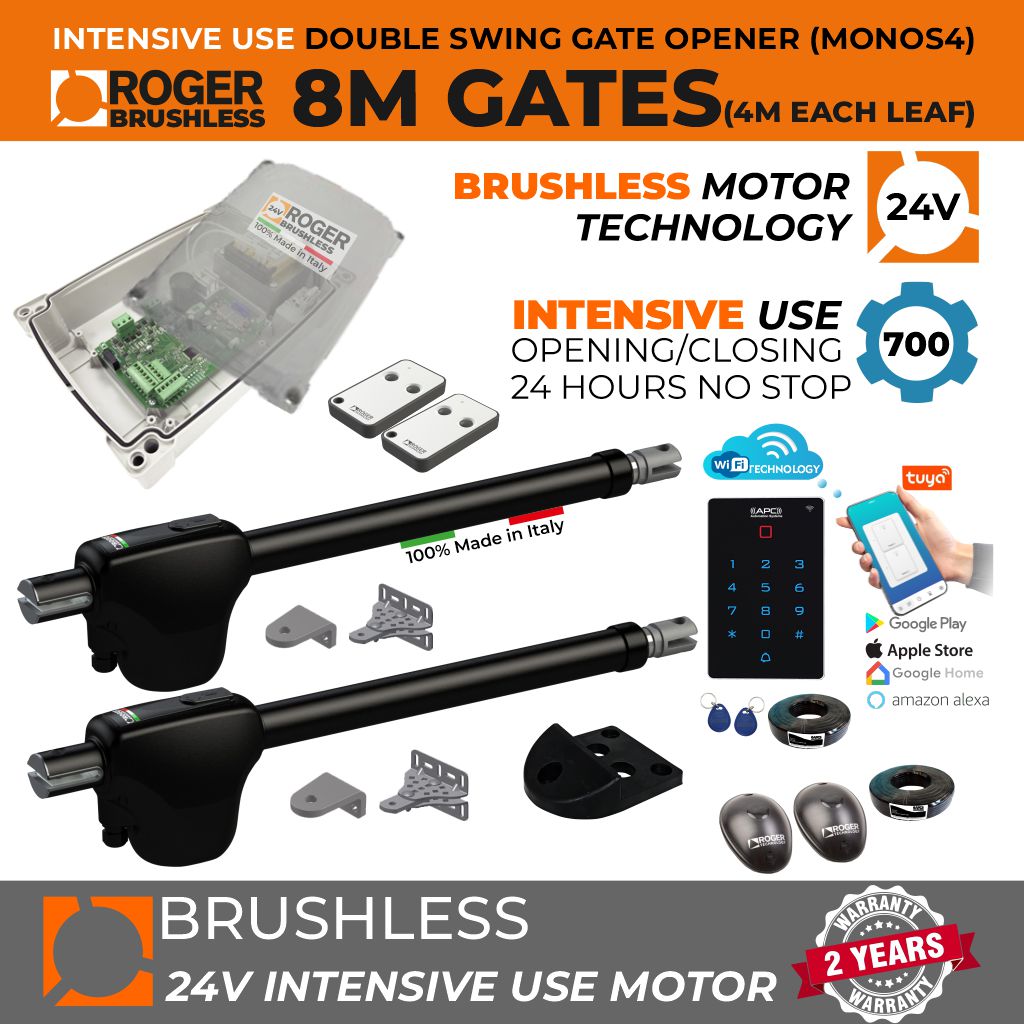

BRUSHLESS 24V DC SWING GATE MOTOR with Telescopic Arm | 100% Italian Made by Roger Technology MONOS4 Super Intensive Use Gate Opener.
BRUSHLESS Swing Gate Opener Motor
100% Italian Made by Roger Technology MONOS4(Brushless Gate Motor) for Swing Gate Automation System.
Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 4M or 450KG Each Leaf | Super Intensive Use |
100% Duty Cycle Brushless Engine With Telescopic Arm
Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 4m length, with telescopic arm.
Actuator Overview | Brushless Gate Motor for Swing Gate Automation System
Dimensions and System Capacity | MONOS4 Brushless Gate Motor for Swing Gate Automation System
All measurements are expressed in mm.
Installation Geometry | Swing Gate Automation Brushless Gate Motor
All measurements are expressed in mm.
Technical Specifications
Power line supply: |
230V AC - 50Hz |
Motor power supply: |
24V |
Power rating: |
200W |
Frequency of use: |
Intensive use |
Thrust: |
2200N |
Operating temperature: |
-20 C° +55 C° |
Protection level: |
IP44 |
Manoeuvre speed: |
2,10 cm/s |
Opening time: |
19-35 s |
Stroke: |
400 mm |
Encoder: |
Digital native encoder SENSORLESS 48 PPR |
Operating cycles per day (opening/closing - 24 hours, no stop): |
700 |
Maximum dimension product in mm (L x W x H): |
1223 x 178 x 111 |
Roger Technology 24V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | B70/2ML/BOX |
The Roger Technology 24V B70/2ML/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |
The 24V B70/2ML control unit controls 1 or 2 ROGER brushless motors in sensorless mode for applications on medium-sized gate leaves.
The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).
Technical Features
Power line supply: |
230V AC - 50 Hz |
Operating temperature: |
-10+55 C° |
Protection level: |
IP54 |
N. motors activated: |
2 Brushless motor |
Max power per motor: |
110W |
Max courtesy light charge: |
100W 230V AC - 40W 24V AC/DC |
Max power gate open light: |
3W (24V DC) |
Max voltage accessories output: |
10W (24V DC) |
Electrical-Lock max power: |
15W (12V DC) |
Flashlight voltage: |
24V DC |
Max flashing light charge: |
25W |
Battery: |
Optional |
Maximum dimension product in mm (L x W x H): |
330 x 230 x 115 |
Control Board Overview
Accessories Compatibility and Controlling Options
- Constant DC Accessories Output
- Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
- Remote controls
- Induction Loops
- Weekly Timers
- Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
- Keypads (Wired and Wireless Options Available)
- Exit/entry sensors
- Intercom system with dry contact output
- Automatic switching timer
- WiFi Control System (App-Based Control)
- GSM Control Systems (Mobile Call/SMS-based Control)
Remote Control Features
E80/TX52R/2
Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.
Technical features
Standard power: |
3V DC |
Absorption: |
12mA |
Operating temperature: |
-10+55 °C |
The number of channels: |
2 |
Codification: |
Fix code |
Modulation: |
AM/ASK |
Carried frequency: |
433.92MHz |
The number of combinations: |
65536 |
Radio for a copy: |
Yes |
The maximum distance in the open field: |
150m |
Battery: |
Mod "CR2032" 3V |
Maximum dimension product in mm
(L x W x H): |
38 x 68 x 11 |
Garage/Gate Safety Sensor | Photocell Sensor Safety Beam | Driveway Automatic Gate Safety Sensor [R90/F2ES]
Pair of external photocells synchronized.
Synchronized Garage/Gate Photocells Safety Sensor [R90 F2ES] | Safety Beam Infrared Technology Gate Sensor Motion Detector
Technical features
Standard power: |
12/24V AC 50Hz - 12/24V DC |
Absorption: |
TX 19mA - RX 20mA |
Operating temperature: |
-20+55°C |
Protection level: |
IP55 |
The maximum distance in an open field: |
10 - 15 m |
Maximum number of photocells synchronized: |
2 |
Orientation angle: |
- |
Relay contacts max current: |
0,5A RX |
Relay contacts max voltage: |
30V |
Installation Type: |
External |
Maximum dimension product in mm (L x W x H): |
62 x 88 x 27 |
Dimensions
What is a Gate Safety Sensor?
Gate Safety Sensors are essential devices installed on gates to ensure the safety of individuals and objects around the gate. These sensors are used to detect any movement near the gate. Once the sensor detects movement, it sends a signal to the gate opener to stop closing or reversing the gate's direction. Overall, installing a gate safety sensor is crucial in ensuring the safety of your property and the people around it.
