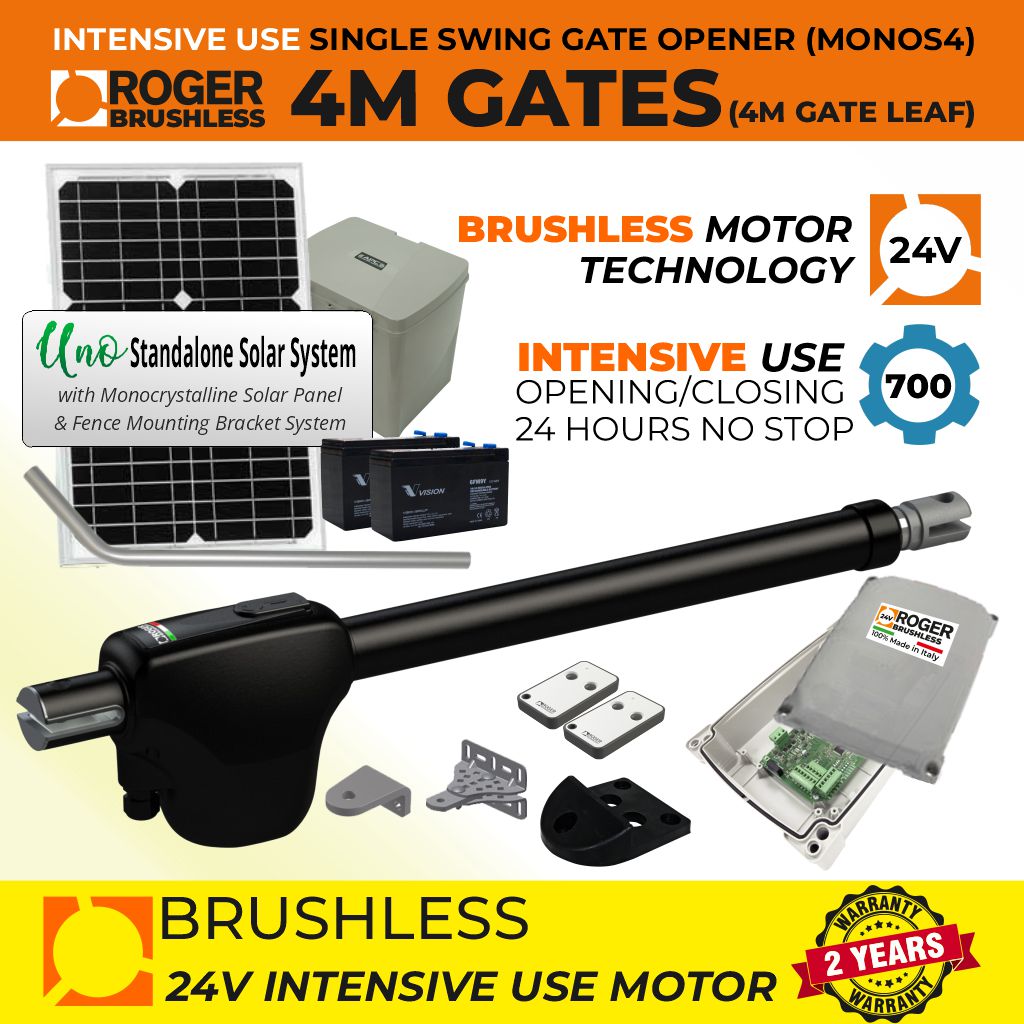

BRUSHLESS 24V DC SWING GATE MOTOR with Telescopic Arm | 100% Italian Made by Roger Technology MONOS4 Super Intensive Use Gate Opener.
BRUSHLESS Swing Gate Opener Motor
100% Italian Made by Roger Technology MONOS4(Brushless Gate Motor) for Swing Gate Automation System.
Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 4M or 450KG Each Leaf | Super Intensive Use |
100% Duty Cycle Brushless Engine With Telescopic Arm
Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 4m length, with telescopic arm.
Actuator Overview | Brushless Gate Motor for Swing Gate Automation System
Dimensions and System Capacity | MONOS4 Brushless Gate Motor for Swing Gate Automation System
All measurements are expressed in mm.
Installation Geometry | Swing Gate Automation Brushless Gate Motor
All measurements are expressed in mm.
Technical Specifications
Power line supply: |
230V AC - 50Hz |
Motor power supply: |
24V |
Power rating: |
200W |
Frequency of use: |
Intensive use |
Thrust: |
2200N |
Operating temperature: |
-20 C° +55 C° |
Protection level: |
IP44 |
Manoeuvre speed: |
2,10 cm/s |
Opening time: |
19-35 s |
Stroke: |
400 mm |
Encoder: |
Digital native encoder SENSORLESS 48 PPR |
Operating cycles per day (opening/closing - 24 hours, no stop): |
700 |
Maximum dimension product in mm (L x W x H): |
1223 x 178 x 111 |
Roger Technology 24V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | B70/2ML/BOX |
The Roger Technology 24V B70/2ML/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |
The 24V B70/2ML control unit controls 1 or 2 ROGER brushless motors in sensorless mode for applications on medium-sized gate leaves.
The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).
Technical Features
Power line supply: |
230V AC - 50 Hz |
Operating temperature: |
-10+55 C° |
Protection level: |
IP54 |
N. motors activated: |
2 Brushless motor |
Max power per motor: |
110W |
Max courtesy light charge: |
100W 230V AC - 40W 24V AC/DC |
Max power gate open light: |
3W (24V DC) |
Max voltage accessories output: |
10W (24V DC) |
Electrical-Lock max power: |
15W (12V DC) |
Flashlight voltage: |
24V DC |
Max flashing light charge: |
25W |
Battery: |
Optional |
Maximum dimension product in mm (L x W x H): |
330 x 230 x 115 |
Control Board Overview
Accessories Compatibility and Controlling Options
- Constant DC Accessories Output
- Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
- Remote controls
- Induction Loops
- Weekly Timers
- Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
- Keypads (Wired and Wireless Options Available)
- Exit/entry sensors
- Intercom system with dry contact output
- Automatic switching timer
- WiFi Control System (App-Based Control)
- GSM Control Systems (Mobile Call/SMS-based Control)
Remote Control Features
E80/TX52R/2
Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.
Technical features
Standard power: |
3V DC |
Absorption: |
12mA |
Operating temperature: |
-10+55 °C |
The number of channels: |
2 |
Codification: |
Fix code |
Modulation: |
AM/ASK |
Carried frequency: |
433.92MHz |
The number of combinations: |
65536 |
Radio for a copy: |
Yes |
The maximum distance in the open field: |
150m |
Battery: |
Mod "CR2032" 3V |
Maximum dimension product in mm
(L x W x H): |
38 x 68 x 11 |
|
24V 20 Watt Solar Panel
|
The SP-24V-20 is a 20 Watt, 24 Volt solar panel, and will provide enough power to trickle charge a 24V vehicle or deep cycle battery. Helps run pumps, lights, fans, and small appliances such as stereos, televisions and VCRs in caravans, boats or cabins.
A heavy-duty anodized aluminium frame provides strength and convenient mounting access. Cells are laminated between high transmissivity, low-iron, 3mm tempered glass and sheet of tedlar-polyester-tedlar (TPT) material by two sheets of ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module.
|
|
|
Open Circuit Voltage |
42.48V |
Optimum Operating Voltage |
36V |
Short Circuit Current |
0.61A |
Optimum Operating Current |
0.55A |
Dimensions |
640 x 300 x 25MM |
Cells |
Mono Crystalline |
|
|
|
|
|
Solar Panel Post & Bracket for APC 20 Watt Solar Panel
|
|
This solar panel post & bracket set is suitable for the APC 10 watt and 20 watt solar panels.
|
|
|
Kit Contents
|
|
|
- Solar Panel Mounting Post
- Solar Panel Mounting Plate
- Nuts, Bolts and Washers
- Saddle Clamps
- Rubber Pad |
APC Uno Standalone Solar System
The APC Uno is an articulate all in one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries.
Key Features:
- APC Sun power Regulator Built In
- Sleek contoured design
- Cable management entries for a clean installation
- Subtle grey to suit all installation environments
- Heavy duty 5mm galvanized 6 hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
- Easy to access with the tool free clip lock system
- Can be secured with a small padlock
- Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each
Dimensions
Outer Dimensions
Height |
205mm (Including cable glands) 180mm Without |
Width |
180mm |
Depth |
249mm Including Mounting bracket, 210mm without |
Clear Inner Dimensions
Height |
140mm |
Width |
165mm |
Depth |
170mm |
Typical Configuration
At a glance
- 12-24V Compatible
- LITHIUM Battery Compatible
- Easy to use LCD Interface
- Compatible with Most Batteries
- 32 Bit Micro Controller
- Extra Large Wiring Terminals
- 12 Stages of Protection including short circuit, temperature, over and undercharge etc.
- Metal Heat sink
- USB Output
In Depth
The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.
The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.
The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.
The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.
In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.
The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.
Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.
Specifications
System Voltage |
12V/24V DC auto |
PV Max Input Voltage |
55V |
Self-consumption |
10mA |
Max Charging current |
10A |
Max Discharging current |
10A |
Battery type |
Sealed(Default)/Gel/Flood/Lithium |
LVD |
11.0V ADJ 9V...12V ; x2/24V |
LVR |
12.6V ADJ 11V...13.5V ;x2/24V |
Float Voltage |
13.8V ADJ 13V... 15V ; x2/24V |
Boost Voltage |
14.4V ADJ 13V...17V ;x2/24 |
battery voltage less than 12.6v auto boost 2hours |
Battery Over Voltage |
16.5V ; x2/24V |
Reverse Connection Protection |
Yes |
Load Over Current Protection |
Yes, each 30s auto restart again |
Controller Over Temperature |
Yes |
USB Output |
5VDC/1A 2PCS |
Charging Type |
PWM |
Charge circuit voltage drop |
<=0.25V |
Discharge circuit voltage drop |
<=0.1V |
Temperature Consumption# |
For 12V system:-24mV /°C ; x2/24V |
Relative humidity |
≤95%, N.C. |
Working Temperature |
-20°C~+55deg;C(Product can work continuously at full load) |
LCD temperature range |
-20°C~+70°C |
Waterproof grade |
IP32 |
Mounting hole size |
Φ5mm |
Terminals |
10mm²/8AWG |
Weight |
245g |
Overall dimension(mm) |
190×108×41.5 |
