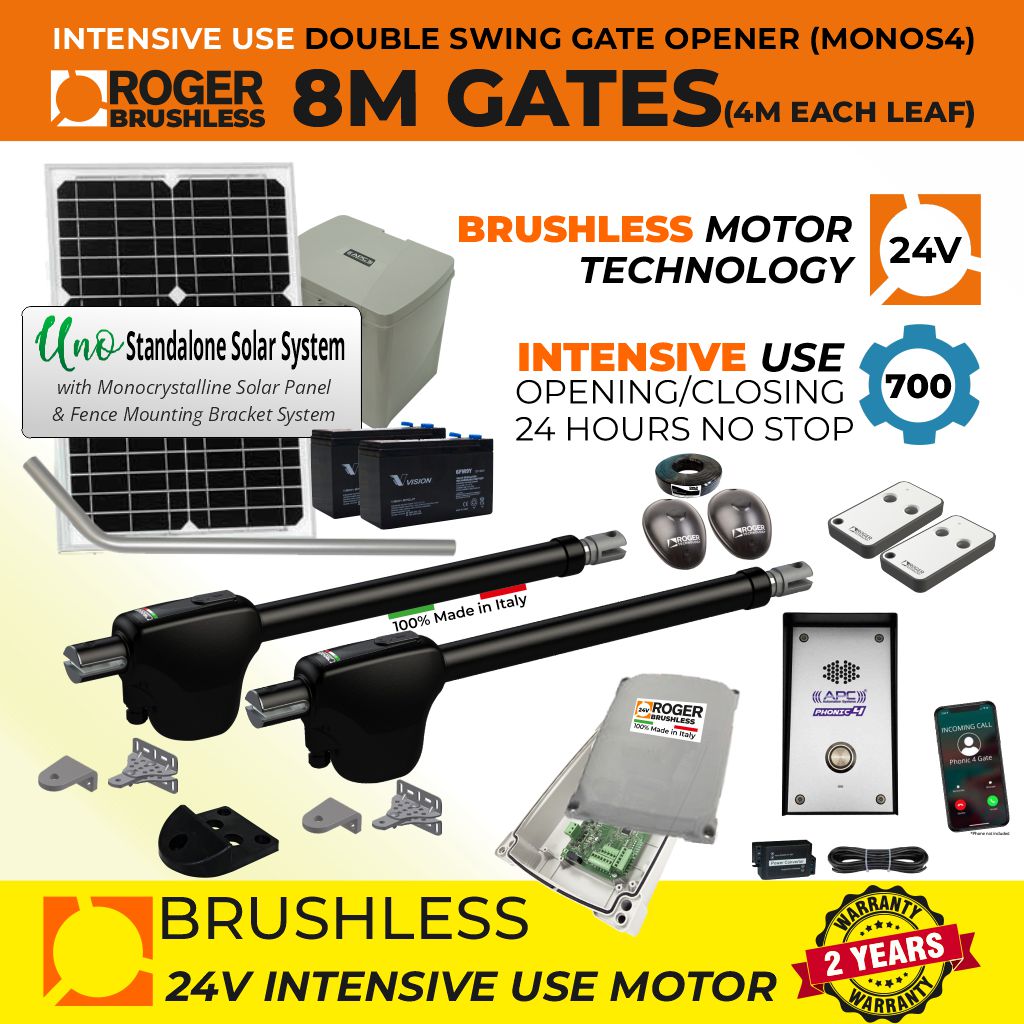

24V Solar Powered Brushless Double Swing Gate Opener GSM Intercom Access Control Kit with APC PHONIC4 GSM Audio Intercom Doorbell and APC UNO Standalone Complete Solar Power System |100% Italian Made by Roger Technology MONOS4 for Swing Gate Automation System. Super Intensive Use Brushless Engine with Telescopic Arm | Max. 8m Opening (4M or 450KG Each Leaf) | 100% Duty Cycle

Product SKU: MONOS4-8000-SOL-GSM

  • In Stock

  • New
Get More Info.. Get More Info..
Free Shipping Free Shipping

Kit Price:


  • Solar Powered 24V Super Intensive Use Brushless Gate Automotion System | Max. 8m Opening (4M or 450KG Each Leaf)

  • Kit Includes

    01 Roger Technology 24V Brushless Swing Gate Opener with Telescopic Arm | Super Intensive Use | 100% Italian Made by Roger Technology MONOS4 for Swing Gate Automation System.(QTY: 2)
    02 10m 3 Core Non-Shielded Cable(QTY: 1)
    03 B70/2ML Roger Technology 24V Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box. | 100% Italian Made |(QTY: 1)
    04 Roger Technology Two-Button Remote Control(QTY: 2)
    05 Roger Technology Italian Made Synchronized Garage/Gate Photocells Safety Sensor [R90 F2ES] | Safety Beam Infrared Technology Gate Sensor Motion Detector(QTY: 1)
    06 10m 4 Core Non Shielded Cable(QTY: 1)
    07 5m 4 Core Non Shielded Cable(QTY: 1)
    08 APC Power Convertor 16-28V AC/DC In to 12V DC Output(QTY: 1)
    09 APC PHONIC4 | 4G Intercom - GSM Audio Intercom Doorbell and Switch, GSM Wireless Audio Intercom with remotely Gate Opening Capability (SIM Card Not Supplied. Customer to Source Own SIM Card)(QTY: 1)
    10 24v 20 Watts Solar Panel(QTY: 1)
    11 Solar Panel Fence Post & Bracket for APC 20 Watt Solar Panels(QTY: 1)
    12 APC Uno Multipurpose Battery Box(QTY: 1)
    13 APC Sun Power Series 12V/24V 10A PWM Solar Regulator(QTY: 1)
    14 9aH High Capacity Battery(QTY: 1)
    15 65mm High Centre Driveway Rubber Gate Stop with Steel Base(QTY: 1)
    16 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes)(QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

BRUSHLESS 24V DC SWING GATE MOTOR with Telescopic Arm | 100% Italian Made by Roger Technology MONOS4 Super Intensive Use Gate Opener.

BRUSHLESS Swing Gate Opener Motor
100% Italian Made by Roger Technology MONOS4(Brushless Gate Motor) for Swing Gate Automation System.

Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 4M or 450KG Each Leaf | Super Intensive Use |

100% Duty Cycle Brushless Engine With Telescopic Arm

Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 4m length, with telescopic arm.


Actuator Overview | Brushless Gate Motor for Swing Gate Automation System

Extra Heavy Duty Single Gate Opener


Dimensions and System Capacity | MONOS4 Brushless Gate Motor for Swing Gate Automation System

 All measurements are expressed in mm.

Installation Geometry | Swing Gate Automation Brushless Gate Motor

 All measurements are expressed in mm.


Technical Specifications

Power line supply:    230V AC - 50Hz
Motor power supply:    24V
Power rating:    200W
Frequency of use:    Intensive use
Thrust:    2200N
Operating temperature:    -20 C° +55 C°
Protection level:    IP44
Manoeuvre speed:    2,10 cm/s
Opening time:    19-35 s
Stroke:    400 mm
Encoder:    Digital native encoder SENSORLESS 48 PPR
Operating cycles per day (opening/closing - 24 hours, no stop):    700
Maximum dimension product in mm (L x W x H):    1223 x 178 x 111



Roger Technology 24V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | B70/2ML/BOX |

The Roger Technology 24V B70/2ML/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 24V B70/2ML control unit controls 1 or 2 ROGER brushless motors in sensorless mode for applications on medium-sized gate leaves.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).


Technical Features


Power line supply:    230V AC - 50 Hz
Operating temperature:    -10+55 C°
Protection level:    IP54
N. motors activated:    2 Brushless motor
Max power per motor:    110W
Max courtesy light charge:    100W 230V AC - 40W 24V AC/DC
Max power gate open light:    3W (24V DC)
Max voltage accessories output:    10W (24V DC)
Electrical-Lock max power:    15W (12V DC)
Flashlight voltage:    24V DC
Max flashing light charge:    25W
Battery:    Optional
Maximum dimension product in mm (L x W x H):    330 x 230 x 115

Control Board Overview


Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)



Remote Control Features


Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11



 24V 20 Watt Solar Panel
24V 20 Watt Solar Panel

The SP-24V-20 is a 20 Watt, 24 Volt solar panel, and will provide enough power to trickle charge a 24V vehicle or deep cycle battery. Helps run pumps, lights, fans, and small appliances such as stereos, televisions and VCRs in caravans, boats or cabins.

A heavy-duty anodized aluminium frame provides strength and convenient mounting access. Cells are laminated between high transmissivity, low-iron, 3mm tempered glass and sheet of tedlar-polyester-tedlar (TPT) material by two sheets of ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module.

24V 20 Watt Solar Panel
Open Circuit Voltage 42.48V
Optimum Operating Voltage 36V
Short Circuit Current 0.61A
Optimum Operating Current 0.55A
Dimensions 640 x 300 x 25MM
Cells Mono Crystalline


Solar Panel Post & Bracket for APC 20 Watt Solar Panel

This solar panel post & bracket set is suitable for the APC 10 watt and 20 watt solar panels.


24V 20 Watt Solar Panel
Kit Contents
24V 20 Watt Solar Panel
- Solar Panel Mounting Post
- Solar Panel Mounting Plate
- Nuts, Bolts and Washers
- Saddle Clamps
- Rubber Pad


APC Uno Standalone Solar System

The APC Uno is an articulate all in one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries.

Key Features:

  • APC Sun power Regulator Built In
  • Sleek contoured design
  • Cable management entries for a clean installation
  • Subtle grey to suit all installation environments
  • Heavy duty 5mm galvanized 6 hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
  • Easy to access with the tool free clip lock system
  • Can be secured with a small padlock
  • Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each


Outer Dimensions

Height 205mm (Including cable glands) 180mm Without
Width 180mm
Depth 249mm Including Mounting bracket, 210mm without

Clear Inner Dimensions

Height 140mm
Width 165mm
Depth 170mm

Typical Configuration

Extra Heavy Duty Single Gate Opener


At a glance

  • 12-24V Compatible
  • LITHIUM Battery Compatible
  • Easy to use LCD Interface
  • Compatible with Most Batteries
  • 32 Bit Micro Controller
  • Extra Large Wiring Terminals
  • 12 Stages of Protection including short circuit, temperature, over and undercharge etc.
  • Metal Heat sink
  • USB Output


In Depth

apc sun power

apc sun power

Automatic Voltage Selection

The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.

Multiple Battery Modes

The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.

Overcharge and Discharging

The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.

Overload and Short Circuit Protection

The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.

Reverse Polarity Protection

In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.

USB Output Terminals

The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.

Heavy Duty Design

Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.


System Voltage 12V/24V DC auto
PV Max Input Voltage 55V
Self-consumption 10mA
Max Charging current 10A
Max Discharging current 10A
Battery type Sealed(Default)/Gel/Flood/Lithium
LVD 11.0V ADJ 9V...12V ; x2/24V
LVR 12.6V ADJ 11V...13.5V ;x2/24V
Float Voltage 13.8V ADJ 13V... 15V ; x2/24V
Boost Voltage 14.4V ADJ 13V...17V ;x2/24
battery voltage less than 12.6v auto boost 2hours
Battery Over Voltage 16.5V ; x2/24V
Reverse Connection Protection Yes
Load Over Current Protection Yes, each 30s auto restart again
Controller Over Temperature Yes
USB Output 5VDC/1A 2PCS
Charging Type PWM
Charge circuit voltage drop <=0.25V
Discharge circuit voltage drop <=0.1V
Temperature Consumption#  For 12V system:-24mV /°C ; x2/24V
Relative humidity ≤95%, N.C.
Working Temperature -20°C~+55deg;C(Product can work continuously at full load)
LCD temperature range -20°C~+70°C
Waterproof grade IP32
Mounting hole size Φ5mm
Terminals 10mm²/8AWG
Weight 245g
Overall dimension(mm) 190×108×41.5

APC PHONIC4 GSM Intercom and Doorbell
GSM Audio Intercom Door Bell and Switch, 4G mobile communications system

The APC Phonic 4 is a powerful remote controller with an intercom that can be used for controlling gates, authorized door access, switching on/off remote equipment, etc. This device can be used remotely with 4G mobile communications system, which allows for two-way interaction and faster unlocking with a call or text message from your mobile phone.



  • Can be operated from anywhere with no limits on distance.
  • Supports two-way interaction.
  • Can be used for multiple applications such as gates, access doors, shutters, etc
  • The most secure system as it has caller ID identification and allows for two-way interaction between residents and visitors.
  • No need to provide keys or remote controls to different users.
  • All settings are performed by SMS commands.
  • Up to 3 authorized phone numbers for providing access control/call can be stored on the device.
  • SMS confirmation is provided to the owner or authorized users regarding the status of the commands given.
  • Can add or remove users by SMS commands.
  • The unlock time, mic volume, and speaker volume are programmable.



Working Voltage


Working Current


Standby Current


Working Temperature







Typical Wiring Connections

Gate Automation Systems

Note: Power supply voltage must be 12-15V DC. Gate system accessories output can power the device in most situations with/without a power converter (24v to 12v power convertor available from Automotion Plus).

Electric Striker

Note: Power supply voltage must be 12-15V DC. Gate system accessories output can power the device in most situations with/without a power converter.





Garage/Gate Safety Sensor | Photocell Sensor Safety Beam | Driveway Automatic Gate Safety Sensor [R90/F2ES]

Pair of external photocells synchronized.

Synchronized Garage/Gate Photocells Safety Sensor [R90 F2ES] | Safety Beam Infrared Technology Gate Sensor Motion Detector

Technical features

Standard power: 12/24V AC 50Hz - 12/24V DC
Absorption: TX 19mA - RX 20mA
Operating temperature: -20+55°C
Protection level: IP55
The maximum distance in an open field: 10 - 15 m
Maximum number of photocells synchronized: 2
Orientation angle: -
Relay contacts max current: 0,5A RX
Relay contacts max voltage: 30V
Installation Type: External
Maximum dimension product in mm (L x W x H): 62 x 88 x 27



What is a Gate Safety Sensor?

Gate Safety Sensors are essential devices installed on gates to ensure the safety of individuals and objects around the gate. These sensors are used to detect any movement near the gate. Once the sensor detects movement, it sends a signal to the gate opener to stop closing or reversing the gate's direction. Overall, installing a gate safety sensor is crucial in ensuring the safety of your property and the people around it.
