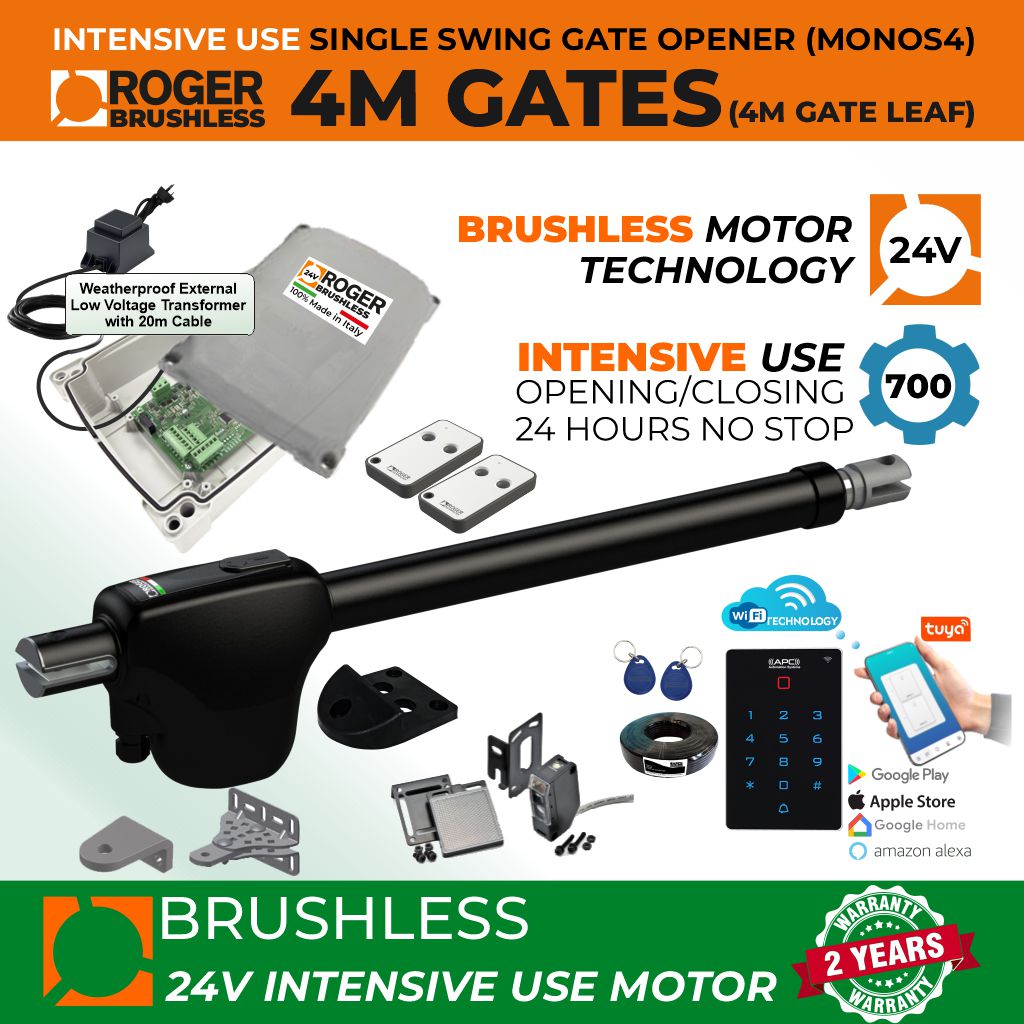

BRUSHLESS 24V DC SWING GATE MOTOR with Telescopic Arm | 100% Italian Made by Roger Technology MONOS4 Super Intensive Use Gate Opener.
BRUSHLESS Swing Gate Opener Motor
100% Italian Made by Roger Technology MONOS4(Brushless Gate Motor) for Swing Gate Automation System.
Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 4M or 450KG Each Leaf | Super Intensive Use |
100% Duty Cycle Brushless Engine With Telescopic Arm
Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 4m length, with telescopic arm.
Actuator Overview | Brushless Gate Motor for Swing Gate Automation System
Dimensions and System Capacity | MONOS4 Brushless Gate Motor for Swing Gate Automation System
All measurements are expressed in mm.
Installation Geometry | Swing Gate Automation Brushless Gate Motor
All measurements are expressed in mm.
Technical Specifications
Power line supply: |
230V AC - 50Hz |
Motor power supply: |
24V |
Power rating: |
200W |
Frequency of use: |
Intensive use |
Thrust: |
2200N |
Operating temperature: |
-20 C° +55 C° |
Protection level: |
IP44 |
Manoeuvre speed: |
2,10 cm/s |
Opening time: |
19-35 s |
Stroke: |
400 mm |
Encoder: |
Digital native encoder SENSORLESS 48 PPR |
Operating cycles per day (opening/closing - 24 hours, no stop): |
700 |
Maximum dimension product in mm (L x W x H): |
1223 x 178 x 111 |
Roger Technology 24V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | B70/2ML/BOX |
The Roger Technology 24V B70/2ML/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |
The 24V B70/2ML control unit controls 1 or 2 ROGER brushless motors in sensorless mode for applications on medium-sized gate leaves.
The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).
Technical Features
Power line supply: |
230V AC - 50 Hz |
Operating temperature: |
-10+55 C° |
Protection level: |
IP54 |
N. motors activated: |
2 Brushless motor |
Max power per motor: |
110W |
Max courtesy light charge: |
100W 230V AC - 40W 24V AC/DC |
Max power gate open light: |
3W (24V DC) |
Max voltage accessories output: |
10W (24V DC) |
Electrical-Lock max power: |
15W (12V DC) |
Flashlight voltage: |
24V DC |
Max flashing light charge: |
25W |
Battery: |
Optional |
Maximum dimension product in mm (L x W x H): |
330 x 230 x 115 |
Control Board Overview
Accessories Compatibility and Controlling Options
- Constant DC Accessories Output
- Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
- Remote controls
- Induction Loops
- Weekly Timers
- Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
- Keypads (Wired and Wireless Options Available)
- Exit/entry sensors
- Intercom system with dry contact output
- Automatic switching timer
- WiFi Control System (App-Based Control)
- GSM Control Systems (Mobile Call/SMS-based Control)
Remote Control Features
E80/TX52R/2
Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.
Technical features
Standard power: |
3V DC |
Absorption: |
12mA |
Operating temperature: |
-10+55 °C |
The number of channels: |
2 |
Codification: |
Fix code |
Modulation: |
AM/ASK |
Carried frequency: |
433.92MHz |
The number of combinations: |
65536 |
Radio for a copy: |
Yes |
The maximum distance in the open field: |
150m |
Battery: |
Mod "CR2032" 3V |
Maximum dimension product in mm
(L x W x H): |
38 x 68 x 11 |
External Transformer (Extendable up to 80 metres cable distance)
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.
Specifications
Mains power supply: 230 Vac +/- 10%, 50-60 Hz
Motor power supply: 24 V DC 280 W and 10 A peak motor
Warning light power supply: 24V max 15W
Gate pilot lamp power supply: 24 Vdc max 10 W
Accessories power supply (photocells &): 24 Vdc max 10 W
Radio receiver frequency: 433.920 MHz
Storable remote controls: 170
Radio antenna input: Rg58
Operating temperature: -20°C / +50°C
The APC Mondo Wi-Fi Keypad can be used as a simple keypad access control device or alternatively as an advanced unit. Its special features allow the system to be operated by Pin Code, Swipe Tag and even remotley by APP whether on-site or off-site (anywhere in the world).
Key Feature Set:
- Full operational control by Tuya APP
- Resin Filled for best weatherproofing
- 12-24V DC Compatible
- Low Power Consumption
- Backlit Touch Keys
- Up to 2000 Users
- Pin Code, Swipe Tag or DUAL AUTHENTICATION Swipe Tag then Pin Code
- Adjustable Relay Time from 0-99s or Latching ON/OFF
- Doorbell Contacts to connect to your doorbell system
- Both NO and NC Circuits
- Suits most automatic gates
- Suits most electric strikers
Dimensions
Automatic Gate Connection
Electric Striker Connection
Doorbell Connection
Specifications
Working Voltage |
12-24V DC |
Card Reading Distance |
1~3CM |
Working Temperature |
-40°~60°C |
Load Output |
Up to 3A |
Standby Current |
70mA 12V, 30mA 24V |
Capacity |
2000 Users |
Working Humidity |
10-90% |
Relay Time |
0~99s |
APC-RR-11 Retro Reflective Sensor
The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.
- Up to 11 Metres Infrared beam operating distance
- Only powers on when the command is given to close the gates
- Alignment & Misalignment led to assist in the installation process
- Resin filled for the ultimate weatherproofing
