Product SKU: MONOS4-4000-LV-SSK

24V Brushless Sigle Swing Gate Opener Super Secure Low Voltage Kit With Safety Sensor, Two Wireless Keypads for Entry and Exit Secure Access Control and Weatherproof External 24V Transformer and 20m Low Voltage Cable |100% Italian Made by Roger Technology MONOS4 for Swing Gate Automation System. Super Intensive Use Brushless Engine with Telescopic Arm | Max. 4m/450kg Opening Driveway Gate Leaf | 100% Duty Cycle

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

24V Brushless Sigle Swing Gate Opener Super Secure Low Voltage Kit With Safety Sensor, Two Wireless Keypads for Entry and Exit Secure Access Control and Weatherproof External 24V Transformer and 20m Low Voltage Cable |100% Italian Made by Roger Technology MONOS4 for Swing Gate Automation System. Super Intensive Use Brushless Engine with Telescopic Arm | Max. 4m/450kg Opening Driveway Gate Leaf | 100% Duty Cycle

Product SKU: MONOS4-4000-LV-SSK

  • In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$1,945.00

  • Or in 4 payment of $486.25 with afterpay info
  • Roger Technology 24V Super Intensive Use Brushless Gate Automotion LV System | Max. 4m/450kg Opening Driveway Gate Leaf

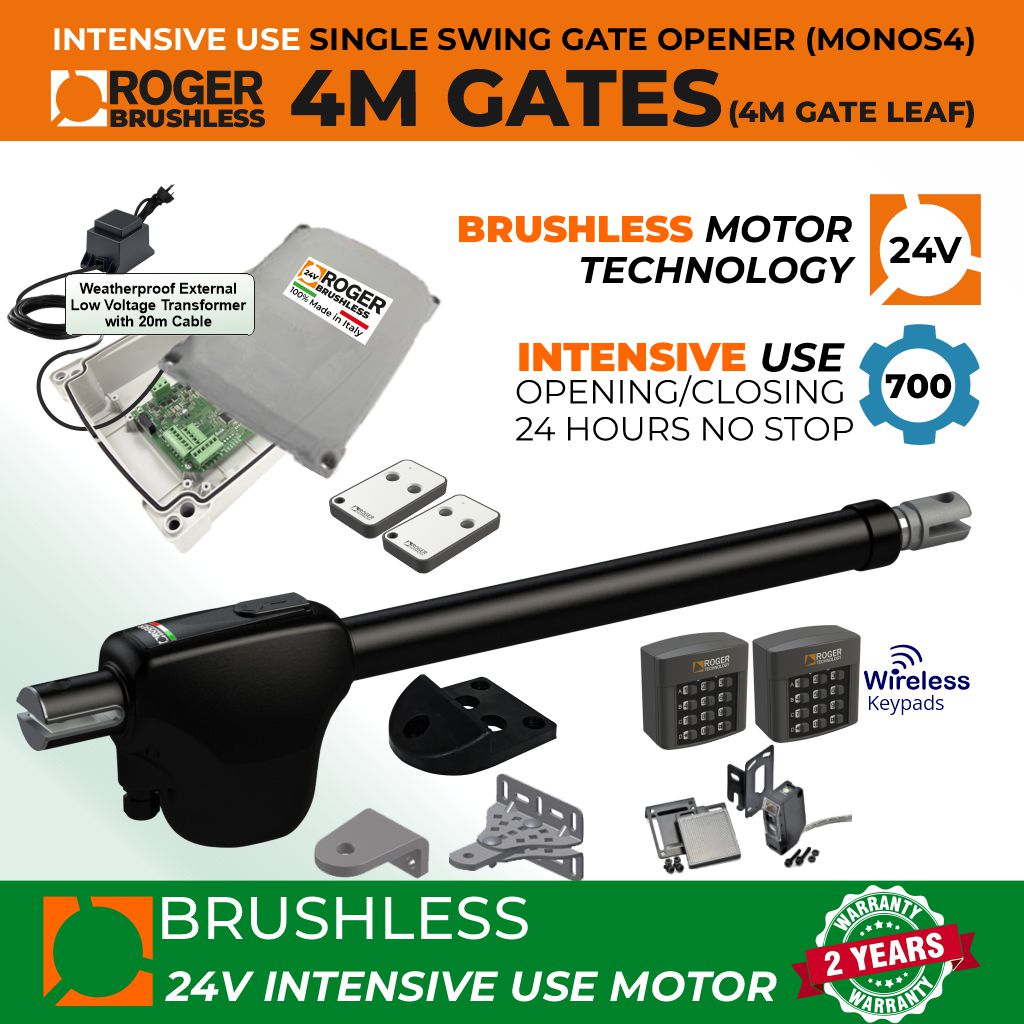

  • Kit Includes

    01 Roger Technology 24V Brushless Swing Gate Opener with Telescopic Arm | Super Intensive Use | 100% Italian Made by Roger Technology MONOS4 for Swing Gate Automation System. (QTY: 1)
    02 3m 3 Core Non-Shielded Cable (QTY: 1)
    03 B70/2ML Roger Technology 24V Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box. | 100% Italian Made | (QTY: 1)
    04 Weatherproof External 24V Transformer with 20m Low Voltage Cable | Suitable for outdoor use. (QTY: 1)
    05 Roger Technology Two-Button Remote Control (QTY: 2)
    06 Roger Technology 4 Channel Wireless Keypad H85/TDR/E Up to 6 Digit User Code and 450 User Codes (QTY: 2)
    07 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)

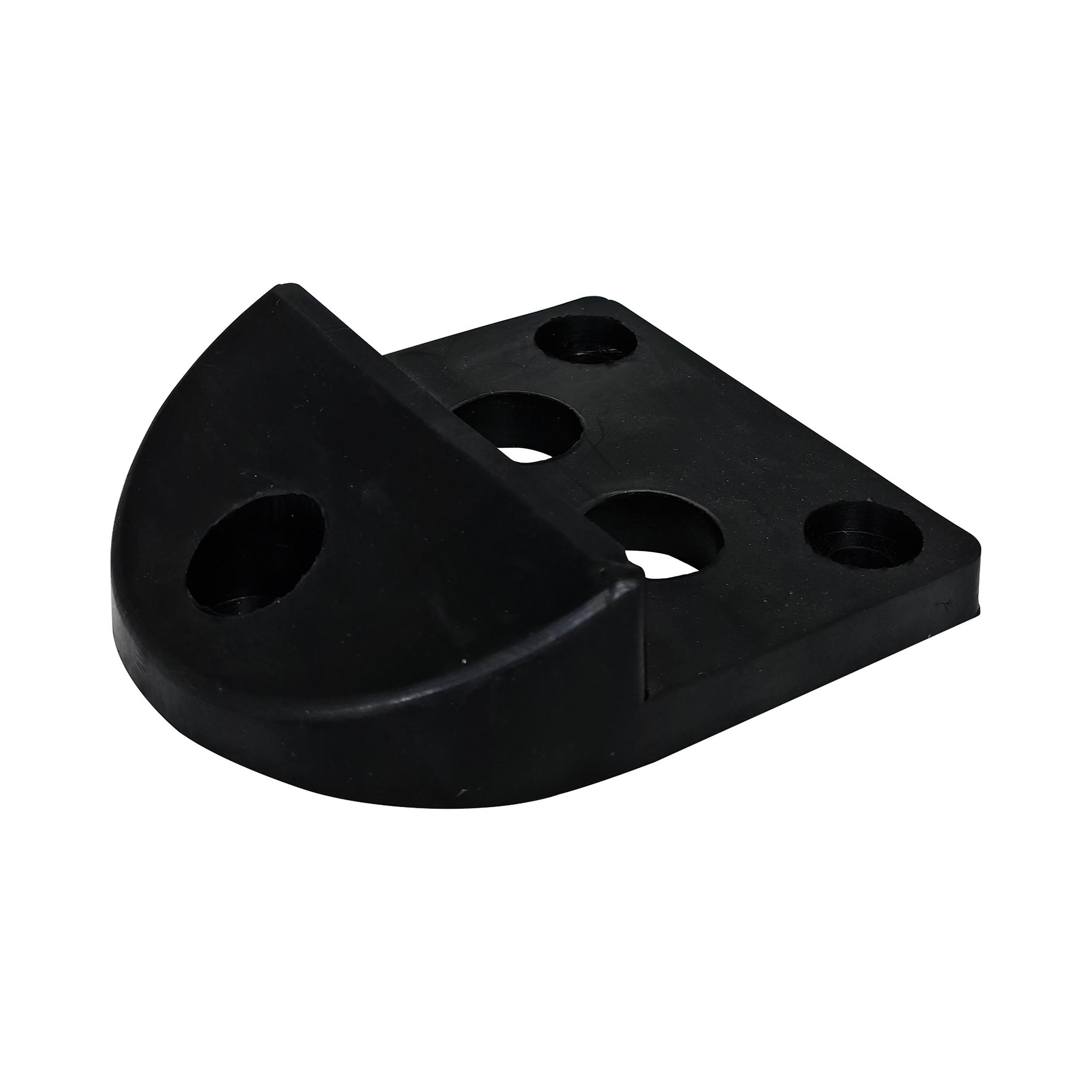

    08 65mm High Centre Driveway Rubber Gate Stop with Steel Base (QTY: 1)
    09 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes, batteries etc) (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

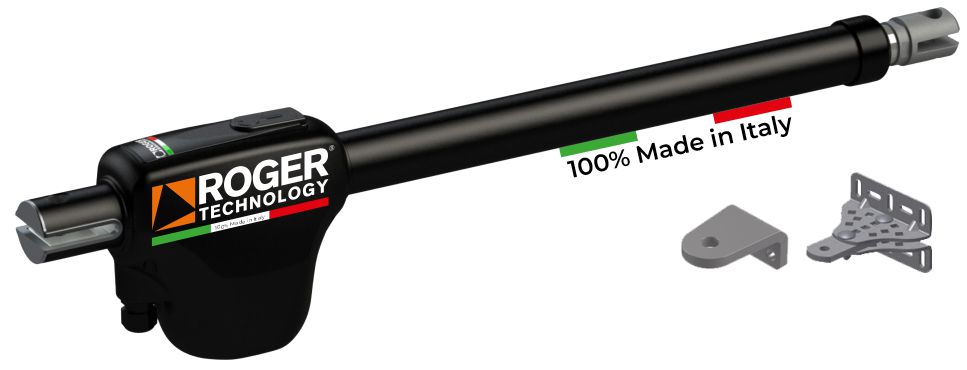

BRUSHLESS 24V DC SWING GATE MOTOR with Telescopic Arm | 100% Italian Made by Roger Technology MONOS4 Super Intensive Use Gate Opener.

BRUSHLESS Swing Gate Opener Motor
100% Italian Made by Roger Technology MONOS4(Brushless Gate Motor) for Swing Gate Automation System.

Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 4M or 450KG Each Leaf | Super Intensive Use |

100% Duty Cycle Brushless Engine With Telescopic Arm

Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 4m length, with telescopic arm.

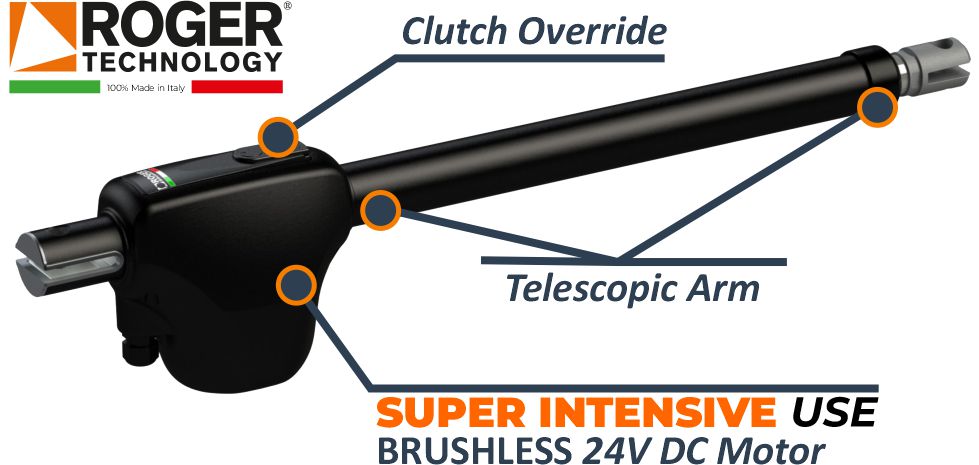

Actuator Overview | Brushless Gate Motor for Swing Gate Automation System

Extra Heavy Duty Single Gate Opener

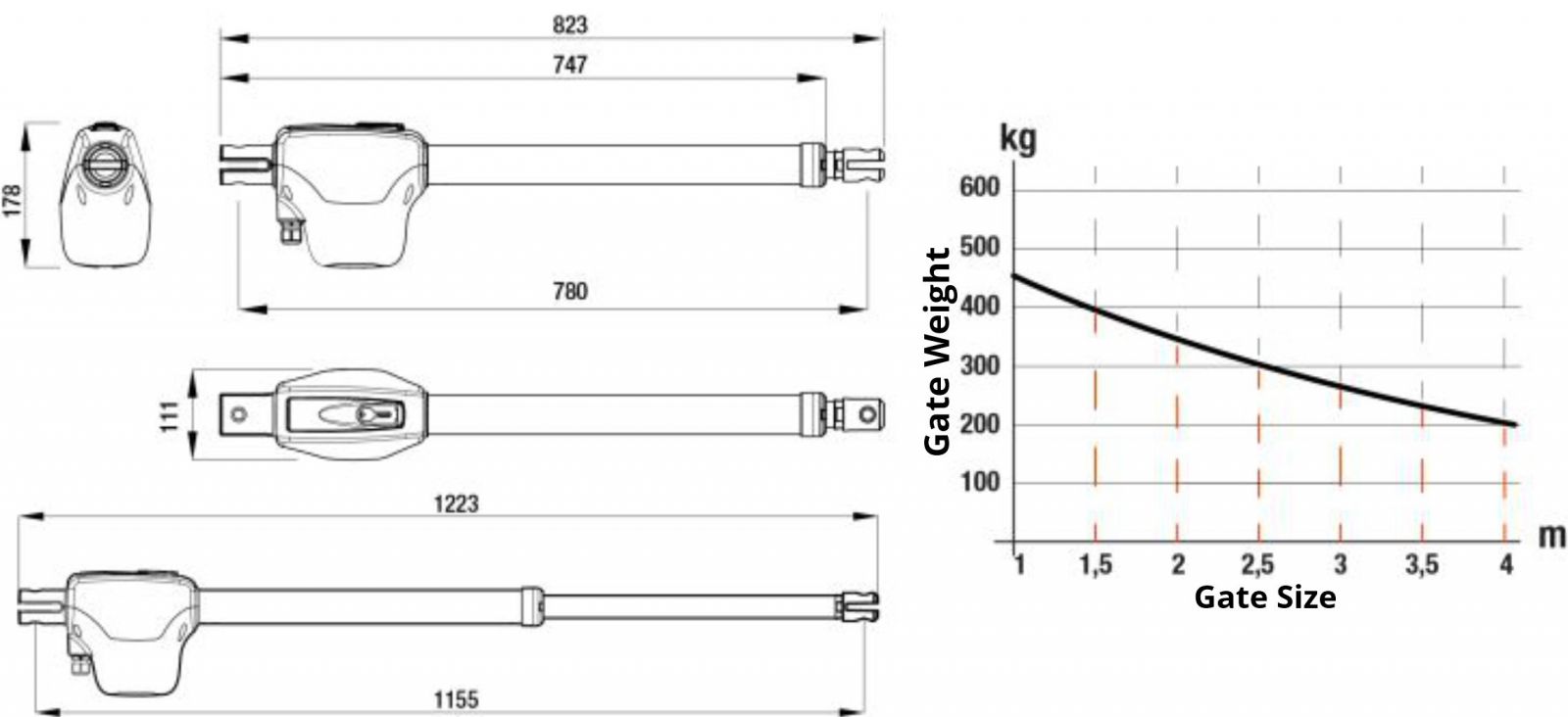

Dimensions and System Capacity | MONOS4 Brushless Gate Motor for Swing Gate Automation System

 All measurements are expressed in mm.

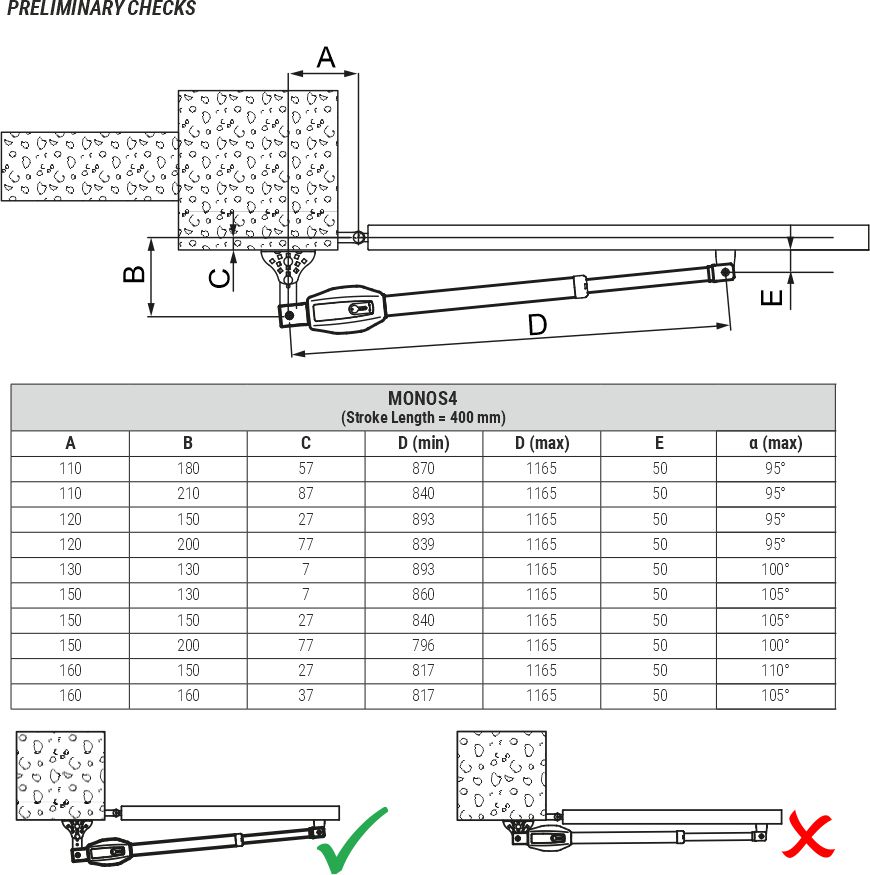

Installation Geometry | Swing Gate Automation Brushless Gate Motor

 All measurements are expressed in mm.



Technical Specifications

Power line supply:    230V AC - 50Hz
Motor power supply:    24V
Power rating:    200W
Frequency of use:    Intensive use
Thrust:    2200N
Operating temperature:    -20 C° +55 C°
Protection level:    IP44
Manoeuvre speed:    2,10 cm/s
Opening time:    19-35 s
Stroke:    400 mm
Encoder:    Digital native encoder SENSORLESS 48 PPR
Operating cycles per day (opening/closing - 24 hours, no stop):    700
Maximum dimension product in mm (L x W x H):    1223 x 178 x 111





Roger Technology 24V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | B70/2ML/BOX |

The Roger Technology 24V B70/2ML/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 24V B70/2ML control unit controls 1 or 2 ROGER brushless motors in sensorless mode for applications on medium-sized gate leaves.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).



Technical Features



Power line supply:    230V AC - 50 Hz
Operating temperature:    -10+55 C°
Protection level:    IP54
N. motors activated:    2 Brushless motor
Max power per motor:    110W
Max courtesy light charge:    100W 230V AC - 40W 24V AC/DC
Max power gate open light:    3W (24V DC)
Max voltage accessories output:    10W (24V DC)
Electrical-Lock max power:    15W (12V DC)
Flashlight voltage:    24V DC
Max flashing light charge:    25W
Battery:    Optional
Maximum dimension product in mm (L x W x H):    330 x 230 x 115

Control Board Overview



Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)





Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11







External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.





Specifications

Mains power supply: 230 Vac +/- 10%, 50-60 Hz

Motor power supply: 24 V DC 280 W and 10 A peak motor

Warning light power supply: 24V max 15W

Gate pilot lamp power supply: 24 Vdc max 10 W

Accessories power supply (photocells &): 24 Vdc max 10 W

Radio receiver frequency: 433.920 MHz

Storable remote controls: 170

Radio antenna input: Rg58

Operating temperature: -20°C / +50°C

Roger Technology H85/TDR/E Wireless Keypad



Roger Technology 4 Channel Wireless Keypad H85/TDR/E Up to 6 Digit User Code and 450 User Codes, external, for rolling code and fixing code transmission.



Technical Features

Operating temperature: -10°C +55°C
Protection level: IP54
Average consumption when keypad active: 12 mA
A number of user codes storable: 450
Maximum number of digits per user code: 6
Minimum number of digits per user code: 3
Codification: Fix code - Rolling Code
Modulation: AM/ASK
Carried frequency: 433.92 Mhz
A number of combinations: 65536 (fix code) - 4.294.967.296 (rolling code)
Number of bits of the identification code: 16 (fix code) - 32 (rolling code)
Number of bits transmitted: 28 (fix code) - 144 (rolling code)
Battery: 2 x CR2032
Battery life: Minimum 2 years with 10 activations/day
Installation Type: External
Maximum dimension product in mm (L x W x H): 75 x 77 x 42



Dimensions and Predisposition

Dimensions

Predisposition for standard installation





APC-RR-11 Retro Reflective Sensor



The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.

  • Up to 11 Metres Infrared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment & Misalignment led to assist in the installation process

  • Resin filled for the ultimate weatherproofing
