Product SKU: MONOS4-4000-DC-BK

24V Brushless Sigle Swing Gate Opener Kit |100% Italian Made by Roger Technology MONOS4 for Swing Gate Automation System. Super Intensive Use Brushless Engine with Telescopic Arm | Max. 4m/450kg Opening Driveway Gate Leaf | 100% Duty Cycle

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

24V Brushless Sigle Swing Gate Opener Kit |100% Italian Made by Roger Technology MONOS4 for Swing Gate Automation System. Super Intensive Use Brushless Engine with Telescopic Arm | Max. 4m/450kg Opening Driveway Gate Leaf | 100% Duty Cycle

Product SKU: MONOS4-4000-DC-BK

  • In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$1,329.00

  • Or in 4 payment of $332.25 with afterpay info
  • Roger Technology 24V Super Intensive Use Brushless Gate Automotion System | Max. 4m/450kg Opening Driveway Gate Leaf

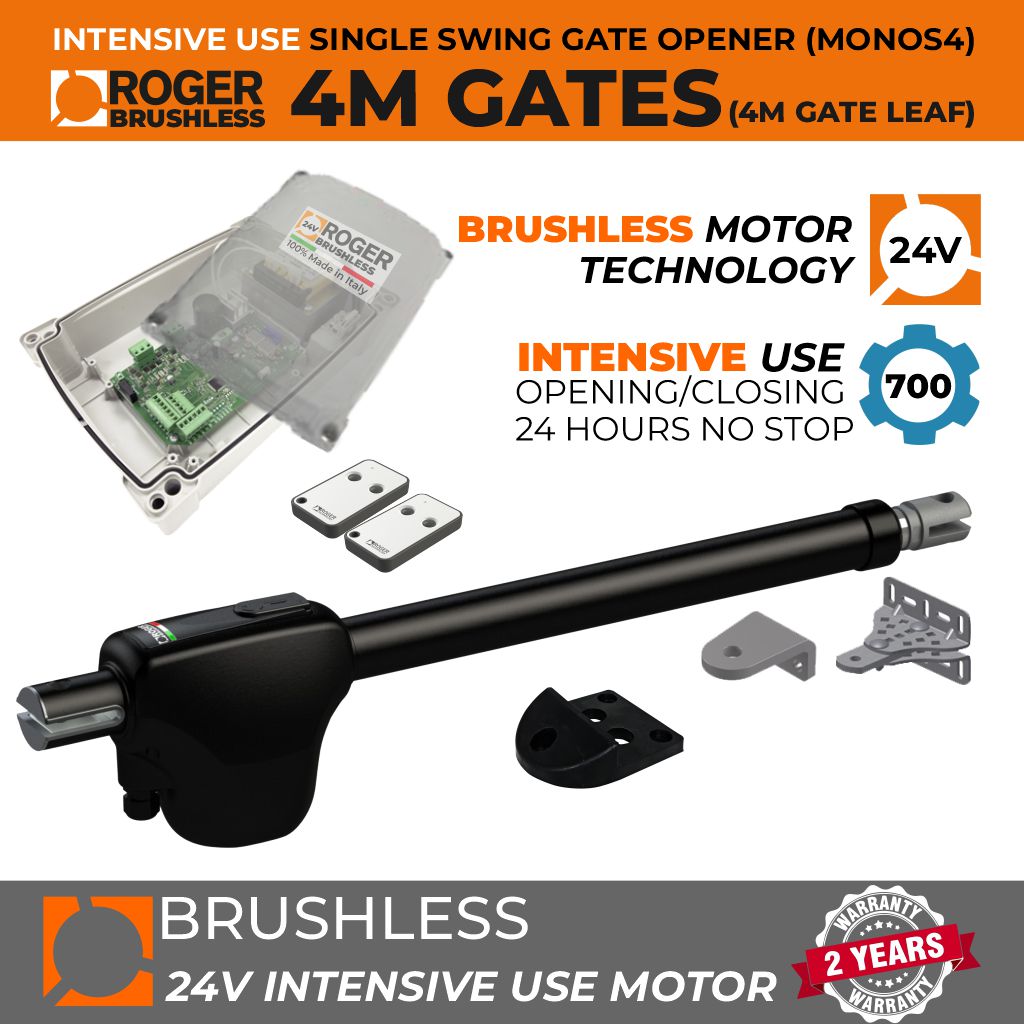

  • Kit Includes

    01 Roger Technology 24V Brushless Swing Gate Opener with Telescopic Arm | Super Intensive Use | 100% Italian Made by Roger Technology MONOS4 for Swing Gate Automation System. (QTY: 1)
    02 3m 3 Core Non-Shielded Cable (QTY: 1)
    03 B70/2ML Roger Technology 24V Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box. | 100% Italian Made | (QTY: 1)
    04 Roger Technology Two-Button Remote Control (QTY: 2)
    05 65mm High Centre Driveway Rubber Gate Stop with Steel Base (QTY: 1)
    06 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes, batteries etc) (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

BRUSHLESS 24V DC SWING GATE MOTOR with Telescopic Arm | 100% Italian Made by Roger Technology MONOS4 Super Intensive Use Gate Opener.

BRUSHLESS Swing Gate Opener Motor
100% Italian Made by Roger Technology MONOS4(Brushless Gate Motor) for Swing Gate Automation System.

Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 4M or 450KG Each Leaf | Super Intensive Use |

100% Duty Cycle Brushless Engine With Telescopic Arm

Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 4m length, with telescopic arm.



Actuator Overview | Brushless Gate Motor for Swing Gate Automation System

Extra Heavy Duty Single Gate Opener



Dimensions and System Capacity | MONOS4 Brushless Gate Motor for Swing Gate Automation System

 All measurements are expressed in mm.

Installation Geometry | Swing Gate Automation Brushless Gate Motor

 All measurements are expressed in mm.



Technical Specifications

Power line supply:    230V AC - 50Hz
Motor power supply:    24V
Power rating:    200W
Frequency of use:    Intensive use
Thrust:    2200N
Operating temperature:    -20 C° +55 C°
Protection level:    IP44
Manoeuvre speed:    2,10 cm/s
Opening time:    19-35 s
Stroke:    400 mm
Encoder:    Digital native encoder SENSORLESS 48 PPR
Operating cycles per day (opening/closing - 24 hours, no stop):    700
Maximum dimension product in mm (L x W x H):    1223 x 178 x 111





Roger Technology 24V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | B70/2ML/BOX |

The Roger Technology 24V B70/2ML/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 24V B70/2ML control unit controls 1 or 2 ROGER brushless motors in sensorless mode for applications on medium-sized gate leaves.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).



Technical Features



Power line supply:    230V AC - 50 Hz
Operating temperature:    -10+55 C°
Protection level:    IP54
N. motors activated:    2 Brushless motor
Max power per motor:    110W
Max courtesy light charge:    100W 230V AC - 40W 24V AC/DC
Max power gate open light:    3W (24V DC)
Max voltage accessories output:    10W (24V DC)
Electrical-Lock max power:    15W (12V DC)
Flashlight voltage:    24V DC
Max flashing light charge:    25W
Battery:    Optional
Maximum dimension product in mm (L x W x H):    330 x 230 x 115

Control Board Overview



Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)





Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11
