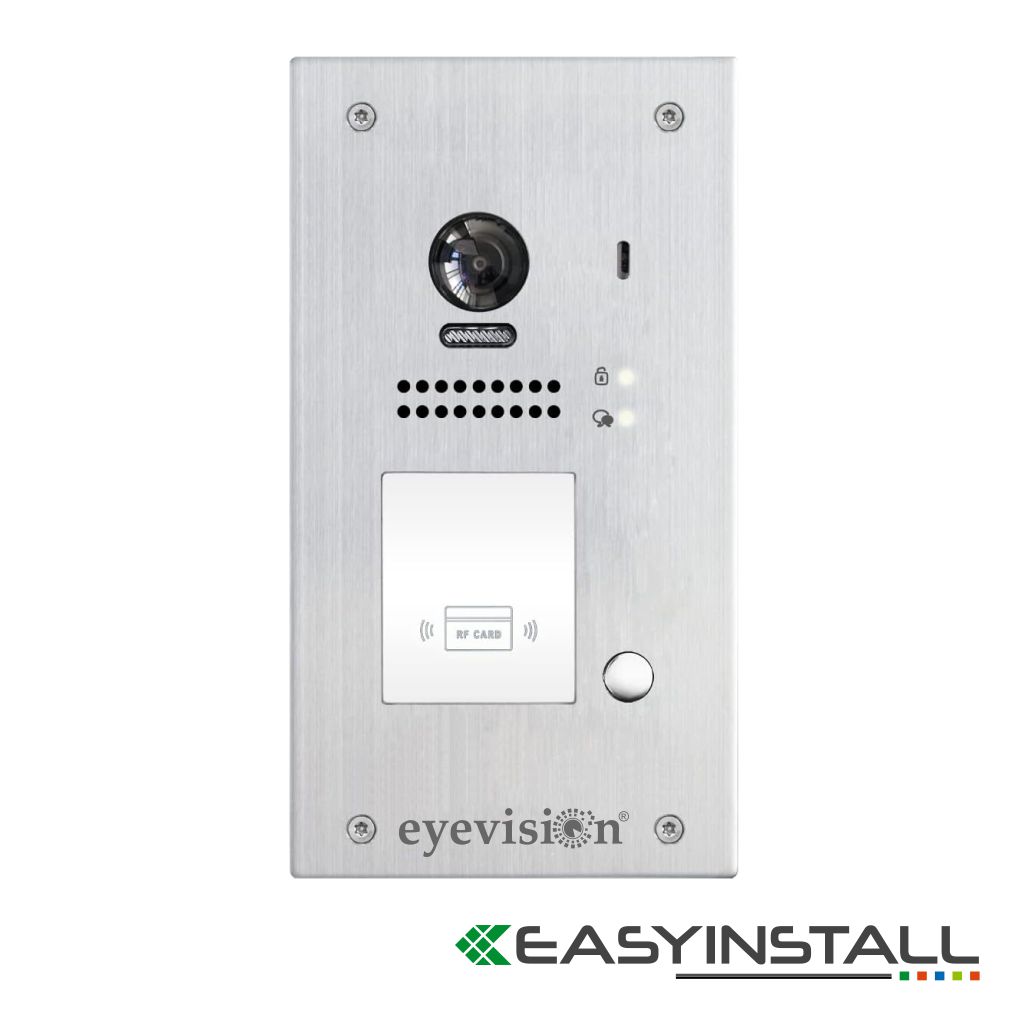

2MP/170° Wide Angle Fisheye Colour Camera Doorbell Intercom Station. Stainless Steel, Recess Mount for Eyevision® EasyInstall Two-Wire Video Intercom Systems
2 Wires EasyInstall Video Intercom Outdoor Unit With
2 MP 170° Wide Angle Fisheye Colour Camera,
Doorbell Button and RFID Tag Reader
Recess Mount door station with built-in 170° camera, stunning modern appearance, slim design, weatherproof, stainless steel face plate, and 2-channel operation (second lock via add-on relay EV-RLC-S).
Features:
* 2 Channels output (second lock via add-on component EV-RLC-S which can be found under 2 wire accessories)
* Supports an exit button connection or RF receiver/transmitter
* Supports up to 4-door station connection
* Weatherproof IP54
* Light illumination
* Recess mount, supplied with a recess box
* Stainless steel face plate
* Colour wide-angle lens 2MP camera
* Camera view 170° fisheye
* Nameplate display with backlight
Specifications:
External video doorbell unit with a 2MP 170° fisheye colour camera and 1 call button. Made of stainless steel. IP54 protection. Built-in RFID reader (125kHz). Surface-mount installation. Power supply 24V.
System |
Eyevision®
|
Communication method |
Audio/Video
|
Connection mode |
2 wires (EasyInstall)
|
Installation |
Flush Mounted
|
Item type |
Outdoor Doorbell Intercom Station
|
Built-in access control |
RFID (125kHz)
|
Capacity |
320 RFID tags/cards
|
Lock operation mode |
Voltage (12Vdc)/Relay output
|
Camera |
In color
|
Sensor |
CMOS, Fisheye 170°, 500 TVL
|
Power supply |
24V
|
Protection |
IP54
|
Operating temperature |
-20°C to +55°C
|
Dimensions |
119x220x52mm
|
Door Station Dimensions
Cable Requirements
Cabling
- CAT5 up to 80m between the door station and each apartment.
- Straight Pair 1mm2 up to 50m between the door station and each apartment.
- Twisted Pair 1mm2 up to 120m between the door station and each apartment.
- Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.
Recommendation:
The Eyevision® 2 wire monitors are very powerful and will deliver high-quality video and audio, it is recommended to use the best quality cables that will suit your installation. Use cables with very good-quality copper conductors in order to maximize the clarity of the system.
This is why we provide a free high-quality 20m twisted pair with every monitor. Using this cable will guarantee the best-optimized results in video and audio transmission for up to 200m.
Larger sizes of these twisted pair cables manufactured for this system are available at very competitive prices.
