14M Double Swing Gate Opener, Super Intensive Use Brushless 36V Gate Opener Kit| Super Duty 100% Italian Made by Roger Technology SMARTY7 for Gate Automation System. 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits | Max. 14M (7M / 1400KG Each Gate Leaf)

Product SKU: SMARTY7-14000-DC-BK

  • In Stock

  • New
Get More Info.. Get More Info..
Free Shipping Free Shipping

Kit Price:

$3,695.00

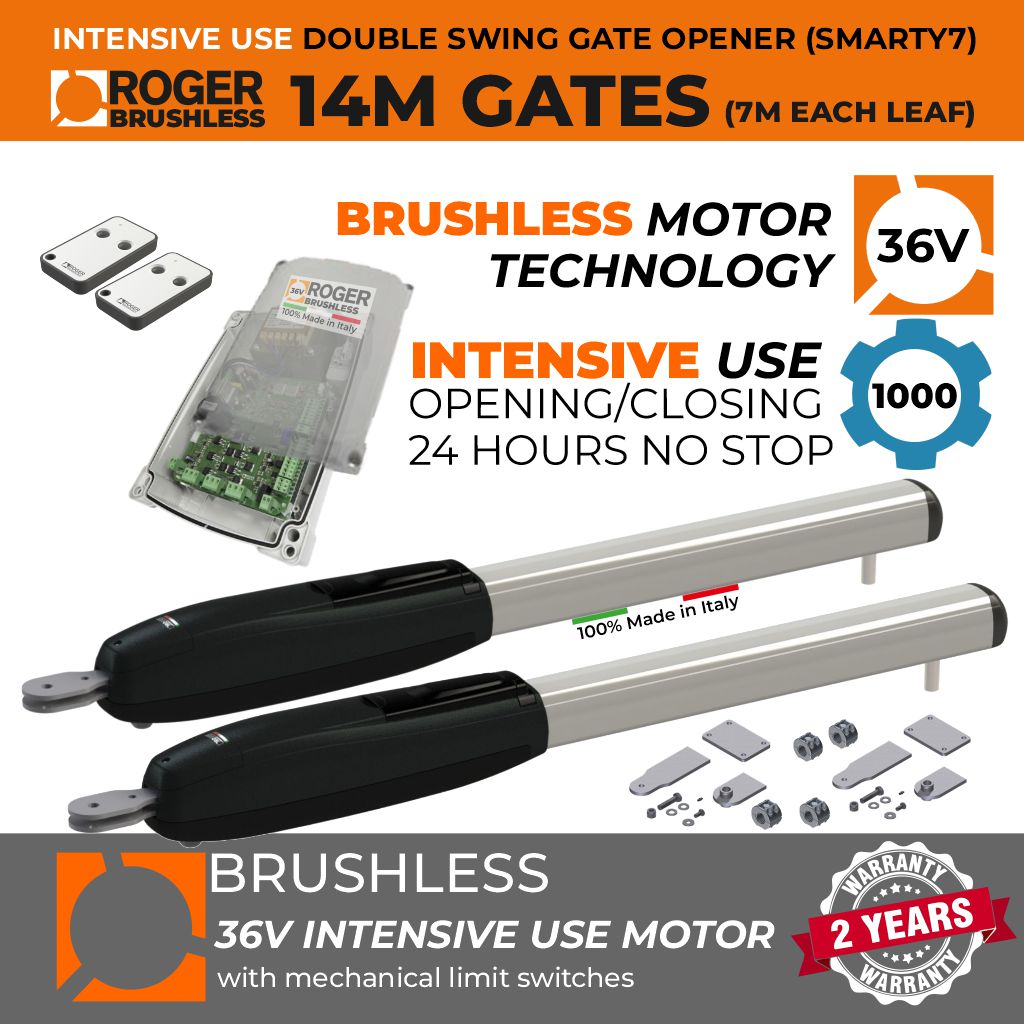

  • Roger Technology 36V Brushless Super Intensive Use Swing Gate Opener | Max. 14M (7M / 1400KG Each Gate Leaf)

  • Kit Includes

    01 36V BRUSHLESS Swing Gate Opener Motor|100% Italian Made by Roger Technology SMARTY7 (7M /1400KG Each Leaf) Super Intensive Use for Gate Automation System.(QTY: 2)
    02 Roger Technology 36V Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box. | 100% Italian Made |(QTY: 1)
    03 Roger Technology Two-Button Remote Control(QTY: 2)
    04 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes)(QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Super Intensive Use Brushless Swing Gate Opener Motor
100% Italian Made by Roger Technology SMARTY7 for Swing Gate Automation System.

Italian-Made Roger Technology Brushless Ultra High-Speed Swing Gate Motor
| Max. 7M or 1400KG Each Leaf (14m Opening for Double Swing Gates) | Super Intensive Use |

Super Intensive Use 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits

Electromechanical actuator Super Intensive Use BRUSHLESS, 36V low voltage, with native encoder onboard, irreversible, swing gate opener with mechanical stopper in opening and closing.

Adjustable built-in stopper

Simple to adjust just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required, this is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.

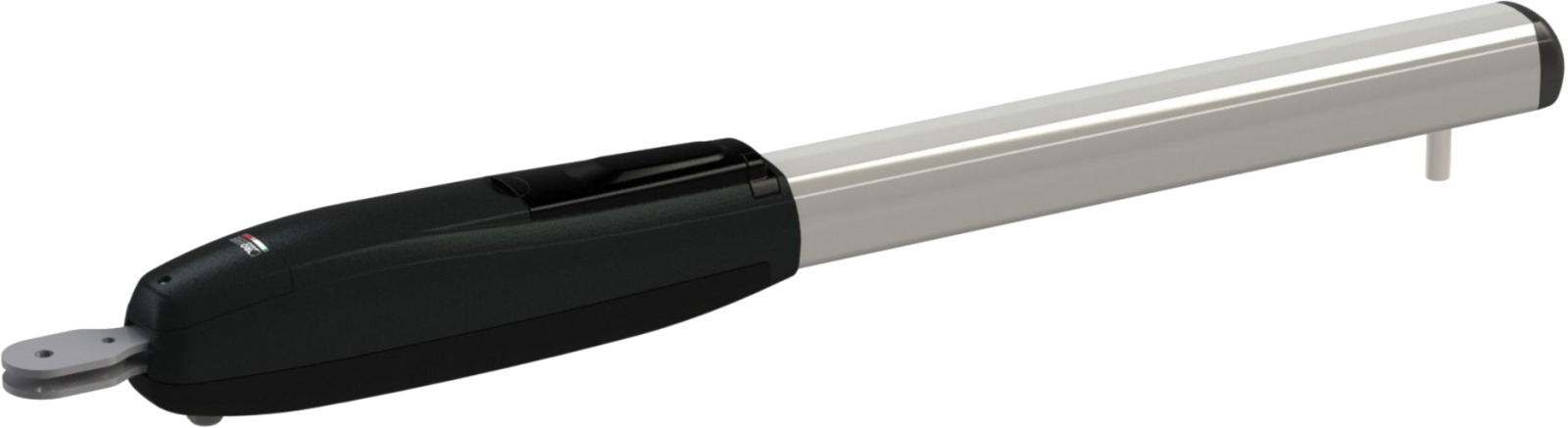

Actuator Overview

Extra Heavy Duty Single Gate Opener

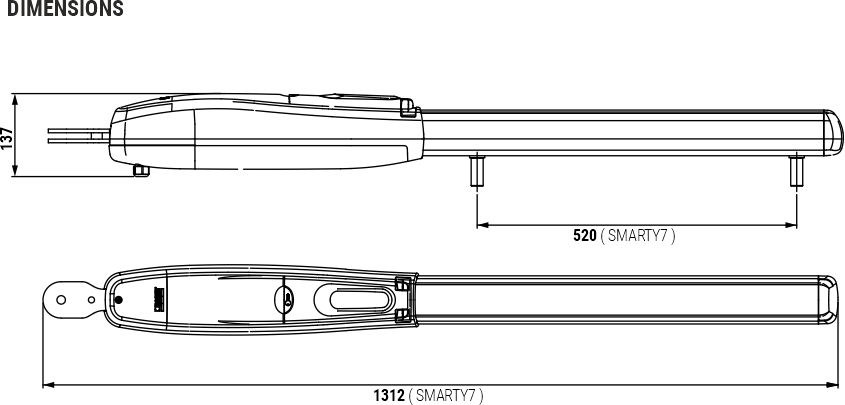

Dimensions

Installation Geometry and System Capacity

PRELIMINARY CHECKS

• Check that the structure of the gate is sturdy and in good condition.

• Check that the hinges are well greased and that the gate moves through its entire travel smoothly without impediment or friction.

• Always install mechanical stops in the gate open and the gate closed positions, anchored securely to the ground and with elastic damper elements (e.g. rubber buffer) to attenuate the impact of the gate leaf against the stop.

Depending on the model installed, the available space, any obstacles existing in the installation site, and the required angle of aperture, install the rear bracket on the pillar and check that the installation measurements indicated in the table are correct.

The measurements [A] and [B] must always be compatible with the maximum effective travel of the piston.
If the sum of the values [A]+[B] is greater than the maximum travel, shorten the rear bracket to reduce measurement [B]

N.B: for the gate to operate smoothly and correctly, the measurements [A] and [B] must always be approximately 20-30 mm greater than measurement [G].
The measurement [G] indicated in the table was calculated considering a gate leaf thickness of 60 mm.

• The end of the piston rod must meet the gate leaf.

• When opening the wing manually, check that the piston does not collide with the wing or the pillar.



Technical Specifications

Power line supply:    230V AC - 50Hz
Motor power supply:    36V
Power rating:    200W
Frequency of use:    Intensive use
Thrust:    600 - 7000N
Operating temperature:    -20 C° +55 C°
Protection level:    IP44
Reductor Type:    Irreversible
Manoeuvre speed:    1,6 cm/s
Opening time:    35-50 s
Stroke:    520 mm
Limit switch:    Mechanical stopper in opening and closing
Recommended digital controllers:    230V: EDGE1/BOX
Encoder:    Digital native encoder SENSORLESS 48 PPR
Operating cycles per day (opening/closing - 24 hours no stop):    1000
Maximum dimension product in mm (L x W x H):    1312 x 116 x 165







Roger Technology 36V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | EDGE1/BOX |

The Roger Technology 36V EDGE1/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 36 V EDGE1 control unit controls 1 or 2 ROGER brushless motors in the sensorless mode for applications on large-sized or heavy gate wings.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).



Technical Features

Power line supply: 230V AC - 50 Hz
Operating temperature: -10+55 C°
Protection level: IP54
N. motors activated: 2 Brushless Motor
Max power per motor: 250W
Max courtesy light charge: 100W 230V AC - 40W 24V AC/DC
Max power gate open light: 3W (24V DC)
Max voltage accessories output: 20W (24V DC)
Electrical-Lock max power: 15W (12V DC)
Flashlight voltage: 24V DC
Max flashing light charge: 25W
Battery: Optional
Maximum dimension product in mm (L x W x H): 330 x 230 x 115
Product weight packed (Kg): 5,8



Control Board Overview



Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)





Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11
Product weight packed (Kg): 0,03
