12v 20 Watts Solar Panel With Solar Panel Post & Bracket

Product SKU: SPB-12V-20

  • In Stock

Price :

$99.00

Get More Info.. Get More Info..

Product Information

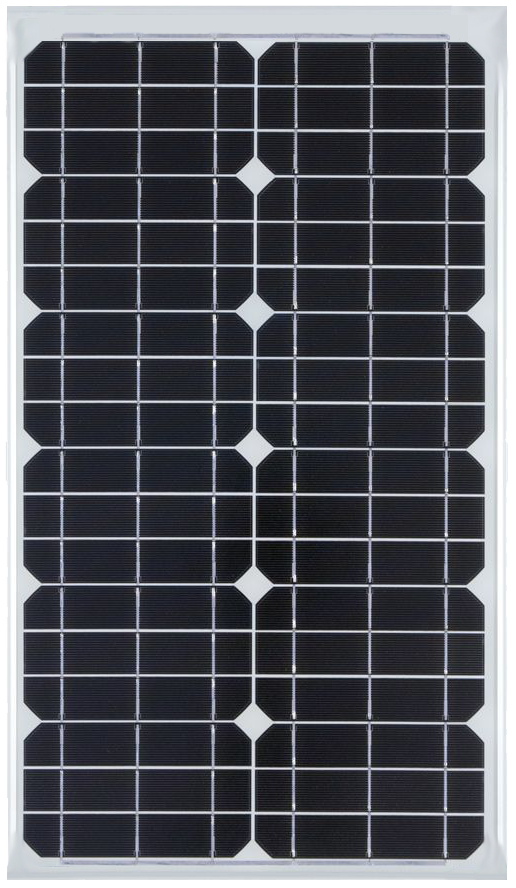

 12V 20 Watt Solar Panel
12V 20 Watt Solar Panel

The SP-12V-20 is a 20 Watt, 12 Volt solar panel, and will provide enough power to trickle charge a 12V vehicle or deep cycle battery. Help run pumps, lights, fans, and small appliances such as stereos, televisions and VCRs in caravans, boats or cabins.

A heavy-duty anodized aluminium frame provides strength and convenient mounting access. Cells are laminated between high transmissivity, low-iron, 3mm tempered glass and sheet of Tedlar-Polyester-Tedlar (TPT) material by two sheets of ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module.

24V 20 Watt Solar Panel

VOC 21.6V
ISC 1.3A
VMP 17.2V
IMP (A) 1.17A
Dimensions 640 x 300 x 25MM
Cells Mono-Crystalline




Solar Panel Post & Bracket for APC 20 Watt Solar Panel


This solar panel post & bracket set is suitable for the APC 10 watt and 20-watt solar panels.



24V 20 Watt Solar Panel

Kit Contents

24V 20 Watt Solar Panel
- Solar Panel Mounting Post
- Solar Panel Mounting Plate
- Nuts, Bolts and Washers
- Saddle Clamps
- Rubber Pad
