Product SKU: BG30-2204-CAIS-CG-13m
In Stock
Freight Delivery
Kit Price:
$10,815.00
$13,690.00
Carriage for cantilever gates with up to 13.5 meters clear opening & 1200 kg max gate weight.
Enhanced design and superior products from Europe using high-quality German steel.
Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory.
"C" Profile Guide For Cantilever Sliding Gate, 6mm Special Thickness, Hot Dipped Galvanized German Steel,
Enhanced design and superior products from Europe using high-quality German steel.
Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory
A cantilever gate needs to be about 35% wider than its span to counterbalance the weight of the suspension posts.
The end wheel guides the gate onto the end cup and helps support the gate while it rests.
Cantilever Gate Hardware Large Guide Support Wheel (CAIS | RUN L)

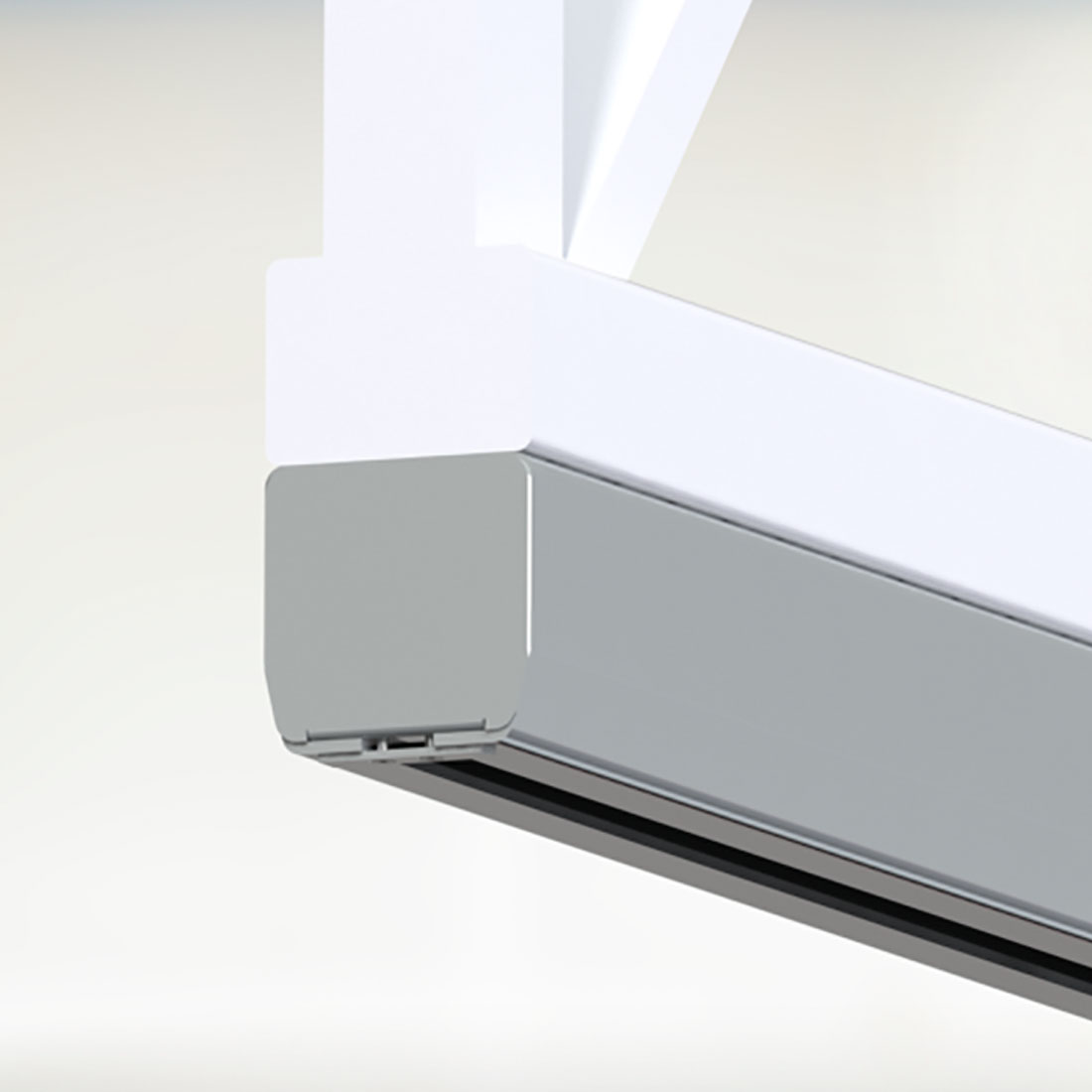

The end cap is an addition to the gate to cap off the cantilevered track.
Cantilever Gate Hardware Large End Cap
The end stop supports the gate when open and closed.
Cantilever Gate Hardware Large End Stop
The end stop bracket supports the gate when it is fully open and fully closed.
Cantilever Gate Hardware End Stop Bracket
{file}GRM 4{/file}
The obvious benefit of choosing a cantilever sliding gate system is " no need to track"
Unlikly standard sliding gates, the cantilever sliding gate solution doesn't need a perfectly level or concrete flat surface and can deal with dirt or gravel driveway perfectly.
The Cantilever gate is a unique type of sliding gate, but with distinctive, interesting differences from your typical gate with wheels. One of the primary differences between a cantilever gate and a sliding gate is the location of the wheels that helps the gate move. A cantilever sliding gate rests and rolls on a wheel on the front bottom edge of the gate with a track supporting wheels on the back edge. In contrast, a cantilever gate is held above the ground, moving along rollers running along the top and inside of the fence, with wheels attached to a vertical concrete foundation.
Sliding gates have simpler and smaller operating mechanisms than cantilever gates, and as a result, wheel contact with the ground can make operation coarse and noisier than cantilever gates. Since cantilever gate wheels are off the ground, this style can span a wider range of terrain including gravel, grass, blocks, and uneven, angled, or steeply inclined surfaces. The absence of contact with the ground also allows cantilever gates to function easily in all weather conditions.
The smart appearance, efficient design, and craftsmanship in a cantilever gate are sure to impress owners, visitors, and customers visiting the property.
Cantilever gate designs are frequently used as no track work needs to be installed. This makes cantilever gates an option for surfaces that are inappropriate for track gates.
Cantilever gates have been designed to glide through the air rather than along tracks on the driveway and do not require any ground installation. Cantilever Sliding Gate All-In-One Systems are quicker and easier to install and have longer lifespans as they float through the air.
Cantilever gates aren’t only contemporary and modern in appearance, besides cantilever design automatic sliding gates are the ideal choice for anyone with uneven ground, paving that is organic in shape, and gravel driveways.
BRUSHLESS 36V Sliding Gate Automation Motor 2200KG Capacity | With Magnetic Limit Switch.
One of the Best Sliding Gate Motor now on sale in Automotion Plus Melbourne/Australia
The best-sliding gate motors in Australia are often determined by factors such as reliability, durability, speed, access control, and customization options. Some top Automotion Plus Sliding Gate Opener models to consider include:
Roger Technology Brushless BG30 series sliding gate motor is strong, durable, and high-quality, suitable for residential and commercial sliding gates. It uses 36V brushless motor digital technology.
One of the best-sliding gate motors, the BG30/804/HS brushless internal motor, allows for an 800kg capacity, making it the ideal candidate for the majority of gate installations for domestic/industrial driveway gates.
If you are looking for the best sliding gate motors in Australia, several models should be considered. Some popular options include the Italian-made BG30/HS Sliding Gate Motor 36V DC series and the BM30/HS Brushless Sliding Gate Motor 24V DC series. These motors are known for their reliability, smooth operation, ultra-high speed, intensive use, advanced access control, safety features such as safety sensors, WiFi smartphone app integration, and much more. When choosing the best sliding gate motor, it's important to consider factors such as gate size, weight, power options (Grid Power 240V, External Transformer Low Voltage 24V and Solar Off-Grid) and also speed, intensive use and warranty.
"Roger Technology FIVE YEARS Parts Warranty on the Stator and Rotor of the Brushless Digital Motor and TWO YEARS Warranty on All Other Parts, Including Electronics (*excluding consumables - remotes)"
You can get a free consultation from our help-desk professional to ensure the motor is the best compatible with your specific gate setup and requirements.
Please contact us to find the best sliding gate opener for your needs with the help of our experienced technicians.
This is the ideal solution for all installations requiring high power, intensive use, maximum movement elegance, and total safety during the movement and obstacle detection phases.
Dynamic accelerations and decelerations!
Thanks to the new 36V digital controllers, setting different accelerations and decelerations during your gate's opening and closing phases has become fast and straightforward. And always guaranteeing maximum elegance and safety.
Digital obstacle detection!
The ultra-powerful Native Encoder onboard the digital technology and the brand new motor power control in sensor technology make it possible to detect any obstacle with maximum safety, setting the speed, motor torque, sensitivity and operator reaction time during the detection phase for possible obstacles.
Total safety from the point you want!
To guarantee maximum safety and maintain high performance, the new digital controller offers the possibility of configuring gate opening and closing from where you want to start deceleration and setting the type of deceleration, its power and the relative sensitivity you want.
BRUSHLESS 36V DC Powered Strong Sliding Gate Automation Motor | With Magnetic Limit Switch
The Roger Technology BG30/2204 Brushless complete kit includes the roller sliding gate motor, control panel, and receiver.
The BG30/2204 motor is a low voltage, super intensive use with native encoder onboard, irreversible ideal for sliding gates up to 2200Kg with built-in digital controller B70 series, magnetic limit switch.
Includes:
- BG30/2204 Electromechanical Brushless Sliding Gate Motor
- Built-in B70 36v Digital Control Panel
- Plug-in H93/RX20/I Receiver
- Magnetic Limit Switch
A digital brushless motor with a permanent magnetic field and digital electronics for the complete management of the automation system control. Designed for super intensive use with the added benefit of super low energy consumption.
Innovative, revolutionary Brushless digital motor with permanent magnetic field, 24V/36V energy sinusoidal with a native encoder that permits highly intensive use of the automation with extremely reduced consumption whilst at the same time fully guaranteeing all its safety and management functions.
The new control unit with onboard Brushless digital controller (24V/36V DC). Without traditional relays and thanks to its revolutionary MOSFET quadrant system and its control technology entirely based on a DSP microcontroller, it represents a new generation of electronic cards created to safely handle every type of automation movement.
All the mechanical components and gears are manufactured in steel, cast iron and bronze. The automation system casings are made from titanium-reinforced die-cast aluminium. All the gears are inspected and assembled on high-quality bearings and inserted on precise seats machined to provide absolute precision between the axes.
WHY BRUSHLESS...?
Digital, smart, powerful, elegant, robust and all-Italian.
A technology that offers maximum performance but consumes less power than other motors. The revolutionary digital motor with 12 unique features.
Powerful Digital Brushless Motor
A very powerful sliding gate motor with substantial torque. The motor is compact and neat due to the special concentrated coil windings, it is powered by an energy sinusoidal system.
Digital & Vectorial Automation Controller
The BRUSHLESS digital controller, which operates at low voltage DC, allows 100% control of the automation system in digital mode. Due to its operation entirely based on a DSP microcontroller, the travel and your automation system's movements can be programmed and customised easily, precisely and elegantly.
The Digital Silence Of The Motor
One great impact is the silence or the near absence of noise generated by the BRUSHLESS motor during all its movements.
Motor For Super-Intensive Use
The brushless gate motor remains permanently cold even after many days of super-intensive use.
Speed, Acceleration & Deceleration With Extreme Elegance
The automation system with brushless digital technology creates perfect and elegant movements. With a constant force and torque at every point and the option of varying the speed of deceleration and acceleration, the system can be managed with maximum safety.
Extremely Low Energy Consumption
A motor that can operate at low voltage in super-intensive use and operate in environments with highly demanding weather conditions while maintaining very low energy consumption and absorption levels.
Impact, Obstacle Detection & Reversal In Total Safety
Thanks to digital technology, we are able to detect an obstacle and reverse the motor instantly by simply specifying the torque of the motor, the sensitivity, the time and the travel of the reversal, all in full compliance with safety requirements.
Onboard Native Digital Encoder
The BRUSHLESS motor has a highly advanced native digital encoder that controls the management of automation systems in a safe, precise and extremely elegant manner.
No Problem In The Event Of Power Failure
With the help of internal or external batteries and the associated battery charging card, your automation system continues to operate considerably even during prolonged power cuts, ensuring many more operations than traditional technologies.
Motor At Ambient Temperature
The brushless motor was created with the main goal of being a motor for super intensive use and with a 99% efficiency. Regardless of how many operations the engine performs in a day, it always remains cold or, at the most, reaches the outside ambient temperature.
Simple Installation With A Single 3-Wire Cable
And the BRUSHLESS motor can be installed by simply connecting it using a single 3-wire cable! What could be easier? This will provide fully digital management of your automation system thanks to sensorless or sensored technology, depending on the type of automation system.
Advanced Precision Engineering To Obtain Optimal Motor Performance
We have created a mechanism that gives you the opportunity to get the maximum performance out of the motor. A product that combines the quality of the internal production processes, mechanical processing, and high-quality ferrous and non-ferrous materials.
Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.
Technical features
| Standard power: | 3V DC |
| Absorption: | 12mA |
| Operating temperature: | -10+55 °C |
| The number of channels: | 2 |
| Codification: | Fix code |
| Modulation: | AM/ASK |
| Carried frequency: | 433.92MHz |
| The number of combinations: | 65536 |
| Radio for a copy: | Yes |
| The maximum distance in the open field: | 150m |
| Battery: | Mod "CR2032" 3V |
| Max gate weight: | 2200 kg |
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 36V |
| Power rating: | 470W |
| Frequency of use: | Intensive use |
| Thrust: | 50 - 1700N |
| Operating temperature: | -20+55°C |
| Protection level: | IP44 |
| Reductor Type: | Irreversible |
| Manoeuvre speed: | 12 m/min (0.16 m/s) |
| Limit switch: | Magnetic |
| Onboard control unit: | B70/1DCHP |
| Encoder: | Digital native encoder + magnetic digital SENSORED, 4096 PPR |
| Batteries recovery: | Optional 2 external battery 12V 4,5AH |
| Type exit gear: | Z17/mod 4 |
| Operating cycles per day (opening/closing - 24 hours no stop): | 1000 |
| Maximum dimension product in mm (L x W x H): | 350 x 220 x 380 |
Fixing plate with stay bolts and screws G30 series.
Kit magnetic limit switch for the control units H70/103AC, H70/104AC, B70/1DC, and B70/1DCHP.
Raised fixing plate for G30 series (+3.5 cm).
The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation
Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.
This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.
A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)
