Product SKU: BH30-1000-E-BOX-10

10M Complete Cantilever Gate Hardware and Automation All-In-One Package. Hot Dip Galvanised German Steel Cantilever Sliding Gate Hardware (Made in Europe by CAIS) and 1000KG Super Intensive Use Brushless Sliding Gate Automation (Made in Italy by Roger Technology)

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • On Sale

10M Complete Cantilever Gate Hardware and Automation All-In-One Package. Hot Dip Galvanised German Steel Cantilever Sliding Gate Hardware (Made in Europe by CAIS) and 1000KG Super Intensive Use Brushless Sliding Gate Automation (Made in Italy by Roger Technology)

Product SKU: BH30-1000-E-BOX-10

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
  • New
Get More Info..

Kit Price:

$5,599.00 $7,525.00 APC Automotion Plus Sale

  • 10m Cantilever Sliding Gate Hardware and 1000KG Super Intensive Use Brushless Sliding Gate Automation Packages

  • Kit Includes

    01 Italian-Made Roger Technology BH30/804 Brushless Electromechanical Sliding Gate Motor | 1000KG | Super Intensive Use (QTY: 1)
    02 Roger Technology Two-Button Remote Control (QTY: 2)
    03 1020mm Fixings Facing Up Steel Reinforced Nylon Gear Rack for Domestic and Commercial Sliding and Cantilever Gates. Made in Italy by Stagnoli (QTY: 15)
    04 Concrete In Fixing Plate with Stay Bolts and Screws for Roger Technology Sliding Gate Motor M30 series. (QTY: 1)
    05 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes, batteries etc) (QTY: 1)
    06 Standard AC/DC Powered (Upgrade Option Below for 24V LV External Transformer) (QTY: 1)
    07 SPEED MAX 14 Wheeled Carriage For Cantilever Gate for Up To 10m / 900 kg Max Gate Weight. (CAIS SPEED M MAX) (QTY: 2)
    08 2.85m "C" Profile Guide For Cantilever Gate, 5mm Thickness, Hot Dipped Galvanised German Steel (CAIS STAGE MZ 2.85 MAX 420) (QTY: 5)
    09 Bolts and Rivet Nuts for Cantilever Gate Guide Track Easy Assembly (CAIS) (QTY: 45)
    10 69.5mm Guide Support Wheel for Cantilever Gate System, Cantilever End Wheel For Cantilever Sliding Gate Systems (CAIS RUN M) (QTY: 2)
    11 End Cap for C Guide Track, Cantilever Sliding Gates Hardware. (CAIS PILOT MN) (QTY: 2)
    12 157mm End Stop for Cantilever Sliding Gates (CAIS LAST M) (QTY: 2)
    13 End Stop For Cantilever Sliding Gate Systems (CAIS PADDOCK SM) (QTY: 1)
    14 End Stop Bracket for Small, Medium, and Large Cantilever Sliding Gates (CAIS PARK CSM) (QTY: 3)
    15 67mm Upper Rollers and Bracket Set. CAIS Sliding Gate Guide Roller and Bracket Assembly Kit German Steel Made in EU (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

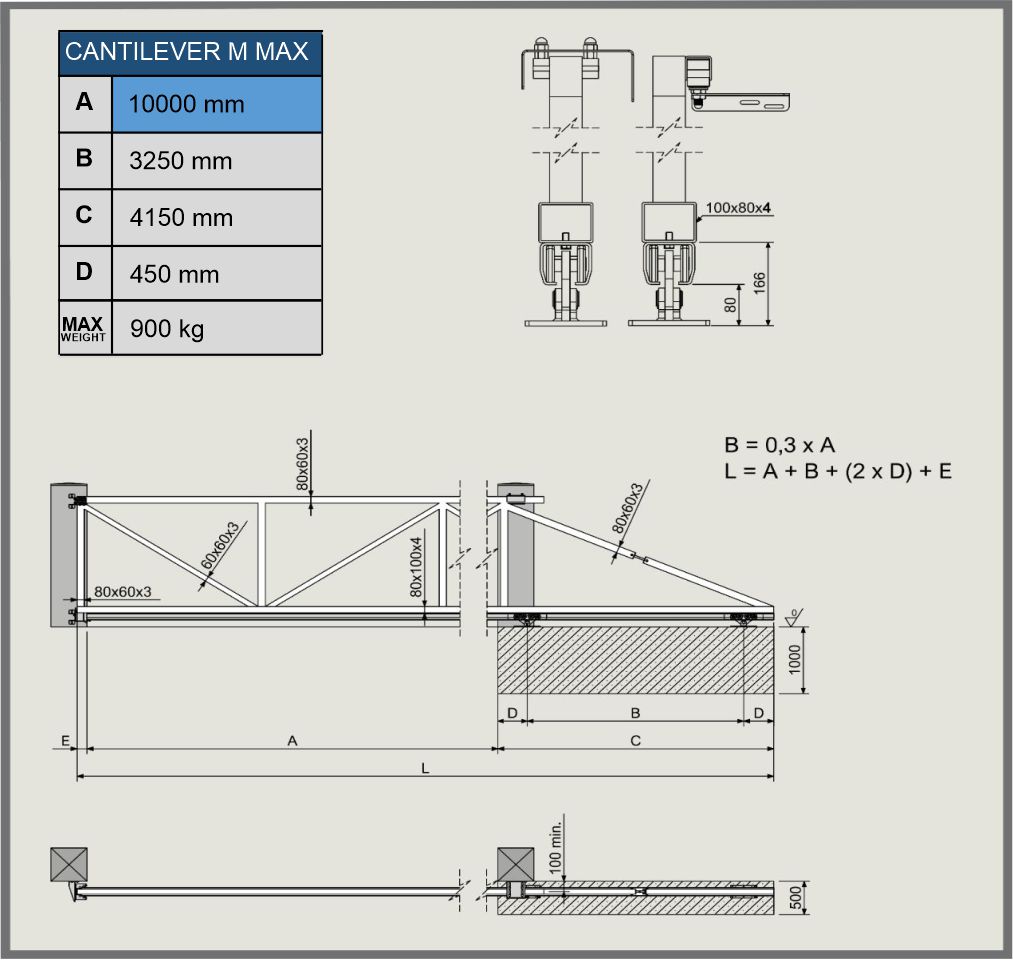

E-BOX MAX 10 CAIS "ALL IN ONE" Compact Cantilever Sliding Gate Hardware

The longer the item, the more your Client has to pay to send a long parcel. Posting the long parcels does not need to be a headache anymore. To find the cheapest way to send a long parcel CAIS has invented and patented "ALL IN ONE" the Compact Cantilever Sliding Gate Hardware. According to the most reputable couriers, anything longer than 3m is considered a Long Parcel Delivery, with extremely high courier rates. Therefore, CAIS "ALL IN ONE" Compact Cantilever Sliding Gate Hardware is the ideal solution for Cantilever Gates up to 10m, making parcel delivery easy and affordable.

WHAT MAKES THE "ALL-IN-ONE" GATE HARDWARE DIFFERENT?

CAIS must ensure that all the gate hardware your clients need to assemble the cantilever sliding gate is included.
See what the CAIS "ALL IN ONE" box includes in the item list above.

DIFFERENCE BETWEEN A CANTILEVER GATE AND A SLIDING GATE

The cantilever gate is a unique type of sliding gate with distinctive, interesting differences from your typical gate with wheels. One of the primary differences between a cantilever gate and a sliding gate is the location of the wheels that help the gate move. A cantilever sliding gate rests and rolls on a wheel on the front bottom edge of the gate with a track supporting wheels on the back edge. In contrast, a cantilever gate is held above the ground, moving along rollers running along the top and inside of the fence, with wheels attached to a vertical concrete foundation.

CANTILEVER GATE SPACE REQUIREMENTS

Generally, the space required to accommodate a sliding gate is the same as the width it covers, with a few extra feet for access. A 9.0 mt wide driveway would need 9.0 mt on one side for gate storage and about 0.3 mt to allow maneuverability around the gate frame. A cantilever gate needs to be about 35 percent wider than its span to counterbalance the weight of the suspension posts.

CANTILEVER GATE PERFORMANCE

Sliding gates have simpler and smaller operating mechanisms than cantilever gates, and as a result, wheel contact with the ground can make operation coarse and noisier than cantilever gates. Since cantilever gate wheels are off the ground, this style can span a more comprehensive range of terrain, including gravel, grass, blocks, and uneven, angled, or steeply inclined surfaces. The absence of contact with the ground also allows cantilever gates to function easily in snowy or icy conditions.

DESIGN

The cantilever gate's smart appearance, efficient design, and craftsmanship will impress owners, visitors, and customers visiting the property.

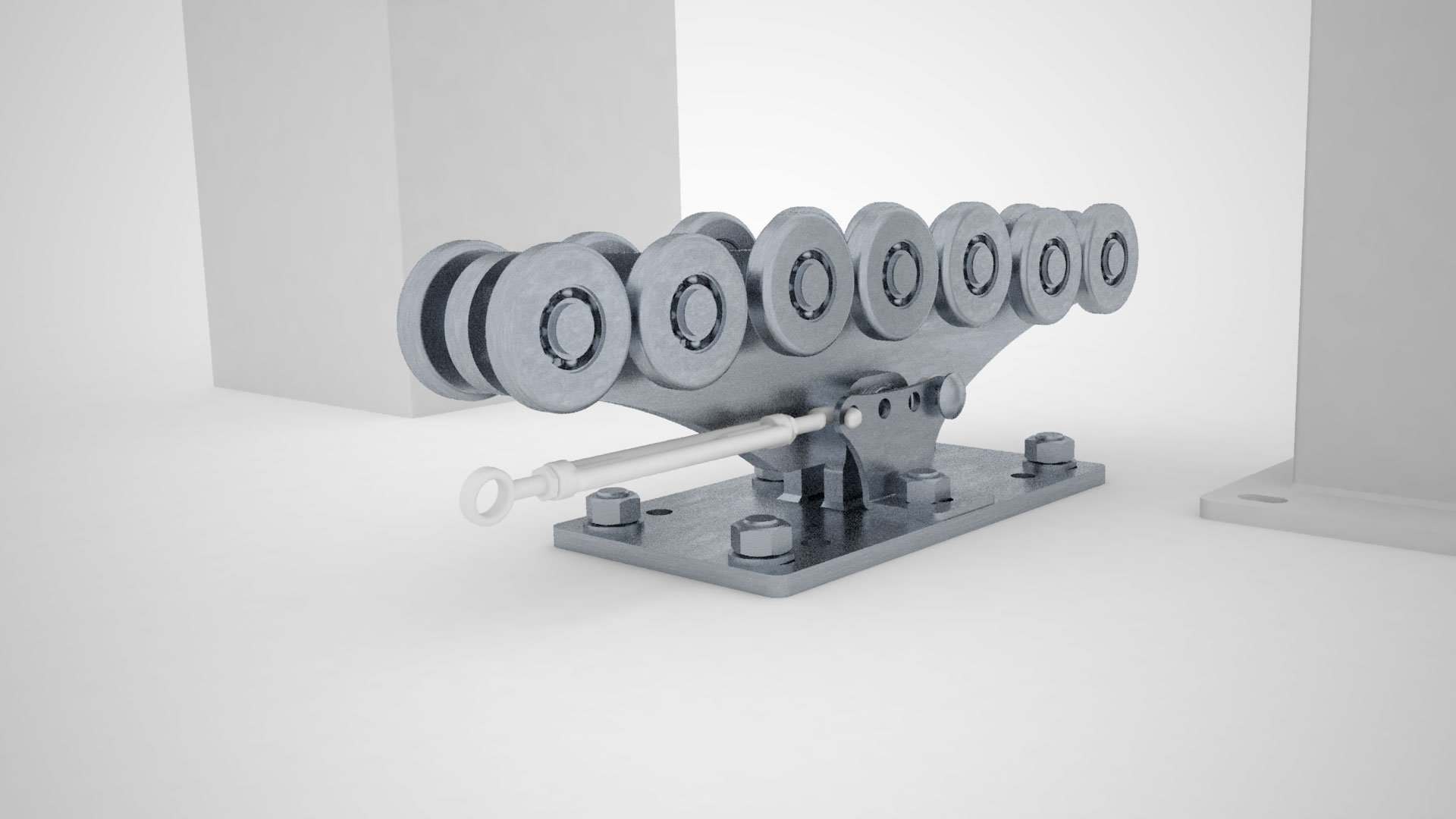

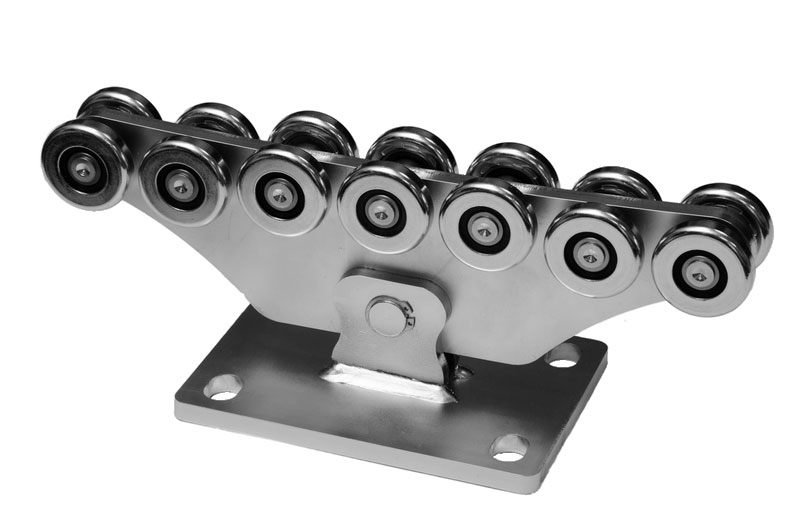

SPEED MAX 14 Wheeled Carriage For Cantilever Gate

The SPEED MAX 14 is a wheeled carriage designed for cantilever gates. It features 14 wheels for smooth operation and is a sturdy and reliable component for sliding gates.

SPEED M_MAX Cantilever carriage with 14 bearings

  • for gates up to 10m passage
  • for gates weighing up to 900 kg
  • for guide profile STAGE MZ - MAX 420 STRONG Material: Steel/Hot Dipped Galvanized

Heavy Duty Steel Cantilever Sliding Gate Fourteen-Wheeled Carriage

Enhanced design and superior products from Europe using high-quality German steel.

Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory.

  • The steel is sourced from the leading German company, Wumperman. It is galvanized after slitting so that there are no exposed raw steel edges that would otherwise quickly rust.
  • The slow rolling process minimizes the tendency for the track to spring open where it is cut to length.



















"C" Profile Guide For Cantilever Gate, 5mm Thickness, Hot Deeped Galvanized German Steel

"C" Profile Guide For Cantilever Sliding Gate, 5mm Hot Deepped Thickness, Galvanized German Steel

Steel "C" Profile Guide For Cantilever Sliding Gate

Enhanced design and superior products from Europe using high-quality German steel.

Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory

  • Holes at the track's top allow it to be easily bolted to an aluminium gate.
  • The steel is sourced from the leading German company, Wumperman. It is galvanized after slitting so that there are no exposed raw steel edges that would otherwise quickly rust.
  • The slow rolling process minimizes the tendency for the track to spring open where it is cut to length.











Bolts and Rivet Nuts Pack for "C" Profile Guide Cantilever Sliding Gate

Bolts and Rivet Nuts are Included in each Cantilever "C" Profile Guide

Bolts and Rivet Nuts for Cantilever Sliding Gate Guide Track

  • Slotted Hole Punched Every 400mm in "C" Profile Guide Track
  • Bolts and Rivet Nuts Pack
  • Easy Assembly
  • No Welding Required

Small Upper Rollers and Bracket Set for Cantilever Sliding Gates

High Qualy Two Roller Guide Plate

Cantilever Sliding Gate Upper Rollers Guide with Bracket

Cantilever Gate Hardware Upper Rollers and Bracket Set

Medium Guide Support Wheel For Cantilever Sliding Gates

The end wheel guides the gate onto the end cup and helps support the gate while it rests.

End Wheel For Cantilever Sliding Gate Systems

Cantilever Gate Hardware Medium Guide Support Wheel

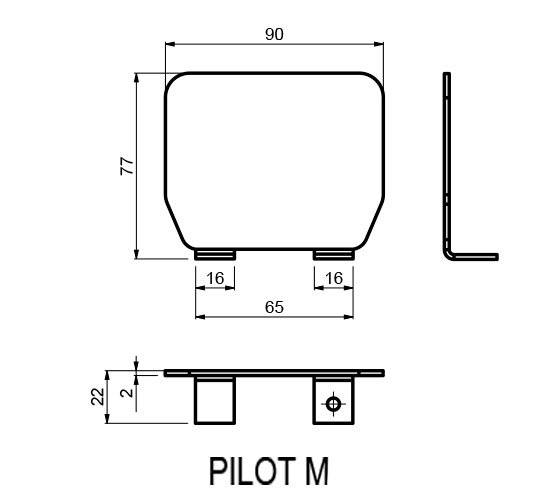

CAIS PILOT M | End Cap for Cantilever C Gude Track

The end cap was added to the gate to cap off the cantilevered track.

End Cap For Cantilever Sliding Gate

Cantilever Gate Hardware Medium End Cap



157mm End Stop for Cantilever Sliding Gates

The end stop supports the gate when fully open and closed.

End Stop For Cantilever Sliding Gate

Cantilever Gate Hardware Medium End Stop



End Stop Bracket for Cantilever Sliding Gates

The end stop bracket supports the gate when it is fully open and fully closed.

End Stop Bracket For Cantilever Sliding Gate

Cantilever Gate Hardware End Stop Bracket

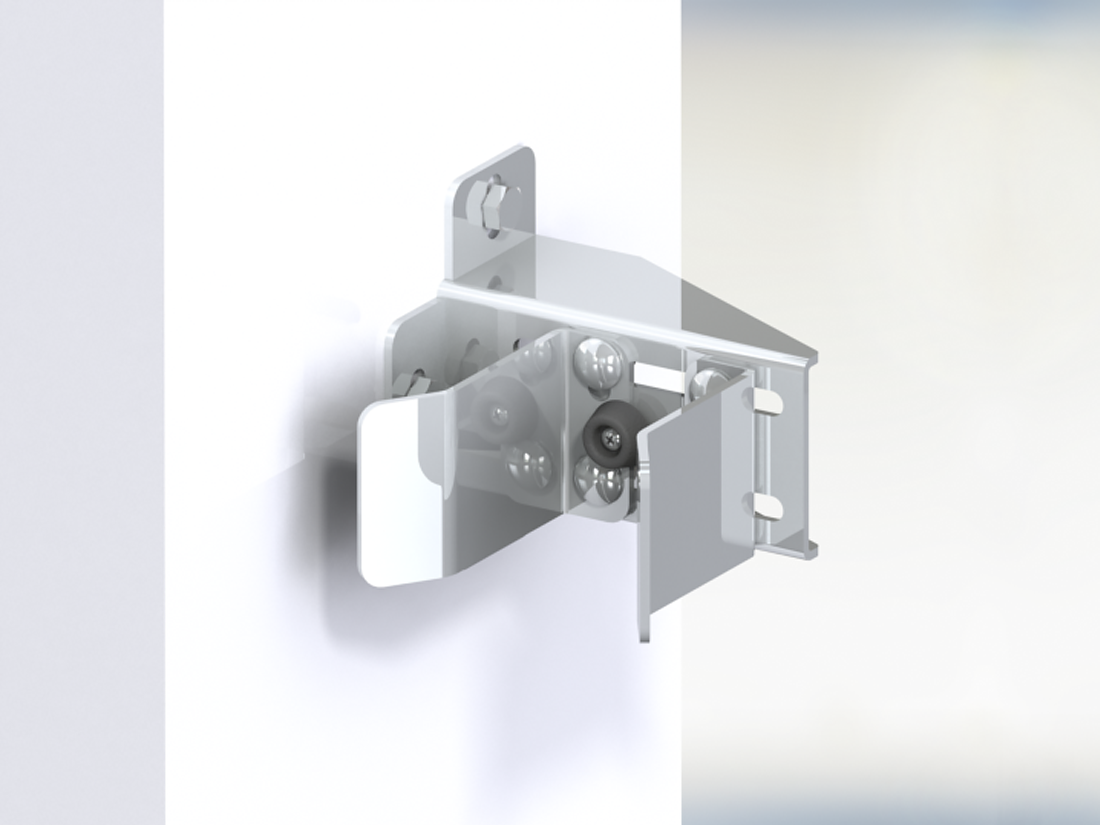

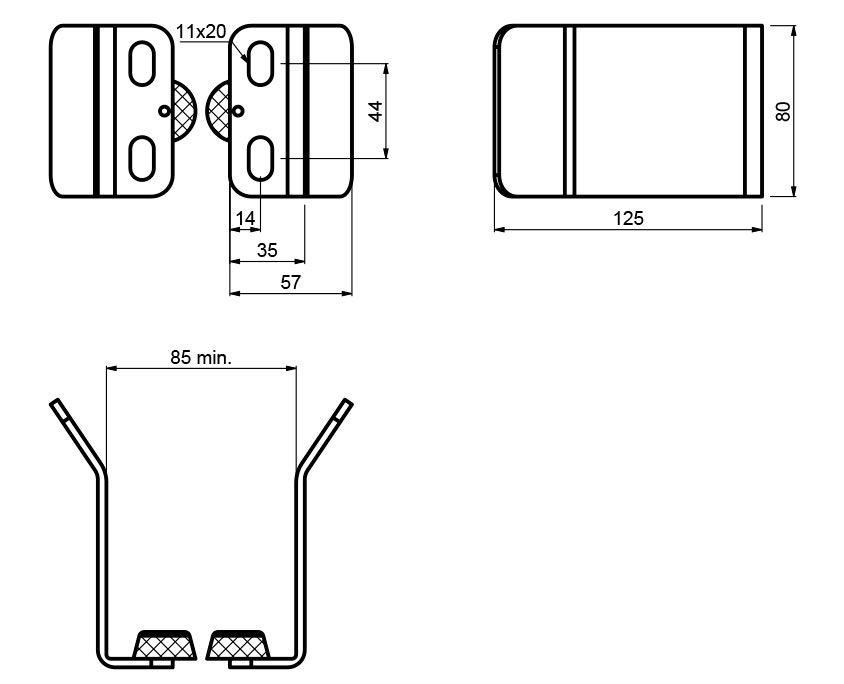

End Stop "CAIS PADDOCK SM" for Cantilever Gates

Galvanized steel end stop for cantilever gate.

"PADDOCK SM" Provides vertical stability to a cantilever gate in the closed position.

Material Body - S 235 JR, Bolt M 5x8 - DIN 7985, Rubber - TPE SANTOPRENE

Surface finish  ISO 19598 - Fe//Zn12//Cn//T2nL





DIFFERENCE BETWEEN A CANTILEVER GATE AND A SLIDING GATE

The obvious benefit of choosing a cantilever sliding gate system is " no need to track"

Unlikly standard sliding gates, the cantilever sliding gate solution doesn't need a perfectly level or concrete flat surface and can deal with dirt or gravel driveway perfectly.

BENEFITS OF CANTILEVER GATES

  • Perfect solution for sloped and/or non-concrete driveways
  • Esthetic design, easy installation, no welding needed
  • Long lasting durable hardware, silent and maintenance-free
  • An effective way to improve security on your property

The Cantilever gate is a unique type of sliding gate, but with distinctive, interesting differences from your typical gate with wheels. One of the primary differences between a cantilever gate and a sliding gate is the location of the wheels that helps the gate move. A cantilever sliding gate rests and rolls on a wheel on the front bottom edge of the gate with a track supporting wheels on the back edge. In contrast, a cantilever gate is held above the ground, moving along rollers running along the top and inside of the fence, with wheels attached to a vertical concrete foundation.



CANTILEVER SLIDING GATE DESIGN and PERFORMANCE

Sliding gates have simpler and smaller operating mechanisms than cantilever gates, and as a result, wheel contact with the ground can make operation coarse and noisier than cantilever gates. Since cantilever gate wheels are off the ground, this style can span a wider range of terrain including gravel, grass, blocks, and uneven, angled, or steeply inclined surfaces. The absence of contact with the ground also allows cantilever gates to function easily in all weather conditions.

The smart appearance, efficient design, and craftsmanship in a cantilever gate are sure to impress owners, visitors, and customers visiting the property.

Cantilever gate designs are frequently used as no track work needs to be installed. This makes cantilever gates an option for surfaces that are inappropriate for track gates.

Cantilever gates have been designed to glide through the air rather than along tracks on the driveway and do not require any ground installation. Cantilever Sliding Gate All-In-One Systems are quicker and easier to install and have longer lifespans as they float through the air.

Cantilever gates aren’t only contemporary and modern in appearance, besides cantilever design automatic sliding gates are the ideal choice for anyone with uneven ground, paving that is organic in shape, and gravel driveways.





100% Italian Made BRUSHLESS Sliding Gate Motor, Roller/Sliding Gate Opener System.
Roger Technology Brushless BH30/804 Sliding Gate Motor

BRUSHLESS 24V Sliding Gate Automation Motor 1000kg Capacity | with magnetic limit switch



BUILT-IN SPECIAL CASE FOR BATTERY BACKUP





At a glance | Brushless 24v Automatic Sliding Gate Opener / Roller Gate Automation System

The Roger Technology BH30/804 Brushless complete kit includes the roller sliding gate motor, control panel, and receiver.

The BH30/804 motor is a low voltage, super intensive use with native encoder onboard, irreversible ideal for sliding gates up to 1000Kg with built-in digital controller B70 series, magnetic limit switch.

Includes:

- BH30/804 Electromechanical Brushless Sliding Gate Motor
- Built-in B70 24v Digital Control Panel
- Plug-in H93/RX20/I Receiver
- Magnetic Limit Switch

See the full details below.



Roller Gate Automation System Features

  • Ideal: For sliding gates up to max. 1000 kg.
  • Safe: The encoder management allows precise and safe control of slowdown when opening and closing.
  • Practical: Automatic programming via the learning function of the control unit.
  • Quick: Ease of installation and start-up due to its simple functions and its height and depth adjustments.
  • Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor mounted in dedicated housings and bearings.
  • Equipped with a release lever and an easy-to-operate lock.
  • Convenient: Battery backup available.



Capacity

  • 100% Duty Cycle (opening/closing - 24 hours, no stop)
    Digital brushless motor based on a permanent magnetic field that uses neodymium iron-boron magnets inside the rotor.
  • Multifunction digital display
    4-quadrant digital display with six function keys allow you to go through the various parameters, change their values, check error messages and input statuses and perform all the self-learning phases.
  • 1000KG Capacity
  • Super-Intensive Use; (opening/closing - 24 hours no stop) 1300 | Roller Gate Automation System)







BRUSHLESS MOTOR TECHNOLOGY

A digital brushless motor with a permanent magnetic field and digital electronics for the complete management of the automation system control. Designed for super intensive use with the added benefit of super low energy consumption.



DIGITAL BRUSHLESS MOTOR

Innovative, revolutionary Brushless digital motor with permanent magnetic field, 24V/36V energy sinusoidal with a native encoder that permits highly intensive use of the automation with extremely reduced consumption whilst at the same time fully guaranteeing all its safety and management functions.

NEW GENERATION OF ELECTRONICS

The new control unit with onboard Brushless digital controller (24V/36V DC). Without traditional relays and thanks to its revolutionary MOSFET quadrant system and its control technology entirely based on a DSP microcontroller, it represents a new generation of electronic cards created to safely handle every type of automation movement.

ENGINEERING PASSION

All the mechanical components and gears are manufactured in steel, cast iron and bronze. The automation system casings are made from titanium-reinforced die-cast aluminium. All the gears are inspected and assembled on high-quality bearings and inserted on precise seats machined to provide absolute precision between the axes.



Special Features of Brushless 24v Automatic Sliding Gate Opener

WHY BRUSHLESS...?

Digital, smart, powerful, elegant, robust and all-Italian.

A technology that offers maximum performance but consumes less power than other motors. The revolutionary digital motor with 12 unique features.

Powerful Digital Brushless Motor

A very powerful sliding gate motor with substantial torque. The motor is compact and neat due to the special concentrated coil windings, it is powered by an energy sinusoidal system.

Digital & Vectorial Automation Controller

The BRUSHLESS digital controller, which operates at low voltage DC, allows 100% control of the automation system in digital mode. Due to its operation entirely based on a DSP microcontroller, the travel and your automation system's movements can be programmed and customised easily, precisely and elegantly.

The Digital Silence Of The Motor

One great impact is the silence or the near absence of noise generated by the BRUSHLESS motor during all its movements.

 Motor For Super-Intensive Use

 The brushless gate motor remains permanently cold even after many days of super-intensive use.

Speed, Acceleration & Deceleration With Extreme Elegance

The automation system with brushless digital technology creates perfect and elegant movements. With a constant force and torque at every point and the option of varying the speed of deceleration and acceleration, the system can be managed with maximum safety.

Extremely Low Energy Consumption

A motor that can operate at low voltage in super-intensive use and operate in environments with highly demanding weather conditions while maintaining very low energy consumption and absorption levels.

Impact, Obstacle Detection & Reversal In Total Safety

Thanks to digital technology, we are able to detect an obstacle and reverse the motor instantly by simply specifying the torque of the motor, the sensitivity, the time and the travel of the reversal, all in full compliance with safety requirements.

Onboard Native Digital Encoder

The BRUSHLESS motor has a highly advanced native digital encoder that controls the management of automation systems in a safe, precise and extremely elegant manner.

No Problem In The Event Of Power Failure

With the help of internal or external batteries and the associated battery charging card, your automation system continues to operate considerably even during prolonged power cuts, ensuring many more operations than traditional technologies.

Motor At Ambient Temperature

The brushless motor was created with the main goal of being a motor for super intensive use and with a 99% efficiency. Regardless of how many operations the engine performs in a day, it always remains cold or, at the most, reaches the outside ambient temperature.

Simple Installation With A Single 3-Wire Cable

And the BRUSHLESS motor can be installed by simply connecting it using a single 3-wire cable! What could be easier? This will provide fully digital management of your automation system thanks to sensorless or sensored technology, depending on the type of automation system.

Advanced Precision Engineering To Obtain Optimal Motor Performance

We have created a mechanism that gives you the opportunity to get the maximum performance out of the motor. A product that combines the quality of the internal production processes, mechanical processing, and high-quality ferrous and non-ferrous materials.



Control Board Overview



Accessories Compatibility and Controlling Options | Sliding Gate Automation

  • Constant DC Accessories Output
  • Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (APP-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)



Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11
Product weight packed (Kg): 0,03



Dimensions | Italian Made Roger Technology BH30/804 Super-Intensive Use BRUSHLESS 24V Roller/Sliding Gate Electric Motor

Specifications

Max gate weight: 1000 kg
Power line supply: 230V AC - 50Hz
Motor power supply: 24V
Power rating: 200W
Frequency of use: Intensive use
Thrust: 50 - 1000N
Operating temperature: -20+55°C
Protection level: IP44
Reductor Type: Irreversible
Manoeuvre speed: 12 m/min (0.20 m/s)
Limit switch: Mechanical
Onboard control unit: B70/1DC
Encoder: Digital native encoder + magnetic digital sensored, 4096 PPR
Batteries recovery: Optional 2 internal battery 12V 1,2AH - Optional 2 external battery 12V 4,5AH
Type exit gear: Z15/mod 4
Operating cycles per day (opening/closing - 24 hours no stop): 1300
Maximum dimension product in mm (L x W x H): 315 x 165,8 x 329
Product weight packed (Kg): 12,3



Standard Accessories

KT223

Fixing plate with stay bolts and screws M30 series.

MC775

Kit magnetic limit switch for the control units H70/103AC, H70/104AC, B70/1DC, and B70/1DCHP.

Optional Add-On Raised Fixing Plate

KT221

Raised fixing plate for M30 series (+3 cm).

(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.







Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.


Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)





Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $5,599.00

        Have Questions?Talk to the Experts(03) 9532 0804

        Dispatched in: Within One
        Business Day
