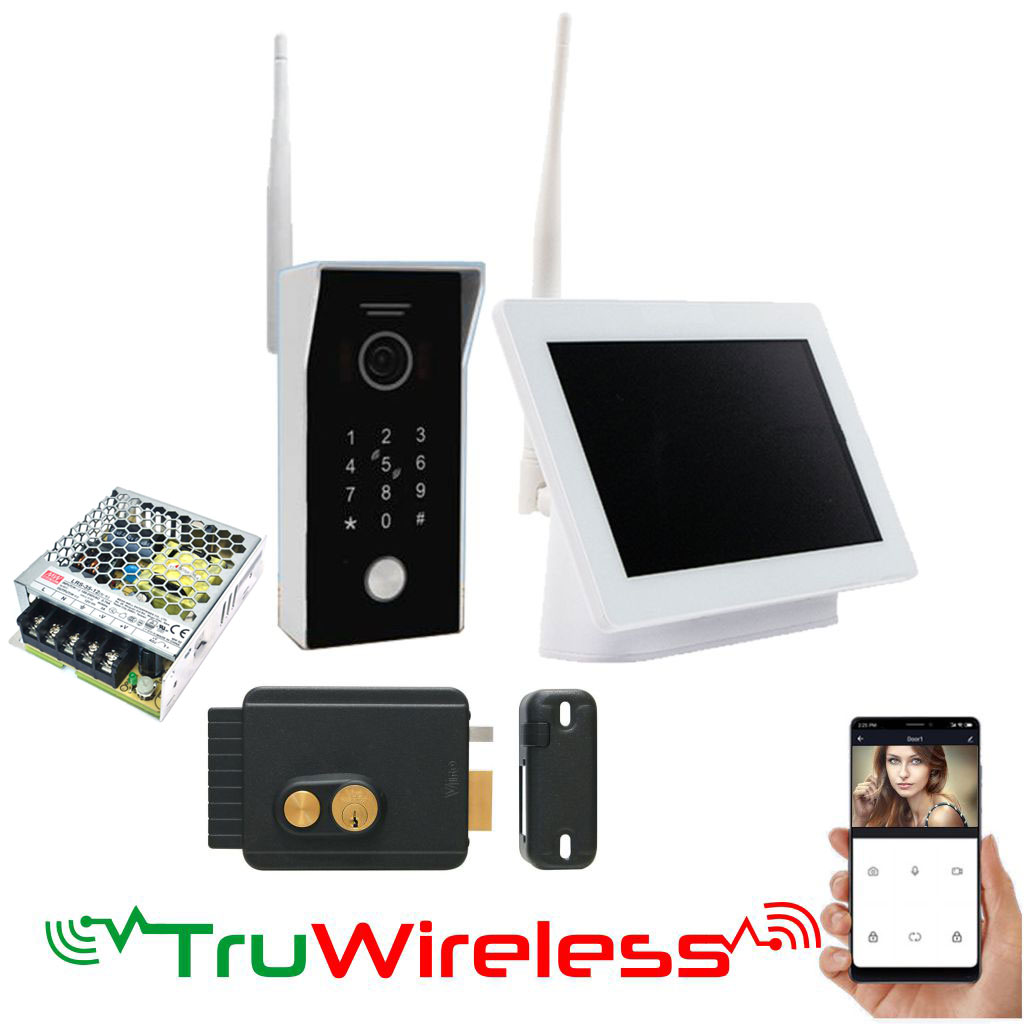

TruWireless Intercom System with Built-in HaLow WiFi Bridge
TruWireless Video Intercom System
Eyevision TruWireless Video Intercom System has built-in HaLow WiFi wireless technology that allows transmission distance much longer. 2MP camera and 7inch HD touch screen 1920*1080 provide High-quality audio and video images. Answer and remote unlock your door from your mobile phone.
Highlight Features:
- TruWireless, plug n play, complete wireless, excellent for DIY.
- High-quality image recording, using 2MP wide-angle camera.
- 7inch HD touch screen with definition 1920*1080.
- Record videos and images on an SD card.
- Seamless access control with the indoor monitoring device or Tuya APP on the smart phone.
Surface Mount Keypad Video WiFi Intercom Outdoor Station | Built-In HaLow Wi-Fi Bridge
- HD 1080P 2.0MP Camera, 110° Wide Angle View.
- LED Lights illumination for Night Vision.
- Live Video, Snapshot, Video Record.
- HaLow WiFi Frequency: 800Mhz/900Mhz, With an External Antenna that connects straight to Your home Wi-Fi (Max 15m).
- See Your Visitors On Your Smartphones or Tablets, also make two-way communication & Door/Gate Release Function.
- Unique ID Number For Connection & Communications for high-end security.
- Built-in Keypad for access control by PIN Codes and IC Cards.
- Touch Keypad, Max.200 PIN Codes Access.
- IC Card Access, Max.200 Pcs. IC Cards.
- Unlocking Time: 01 – 150 Seconds.
- Waterproof design with IP rating 54; (Surface Mount also comes with Rain Cover)
- Material: Aluminum Alloy.
- High video compression rate: H.264/HD.265
- Power Consumption: Max-150mA.
- Power Supply: DC 15V 1A.
- Dimension (L*W*D): 146*70*43mm(With Rain Cover)
Another innovative product from Eyevision®
How does it work:
When the visitor presses the call button on the door station, the unit will ring outside and also will call any/all the mobile phones and iPads programmed to the system. The user is then able to answer the call and has all the following functions:
1. Talk to the visitor
2. Open the door or gate
3. Take a video or take a picture
Additionally to this, the user can enter a code into the built-in keypad when standing at the gate or door to release the connecting door or gate.
The user can use the application installed on the Mobile device/iPad to monitor the live situation where the door station is installed. Again the user can monitor, take a video or capture a picture.
The APP for the EV-IP-KP22 can be downloaded FREE of charge from Google Play or the Apple Store.
Example of How It Works
Ease of Installation:
The EV-IP-KP22 Connection to The TruWireless Wi-Fi Indoor Monitor:
TruWireless, no need for cable, perfect for DIY.
Wireless from the door station to the indoor monitor with a built-in HaLow WiFi Bridge that allows wireless communication and makes the indoor monitor portable, and stands on the desktop conveniently.
7" Monitor Eyevision TruWireless Wi-Fi Smart Intercom Systems
- 7-inch Capacitive Touch Screen, HD 1920*1080p.
- Portable desk stand.
- HaLow WiFi Frequency: 800Mhz/900Mhz, With an External Antenna.
- User-friendly Linux Operation System
- Two-Way Communication system
- Supports external SD card for Image and Video recording
- Access control with mobile app (Tuya Smart APP) supports both Android and iPhone.
- Power Supply: DC 12V 1A.
- Standby Current: Max. 150mA.
- Working Current: Max. 400mA.
- Dimension (L*W*D): 226*151*21.5mm

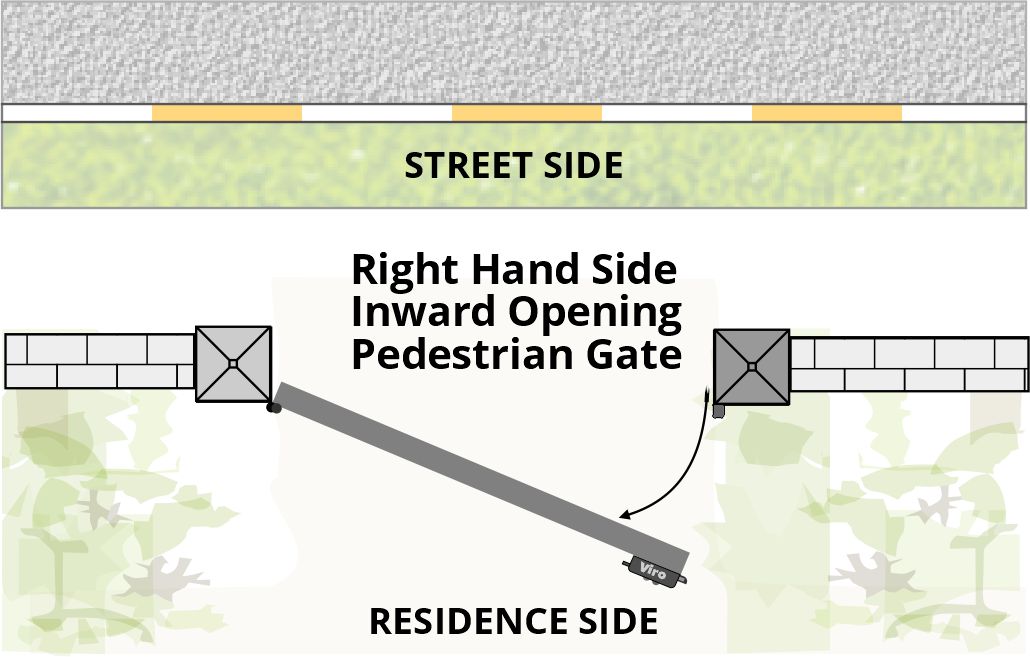

12V Horizontal Automatic Electric Gate Lock (Viro V97), Right Hand Side for Inward Opening Swing Gates
|
Viro V97 automatic electric gate lock with push-button and adjustable backset from 50 to 80 mm. Suitable for the right hand and inward opening swing gates
The V97 electric lock with push-button is suitable for outside and inside doors and pedestrian gates and is interchangeable with the most common electric locks already installed, often maintaining the old striker. The characteristics and finish make them ideal for metal doors and gates, even in surroundings subject to considerable temperature ranges.
|
|
|
Features:
- Galvanized and Anthracite Metallic-Painted Steel Case and Cover
- Operating voltage: 12V DC, 2600mA
- Push Button
- The electric lock can be operated in conjunction with most gate openers and access control systems.
- Specially designed for installation on manual or automatic opening gates and drive-through gates.
- Viro V97 Electric Lock Dimensions: 127,5 x 103,5 mm
Package Contents:
- striker,
- oval brass escutcheon,
- allen key for backset adjustment,
- fixing screws.
Usage:
Driveway Electric Gate Lock
Pedestrian Electric Gate Lock
Garage Swing Door Electric Lock
Suitability:
The V97 electric locks with push button are suitable for outside and inside doors and pedestrian gates and are interchangeable with the most common electric locks already installed.
|
|
|
|

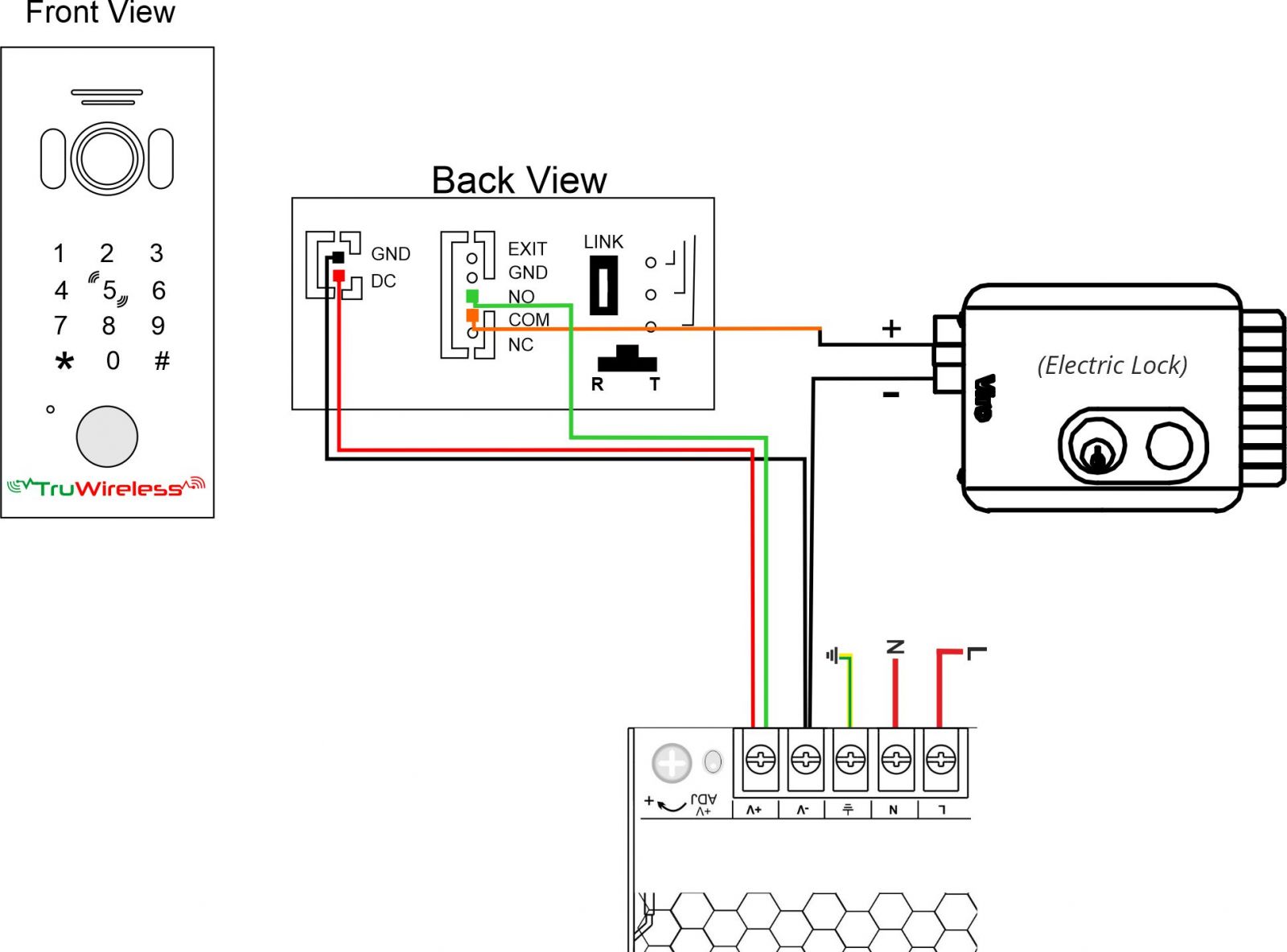

Wiring Diagram
12V DC Power Supply
Lock and Access Control Power Supply 12V 3A DC
LRS-35-12 Single Output Switching Power Supply 12V/3A Output
A 35W single-output enclosed type power supply with a 30mm low-profile design.
The input range is 85-264VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.
Brand: MEAN WELL
Weight: 350 Gr
SPECIFICATIONS
|
Input Type |
Single Phase |
Input Voltage |
85 ~ 264VAC |
Input Current |
0.42A / 230VAC |
Output Voltage |
12V |
Output Current |
3A |
Rated Output Power |
36W |
Output Type |
Single |
Output Voltage Adjustment |
10.2 ~ 13.8V |
Prescribed Electrical Item |
No |
SELV |
Yes |
Efficiency |
86.00% |
Operating Temperature Range |
'-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet) |
Warranty |
1 Year |
Approvals |
CE, CB, RCM |
IP Rating / Environmental Protection |
Less than IP65 |
Dimensions |
99*82*30mm (L*W*H) |
Recommended for New Designs |
Yes |
