This ad is for a single replacement actuator kit
Italian Made Super Duty STARK6 Gate Opener, Industrial Strength Gate Automation Kit Suitable To Large Gates Up To 6 Metres
Packing a punch the APC-STARK6 system can deliver 2400N of thrust to operate gates up to 750kg or 6m in length. With two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.
Adjustable built in stopper (Italian Made STARK6)
Simple to adjust just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required, this is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.

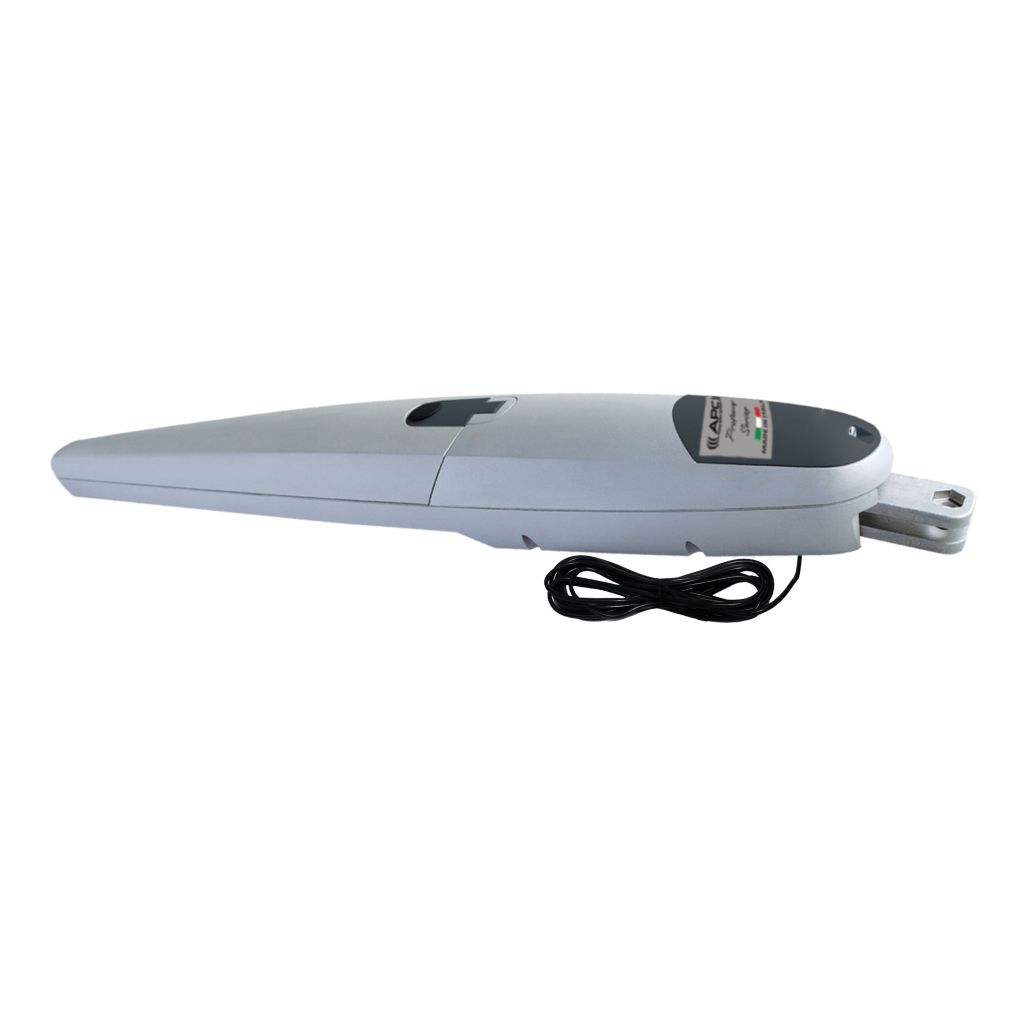

Actuator Overview (Italian Made STARK6)
Italian Made Super Duty STARK6 Gate Automation System Capacity
Italian Made STARK6 Gate Opener Installation Geometry
STARK6 Gate Motor Installation With The Flexible Fixing Bracket
STARK6 is supplied with fastening plates and brackets for the gate and the wall/post. The brackets must be welded to the fastening plates. The wall/post brackets may be cut to the desired length, adjusting distances A and E. This provides flexibility for the opening angle of the gate.
NOTE - The bracket supplied with the gate opener kit is 180 mm long
STARK6 Gate Automation Specifications
Thrust |
2400N |
Motor Voltage
|
24v DC
|
Manual override
|
Via override key supplied
|
Working temperature
|
-20° - +55°
|
Duty Cycle
|
80%
|
Maximum stroke
|
540 mm
|
Gates size
|
6m max
|
Gate weight
|
750kg max
|
