Simple 2 Wire Audio Intercom Handset

Product SKU: EV-DHS-4

  • In Stock

Price :

$75.00

Get More Info.. Get More Info..

Product Information

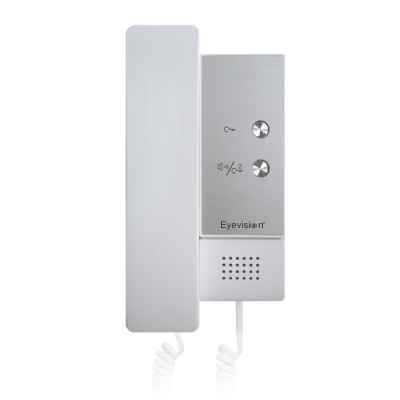

Eyevision® Digital Audio Handset
This digital audio handset is an add-on product to the Eyevision® 2 wire range of digital video and audio intercom systems, and it offers a unique modern appearance and crystal clear voice quality using a twisted pair of 1mm or 1.5mm.

Digital Audio Handset Main Features:

* Unique design
* Digital quality sound
* Touch sensor control buttons
* Backlit buttons when in use
* Up to 4 handsets
* Two unlocking functions:
-12V DC output to power and open an electric striker up to 250mA
-Dry contact relay to open automatic gates
Eyevision® Digital Audio Handset

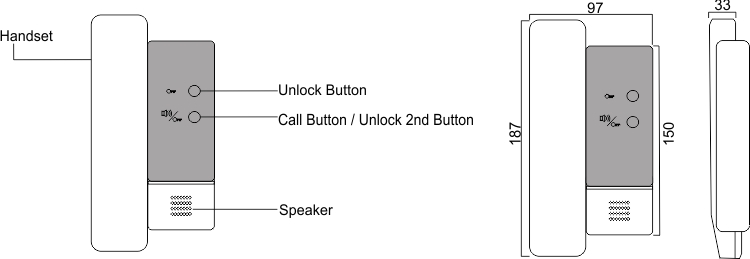

Audio hand-set dimensions and functions
Eyevision® Digital Audio Handset



Cable Requirements

Eyevision® 2 wire Cable Requirements



Cabling

  • CAT5 up to 80m between the door station and each apartment.
  • Straight Pair 1mm2 up to 50m between the door station and each apartment.
  • Twisted Pair 1mm2 up to 120m between the door station and each apartment.
  • Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.



Recommendation:

The Eyevision® 2 wire monitors are very powerful and will deliver high-quality video and audio, it is recommended to use the best quality cables that will suit your installation. Use cables with very good-quality copper conductors in order to maximize the clarity of the system.

This is why we provide a free high-quality 20m twisted pair with every monitor. Using this cable will guarantee the best-optimized results in video and audio transmission for up to 200m.

Larger sizes of these twisted pair cables manufactured for this system are available at very competitive prices.
