Italian Made BRUSHLESS Gate Motor, TURBO-SPEED (44 cm/s) Sliding Gate Opener.
ROGER TECHNOLOGY HIGH-SPEED
Animal instinct, digital ultra speed
A FASTER WAY TO WATCH YOUR GATE MOVE!
With the new high-speed line, digital ULTRA HIGH SPEED, it is possible to open and close your gate at very high speed, with maximum elegance and more than doubling the decrease in waiting times of other operators for gate automation.
The ideal solution for all installations requiring speedy manoeuvre times, intensive use, maximum movement elegance and total safety during the movement and obstacle detection phases.
Faster speeds and shorter waiting times!
The new TURBO-SPEED lines let you quickly, powerfully and reliably open a gate. They are 100% faster compared to the traditional speeds for motors with BRUSHLESS 24V DC Moror technology.
Dynamic accelerations and decelerations!
Thanks to the new 24V or 36V digital controllers, it has become fast and straightforward to set different types of accelerations and decelerations during your gate's opening and closing phases. And always guaranteeing maximum elegance and safety.
Digital obstacle detection!
The ultra-powerful Native Encoder onboard the digital technology and the brand new motor power control in sensored technology make it possible to detect any obstacle with maximum safety, setting the speed, motor torque, sensitivity and operator reaction time during the detection phase for possible obstacles.
Total safety from the point you want!
To guarantee maximum safety and maintain high-speed performance, the new digital controller offers the possibility of configuring gate opening and closing from where you want to start deceleration and setting the type of deceleration, its speed and the relative sensitivity you want.
Roger Technology Brushless BM30/HS Sliding Gate Motor
BRUSHLESS 24V TURBO-SPEED Sliding Gate Automation Motor | with magnetic limit switch
At a glance | Brushless 24v Ultra High-Speed Automatic Sliding Gate Opener

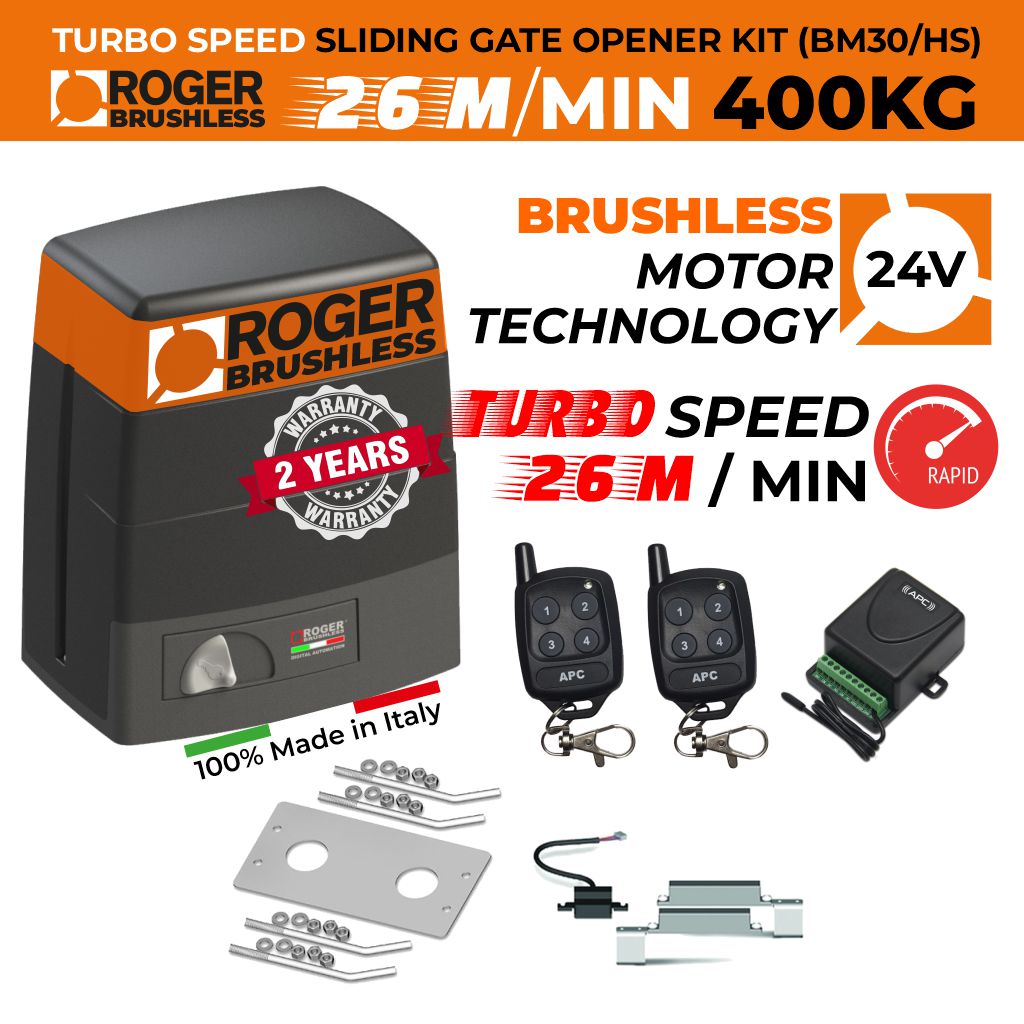

The Roger Technology BM30/HS Brushless complete kit includes the sliding gate motor, control panel, and receiver.
The BM30/HS motor is a low voltage, super intensive use with native encoder onboard, irreversible ideal for sliding gates up to 400Kg with built-in digital controller B70 series, magnetic limit switch.
- BG30/HS Electromechanical Brushless Sliding Gate Motor
- Built-in B70 24v Digital Control Panel
- Plug-in H93/RX20/I Receiver
- Magnetic Limit Switch
See the full details below.
Gate Automation System Features
- Ideal: For sliding gates up to max. 400 kg.
- Safe: The encoder management allows precise and safe control of slowdown when opening and closing.
- Practical: Automatic programming via the learning function of the control unit.
- Quick: Ease of installation and start-up due to its simple functions and its height and depth adjustments.
- Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor mounted in dedicated housings and bearings.
- Equipped with a release lever and an easy-to-operate lock.
- Convenient: Battery backup available.
- 100% Duty Cycle (opening/closing - 24 hours, no stop)
Digital brushless motor based on a permanent magnetic field that uses neodymium iron-boron magnets inside the rotor.
- Multifunction digital display
4-quadrant digital display with six function keys allow you to go through the various parameters, change their values, check error messages and input statuses and perform all the self-learning phases.
- 400KG Capacity
- TURBO Speed (44 cm/s)
BRUSHLESS MOTOR TECHNOLOGY
A digital brushless motor with a permanent magnetic field and digital electronics for the complete management of the automation system control. Designed for super intensive use with the added benefit of super low energy consumption.
DIGITAL BRUSHLESS MOTOR
Innovative, revolutionary Brushless digital motor with permanent magnetic field, 24V/36V energy sinusoidal with a native encoder that permits highly intensive use of the automation with extremely reduced consumption whilst at the same time fully guaranteeing all its safety and management functions.
NEW GENERATION OF ELECTRONICS
The new control unit with onboard Brushless digital controller (24V/36V DC). Without traditional relays and thanks to its revolutionary MOSFET quadrant system and its control technology entirely based on a DSP microcontroller, it represents a new generation of electronic cards created to safely handle every type of automation movement.
All the mechanical components and gears are manufactured in steel, cast iron and bronze. The automation system casings are made from titanium-reinforced die-cast aluminium. All the gears are inspected and assembled on high-quality bearings and inserted on precise seats machined to provide absolute precision between the axes.
Special Features of Brushless 24v Ultra High-Speed Automatic Sliding Gate Opener
Digital, smart, powerful, elegant, robust and all-Italian.
A technology that offers maximum performance but consumes less power than other motors. The revolutionary digital motor with 12 unique features.
Powerful Digital Brushless Motor
A very powerful sliding gate motor with substantial torque. The motor is compact and neat due to the special concentrated coil windings, it is powered by an energy sinusoidal system.
Digital & Vectorial Automation Controller
The BRUSHLESS digital controller, which operates at low voltage DC, allows 100% control of the automation system in digital mode. Due to its operation entirely based on a DSP microcontroller, the travel and your automation system's movements can be programmed and customised easily, precisely and elegantly.
The Digital Silence Of The Motor
One great impact is the silence or the near absence of noise generated by the BRUSHLESS motor during all its movements.
Motor For Super-Intensive Use
The brushless gate motor remains permanently cold even after many days of super-intensive use.
Speed, Acceleration & Deceleration With Extreme Elegance
The automation system with brushless digital technology creates perfect and elegant movements. With a constant force and torque at every point and the option of varying the speed of deceleration and acceleration, the system can be managed with maximum safety.
Extremely Low Energy Consumption
A motor that can operate at low voltage in super-intensive use and operate in environments with highly demanding weather conditions while maintaining very low energy consumption and absorption levels.
Impact, Obstacle Detection & Reversal In Total Safety
Thanks to digital technology, we are able to detect an obstacle and reverse the motor instantly by simply specifying the torque of the motor, the sensitivity, the time and the travel of the reversal, all in full compliance with safety requirements.
Onboard Native Digital Encoder
The BRUSHLESS motor has a highly advanced native digital encoder that controls the management of automation systems in a safe, precise and extremely elegant manner.
No Problem In The Event Of Power Failure
With the help of internal or external batteries and the associated battery charging card, your automation system continues to operate considerably even during prolonged power cuts, ensuring many more operations than traditional technologies.
Motor At Ambient Temperature
The brushless motor was created with the main goal of being a motor for super intensive use and with a 99% efficiency. Regardless of how many operations the engine performs in a day, it always remains cold or, at the most, reaches the outside ambient temperature.
Simple Installation With A Single 3-Wire Cable
And the BRUSHLESS motor can be installed by simply connecting it using a single 3-wire cable! What could be easier? This will provide fully digital management of your automation system thanks to sensorless or sensored technology, depending on the type of automation system.
Advanced Precision Engineering To Obtain Optimal Motor Performance
We have created a mechanism that gives you the opportunity to get the maximum performance out of the motor. A product that combines the quality of the internal production processes, mechanical processing, and high-quality ferrous and non-ferrous materials.
Control Board Overview
Accessories Compatibility and Controlling Options | Sliding Gate Automation
- Constant DC Accessories Output
- Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
- Remote controls
- Induction Loops
- Weekly Timers
- Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
- Keypads (Wired and Wireless Options Available)
- Exit/entry sensors
- Intercom system with dry contact output
- Automatic switching timer
- WiFi Control System (APP-Based Control)
- GSM Control Systems (Mobile Call/SMS-based Control)
Remote Control Features
Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.
|Number of channels:
|Number of combinations:
|Radio for copy:
|Maximum distance in open field:
||Mod "CR2032" 3V
|Maximum dimension product in mm
(L x W x H):
|38 x 68 x 11
|Product weight packed (Kg):
Italian-Made Roger Technology BM30/HS BRUSHLESS 24V TURBO-SPEED Sliding Gate Electric Motor
| DIMENSIONS |
Italian-Made Roger Technology BM30/HS
BRUSHLESS 24V TURBO-SPEED Roller/Sliding Gate Electric Motor
| SPECIFICATIONS |
|Max gate weight:
|Power line supply:
||230V AC - 50Hz
|Motor power supply:
|Frequency of use:
||50 - 350N
||26 m/min (0.44 m/s)
|Onboard control unit:
||Digital native encoder + magnetic digital sensored, 4096 PPR
|Type exit gear:
|Operating cycles per day
(opening/closing - 24 hours, no stop):
|Maximum dimension product in mm
(L x W x H):
|250 x 165 x 290
|Product weight packed (Kg):
Fixing plate with stay bolts and screws M30 series.
Kit magnetic limit switch for the control units H70/103AC, H70/104AC, B70/1DC, and B70/1DCHP.
Optional Add-On Raised Fixing Plate
Raised fixing plate for M30 series (+3 cm).
APC RX2 Two Channel Receiver
The APC two-channel receiver can be used on gates, garage doors regardless of the brand to allow for the entire APC wireless family of equipment such as remotes, wireless keypads, wireless push buttons, etc to operate the connected device.
open/close, open/stop/close, OSC, PUSH, or any other input on the integrating system 12-24V AC/DC power (power adapter available for cases where this is not accessible.
There is no longer a need to carry multiple remotes as this simple solution would integrate all connected systems onto the one APC control system. The prerequisite of the system to accept the receiver is that it has a functional open/close terminal on its control card. Some systems will be labeled (open/close whereas others are labeled PUSH or OSC). In such a situation the button of your choosing on the remote would open and close the connected system based on its current position.
If the system has an input exclusively for the open command and another exclusively for the close command the receiver can still be used as it has two separate relay outputs and each output could connect to the exclusive command, this would mean that one button on the example remote would be for the open movement and another button on the remote would be for the close movement. In cases of side by side double garage doors, you can use the two outputs of the receiver to control each of the systems separately.
The APC Smart two-channel receiver has a further feature of setting an output for latching circuit, this could be used to control systems to ON/OFF per button press such as lights, pumps, safety devices inputs, alarms, etc.
The receiver can be purchase in multiple package options such as
- Receiver only
- Receiver with a low voltage power adapter (in case power is not available for the device)
- Receiver and a two remote combo
- Receiver, power adapter and a two remote combo
- Receiver, wireless two feature entry keypad, wireless single feature exit button three remote combo
- Receiver, wireless two feature entry keypad, wireless two feature exit button three remote combo
- or any package can be made using any of the APC compatible devices
- APC-RC4S Four Button Keyring remote
- APC-RC4-SV Four Button Sun Visor Remote (six colour choices)
- APC-RC450S Long Distance Remote
- APC-KP2W Two Channel Wireless Keypad APC-KP2W
- APC-PBS-KW Single Wireless Button with Isolation Key
- APC-PBD-KW Double Wireless Button with Isolation Key
- ANT-1 External Boosted Antenna
- 433.92Mhz High-Security Rolling Code compatible with APC devices
- Dual Mode Receiver with momentary and latching modes
- Normally Open and Normally Closed circuits
- Supports 12-24V AC/DC
- Single Remote Delete or Full Format
- Max switching load 24VDC/2A
APC Automation Systems FOUR Button Keyring Remote Control
- Featuring High Security rolling codes transmitting a unique code chosen at random
- Slim design
- Keyring Clip-on System
- Completely Backwards Compatible with all legacy APC control boards
