  • Italian Made Super Duty STARK12 Double Swing Gate Automation Wireless Controller Kit. 12M/1500Kg Capacity Gate Opener Suitable For Commercial, Industrial, and Residential Use

Italian Made Super Duty STARK12 Double Swing Gate Automation Wireless Controller Kit. 12M/1500Kg Capacity Gate Opener Suitable For Commercial, Industrial, and Residential Use

Product SKU: APC-STARK12-LV-WCK

  • In Stock

Get More Info.. Get More Info..
Free Shipping Free Shipping

Kit Price:

$3,403.00

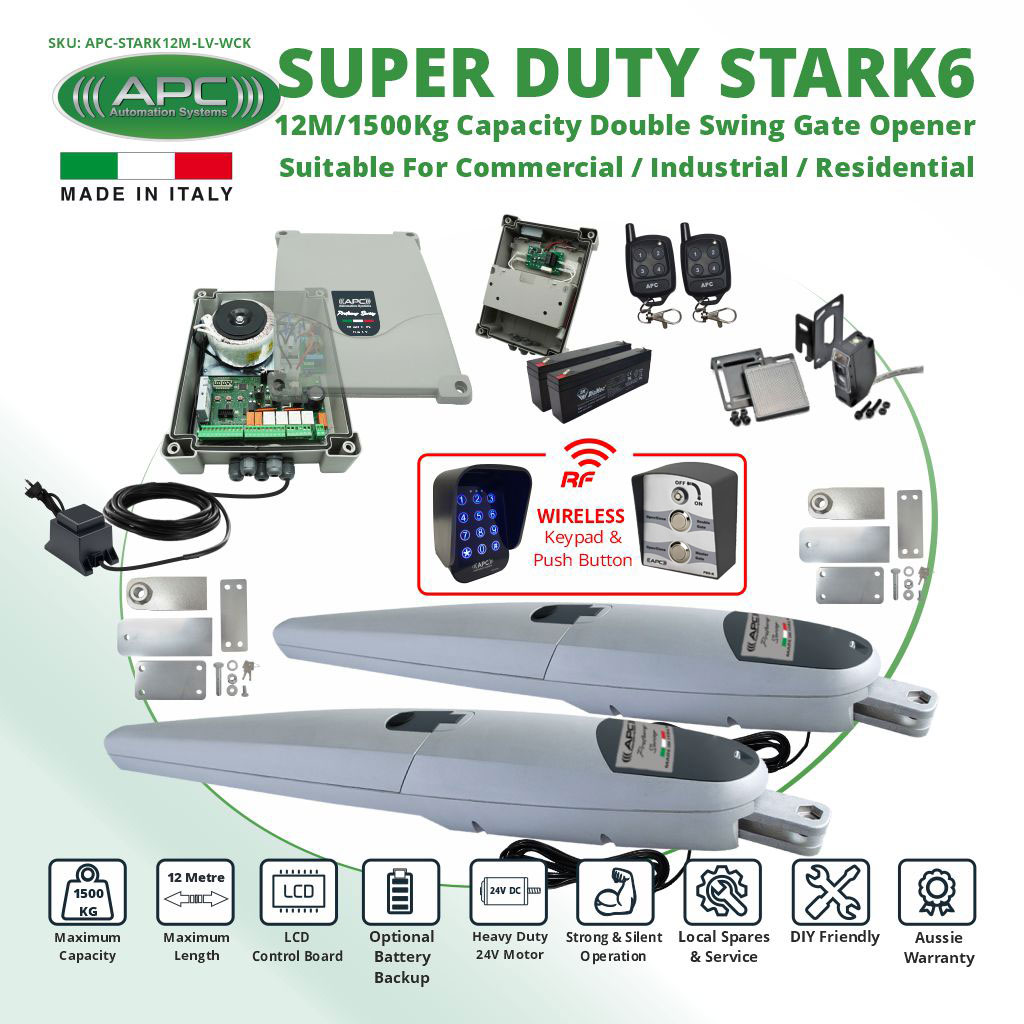

  • Super Duty STARK12 Italian Made Double Gate Automation Kit. 12M/1500Kg Capacity Double Driveway Gate Opener

  • Kit Includes

    01 Super Duty STARK6 Gate Automation Motor with Built in Adjustable Stops. Italian Made Swing Gate Opener Motor(QTY: 2)
    02 Cable for STARK6 / STARK12 Swing Gate Opener Motor ( 2 Core 2mm Non-Shielded Cable 6 or 15m )(QTY: 2)
    03 Weatherproof External 24V Transformer with 20m Low Voltage Cable(QTY: 1)
    04 APC Logico 24V LOW VOLTAGE Feature Rich Control Box(QTY: 1)
    05 APC Four Button Keyring Remote(QTY: 2)
    06 Logico 24V Complete Battery Backup System(QTY: 1)
    07 APC Wireless Double Push Button Switch with Key Issolation(QTY: 1)
    08 APC Two Channel Wireless Keypad(QTY: 1)
    09 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor(QTY: 1)
    10 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order.(QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Italian Made Super Duty STARK6 Gate Opener, Industrial Strength Gate Automation Kit
Suitable To Large Gates Up To 12 Metres (6m for each gate leaf)






Packing a punch the APC-STARK12 double gate system can deliver 2400N of thrust to operate gates up to 1500Kg or 12m in length (750kg or 6m in length for each gate leaf). Italian made gate motor with two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.



Adjustable built in stopper (Italian Made STARK12 Double Gate Opener)


Simple to adjust just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required, this is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.


Actuator Overview (Italian Made STARK12 Double Gate Automation Motors)







Italian Made Super Duty STARK12 Double Gate Automation System Capacity For Each Gate Leaf



Italian Made STARK6 Electric Gate Motor Installation Geometry



STARK6 Gate Motors Installation With The Flexible Fixing Bracket

STARK6 is supplied with fastening plates and brackets for the gate and the wall/post. The brackets must be welded to the fastening plates. The wall/post brackets may be cut to the desired length, adjusting distances A and E. This provides flexibility for the opening angle of the gate.

NOTE - The bracket supplied with the gate opener kit is 180 mm long



Italian Made STARK12 Double Gate Automation, Gate Opener Motors Specifications

Thrust 2400N
Motor Voltage
24v DC
Manual override
Via override key supplied
Working temperature
-20° - +55°
Duty Cycle
80%
Maximum stroke
540 mm
Gates size
6m max for each gate leaf
Gate weight
750kg max for each gate leaf

Feature Rich and Highly Versatile Control Box



The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features



External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20 meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.





Specifications

Transformer 24V AC
Rectification In Box Rectifier
Motor Output Voltage 24v DC
Max Operating Power 250 Watts (Accesories + Running Motors)
Max. Accesories Load 7W
Control Board Duty Cycle 80%
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity



Optional Battery Back Up Box


An optional battery backup system is available for the automation kit. The back up battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use. The systems is supplied with the charger module along with the 2.2aH battery pack installed in a weatherproof placstic enclosure and is installed directly below the main control box..

APC-RR-11 Retro Reflective Sensor



The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.

  • Up to 11 Metres Infrared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment & Misalignment led to assist in the installation process

  • Resin filled for the ultimate weatherproofing

APC-KP2W Wireless Keypad Features



  • Low Power Consumption only 18uA in standby.

  • Easy to replace AA battery-powered system (supplied) with up to two years usage on general use.

  • High strength tempered glass faceplate with an ultra-modern and highly reliable touch-sensitive operation.

  • Blue Backlight illumination upon touch with an automatic timeout to return to standby.

  • Two dedicated LED indicators indicating and accepted pin code (green) and also security lockout (red)

  • IP53 Weatherproof rated and suited for outdoor and indoor environments.

  • Built in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.

  • Pin code scramble allowing the user to input a series of random number before the pin code to prevent pin code theft.

  • Two-Channel operation allowing the user to control two different items or functions using separate pin codes.


    •
Channel 1 supports up to 8 Pin Numbers (Full Gate Feature)

Channel 2 supports up to 3 Pin Numbers (Pedestrian Gate Feature)



Wireless Double Push Button with Isolation Key





The wireless double push button switch is a simple and easy to use method to operate the gate for full gate operation and also pedestrian function.

It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The wireless push button communicates with the control board using the same rolling code 433mhz frequency as the remote thus eliminating the need for any extra add ons. If required the wireless push button can be upgraded to a wireless keypad for higher access security using pin number and can have diffrent pin codes for both the full gate operation and pedestrian function.
