FORTECO 2200 AC, Italian-Made Strong Sliding Gate Motor. 2200KG Capacity AC Powered Sliding Gate Opener with Two Remote Controls

Please note this Sliding Gate Motor kit is for replacing an existing one. It will not include a gear rack.

Extra Heavy Duty FORTECO Sliding Gate Motor

At a glance

The FORTECO 2200 EXTRA HEAVY DUTY system with a rich feature set of full programmability using the onboard intuitive LCD interface. Suitable for the novice user with simple setups all commercial sites with its advanced features system. There are many functions and features that this system can perform. See the full details below.

AC Sliding Gate Automation System. Easy Installation All in one Motor and Control Panel for Sliding Gate. Suitable for sliding gates up to 2200kg
Commercial 240V Systems Electric Gate Automation, Extra Heavy Duty Automatic Sliding Gate Openers.


TECHNICAL FEATURES

---

FEATURES	UNIT	FORTECO-2200-AC
Gate maximum weight	kg	2200
Power supply vhz	V / Hz	240 / 50
Maximum power	W	800
Full load current	A	4
Gate maximum speed	m/s	0.16
Maximum thrust	N	1550
Duty cycle	%	35
Pinion	-	M4-Z18
Working temperature	°C	-20 ÷ +55
Weight	Kg	18
Protection degree	IP	44
Maximum load on 24 Vac Accessories	W	10



FORTECO STRENGTHS

• Accurate and safe operation with encoder
• Obstacle detection
• Self-learning of opening and closing times
• Synchronized operation of two motors using the SYNCRO module
• Magnetic limit switches, all accurate and reliable over time
• Programming achieved using 3 program buttons and display
• Plug-in adaptor for modular radio receiver MR2
• 2 inputs for photocells with self-test function
• 2 inputs for mechanical or resistive safety edges
• Courtesy light output
• Soft start (programmable start-up rate)

DIMENSIONS

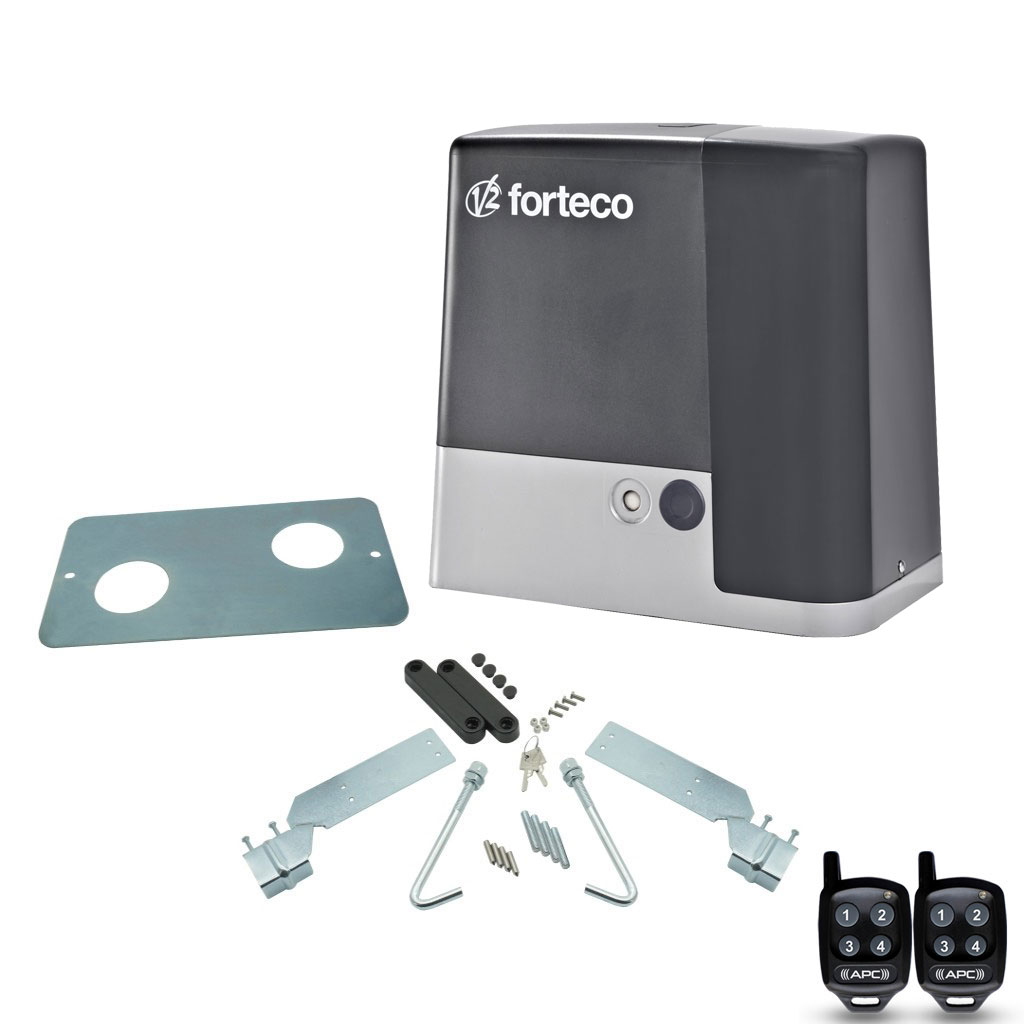

Gate Motor and Installation Kit

Extra Heavy Duty Feature Rich 240V Italian Sliding Gate Motor Overview

System Features

Capacity

 2200KG Capacity (2.2 Tonne)
 Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
 35% Duty Cycle

Everything and more as standard

 Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
 Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available), and induction loop
 Fast and Slow Speeds are adjustable
 Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options)
 Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
 Party Mode System to keep gates opened when configured for use with the automatic close feature
 Underside cable entry with grommets
 Simple to setup left and right side magnet system
 Strong STEEL Pinion Gear
 Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all directions)

Special Features

 Soft Start (Ramping feature) with adjustable cut-in points
 Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
 Induction Loop Compatible for auto opening or as a safety device
 Supports programmable timers

Safety Features

 Adjustable Over current adjustments
 Built-in Encoder with adjustable sensitivity
 Safety Sensor connection input configurable for open and/or closing
 Supports Safety Edges
 Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview

Accessories Compatibility and Controlling Options

 Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
 Remote controls
 Induction Loops
 Weekly Timers
 Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
 Keypads (Wired and Wireless Options Available)
 Exit/entry sensors
 Intercom system with dry contact output
 Automatic switching timer
 WiFi Control System (App-Based Control)
 GSM Control Systems (Mobile Call/SMS-based Control)

Remote Features
