Product SKU: APC-PT-9000-DC-SK

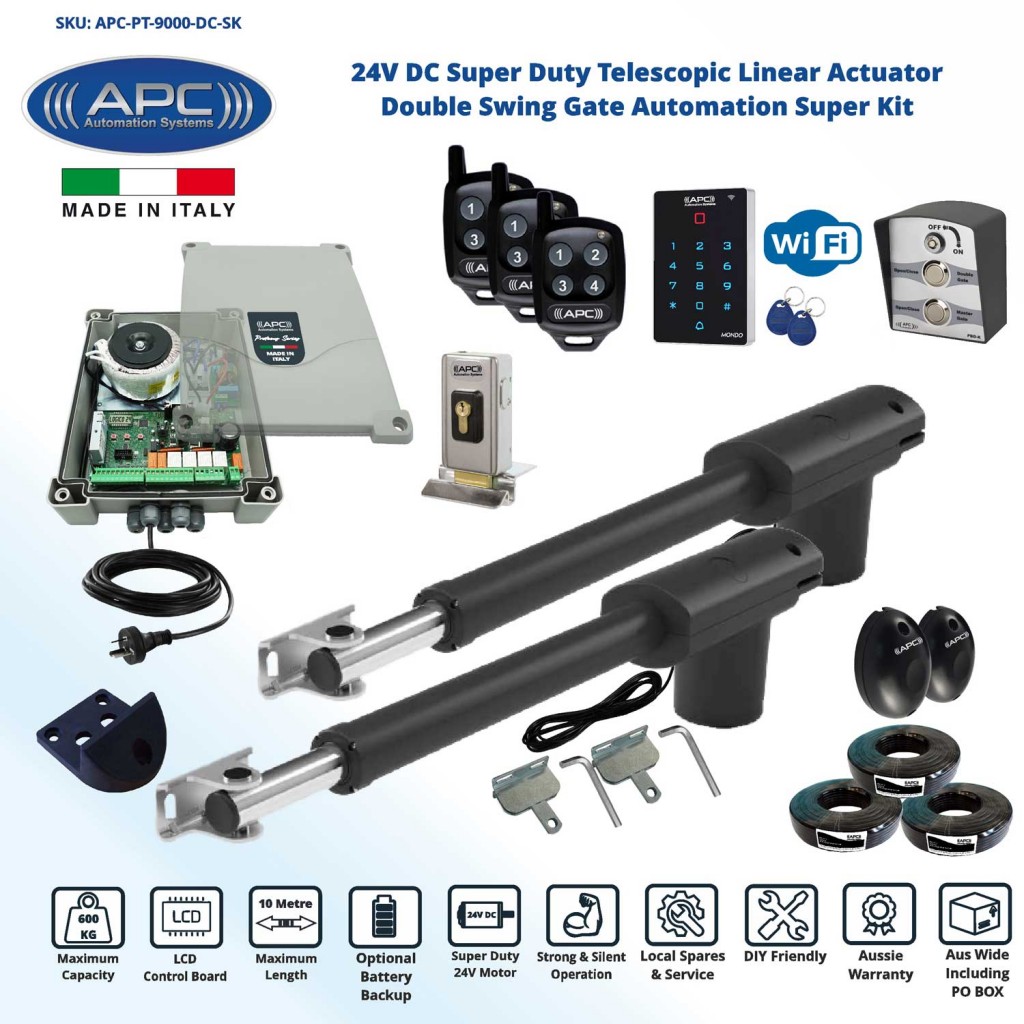

Extra Heavy Duty Italian Made Proteous PT-9000 Telescopic Linear Actuator Kit Double Swing Gates Automation

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • APC Proteous PT-9000 Telescopic Linear Actuator Kit  Double Swing Gates Automation

    On Sale

Extra Heavy Duty Italian Made Proteous PT-9000 Telescopic Linear Actuator Kit Double Swing Gates Automation

Product SKU: APC-PT-9000-DC-SK

  • In Stock

Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,199.00 $2,280.00 APC Automotion Plus Sale

  • Electric Gate Opener 24V System, 5 Meter/300KG Each, 500mm Stroke

  • Kit Includes

    01 APC Proteous 5000 Super Duty Telescopic Linear Actuator (QTY: 2)
    02 Cable for Proteous Swing Gate Opener Motor ( 2 Core 2mm Non-Shielded Cable 6 or 11m ) (QTY: 2)
    03 APC Logico 24V Feature Rich Control Box Kit with Internal Transformer and Power Lead (QTY: 1)
    04 APC Four Button Keyring Remote (QTY: 3)
    05 APC Wired Double Push Button Switch with Key Issolation (QTY: 1)
    06 5m 4 Core Non Shielded Cable (QTY: 2)
    07 APC 12V Automatic Electric Gate Lock (QTY: 1)
    08 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
    09 10m 4 Core Non Shielded Cable (QTY: 1)
    10 65mm High Centre Driveway Rubber Gate Stop with Steel Base (QTY: 1)
    11 APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader (QTY: 1)
    12 EM Swipe Tag (QTY: 2)
    13 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Italian Made Extra Heavy Duty Telescopic Linear Actuator






Heavy Duty 24V Motor with powerful and quiet operation Sleek Italian design with a compact and neat appearance Easy to use manual override via the supplied allen keys in a emergency situation. The system can handle light and heavy gates up to 300kg maximum weight each or up to 5m maximum length each.



Emergency Override


Simple to use manual override in case of an emergency. Simply insert the supplied allen key and turn to unlock the motor.


Actuator Overview



Extra Heavy Duty Single Gate Opener



System Capacity

Extra Heavy Duty Single Gate Opener

Installation Geometry





Specifications

Thrust 1800N
Motor Voltage
24v DC
Manual override
Via override allen key supplied
Working temperature
-20° - +50°
Duty Cycle
90%
Maximum stroke
500mm
Gates size
5m max Each Gate
Gate weight
300kg max Each Gate

Feature Rich and Highly Versatile Control Box



The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features

Specifications

Transformer 24V AC
Rectification In Box Rectifier
Motor Output Voltage 24v DC
Max Operating Power 250 Watts (Accesories + Running Motors)
Max. Accesories Load 7W
Control Board Duty Cycle 80%
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity



Optional Battery Back Up Box


An optional battery backup system is available for the automation kit. The back up battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use. The systems is supplied with the charger module along with the 2.2aH battery pack installed in a weatherproof placstic enclosure and is installed directly below the main control box..

APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


  •



APC Mondo Wired Keypad with APP via Wi-Fi



The APC Mondo Wi-Fi Keypad can be used as a simple keypad access control device or alternatively as an advanced unit. Its special features allow the system to be operated by Pin Code, Swipe Tag and even remotley by APP whether on-site or off-site (anywhere in the world).

Supplied with a 10 meter cable roll it is wired back to the main control board of the system. Its also supplied with two swipe tags for PIN FREE access.


Key Feature Set:

  • Full operational control by Tuya APP
  • Resin Filled for best weatherproofing
  • Low Power Consumption
  • Backlit Touch Keys
  • Up to 2000 Users
  • Pin Code, Swipe Tag or DUAL AUTHENTICATION Swipe Tag then Pin Code
  • Adjustable Relay Time from 0-99s or Latching ON/OFF
  • Doorbell Contacts to connect to your doorbell system

Wired Double Push Button with Isolation Key





The wired double push button switch is a simple and easy to use method to operate the gate for full gate operation and also pedestrian function.

It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The push button is wired to the control board using the supplied cable roll. If required the button can be upgraded to a wired keypad for higher access security using pin number for either the full gate operation or pedestrian function.



Automatic Electric Lock







The 12V electric gate lock is a completly automatic solution to lock the gates once reaching the closed position and automatically unlock as soon as the command is given for the gates to operate whether by remote or any other accessory.

The electric gate lock will connect to the first gate to operate in the open sequence and it will engage into its armature plate when closed. The armature plate is a blank canvas and can be welded or screwed to a custom stand off bracket which will be bolted to the ground or to a gate stop. The electric lock itself is wired back to the control board by the supplied 6 metre cable



65mm Rubber Gate Stop







The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.



65mm Rubber Gate Stop Dimensions





Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $2,199.00
