Product SKU: APC-PT5000-DC-WF-INF
In Stock
Product SKU: APC-PT5000-DC-WF-INF

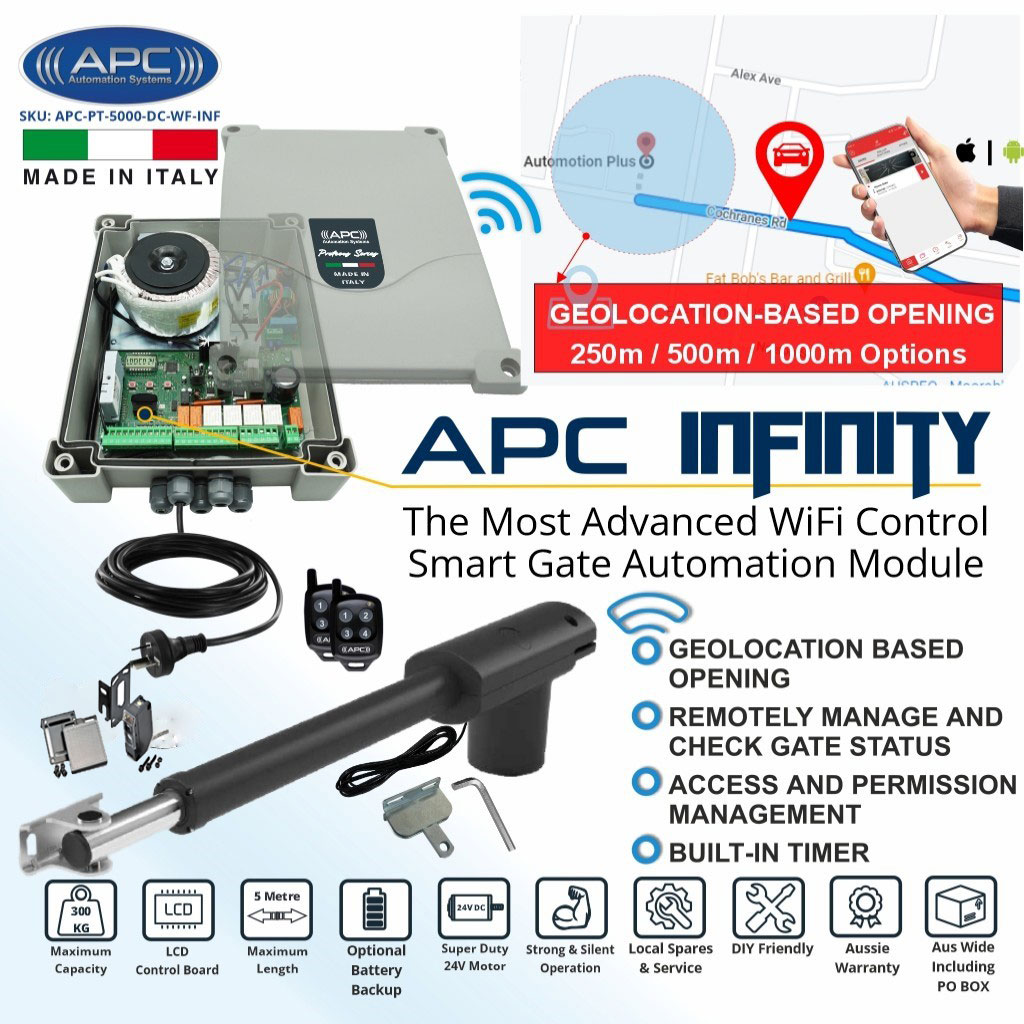

Single Swing Gate Opener 24V System, 5 Meter, 300KG, 500mm Stroke
Heavy Duty 24V Motor with powerful and quiet operation Sleek Italian design with a compact and neat appearance Easy to use manual override via the supplied allen keys in a emergency situation. The system can handle light and heavy gates up to 300kg maximum weight or up to 5m maximum length.
Thrust | 1800N |
Motor Voltage
|
24v DC
|
Manual override
|
Via override allen key supplied
|
Working temperature
|
-20° - +50°
|
Duty Cycle
|
90%
|
Maximum stroke
|
500mm
|
Gates size
|
5m max
|
Gate weight
|
300kg max
|
The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.
There is no function or feature that this system cannot perform. See the full details below.
80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Geolocation-Based Opening - Activate the GPS and the gate will open automatically as soon as it has detected the presence of your Smartphone at the set distance (250m / 500m/1000m options)
Remotely Manage and Check Gate Status - You can control the gate even when you are not at home and remotely check the status of your automation (Did I close my gate, or did I leave it open?) and the latest movements (when was the last time it was opened?)
Access and Permission Management - Permissions: grant other users the use of one or more of your automation, but only in the time slot you decide.
Built-in Timer - Set new scenarios according to your needs, choosing for each one whether to activate it manually or automatically at a specific time/day
Unlimited User - First 4 User Free (Admin +3 user)
Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
Transformer | 24V AC |
Rectification | In Box Rectifier |
Motor Output Voltage | 24v DC |
Max Operating Power | 250 Watts (Accesories + Running Motors) |
Max. Accesories Load | 7W |
Control Board Duty Cycle | 80% |
Working temperature | -20° - 50° |
RF | APC Rolling code 433.92mhz |
Auxiliary Inputs | 0V Momentary Pulse |
Accessories Voltage | 24V DC |
Operator Inbuilt Safety | Over current + Encoder Sensitivity |
The most advanced gate automation Wi-Fi module (for APC Proteous Range only)
Geolocation-Based Opening - Activate the GPS and the gate will open automatically as soon as it has detected the presence of your Smartphone at the set distance (250m / 500m/1000m options)
Remotely Manage and Check Gate Status - You can control the gate even when you are not at home and remotely check the status of your automation (Did I close my gate, or did I leave it open?) and the latest movements (when was the last time it was opened?)
Access and Permission Management - Permissions: grant other users the use of one or more of your automation, but only in the time slot you decide.
Built-in Timer - Set new scenarios according to your needs, choosing for each one whether to activate it manually or automatically at a specific time/day
Unlimited User - First 4 User Free (Admin +3 user)| $29 per extra user.
Input | |
---|---|
Voltage | 15V |
Current | 45mA |
Max absorbed power | 700mW |
WiFi interface | |
---|---|
Type | 802.11b/g/n – 2.4GHz |
Power e.i.r.p. | ≤ 100mW |
Safety | OPEN/WEP/WPA-PSK/WPA2-PSK |
Environment | |
---|---|
Operating temperature | -20°C ... +50°C |
Storage temperature | -25°C ... +70°C |
Humidity | 15% - 85% |
Your (Kit and Add-On) Price:
$1,525.00
