Viro V09 Electric Lock Assembly Simplification Kit On Sliding Gates

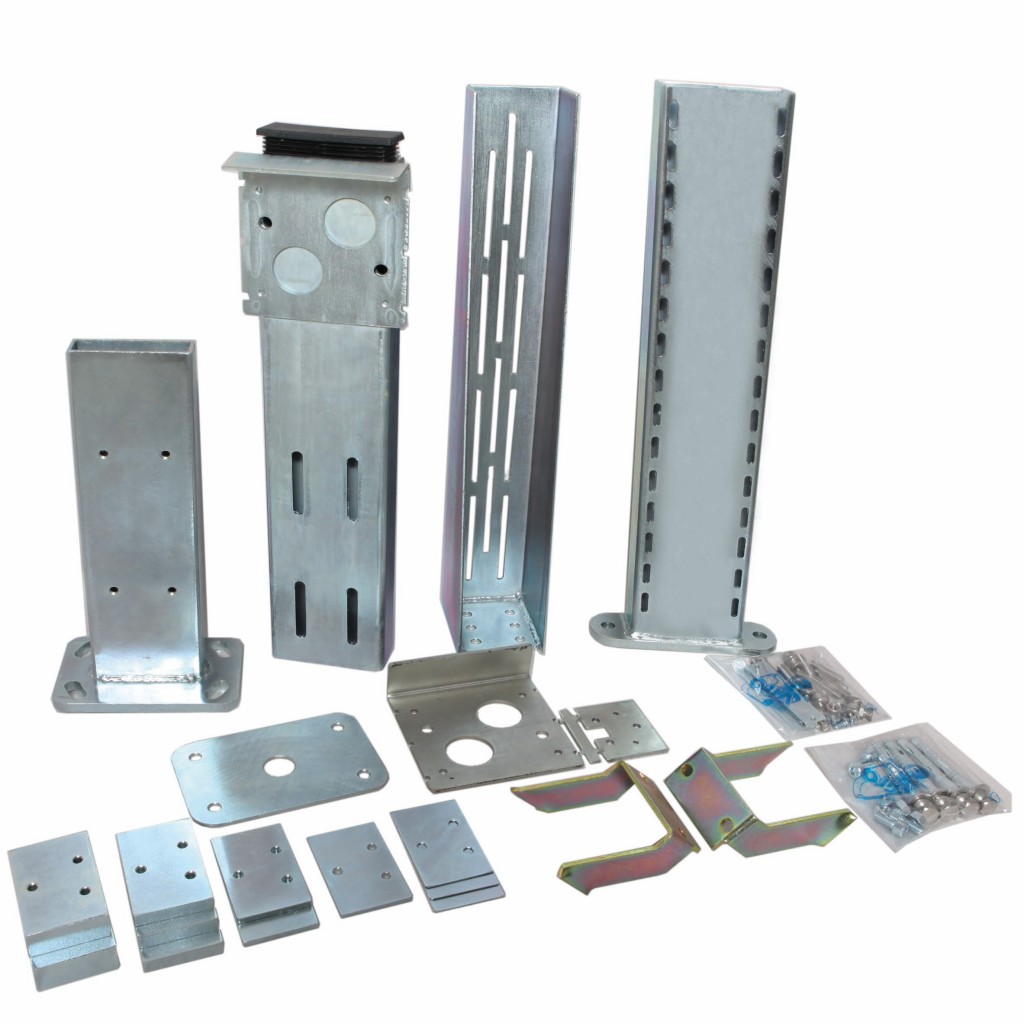

Assembly simplification kit consisting of rail posts, fixing plates, spacers, and security bolts.
V09 ASSEMBLY SIMPLIFICATION KIT ON SLIDING GATES
Item Description |
No: |
Columns, fixing plates, spacers, and security bolts |
1÷9 |
Columns |
3-4-5-7-8 |
"T" plate |
1-5-9 |
Slotted plate for the striker |
2-5-9 |
Spacers |
6 |
Screws and plugs |
5 |
Columns and slotted plate |
2-3-4-5-7-8-9 |
"T" plate and slotted plate |
1-2-5-9 |
Application on the motor side using the rail post in the kit. |
Application on the “anti-capsize frame” using the “T” fixing plate in the kit. |
|
|
