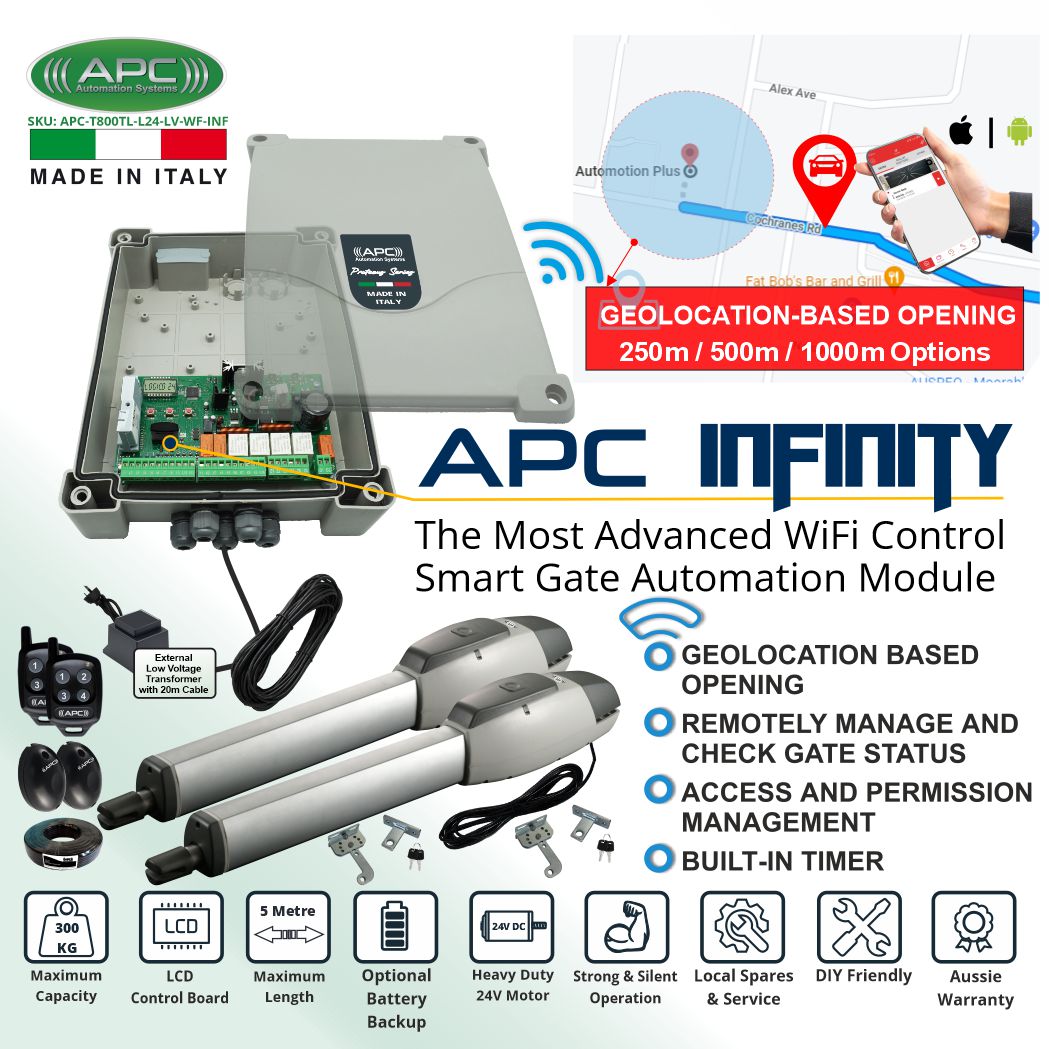

Double Swing Gates Automation Smart WiFi Kit with Italian Made Logico 24 Control Unit and APC Infinity WiFi Control Smart Gate Automation Module & T800TL Heavy Duty Linear Actuators With Adjustable Limit Switches. Remote Control Automatic Double Gate Opener
Double Swing Gates Automation Smart WiFi Kit with Italian Made Logico 24 Control Unit and APC Infinity WiFi Control Smart Gate Automation Module & T800TL Heavy Duty Linear Actuators With Adjustable Limit Switches. Remote Control Automatic Double Gate Opener
Free Shipping
Kit Price:
$2,055.00
24V System, 2.5 Meter / 150KG Each, Adjustable Top Limit Switches
Kit Includes
01 APC-T700TL Top Limit Actuator Kit(QTY: 2)
02 APC Logico 24V LOW VOLTAGE Feature Rich Control Box(QTY: 1)
03 APC Infinity The Most Advanced WiFi Control Smart Gate Automation Management Module(QTY: 1)
04 APC Four Button Keyring Remote(QTY: 2)
05 65mm High Centre Driveway Rubber Gate Stop with Steel Base(QTY: 1)
06 Weatherproof External 24V Transformer with 20m Low Voltage Cable(QTY: 1)
Add-On Items (Discounted when purchased along with this Kit)
Product Information
Extra Heavy Duty Telescopic Linear Actuator with Open and Close Limit Switches
Heavy Duty 24V Motor with powerful and quiet operation Sleek European design with a compact and neat appearance Easy to use manual override via the supplied keys in a emergency situation. The system can handle light and heavy gates up to 175kg maximum weight each or up to 2.5m maximum length each.
Easy to Adjust Top Limit Switches ensure precise setting of the open and closed positions along with a less strenuous life for the actuator.
Emergency Override
Simple to use manual override in case of an emergency. Simply insert the supplied key to unlock then turn the override knob.
Actuator Overview
Installation Geometry
Specifications
Gear Type
Metal Lead Screw, Mixed Reduction
Motor Voltage
24v DC
Manual override
Via override keys supplied
Working temperature
-10° - 50°
Duty Cycle
20%
Maximum stroke
350mm (without limit switches)
Gates size
2.5m max each
Gate weight
175kg max each
Feature Rich and Highly Versatile Control Box
The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.
There is no function or feature that this system cannot perform. See the full details below.
System Features
80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes) Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials) Automatic learning of gate travel limits Completly adjustable slowdown points Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop Fast and Slow Speeds points are adjustable along with there power Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options) Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes Party Mode System to keep gates opened when configured for use with the automatic close feature Five underside cable entry with glands All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Special Features
Energy Saving Mode (5mA Standby Current) Optional battery backup system Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light) Soft Start/Soft Stop (Ramping feature) with adjustable cut in points Direct electric lock connection Induction Loop Compatible for auto opening or as a safety device Supports programmable timers
Extra Features With Infinity WiFi Module
Geolocation-Based Opening - Activate the GPS and the gate will open automatically as soon as it has detected the presence of your Smartphone at the set distance (250m / 500m/1000m options) Remotely Manage and Check Gate Status - You can control the gate even when you are not at home and remotely check the status of your automation (Did I close my gate, or did I leave it open?) and the latest movements (when was the last time it was opened?) Access and Permission Management - Permissions: grant other users the use of one or more of your automation, but only in the time slot you decide. Built-in Timer - Set new scenarios according to your needs, choosing for each one whether to activate it manually or automatically at a specific time/day Unlimited User - First 4 User Free (Admin +3 user)
Safety Features
Adjustable Over current adjustments Supports encoder motors and limit switch motors Safety Sensor connection input configurable for open and/or closing Supports Safety Edges Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Simple to use LCD interface
Control Board Overview
Accessories Compatibility and Controlling Options
Constant DC Accessories Output Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation Remote controls Induction Loops Weekly Timers Entry and Exit push button with isolation key switches (Wired and Wireless Options Available) Keypads (Wired and Wireless Options Available) Exit/entry sensors Intercom system with dry contact output Automatic switching timer WiFi Control System (App Based Control) GSM Control Systems (Mobile Call/SMS based Control)
Remote Features
External Transformer (Extendable up to 80 metres cable distance)
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20 meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.
Specifications
Transformer
24V AC
Rectification
In Box Rectifier
Motor Output Voltage
24v DC
Max Operating Power
250 Watts (Accesories + Running Motors)
Max. Accesories Load
7W
Control Board Duty Cycle
80%
Working temperature
-20° - 50°
RF
APC Rolling code 433.92mhz
Auxiliary Inputs
0V Momentary Pulse
Accessories Voltage
24V DC
Operator Inbuilt Safety
Over current + Encoder Sensitivity
APC Infinity The Most Advanced WiFi Control Smart Gate Automation Management Module (for APC Proteous Range only)
The most advanced gate automation Wi-Fi module (for APC Proteous Range only)
Geolocation-Based Opening - Activate the GPS and the gate will open automatically as soon as it has detected the presence of your Smartphone at the set distance (250m / 500m/1000m options)
Remotely Manage and Check Gate Status - You can control the gate even when you are not at home and remotely check the status of your automation (Did I close my gate, or did I leave it open?) and the latest movements (when was the last time it was opened?)
Access and Permission Management - Permissions: grant other users the use of one or more of your automation, but only in the time slot you decide.
Built-in Timer - Set new scenarios according to your needs, choosing for each one whether to activate it manually or automatically at a specific time/day
Unlimited User - First 4 User Free (Admin +3 user)| $29 per extra user.
Compatible With
APC Proteous Sliding Gate Opener Systems
APC Logico24 Swing Gate Opener Systems
Features
Remotely manage all your automation even when you are not at home. Not only check their status but also control them! (Open, close, stop, activate the pedestrian opening, etc.)
Geo Location Enabled - Enter your home without lifting a finger. By using the geolocation from your smartphone, APC Infinity knows where you are and will open the chosen automation for you when you approach it (250m, 500m, 1000m options)
Check at any time who comes and goes. The App lets you manage all your access by giving specific time slots to who you want when you want.
Set up programmed scenarios to manage your gate access the way you want: Daily, weekly, monthly programable timer options
TECHNICAL FEATURES
Input
Voltage
15V
Current
45mA
Max absorbed power
700mW
WiFi interface
Type
802.11b/g/n – 2.4GHz
Power e.i.r.p.
≤ 100mW
Safety
OPEN/WEP/WPA-PSK/WPA2-PSK
Environment
Operating temperature
-20°C ... +50°C
Storage temperature
-25°C ... +70°C
Humidity
15% - 85%
STATUS OF LED
• FIXED RED: The module is in Access Point mode, waiting for a connection
• FLASHING RED: Mismatch between the serial of the control panel and the serial stored in the module. Perform the module reset procedure
• FIXED BLUE: STA mode, module connected to the server
INSTALLATION
1. Disconnect the power supply to the control unit
2. Insert the module into the ADI port of the control board
3. At the first installation, make sure that the module is in access point mode (RED LED ON STEADY)
4. Then proceed to enroll the control panel to the server following the instructions provided by the Mobile APP
NOTE: If the module is not in access point mode, reset the module using the reset procedure: press the reset button for 3 seconds, the LED must go out and light up again, remaining steady red
How does APC Infinity Smart Gate Automation Management Wi-Fi Module work?
Download the free Application from the official stores (Google Play, Apple App Store)
Multiple management of unlimited gate automation systems (also located on different sites)
Geolocation via GPS (Activation of openings and devices in automatic or manual mode)
Access control (History Log)
Permissions for other users
Set new scenarios at a specific time/day, according to your needs
To use the App, you need to connect to your APC Proteous Range Gate Opener System via APC Infinity Module
APC Infinity Access Control Features
FULL REMOTE CONTROL OF THE AUTOMATION
• Opening
• Closing
• Stopping
• Managing outputs
• Geo fence management of the automation
• Knowing the status of the automation (opened, closed, % opened, stopped)
FULL ACCESS CONTROL FEATURES
• Defining the users that can have access to the site
• Limiting user access in time (hour, day, week, and month)
• Log and record every access to each user
• Adding/Blocking/Deleting users
AUTOMATIC SETUP OF SCENARIOS
• Opening and closing with scenarios
• Each scenario can be performed under a timing ( specific hours of the day, daily, monthly, specific day of the year)
• Managing multiple automation with one single command/scenario
Optional Battery Back Up Box
An optional battery backup system is available for the automation kit. The back up battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use. The systems is supplied with the charger module along with the 2.2aH battery pack installed in a weatherproof placstic enclosure and is installed directly below the main control box..
APC-PE2000 Photoelectric Safety Sensor Set
The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.
Up to 15 Metres Infared beam operating distance
Only powers on when the command is given to close the gates
Alignment led to assist in the installation process
Weather sealed with the supplied cover seals
Easy screw down wiring termination
65mm Rubber Gate Stop
The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.
Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
