Product SKU: ML-SG3000AC-S

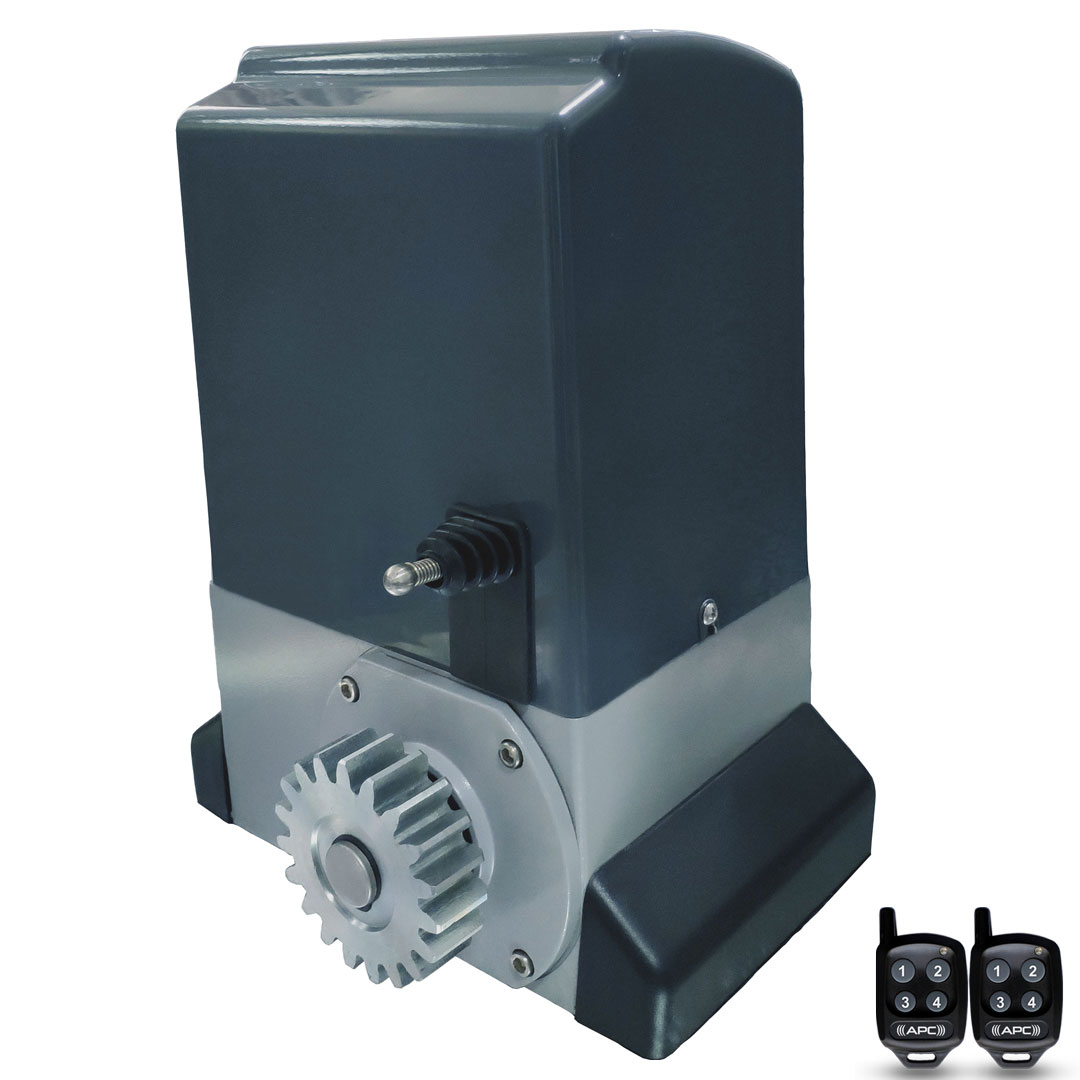

APC Typhoon 3000 SG3000AC 3000KG Sliding Gate Motor with Power Cord (Built-in Control Board) and Two Remote Controls

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

APC Typhoon 3000 SG3000AC 3000KG Sliding Gate Motor with Power Cord (Built-in Control Board) and Two Remote Controls

Product SKU: ML-SG3000AC-S

  • In Stock

Get More Info..

Kit Price:

$895.00

  • Or in 4 payment of $223.75 with afterpay info
  • Kit Includes

    01 APC Typhoon 3000 SG3000AC 3000KG Sliding Gate Motor with Power Cord (Built in Control Board) (QTY: 1)
    02 APC Four Button Keyring Remote (QTY: 2)
  • Customise Kit
  • Product Information

Customise your Kit

Product Information

Please note this motor kit is for replacing an existing one; it will not include a gear rack.

Typhoon 3000 Extra Heavy Duty

AC Sliding Gate Automation System

Easy Installation All in one Motor and Control Panel for Sliding Gate

Suitable for sliding gates up to 3000kg



Strong & Durable
Strong & Durable Sliding gate motor with 3000KG capacity
All In One Motor
All in one motor with built-in control board and limit switches
AC Sliding Gate Automation System
Manual Override
Built-in a manual override for emergencies
Metal Pinnion & Gears (NO PLASTIC OR NYLON)
Strong Metal Cut Pinnion ensuring the highest durability
AC Sliding Gate Automation System
AC Sliding Gate Automation System



This all-in-one AC-powered sliding gate motor kit is designed to operate sliding gates up to 3000kg in weight. It is an all-in-one motor and control panel, making it simple to install and extremely compact and neat.

- Manual Override
- All Metal Gears
- Metal Gear Drive
- All in one internal Motor and Control Panel

Controlling Options:

(any or all of the following may be connected to operate the gate)

- Remote Controls (2 supplied - more available upon request)
- Wireless or Wired Entry push button switch (Available as an optional accessory)
- Wireless or Wired Exit push button switch (Available as an optional accessory)
- Wireless or Wired Keypads (Available as an optional accessory)
- Safety Photoelectric Sensors (supplied - more available upon request)
- Intercom system with dry contact output (Available as an optional accessory)
- GSM receiver with separate power supply (Available as an optional accessory)
- Wi-Fi receiver with separate power supply (Available as an optional accessory)
- Loop Detector (Available as an optional accessory)



Motor Dimensions



AC Sliding Gate Automation System



Rated Power 1200W
Power supply 220V±10% 50Hz
Maximum Weight of Gate 3000kg
Maximum Width of Gate 12m
The working temperature of the motor -25°? +55°
Open (Close) speed 12m/min
Maximum Pull 65Nm
Working Humidity ≤85%
Voltage output Only devices with a parameter of 12-24V DC operating range can be connected to the system
Light output 240V Light, 30 Watts or Less
Accessories input Open Only
Close Only
Open/Stop/Close




AC Sliding Gate Automation System
Here are the Commonly FAQ asked about this product
Can I operate this sliding gate motor manually?
YES
The motor is fitted with a manual override and supplied with a key to manually disengage the motor
Can I use this system to operate a large gate?
YES
This motor can handle a sliding gate up to 3000 kg in weight
Are the motor & control panel all in one?
YES
Both the motor and the control panel are housed under one casing making the motor easy to install and very neat & compact
Can I use push buttons to operate this system?
YES
Both wireless & wired push-button switches can be used to open/close the gate motor
Can I use keypads to operate this system?
YES
Both wireless & wired keypads can be used to open/close the gate motor
Can I connect a safety sensor to this system?
YES
Photoelectric and reflective safety sensors can be connected to this system to stop the gate from closing if there is a vehicle or person in the way of the gate
Can I connect an intercom system to this gate system?
YES
A range of different intercoms can be connected to this system allowing the intercom to unlock the gate motor from a monitor inside the house or via an app on your smartphone
Can I operate this gate system from a remote location?
YES
A GSM Receiver or Wi-Fi Receiver can be connected to the system allowing programmed users to open/close the gate system from a remote location. Please note, to connect these accessories to the system a separate power pack must be used.
Does this gate system automatically close?
YES
When the automatic close timer is enabled and photoelectric safety sensors are installed the gate will automatically close
Can I connect a light to the system?
YES
The system has a 240V light output meaning a 240V light 30 Watts or less can be connected and will operate when the gate is opening/closing.
Can I lock my gate if I go away?
YES
This system has a LOCK-OUT feature where the user can press button number 4 on any of the programmed remote controls to disable all wireless/wired accessories until button 3 is pressed on the remote to enable the system.
AC Sliding Gate Automation System

Remember, You are welcome to ask more questions! You can always rely on Automotionplus for quality products and great service, we are only a phone call away or please visit our showroom.
