Product SKU: APC-CBSW24

APC 24V DC/LV Swing Gate Control Board

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

APC 24V DC/LV Swing Gate Control Board

Product SKU: APC-CBSW24

  • In Stock

Price :

$230.00

Get More Info..

Product Information

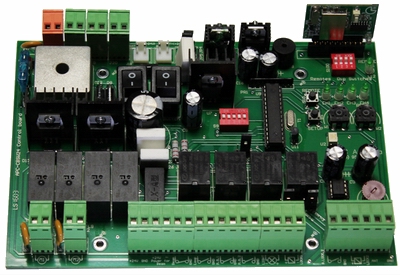

APC CBSW24 Swing Gate Control Board

Suitable for DC & Low Voltage Powered Applications
Suitable for Single & Double Swing Gates

Please note this product is a replacement control board for an existing APC gate automation system. Warranty is only valid when used in conjunction with the APC equipment. No guarantee is given when used for another brand other than the APC brand.

APC CBSW24 Swing Gate Control Board
Features:
- 4 Channels built into the control board to allow the following:
* Channel 1 is for operating a double gate
* Channel 2 is for operating pedestrian function on a double gate system (opening one gate only) OR operating a single gate system
* Channel 3 is for operating party mode (to cancel the auto close for a particular cycle)
* Channel 4 is for operating a second lock (this can operate an extra lock fitted to a stand alone pedestrian gate)
- Overcurrent adjustment trimmers allows for further adjustment to suit most gate sizes and gate weights.
- Adjustable auto close timer allowing the user to set auto close up to 3 minutes.
- The automatic closing can be cancelled using button number 3 when expecting a visitor to arrive through the party mode function.
- An Electric Lock (power on to unlock) or a Magnetic lock (power off to unlock) can be connected to the control board.
- Connection of a DC light using up to 20W, this output is active during the opening and will stay active until the gates are closed.
- Accessories Constant Output: Constant 24V DC output for accessories.
- Accessories Switching Output: 24V DC output only on the closing cycle to conserve power.
- PE Safety Sensor connection input: Energy star output, with zero consumption on standby to conserve battery power.
- Loop Input: Connection of exit wand or loop detector sensor for opening only.
- PB1 Input: Connection for push buttons, keypads and other access control for single gate operation.
- PB2 Input: Connection for push buttons, keypads and other access control for double gate operation.
Please note: Connection of a Magnetic lock, DC light or loop detector/exit wand sensor requires an additional power supply to be used due to the high power consumption.

Please Note: This APC control board is for DC & Low Voltage Powered Applications. For Solar Powered Applications, please see the Control Panels & Control Boards Category.


Specifications


AC Input 21-28V AC
Standby Current Draw 30-40mA
Frequency 433.92MHZ Secure Rolling Code
Battery Output 27V
Accessories Output 24V DC +/-10% 200mA Max
Contact Inputs Single & Double Gate Open/Close, Single & Double Gate Open Only
Magnetic Lock Relay (N/C) 12-24V DC Supply Required (500mA Max)
Pedestrian Lock (CH4) 12V DC 250mA
Light Output Relay (N/O) 12-24V DC Supply Required (20W Max)
PE Sensor Input Normally Closed (Voltage Free)
Loop Detector Input Normally Open (Voltage Free)
Open/Close Input Normally Open (Voltage Free)
Electric Lock Output Internally Powered
Magnetic Lock Output Power Supply Required
Light Output Power Supply Required
Motor Output Connection Two wires (including limit switches)
