Product SKU: i-TouchV7L-BK-298F

7 Inch Black Monitor with 105 Degree Flush Mount Stainless Steel Outdoor Station

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$413.00 $590.00

  • Simple Line by Line GUI, Easy Installation 2 Wire System, Non Polarity System

  • Kit Includes

    01 7 Inch L Series Add On Monitor(QTY: 1)
    02 Stainless Steel 105 Degree Flush Mount Outdoor Station(QTY: 1)
    03 Combo Power Supply and Seperator for Eyevision 2 Wire Intercoms(QTY: 1)
    04 20m Cable, Twisted pair 1mm thick for use with the Eyevision 2 wire systems(QTY: 1)
  • Add-On Items
  • Product Information

Add-On Items (Discounted when purchased along with this Kit)

Product Information























Complete Video Intercom System including 7" Touch Screen Monitor, Camera Door Station, Combo Power Supply, 20m Cable

2 Wires Video Intercom System with Camera Door Station

This easy to use 2 Wire Video Intercom System package comprises of an Eyevision® touch screen monitor, an Eyevision® weatherproof outdoor station, A combo power supply and 20m of cable.
This intercom system can be used for video monitoring of the front entrance aswell as for audio communication between the visitor and the owner of the house.

Monitor's Features

















2 Wires Video Intercom System with Camera Door Station

2 Wire Technology
The Eyevision® 2 wire systems are very powerful and highly expandable. They will deliver high quality video and audio functions as well as a sleek graphic user interface.
The 2 wire technology is a non polarity easy 2 wire connection.

2 Wires Video Intercom System with Camera Door Station

Night Ring Volume
This system has the option of adjusting the volume. There is a flexible option of setting the volume from mute and up to 10, making it convenient for night time.

2 Wires Video Intercom System with Camera Door Station

Internal Intercom
Internal intercom between all installed monitors, allowing each monitor connected to be able to call any other monitors, once another monitor answers then their will be a hands free communication between the 2 monitors.

2 Wires Video Intercom System with Camera Door Station

Ringtones
This system has 12 Door bell melodies to choose from.

2 Wires Video Intercom System with Camera Door Station

Touch screen
7" Colour TFT LCD touch screen operation with easy to use menus.

2 Wires Video Intercom System with Camera Door Station

Additional Audio Handset Connection
Additional Audio handsets can also be connected to the system, allowing audio communication and unlocking from desired locations around the house.

2 Wires Video Intercom System with Camera Door Station

Monitor Desk Top Stand
The monitor desk top stand is handy for study's, work areas and other desk or benchtop applications. It is availble in gloss black and gloss white and can be purchased from the 2 wire accessories section.

2 Wires Video Intercom System with Camera Door Station

Additional Monitors Connection
Additional monitors can be connected to the system, allowing full communication throughout all the connected monitors via the use of EV-DBC4A-M which can be found under 2 Wire Accessories.

Additional Monitor Features:

- Ultra thin with total depth of 23mm.
- True colour 7" Digital TFT screen.
- Touch screen operation with easy to use menus.
- Touch sensor buttons for quick access.
- OSD Graphic menu display.
- Multi monitors connections with the use of EV-DBC4A-M distributors (max 5 monitors)



Monitor's Specifications

Power Supply

24V DC Supplied by system power supply

Power Consumption

Standby 15mA, Working 400mA

Screen size

7" Digital Colour LCD

Resolution

800*3(RGB)*480 pixels

Wiring

2 Wires, non-polarity

Monitor Dimension

125(H) x 225(W) x 28(Thick)

i-touch V7L Touch Screen Menu Interface





2 Wires Video Intercom System with Camera Door Station

2 Wires Video Intercom System with Camera Door Station

2 Wires Video Intercom System with Camera Door Station


Main Menu:
The Main Menu is the starting point, displaying the available functions.
Pressing "Monitor" will display the view of the outside.


Monitor Select:
If multiple door stations are installed, pressing "Manual Monitor" will allow the user to choose from all the installed door stations/cameras.


Intercom Function:
The intercom function allows for all installed monitors to be able to communicate with one another via intercom calling.

2 Wires Video Intercom System with Camera Door Station

2 Wires Video Intercom System with Camera Door Station

2 Wires Video Intercom System with Camera Door Station


User Setup:
The user set-up function allows the user to set up the call tone for the door station, call tone for the intercom, doorbell tone, the date and time, the ringing volume, the night ring volume, and more.


Date and Time Settings:
The date and time on the unit can be adjusted through the user set up.

Recess Mount Door Station







Recess Mount door station with built-in 105° camera, stunning modern appearance, slim design, weatherproof, stainless steel face plate and 2 channel operation (second lock via add on relay EV-RLC-S).
Please note, the add on relay component required to operate the second lock output can be found in the 2 wire systems accessories.

2 Wires Video Intercom System with Camera Door Station

Features:

* 2 Channels output (second lock via add on component EV-RLC-S which can be found under 2 wire accessories)
* Supports an exit button connection or RF receiver/transmitter
* Supports up to 4 door stations connection
* Weatherproof IP54
* Light illumination
* Recess mount, supplied with a recess box
* Stainless steel face plate
* Colour CCD Pinhole-lens camera
* Camera view 105 º
* Name plate display with back light

Specifications:
Electric striker power output: 300mA from the door station
Number of relays: 2 (second using an add on RLC)
Number of channels: 2
Working temperature: -15ºC ~ 55 ºC
Power·Consumption: 2 W in standby, 8 W in working

Door Station Dimensions

2 Wires Video Intercom System with Camera Door Station

Combo Power Supply

The EV-PS-C6 is a combo power supply and power seperator for the Eyevision® 2 wire systems. It has a simple Phoneix connection for the BUS line for the Door station(s) and monitor(s).

Key Features:

- Australian Standards
- 27V 1.5A Power Source
- Din Rail Mounting (Supplied)
- Pre Wired with Australian Standard Power Plug

Compatibility:

All Eyevision® 2 Wire Home Systems

2 Wires Video Intercom System with Camera Door Station

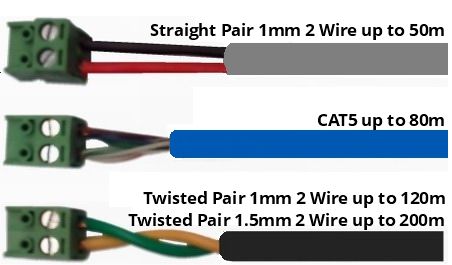

Cable Requirements

2 Wires Video Intercom System with Camera Door Station

CAT5 up to 80m between the door station and each apartment.
Straight Pair 1mm2 up to 50m between the door station and each apartment.
Twisted Pair 1mm2 up to 120m between the door station and each apartment.
Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.

Recommendation: The Eyevision 2 wire monitors are a very powerful monitor and will deliver high quality video and audio, it is recommended to use the best quality cables that will suit your installation, use cables with very good quality copper conductor in order to maximize the clarity of the i-Touch V7.
If you are not committed to cable such as CAT5 or Straight Pair, then it is highly recommended to use a Twisted pair between 1mm2 or 1.5mm2, using this cable will guarantee the best optimized results in video and audio transmission for up to 200m.
Twisted pair cables manufactured for this system are available at very competitive prices, please click here

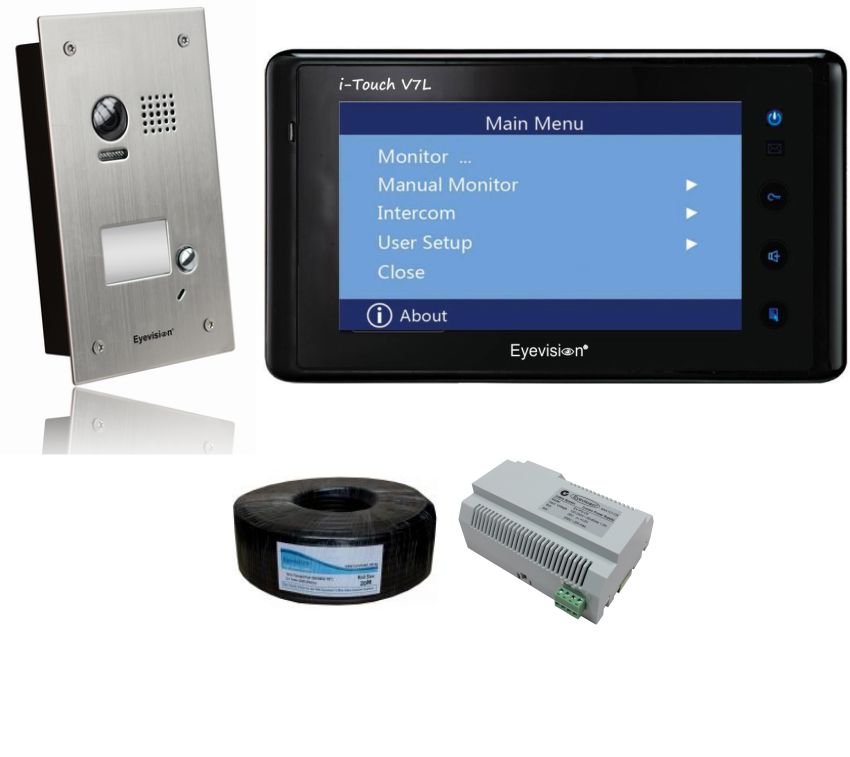

Package Contents:

1 x i-touchV7L Touch Screen Monitor
1 x EV-298F Camera Door Station
1 x EV-PS-C6 Combo Power Supply
1 x 20m of Cable


Your Customised Kit Includes:

No Changes.
