Product SKU: GTR50-SG12W-H7-WH-H298KP

5m Ring Top Gate including Hardware + Heavy Duty 600kg Sliding gate system (Battery Backup) + Hybrid Intercom System

  • In Stock

  • fdFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
  • Price :

    $2,526.72

    Get More Info.. Get More Info..

    Product Information

    Ultra Combo  17
    - 5m Wide Sliding Gate (Flat Top Ring Design)
    - Gate Automation System (APC-SG12W Heavy Duty 12V DC Sliding Gate Motor)
    - Color Video Intercom System (Eyevision® 7" Hybrid Video Intercom System)


    Important Note:
    This advertised gate including the complete automation system and accessories
    are suitable for pickup and delivery due to the excessive freight cost.

    PICKUP: Bring your trailer or truck with you.
    DELIVERY: Please call us on (03) 9532-0804 for a shipping quote.
    Shipping Quote for Gate, Boom Gate and Gate Automation Systems
    Product Code: GTR50-SG12W-H7-WH-H298KP


    This is a complete 5m Sliding Gate, Automation & Hybrid Video Intercom System Package allowing you to open the sliding gate via remote controls or the supplied intercom monitor.


    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package

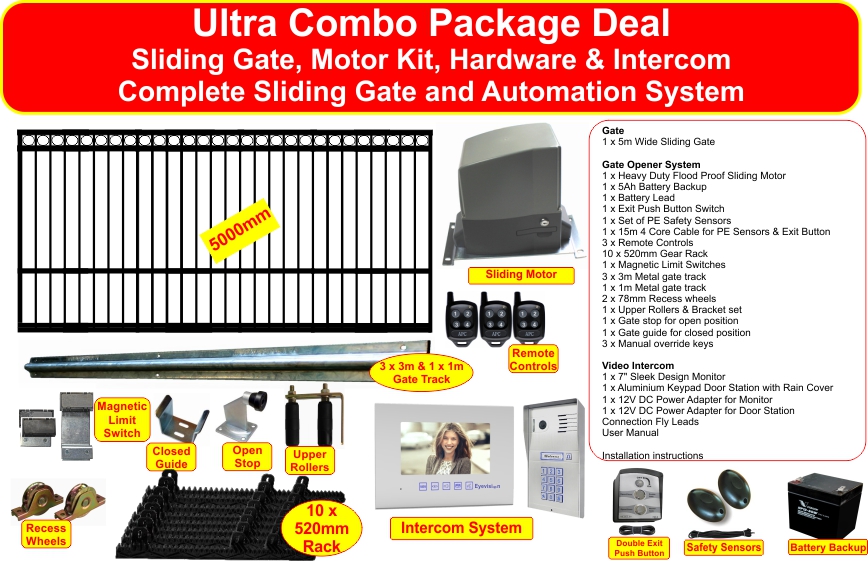

    Combo Package Contents

    Gate
    1 x 5m Wide Sliding Gate with Flat Top Squares Design

    Gate Opener System
    1 x Heavy Duty Flood Proof Sliding Motor
    1 x 5Ah Battery Backup
    1 x Battery Lead
    1 x Exit Push Button Switch
    1 x Set of PE Safety Sensors
    1 x 15m 4 Core Cable for PE Sensors & Exit Button
    3 x Remote Controls
    10 x 520mm Gear Rack
    1 x Magnetic Limit Switches
    3 x 3m Metal gate track
    1 x 1m Metal gate track
    2 x 78mm Recess wheels
    1 x Upper Rollers & Bracket set
    1 x Gate stop for open position
    1 x Gate guide for closed position
    3 x Manual override keys

    Video Intercom
    1 x 7" Sleek Design Monitor
    1 x Aluminium Keypad Door Station with Rain Cover
    1 x 12V DC Power Adapter for Monitor
    1 x 12V DC Power Adapter for Door Station
    Connection Fly Leads
    User Manual

    Installation instructions


    Optional Upgrades - For Installations with no power at the gate:

    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package

    Motor Features: APC-SG12W-DC-JK


    Durable, Weatherproof & Flood Proof Motor
    Water tight flood proof motor, all mechanics & limit switches are completely concealed making it completely weather, dust & flood proof

    All In One Motor
    All in one motor with built in control board, limit switches and battery back-up
    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package
    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package
    Manual Override
    Built in manual override for emergencies
    Metal Pinnion (NO PLASTIC OR NYLON)
    Strong Metal Cut Pinnion ensuring the highest durability
    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package
    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package
    DC Motor & Steel Worm Drive
    12V DC Motor with Steel Worm Drive (no plastic or nylon)
    Metal Transfer Gearbox (NO PLASTIC OR NYLON)
    Strong Metal Transfer Gearbox working in conjunction with the above metal pinnion
    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package
    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package

    Reliability & Durability - Durable strong sliding gate motor constructed of all metal gears. Built in smart control board, magnetic limit switches and battery compartment (to hold 1 x 5Ah back up battery supplied in DC & Low Voltage applications and to hold 2 x 9Ah batteries supplied in solar applications).

    All Metal Gears (No Nylon or Plastic) - The worm drive, gearbox and pinnion are all constructed of solid metal ensuring strength and durability.

    Flood Proof & Water Tight- IP57 rated meaning that it can handle temporary water immersion of up to 1 metre (3 feet) of fresh water for up to 30 minutes.

    Magnetic Limit switches - The motor is fitted with magnetic limit switches to ensure two things:
    1. A water tight seal around the motor to stop dust, water and insects from getting into the motor as there is no open areas or protuding components such as limit switches (magnetic limit switches built in underneath the motor cover).
    2. Wear and Tear is minimised due to less mechanical workings.

    Manual Override - Simply unlock with the key, pull the lever and the gate will be free and can be opened manually in the case of an emergency or a power outage.

    Remote Controls - The APC 4 button Remote Controls that are supplied can be used to operate different functions supported by the three channel control board.

    Button 1 is for full gate operation
    Button 2 is for using the pedestrian function (partial opening of the sliding gate)
    Button 3 is for the party mode feature (to cancel the auto close for a particular cycle - for automatic close users)
    Button 4 is vacant allowing the user to pair in an APC receiver into another device such as a garage door.

    PE Safety Sensor Connection - Energy star output, with zero consumption in standby to conserve power. PE Safety sensor connection is highly recommended.

    Adjustable Auto-Close Timer - Adjustable Auto Close time up to 3 minutes. If automatic close is switched on, PE Safety Sensors are recommended as a safety precaution to stop the gate from closing if there is a car or object in the sensors view.

    Party Mode (For Automatic Close Users) - The automatic closing can be cancelled for a particular cycle using button 3 on any of the remote controls when expecting a visitor to arrive.

    Motor Speed Adjustments - Adjustable motor speed allowing the user to adjust the fast and slow speeds of the motor.

    Overcurrent Adjustment - Built in overcurrent adjustments allow for further adjustment to suit all gate sizes and weight.

    A Wide Range of Controlling Options (these optional items and accessories can be found on our website)
    Push Button Switches (wired or wireless)
    Long Range Remote Control
    Keypads (wired or wireless)
    Safety Sensors
    Intercom System
    Automatic Timer (external device)
    GSM Module (GSM telephone dialer)

    Control Board Features


    Low Consumption APC 12V Control Board
    This smart control panel is easy to connect and easy to set up. It is built in underneath the motor cover allowing for a simple and compact installation.

    Remote Controls
    The APC 4 button Remote Controls that are supplied can be used to operate different functions supported by the three channel control board.

    Button 1 is for full gate operation
    Button 2 is for using the pedestrian function (partial opening of the sliding gate)
    Button 3 is for the party mode feature (to cancel the auto close for a particular cycle - for automatic close users)
    Button 4 is vacant allowing the user to pair in an APC receiver into another device such as a garage door.

    PE Safety Sensor Connection
    Energy star output, with zero consumption in standby to conserve power. PE Safety sensor connection is highly recommended.

    Adjustable Auto-Close Timer
    Adjustable Auto Close time up to 3 minutes. If automatic close is switched on, PE Safety Sensors are recommended as a safety precaution to stop the gate from closing if there is a car or object in the sensors view.

    Party Mode (For Automatic Close Users)
    The automatic closing can be cancelled for a particular cycle using button 3 on any of the remote controls when expecting a visitor to arrive. For example, if expecting a visitor to arrive, number 3 can be pressed on the remote control whilst the gate is still in the open position and the gate will remain open until the remote is pressed again.

    Motor Speed Adjustments
    Adjustable motor speed allowing the user to adjust the fast and slow speeds of the motor.

    Overcurrent Adjustment
    Built in overcurrent adjustments allow for further adjustment to suit all gate sizes and weight.

    A Wide Range of Controlling Options (these optional items and accessories can be found on our website)
    Push Button Switches (wired or wireless)
    Long Range Remote Control
    Keypads (wired or wireless)
    Safety Sensors
    Intercom System
    Automatic Timer (external device)
    GSM Module (GSM telephone dialer)

    Connection of a DC light
    Connection of a DC light using up to 20W, this output is active during the opening and will stay active until the gates are closed.

    Please note: In a DC or Low Voltage application, connection of a DC light requires an additional power supply to be used due to the high power consumption.


    APC Remote Controls

    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package
      APC remote controls with high security rolling code 433.92MHZ. Please see the 4 channel control panel features above for remote control functions.

    Double Exit Push Button Switch

    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package
      Low Voltage Double Push Button Switch with isolation key switch for operating automatic gates or garage opening systems. This switch can be wired to operate any device requiring momentary switching (switch is closed while pressed and open when not pressed).
    Please note: This double switch supplied has a button labelled double gate & a button labelled master gate, in this sliding gate application the user can wire in the first button to open and close the gate fully and the second button (master gate) to operate the pedestrian function to allow the gate to open partial way.

    Safety Sensors

    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package
      If PE sensors are installed:
    - The gate will not close while the beam is obstructed.
    - The gate will stop and re-open if an object obstructs the beam.
    The sensors are wired back to the control panel using the supplied cables.
    Specifications:
    Detection technology: Infrared
    Range: 15m max.
    Frequency: 1.92Khz
    Power: 12-24V AC/DC
    Input: RX 15mA, TX 30mA
    Operating temperature: -20 to 70 degrees
    Relay output: 1Amp max 30V
    Dimension: 49.2 x 76 21mm

    Gate Stop

    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package
      Gate Stop

    Heavy duty anodized metal gate stop with rubber end.

    "U" Guide

    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package
      "U" Guide and stop for sliding gates


    The "U" Guide is installed at the closing end of the sliding gate.

    Motor Dimensions

    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package

    Motor Specifications

    IP Rating IP57
    Power 56W
    Max Thrust 250N
    Motor Speed 1800RPM
    Operating Temperature -20° ~ 55°
    Maximum Weight 400kg (please see above)

    Intercom Features: EV-H7-WH-H298KP

    Sleek Looking Ultra High Gloss White 7" Monitor coupled with a Weatherproof Aluminium Door Sation. This highly expandable system can be connected to the internet router in the home through the use of an optional accessory called a Net-Link (this net-link is not supplied in this package but can be purcahsed as an add on) which will then allow the system to ring up to four programmed smart phone or tablet devices every time the doorbell rings. Monitoring the outside of the residence and capturing a picture or small video also becomes possible from anywhere in the world when the Net-Link is connected. A total of four indoor monitors and two door stations can be connected to the system.


    HYBRID 4 Wire Video Intercom System
    Hybrid Video Intercom System offers the best of both worlds, an easy-to-use touch screen high quality video intercom system along with the option to connect the intercom system to your Smart Phone or Tablet Device

    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package


    How Does It Work: Without a Net-Link

    When the visitor presses the call button on the door station, any connected indoor monitors will ring. The user is then able to answer the call and has all the following functions:

    1. Talk to the visitor
    2. Transfer the visitors call to any other installed monitor (all installed monitors will ring if the transfer button is pressed)
    3. Open the door or gate

    Additional to this, the user can enter a code into the built in keypad when standing at the gate OR door to open the connected door striker or automatic gate.


    How Does It Work: With a Net-Link (Can be purchased as an add on to this package)

    When the visitor presses the call button on the door station, any connected indoor monitors will ring. The system will also call any/all the Smart phones and Tablets programmed to the system, the user is then able to answer the call from any installed monitors inside the house or any smart phones/tablets programmed to the system and has all the following functions:

    1. Talk to the visitor
    2. Transfer the visitors call to any other installed monitor (all installed monitors will ring if the transfer button is pressed) - this function can be used when the user answers the call on the monitor not the smart phone or tablet
    3. Open the door or gate
    4. Take a video or take a picture (on the tablet or smart phone through the application)

    Additional to this, the user can enter a code into the built in keypad when standing at the gate OR door to open the connected door striker or automatic gate.

    The user can use the application installed on the Smart Phone/Tablet to monitor real time (LIVE) where the door station is installed. Again the user can monitor, take a video or capture a picture whilst using the application.

    The APP can be downloaded FREE of charge from the Google PLAYSTORE (Android) or from the APP STORE (iPhone or iPad) (Further details in the Net-Link Description Below).


    Net-Link


    Net-Link is an add-on accessory which is controlled via an application called Controlcam which can be downloaded through the Google PLAYSTORE (Android) or from the APP STORE (iPhone or iPad). With this application the user can view, talk and take photos & videos on demand onto their mobile phone or tablet device. The Net-Link can be connected to the internet in either of following ways:
    1. Wi-Fi Connection between the router and the Net-Link.
    2. RJ45 Ethernet Cable Connection between the router and the Net-Link.
    This component can be found in the Hybrid Video Intercom Systems category.

    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package

    Wiring Diagram of Hybrid System Full Capacity

    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package


    Wiring Diagram of Hybrid System with One Door Station, Two Monitors & Net-Link

    Complete Sliding Gate and Sliding Gate Opener Automation System and  Hybrid Video Intercom System Package

    Note About Cable

    The recommended cable to be used with the Eyevision® Hybrid Video Intercom System is 4 Core Shielded .5mm up to 70m distance. This 70m cable distance is calculated from the outdoor station to the furthest monitor inside the home.

    Package Contents


    - 1 x 7" Sleek Design Monitor
    - 1 x Aluminium Keypad Door Station with Rain Cover
    - 1 x 12V DC Power Adapter for Monitor
    - 1 x 12V DC Power Adapter for Door Station
    - Connection Fly Leads
    - User Manual
    Please Note: Net-Link is not supplied in this package, please find Net-Link for purchase under the Hybrid Video Intercom Systems Category or see Package including the Net-Link.


    Specifications

    Power Supply for Monitor 12V DC 1.0A
    Power Supply for Door Station 12V DC 1.0A
    Display Resolution 800*3(RGB)*480 Pixels
    Camera Resolution 650TVL
    Camera Angle 70 degrees
    Communication Duration 120 Seconds
    Screen 7" TFT Monitor
    Rain Cover Supplied
    Night Viewing 0.1 LUX
    Keypad Illuminated Mechanical Keys
    IP Rating for Door Station IP 55
    Door Station Construction Aluminium
    Mounting for Door Station Surface Mounted with Rain Cover
    Mounting for Monitor Slip Onto Mounting Plate
    Unlocking Time Programmable 1-99 Seconds
    Compatible with Net-Link Yes (please see description above)
    Connections Plug-In
    Compatible APP Controlcam (when used with Net-Link - Please see description above)
    Compatibility IOS or Android (when used with Net-Link - Please see description above)
    Monitor Dimensions: 235mm (W) x 167mm (H) x 17mm (D)
    Door Station Dimensions: 110mm (W) x 215mm (H) x 42mm (Depth at highest point of rain cover)
    110mm (W) x 215mm (H) x 32mm (Depth at lowest point of rain cover)

    Gate:(Flat Top Ring Design)


    Construction: Black powder coated metal gate featuring a strong 40mm x 40mm x 1.5mm steel frame with an 80mm strong bottom channel and additional support rail 400mm from the bottom of the gate.


    Sliding Gate with Flat Top Rings Design

    Please note:
    The gates are in good condition but may have a scratch due to handling.
    This and all other advertised gates are suitable for pickup from our warehouse in Moorabbin.
    Bring your trailer or truck with you, this limited stock will not last.
    For quotes on courier delivery please call us on (03) 9532 0804.
