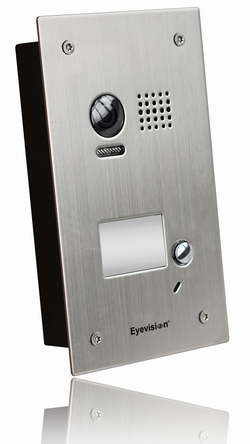

Stainless Steel 105 Degree Flush Mount Outdoor Station

Product SKU: EV-D298F

  • In Stock

Price :

$250.00

Get More Info.. Get More Info..

Product Information

Add-On Stainless Steel Recess Mount Door Station for Eyevision 2 wires video intercom systems

2 Wires NO Polarity

Recess Mount door station with built-in 105° camera, stunning modern appearance, slim design, weatherproof, stainless steel face plate, and 2-channel operation (second lock via add-on relay EV-RLC-S).


Please note, the add-on relay component required to operate the second lock output can be found in the 2 wire systems accessories.
This recess mount stainless steel door station is suitable for use with the Eyevision® 2 Wire A-Bus Range of intercom systems.



Add-On Stainless Steel Recess Mount Door Station for Eyevision 2 wires video intercom systems

Features:

* 2 Channels output (second lock via add-on component EV-RLC-S which can be found under 2 wire accessories)
* Supports an exit button connection or RF receiver/transmitter
* Supports up to 4-door stations connection
* Weatherproof IP54
* Light illumination
* Recess mount, supplied with a recess box
* Stainless steel face plate
* Colour CCD Pinhole-lens camera
* Camera view 105 º
* Nameplate display with backlight



Specifications:

Electric striker power output: 300mA from the door station
Number of relays: 2 (second using an add-on RLC)
Number of channels: 2
Working temperature: -15ºC ~ 55 ºC
Power·Consumption: 2 W on standby, 8 W on working





Door Station Dimensions

Add-On Stainless Steel Recess Mount Door Station for Eyevision 2 wires video intercom systems

Cable Requirements

Eyevision® 2 wire Cable Requirements



Cabling

  • CAT5 up to 80m between the door station and each apartment.
  • Straight Pair 1mm2 up to 50m between the door station and each apartment.
  • Twisted Pair 1mm2 up to 120m between the door station and each apartment.
  • Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.



Recommendation:

The Eyevision® 2 wire monitors are very powerful and will deliver high-quality video and audio, it is recommended to use the best quality cables that will suit your installation. Use cables with very good-quality copper conductors in order to maximize the clarity of the system.

This is why we provide a free high-quality 20m twisted pair with every monitor. Using this cable will guarantee the best-optimized results in video and audio transmission for up to 200m.

Larger sizes of these twisted pair cables manufactured for this system are available at very competitive prices.
