Super Duty Feature Rich 24V Italian Sliding Gate Motor Overview
At a glance
The Proteous 1000 SUPER DUTY system boasts a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.
System Features
Capacity
60% Duty Cycle
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
1000KG Capacity
Ultra long 10 metre gate capacity
Everything and more as standard..
Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)
Special Features
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Safety Features
Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Simple to use LCD interface
Control Board Overview
Accessories Compatibility and Controlling Options
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
Remote Features
Dimensions
Four point Tilt Leveling
24V 60 Watt Solar Panel
Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
Specifications
Maximuim Power
60W
Optimum Operational Voltage
36V
Open Circuit Voltage
43.2V
60W Panel Dimensions
805 x 535 x 30mm
APC Uno Large Standalone Solar System
The APC Uno Large is an articulate all-in-one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries.
Easy to access with the tool free clip lock system
Can be secured with a small padlock
Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each
Uno Large Box Dimensions
Typical Configuration

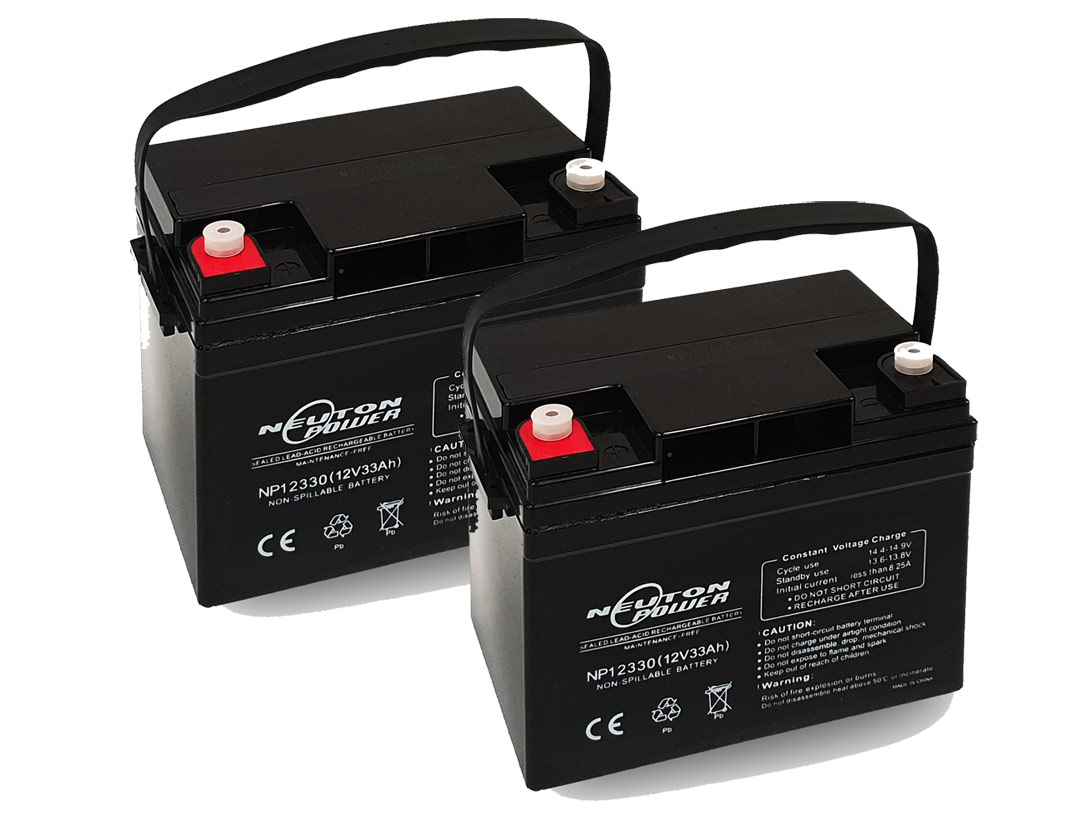

24V 33aH Battery System
Supplied with the automation kit the 24V 33aH battery system will allow for continued use of the gate system wether in day or night. The system can operate for residential or commercial use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sun light. When the system batteries are fully charged it will continue to float charge to keep the batteries topped up ready for use.
Specifications
Transformer
24V (Uno Solar System)
Motor Output Voltage
24v DC
Max Operating Power
550 Watts
Maximum Gate Length
10 Metres
Maximum Gate Weight
1000 KG
Speed
26 cm/s
Working temperature
-20° - 50°
RF
APC Rolling code 433.92mhz
Motor Duty Cycle
60%
Auxiliary Inputs
0V Momentary Pulse
Accessories Voltage
24V DC
Operator Inbuilt Safety
Over current + Encoder Sensitivity
APC-PE2000 Photoelectric Safety Sensor Set
The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.
Up to 15 Metres Infared beam operating distance
Only powers on when the command is given to close the gates
Alignment led to assist in the installation process
Weather sealed with the supplied cover seals
Easy screw down wiring termination
APC-KP1C Wired keypad with built in card reader
The APC-KP1C keypad is a waterproof low voltage keypad which is wired back to the control board using the supplied cable roll. It is of alloy construction and extremly robust. It can be seen day or night thanks to its backlit keys. Two EM swipe cards are also supplied suitable for any temporary or permanent user that need to gain access into the property without a pin code.
Key Features:
Built in EM card reader.
Robust cast alloy construction
Resin filled for ultimate weatherproofing
Blue Backlit keys
Anti-tamper feature
IP66 Waterproof rated and suited for outdoor and indoor environments.
Up to 1000 users for pin code and EM card.
Single Channel Loop Detector
The loop detector sensor module that is used wherever vehicles need to be detected to automatically trigger the system to operate. The loop detector module is installed within the system and is powered by the system itself.
From the loop detector module the supplied induction loop cable is fed and layered into a cutout in the driveway as per the illustration below. The system is supplied with a 40m roll of teflon insulated cable which can be upgraded to a larger roll if necessary based on the loop size and distance from the module.
Installation Example
Loop Dimensions
Approximate Loop Sizes
Driveway Width
Loop Size
3m - 4.5m
1.8m x 1.2m
4.8m - 5.4m
2.4m x 1.2m
5.8m - 6.7m
3m x 1.2m
7m - 7.9m
4.3 x 1.2m
Universal Flashing light with Built In Antenna
Multiple options for operating voltage from 12V - 265V in AC or DC
Ultra Low Consumption of less than 3W
Two operating modes available: Flashing illumination (1HZ) or Solid Illumination
Bright Orange Casing for Great Day and Night time visibility
Built in booster antenna connection
Simple wiring using two core for the light and RG58/59 for antenna
IP54 outdoor Rating
(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli
Interlocking Gear Racks Made in Italy by Stagnoli
The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation
Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.
Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware
This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.
Modular gear racks kit includes;
A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)
